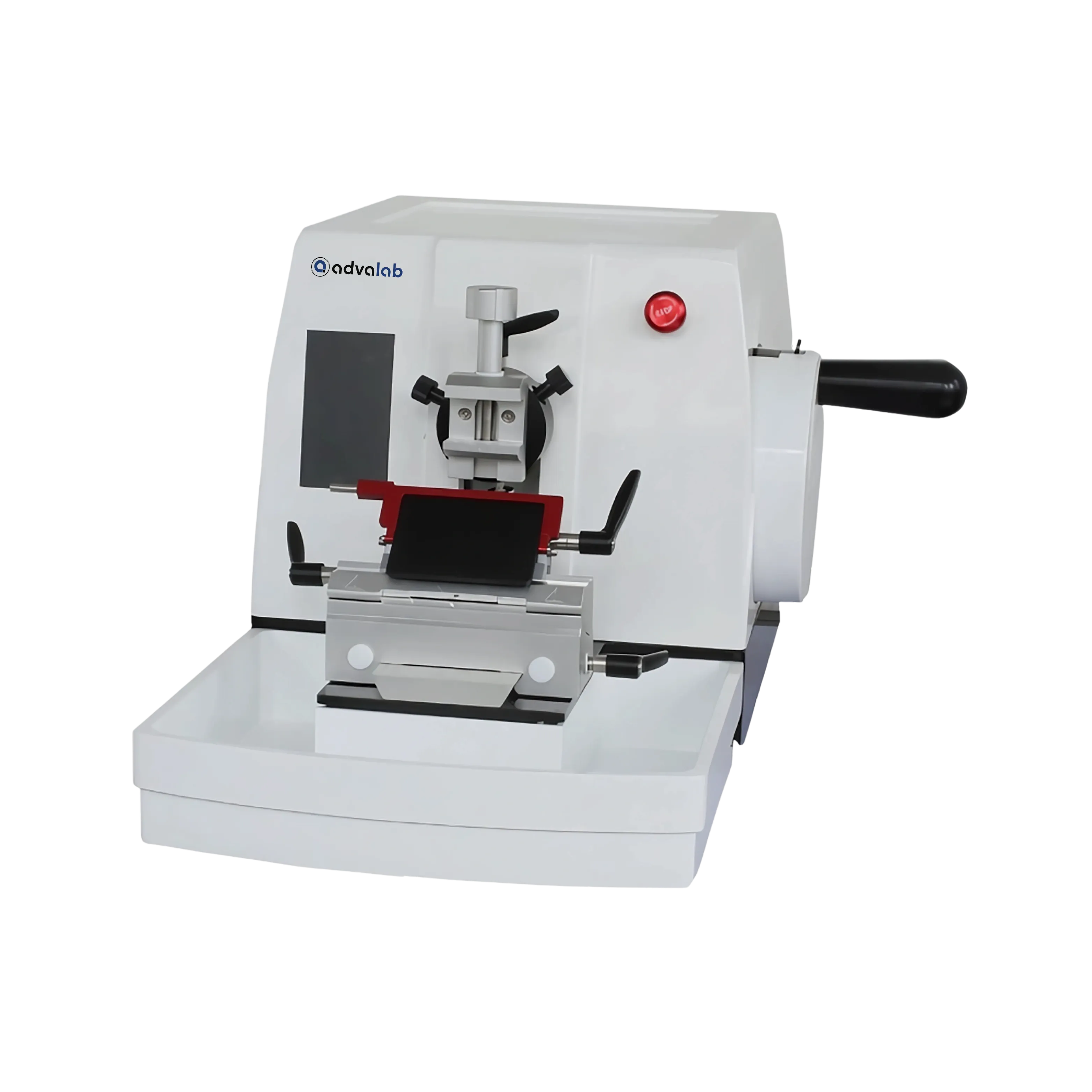

Automatic Microtome ADAM-501 provides a section thickness range from 0.5 to 100 µm, enabling accurate slicing of different tissue specimens. Its adjustable thickness settings allow precise, reproducible sectioning for reliable results. The trimming range removes excess material for uniform samples. Two handwheel safety locks ensure operator protection. This unit is widely used in histopathology laboratories to prepare high-quality tissue sections for accurate microscopic analysis and diagnostics.
| Section Thickness Range | 0.5 to 100 µm (depending on increments) |
|---|---|
| Section Thickness Setting |
0.5 to 5 µm in 0.5 µm steps 5 to 20 µm in 1 µm steps 20 to 60 µm in 5 µm steps 60 to 100 µm in 10 µm steps |
| Trimming Thickness Range | 1 to 600 µm |
| Trimming Thickness Setting |
1 to 10 µm in 1 µm steps 10 to 20 µm in 2 µm steps 20 to 50 µm in 5 µm steps 50 to 100 µm in 10 µm steps 100 to 600 µm in 50 µm steps |
| Specimen Retraction | Adjustable in 1 µm increments |
| Net Volume | 0.18 CBM |
| Maximum Specimen Size (H × W) | 55 × 45 mm |
| Horizontal Specimen Stroke | 25 mm |
| Vertical Specimen Stroke | 60 mm |
| Guide Rails and Mechanism | High-precision rails for smooth and durable cutting |
| Safety Features | Blade clamp, handwheel lock, anti-rolling plate |
| Power Supply | 220 V / 50 Hz, 110 V / 60 Hz |
| Overall Dimensions (W × D × H) | 570 × 510 × 490 mm |
| Net Weight | 45 kg |
This Automatic Microtome ADAM-501 is used in histopathology laboratories to prepare precise tissue sections for high-quality slide production and accurate microscopic analysis.
