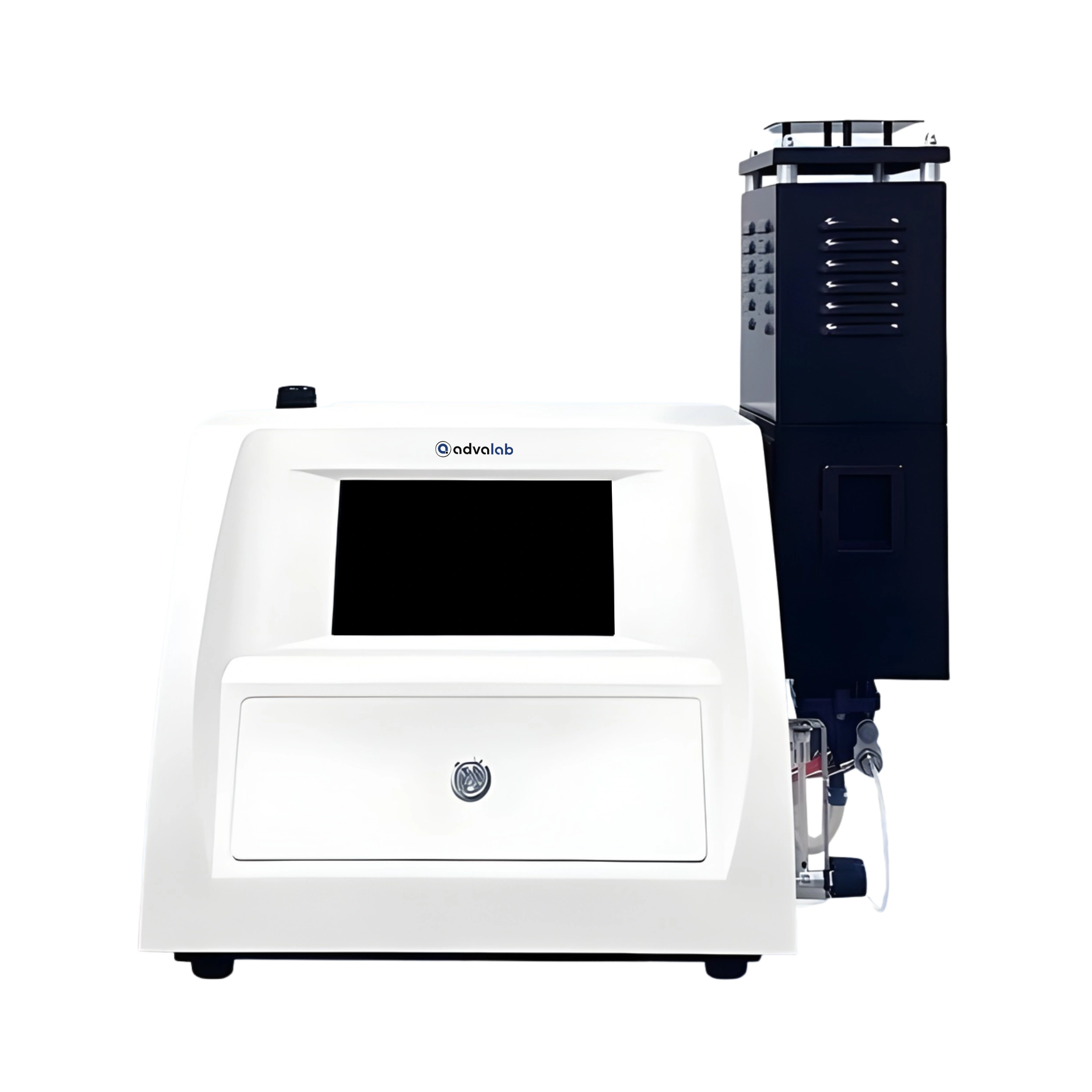

Flame Photometer ADFP-505 achieves detection limits as low as 0.156 ppm for potassium and 0.184 ppm for sodium. It analyzes 2 elements simultaneously with dual-channel operation. Automatic calibration ensures reproducibility and linear consistency. This system delivers quick performance with results available in ≤8 seconds. Powered by LPG and an external air compressor for stable flame function. Ideal for applications in clinical diagnostics, food quality, agriculture, and petrochemical testing.
| Testing Elements | K, Na, Li |
|---|---|
| Channels | 3 |
| Display Value | Concentration / Flame Intensity |
| Measuring Range |
K: 0.15 – 100 ppm Na: 0.18 – 100 ppm Li: 0.10 – 30 ppm |
| Detection Limit |
K: ≤0.156 ppm Na: ≤0.184 ppm Li: ≤0.10 ppm |
| Linearity Error |
K: ≤0.195 ppm Na: ≤0.69 ppm Li: ≤0.1449 ppm |
| Display | Digital LCD |
| Response Time | ≤ 8 s |
| Aspiration Rate | < 3 mL/min |
| Stability | ≤3% (15 s), ≤5% (6 min) |
| Reproducibility | ≤2% |
| Calibration Curve | Automatic Linear Calibration |
| Fuel Supply | LPG + External Air Compressor |
| Output | USB / Printer Interface |
| Power Supply | AC 220 V ±10%, 50 Hz ±1 Hz, 30 W |
| Dimensions (L×B×H) | 570 × 530 × 400 mm |
| Net Weight | 18 kg |
| Gross Weight | 20 kg |
The Flame Photometer ADFP-505 is ideal for the precise quantification of sodium and potassium in liquids. It is extensively used in clinical, agricultural, petrochemical, and food quality laboratories.
