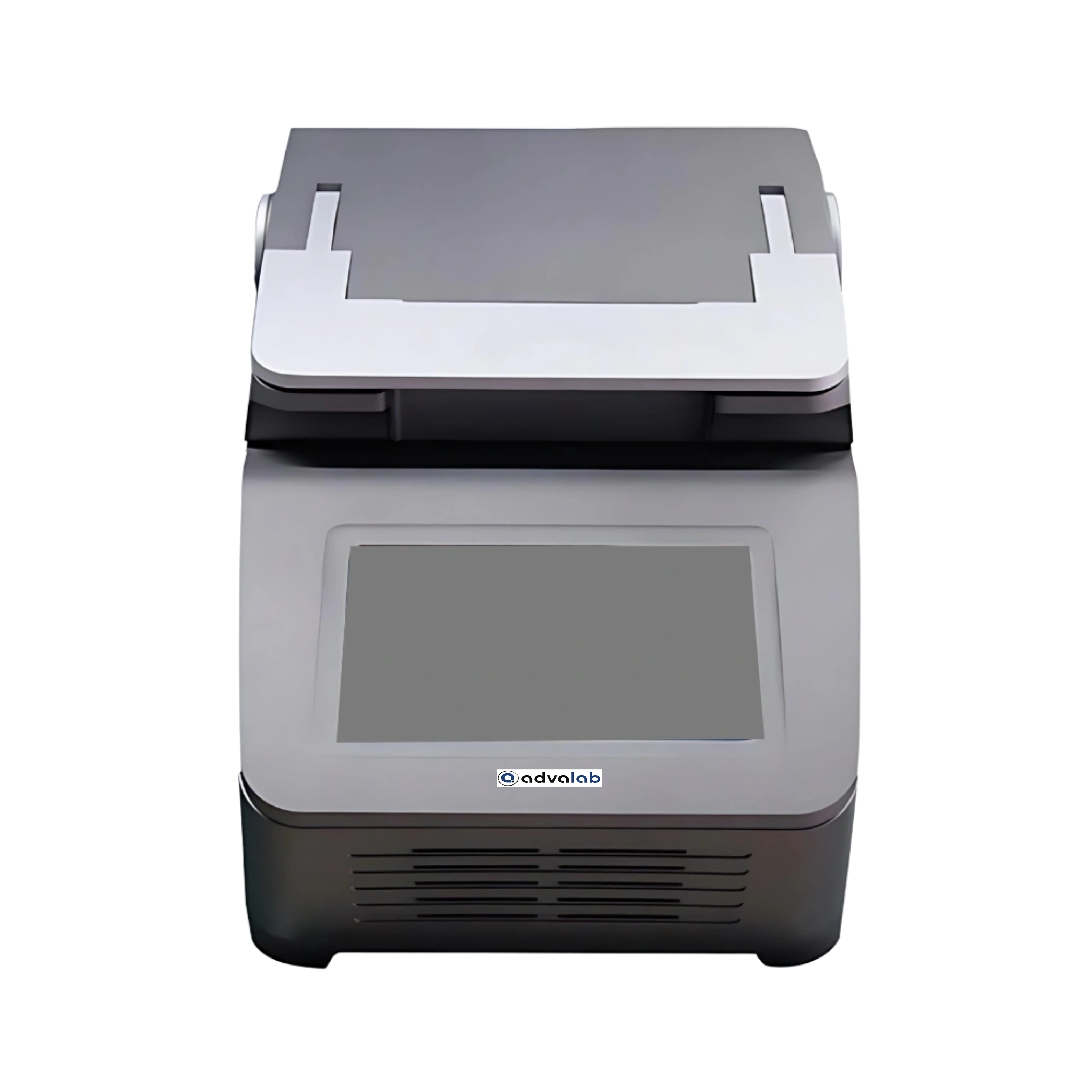

Gradient Thermal Cycler ADGTC-505 features a 0.2 mL × 96-well aluminum block designed for optimal heat conduction. It ensures accurate temperature stability, enhancing amplification efficiency. Uniform block performance guarantees consistent and reproducible results across all wells. A seven WVGA color display with LED illumination and high-resolution interface offers seamless user interaction. This Gradient Thermal Cycler is ideal for use in diagnostics, genetics, biotechnology, and life science research.
| Capacity | 0.2 mL × 96-well, aluminum |
|---|---|
| Thermal Control System | Three independently controlled Peltier modules with peripheral edge heating |
| Temperature Control Accuracy | ±0.1°C |
| Block Temperature Precision | ≤±0.1°C |
| Temperature Uniformity | ≤±0.3°C at 55°C |
| Maximum Heating Rate | >5°C/s |
| Maximum Cooling Rate | >5°C/s |
| Average Ramp Rate | >2°C/s |
| Ramp Rate Adjustment Range | 0.1 to 4.0°C/s |
| Block Temperature Range | 4°C to 99°C |
| Heated Lid Temperature Range | 30°C to 110°C, ON or OFF switchable |
| Block Control Mode | Block-based or tube-based temperature control |
| Gradient Temperature Range | 30°C to 99°C; gradient span: 0.1°C to 42°C |
| Temperature Touchdown Function | 0.1°C to 9.9°C per cycle |
| Time Touchdown Function | 1 second to 9 minutes 59 seconds per cycle |
| Smart Ramp Rate | Yes |
| Non-Specific Amplification Suppression | Yes |
| Real-Time Temperature Graph | Yes |
| Auto-Adaptive Heated Lid | Yes |
| Display Interface | 7 |
| Maximum PCR Steps per Program | 30 |
| Program Storage Capacity | Up to 1296 individual protocols |
| Power Failure Recovery | Yes |
| Post-Run Soak Mode | Yes, holds samples at 8°C automatically |
| Remaining Time Display | Yes |
| On-the-Fly Program Editing | Yes |
| Remote Service Support | Yes, via We Chat platform |
| Certification | CE marked (conforms to EU standards) |
| Applicable Consumables | Microplates (non-skirted/semi-skirted), 0.2 mL tubes (single/8-strip/12-strip), all tube shapes |
| Power Supply | 100–240V AC, 50/60 Hz, 600 VA |
| Product Dimensions (L × W × H) | 427 × 288 × 227 mm |
| Shipping Dimensions (L × W × H) | 540 × 450 × 385 mm |
| Net Weight | 9.7 kg |
| Gross Weight | 14.5 kg |
This Gradient Thermal Cycler ADGTC-505 is used in molecular biology laboratories for precise DNA amplification through PCR, ensuring accurate results in diagnostics, research, and genetic analysis.
