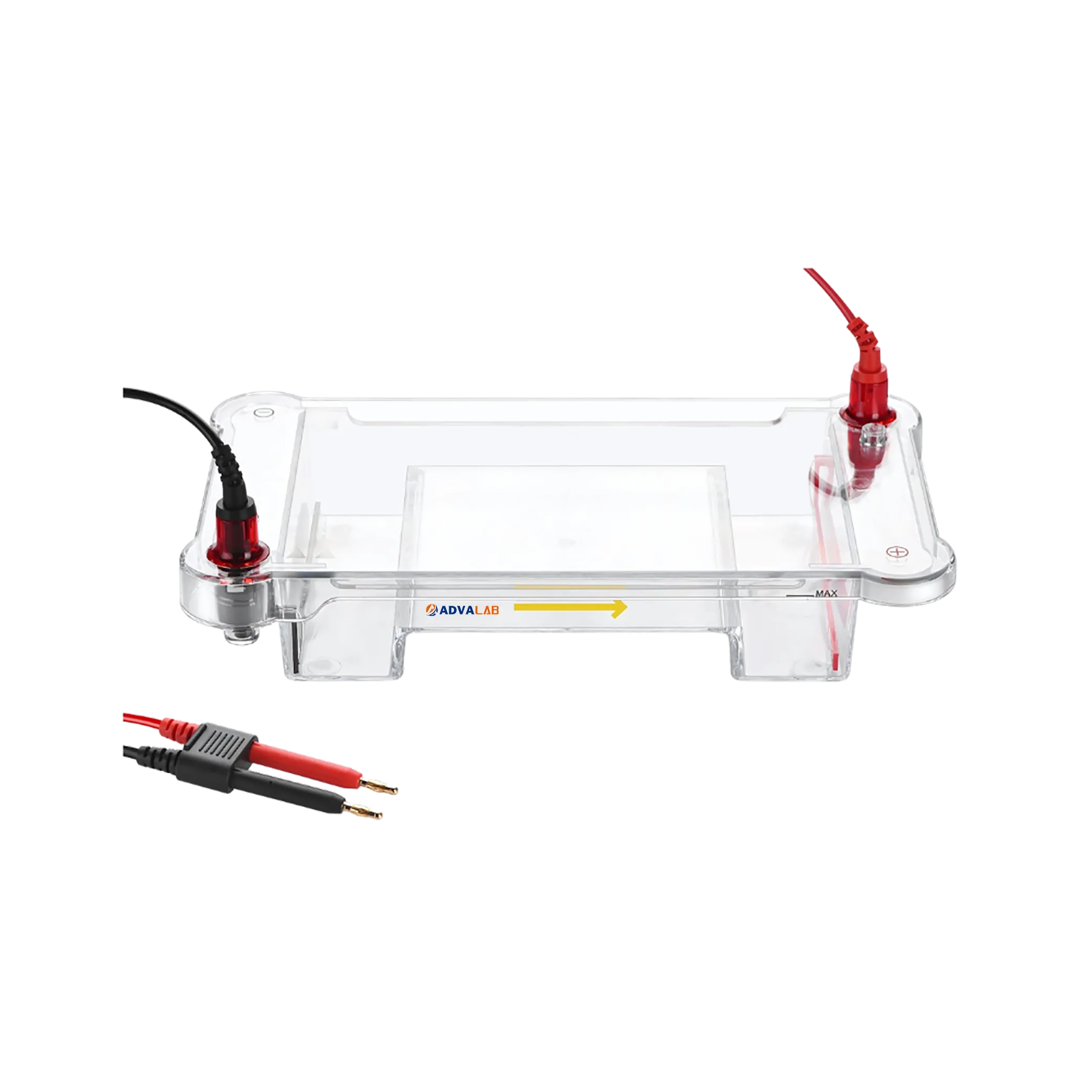

The Horizontal Electrophoresis ADHZ-501 has a 1000 ml buffer capacity and holds 108 samples. It features a flexible gel sizing option, allowing customization of dimensions based on experimental needs. This unit includes combs that provide accurate and consistent well formation. With varying thicknesses, the combs support smooth sample loading, preventing overflow or cross-contamination. Designed for high-resolution DNA, RNA, and protein electrophoresis, it is essential for research and diagnostics.
| Buffer Volume | 1000 ml |
|---|---|
| Gel Size |
130 × 130 mm 130 × 65 mm 65 × 130 mm 65 × 65 mm |
| Combs |
0.75 mm: 7+7 wells (14 wells), 9+9 wells (19 wells) 1.0 mm: 12+12 wells (27 wells) 1.5 mm: 7+7 wells (14 wells), 9+9 wells (19 wells) 2.0 mm: 3+2 wells (3+3 wells) |
| Maximum Samples | 108 |
| PCR Electrophoresis | Comb 27 wells × 4 rows |
| Dimension (L×W×H) | 300 × 170 × 80 mm |
| Net Weight | 1.1 kg |
The Horizontal Electrophoresis System ADHZ-501 provides accurate separation of nucleic acids and proteins, commonly used in genetic research, molecular diagnostics, and forensic laboratories.
