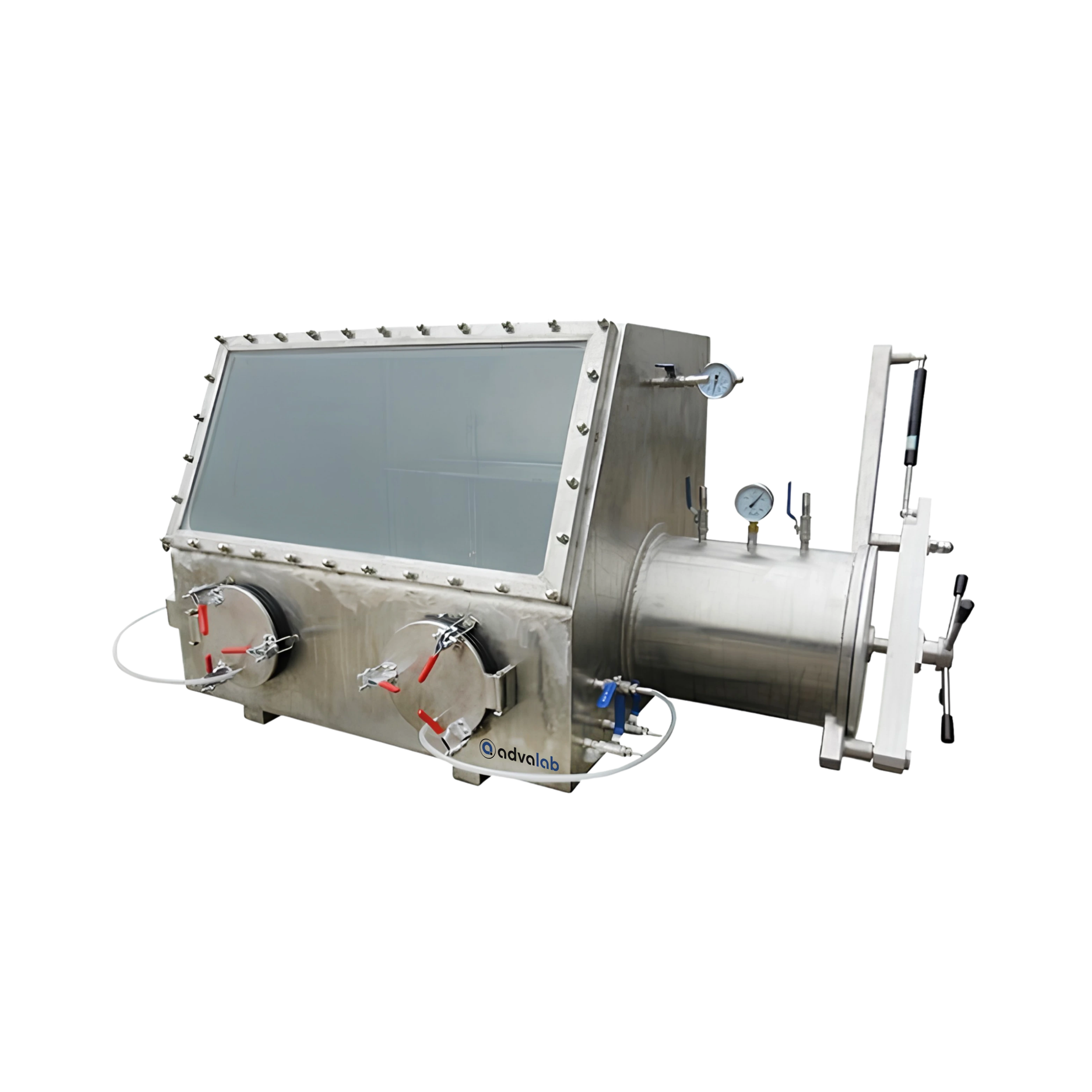

Stainless Steel Glove Box ADSSG-507 provides precise handling of sensitive materials in a controlled, contamination-free environment. It offers vacuum capability up to 0.05 Torr / 0.067 mbar in the air lock chamber for efficient removal of air and moisture. It features a main chamber size of 550 mm W × 440 mm D × 410 mm H for sample handling, along with an integrated air lock for safe material transfer, while the stainless steel build ensures durability and corrosion resistance.
| Material | Stainless steel |
|---|---|
| Air Lock Size | 200 mm dia. x 260 mm length |
| Main Chamber Size | 550 mm (W) x 440 mm (D) x 410 mm (H) |
| Front Window Size | 500 mm (W) x 165 mm (H) |
| Vacuum Pressure (Airlock Chamber) | up to 0.05 Torr (0.067 mbar) |
| Vacuum Pressure (Main Chamber) | up to 0.5 Torr (0.67 mbar) |
| Positive Pressure | Max 1.1 atm (810 torr) |
| Inert Gas Holding Time | > 12 hours |
| Main Chamber Leakage Rate | < 3 torr/hour |
| Gross Weight | 96 kg |
Stainless Steel Glove Box ADSSG-507 is used in research laboratories, pharmaceutical production, and industrial facilities for handling sensitive materials in a controlled environment. It ensures safe and contamination-free operations for critical processes such as material research, chemical handling, pharmaceutical work, and moisture/oxygen-sensitive applications.
