| External Dimensions (H×W×D) | 1800 × 900 × 450 mm |
| Internal Dimensions (H×W×D) | 1700 × 884 × 434 mm |
| Storage Capacity | 245 Liters |
| Number of Adjustable Shelves | 2 |
| Additional Shelf | 150 unit |
| Door Configuration | Four Door |
| Power Supply | 220V, 50Hz |
| Gross Weight | 53 kg |

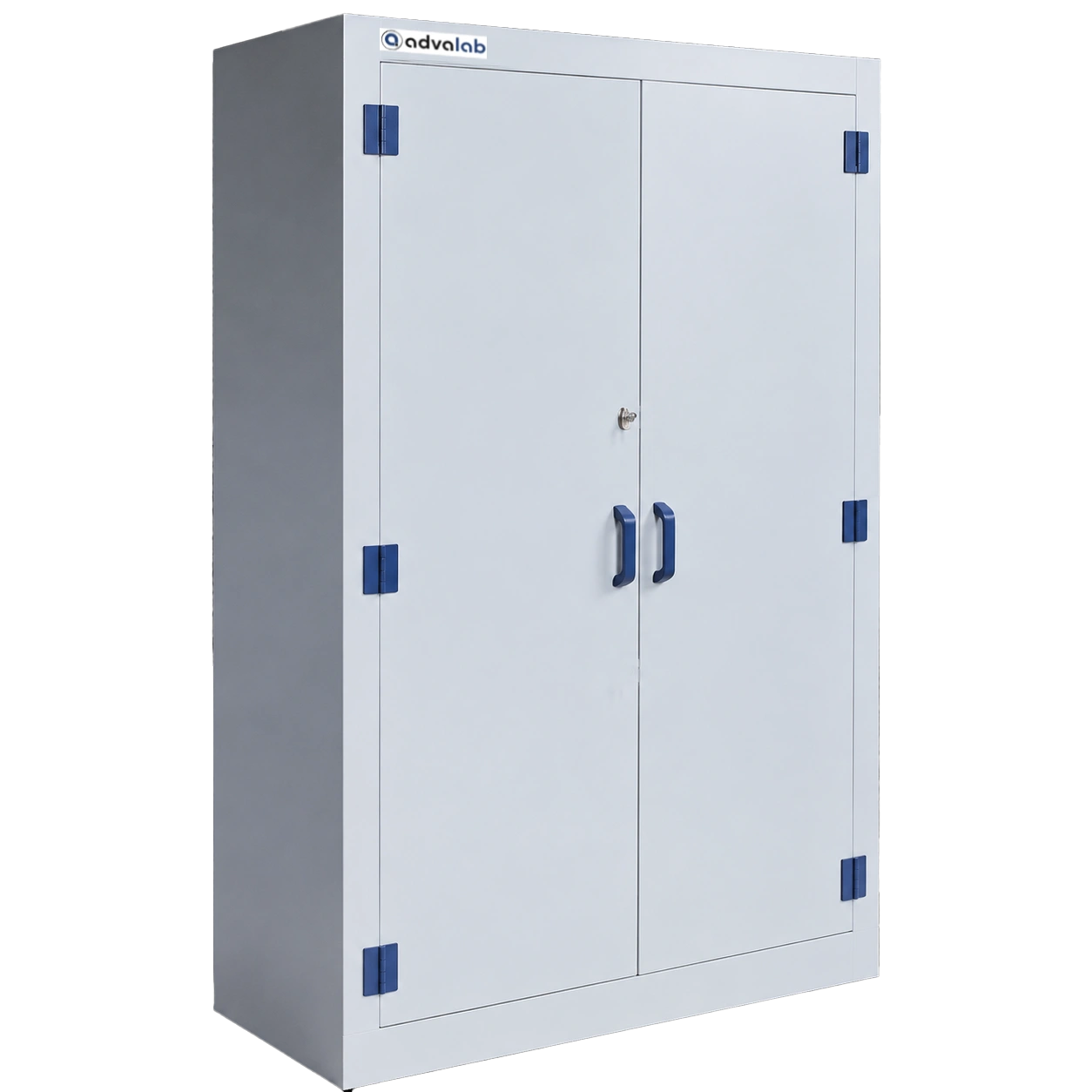

The Chemical Storage Cabinet ADCSC-510 is ideal for use in labs, industrial units, and research centers, offering dependable containment for corrosive materials while protecting against spillage, structural wear, and unauthorized access.
1. What are the power and physical specifications of Chemical Storage Cabinet ADCSC-510?
Operating on a 220V, 50Hz power supply, the cabinet measures 1800 × 900 × 450 mm externally. Its internal chamber spans 1700 × 884 × 434 mm. The unit supports hazard-specific storage strategies with a durable build and a user-friendly double-door layout for efficient access and containment.
2. Can additional storage units be added to Chemical Storage Cabinet ADCSC-510?
Yes, the Chemical Storage Cabinet ADCSC-510 includes two adjustable racks and supports integration of up to 150 extra shelf units. The trays are removable, simplifying routine cleaning and inventory shifts. This modularity supports diverse lab needs and enhances storage customization.
3. Is Chemical Storage Cabinet ADCSC-510 suitable for corrosive environments?
Yes, The Chemical Storage Cabinet ADCSC-510 is built from materials that resist acids, alkalis, corrosion, and physical impacts. Its rust-resistant frame and seamless construction maintain integrity in chemically aggressive surroundings. This makes it dependable for extended use in labs handling reactive agents.
4. How does Chemical Storage Cabinet ADCSC-510 promote laboratory safety?
Designed with a dual-lock system, this Chemical Storage Cabinet ADCSC-510 restricts unauthorized usage. Prominent hazard labels improve risk awareness. Internal structure reduces spill potential, while categorized storage enhances chemical management. These elements work together to safeguard personnel and prevent environmental contamination.
5. How much volume can the Chemical Storage Cabinet ADCSC-510 store?
With a 245-liter capacity, the Chemical Storage Cabinet ADCSC-510 offers ample room for handling a variety of chemical containers. Its layout promotes categorized storage and operational efficiency in compact lab settings. The double doors ensure both accessibility and secure sealing.
| External Dimensions (H×W×D) | 1120 × 1090 × 460 mm |
| Internal Dimensions (H×W×D) | 1045 × 1074 × 444 mm |
| Storage Capacity | 114 Liters |
| Dimensions(L×B×H) | 900×450×1800 mm |
| Color | Off-white (standard), customizable. |
| Hook | 2mm thick stainless steel with adjustable layers and plates for optimal space use. |
| External Dimensions (H×W×D) | 1650 × 1090 × 860 mm |
| Internal Dimensions (H×W×D) | 1550 × 1074 × 844 mm |
| Storage Capacity | 340 Liters |
| External Dimensions (H×W×D) | 1650 × 1090 × 460 mm |
| Internal Dimensions (H×W×D) | 1550 × 1074 × 444 mm |
| Storage Capacity | 170 Liters |
| Dimensions(L×B×H): | 750×420×1800 mm |
| Color: | Off-white (standard), customizable. |
| Hook: | 2mm thick stainless steel with adjustable layers and plates for optimal space use. |
| Dimensions (H×W×D): | 1900 × 1400 × 450 mm |
| Gas Cylinder Capacity : | 4 |
| Door Type : | Double |
| Dimensions(L×B×H): | 450×420×1800 mm |
| Color: | Off-white (standard), customizable. |
| Hook: | 2mm thick stainless steel with adjustable layers and plates for optimal space use. |
| Dimensions (H×W×D): | 1900 × 1000 × 450 mm |
| Gas Cylinder Capacity : | 3 |
| Door Type : | Double |
| Dimensions(L×B×H): | 900×420×1800 mm |
| Color: | Off-white (standard), customizable. |
| Hook: | 2mm thick stainless steel with adjustable layers and plates for optimal space use. |
| Dimensions (H×W×D): | 1900 × 900 × 450 mm |
| Gas Cylinder Capacity : | 2 |
| Door Type : | Double |
| Dimensions (H×W×D): | 1900 × 600 × 450 mm |
| Gas Cylinder Capacity : | 1 |
| Door Type : | Single |
| Dimensions(L×B×H): | 900×450×1800 mm |
| Color: | Off-white (standard), customizable. |
| Hook: | 2mm thick stainless steel with adjustable layers and plates for optimal space use. |
| Dimensions(L×B×H): | 900×450×1800mm |
| Cabinet Body Material: | 8 mm porcelain white PP sheet |
| Cabinet Door : | 4 mm tempered glass door |
| Dimensions(L×B×H): | 900×450×1800 mm |
| Cabinet Body: | 1.0 mm full thickness cold-rolled steel<br/> Surface treated (phosphating) <br/> Epoxy resin powder coated<br/> Cured at 220°C<br/> Final surface thickness up to 1.15–1.2mm |
| Cabinet Door: | Double-layered inner & outer panels<br/> Sound insulation filled<br/> Upper glass door, lower solid door<br/> 4 mm thick transparent glass |
| Dimensions(L×B×H): | 900×450×1800 mm |
| Cabinet Body: | 1.0mm full thickness cold-rolled steel<br/> Surface treated with phosphating<br/> Cured at 220°C<br/> Final surface thickness up to 1.15–1.2mm |
| Shelves: | 1.0mm full thickness cold-rolled steel<br/> Folded edges<br/> Shelves with holes for secure glassware placement |
| Dimensions (L×B×H): | 900×450×1800mm |
| Cabinet Body Material: | 8mm porcelain white PP sheet |
| Cabinet Door: | 4 mm thick transparent glass |
| Dimensions(L×B×H): | 900×450×1800 mm |
| Cabinet Body: | 1.0 mm cold-rolled steel<br/> Phosphated finish<br/> Heat-cured at 220°C<br/> Final surface thickness: 1.15–1.2 mm |
| Shelf: | 1.0mm full thickness cold-rolled steel<br/> Folded edges<br/> Movable configuration |
| Dimensions(L×B×H): | 900×450×1800 mm |
| Cabinet: | 1.0 mm cold-rolled steel body<br/> Phosphated and powder coated<br/> 1.15–1.2 mm final thickness |
| Cabinet Door: | Double panel with 4 mm transparent glass<br/> Upper and lower glass door |
| Dimensions(L×B×H): | 900×450×1800 mm |
| Material: | 1.0mm cold-rolled steel<br/> Phosphated surface<br/> Cured at 220°C<br/> 1.15–1.2 mm final thickness |
| Cabinet Door: | Double-layered inner & outer panels<br/> Entire glass door<br/> 4 mm thick transparent glass |
| Storage Capacity: | 13,750 slides per cabinet <br> 55,000 slides per complete set |
| Complete Set Dimensions (L × W × H): | 515 × 480 × 1510 mm <br> Color: Ivory <br> Weight: 105.5 kg <br> Unit: Each |
| Individual Cabinet Dimensions (L × W × H) : | 515 × 480 × 360 mm <br> Color: Ivory <br> Weight: 26 kg <br> Unit: Each |
| Storage Capacity: | 3000 slides per cabinet <br> 12000 slides per complete set |
| Complete Set Dimensions (L × W × H): | 515 × 480 × 1510 mm <br> Color: Ivory <br> Weight: 105.5 kg <br> Unit: Each |
| Individual Cabinet Dimensions (L × W × H): | 515 × 480 × 360 mm <br> Color: Ivory <br> Weight: 26 kg <br> Unit: Each |
| Storage Capacity: | Up to 9000 microscope slides |
| Complete Set Dimensions (L × W × H): | 460 × 550 × 1330 mm <br> Color: Ivory <br> Weight: 73 kg <br> Unit: Each |
| Individual Cabinet Dimensions (L × W × H): | 460 × 550 × 420 mm <br> Color: Ivory <br> Weight: 23.8 kg <br> Unit: Each |
| Storage Capacity: | 5000 pcs slide per cabinet <br> 60000 pcs slides per complete set |
| Complete Set Dimensions (L × W × H): | 403 × 478 × 1625 mm <br> Color: Ivory <br> Weight: 97.5 kg <br> Unit: Each |
| Individual Cabinet Dimensions (L × W × H) : | 403 × 478 × 125 mm <br> Color: Ivory <br> Weight: 8 kg <br> Unit: Each |
| Storage Capacity: | 4125 pcs wax box per cabinet <br> 16500 pcs wax box per complete set |
| Complete Set Dimensions (L × W × H) : | 515 × 480 × 1510 mm <br> Color: Ivory <br> Weight: 105.5 kg <br> Unit: Each |
| Individual Cabinet Dimensions (L × W × H): | 515 × 480 × 360 mm <br> Color: Ivory <br> Weight: 26 kg <br> Unit: Each |
| Storage Capacity: | 12000 pcs wax box per cabinet |
| Complete Set Dimensions (L × W × H) : | 515 × 480 × 1510 mm <br> Color: Ivory <br> Weight: 79.5 kg <br> Unit: Each |
| Individual Cabinet Dimensions (L × W × H): | 515 × 480 × 360 mm <br> Color: Ivory <br> Weight: 26 kg <br> Unit: Each |
