Cube Ice Maker ADIM-504
Cube Ice Maker ADIM-504
Cube Ice Maker ADIM-504
Cube Ice Maker ADIM-504
Cube Ice Maker ADIM-504

Cube Ice Maker ADIM-504

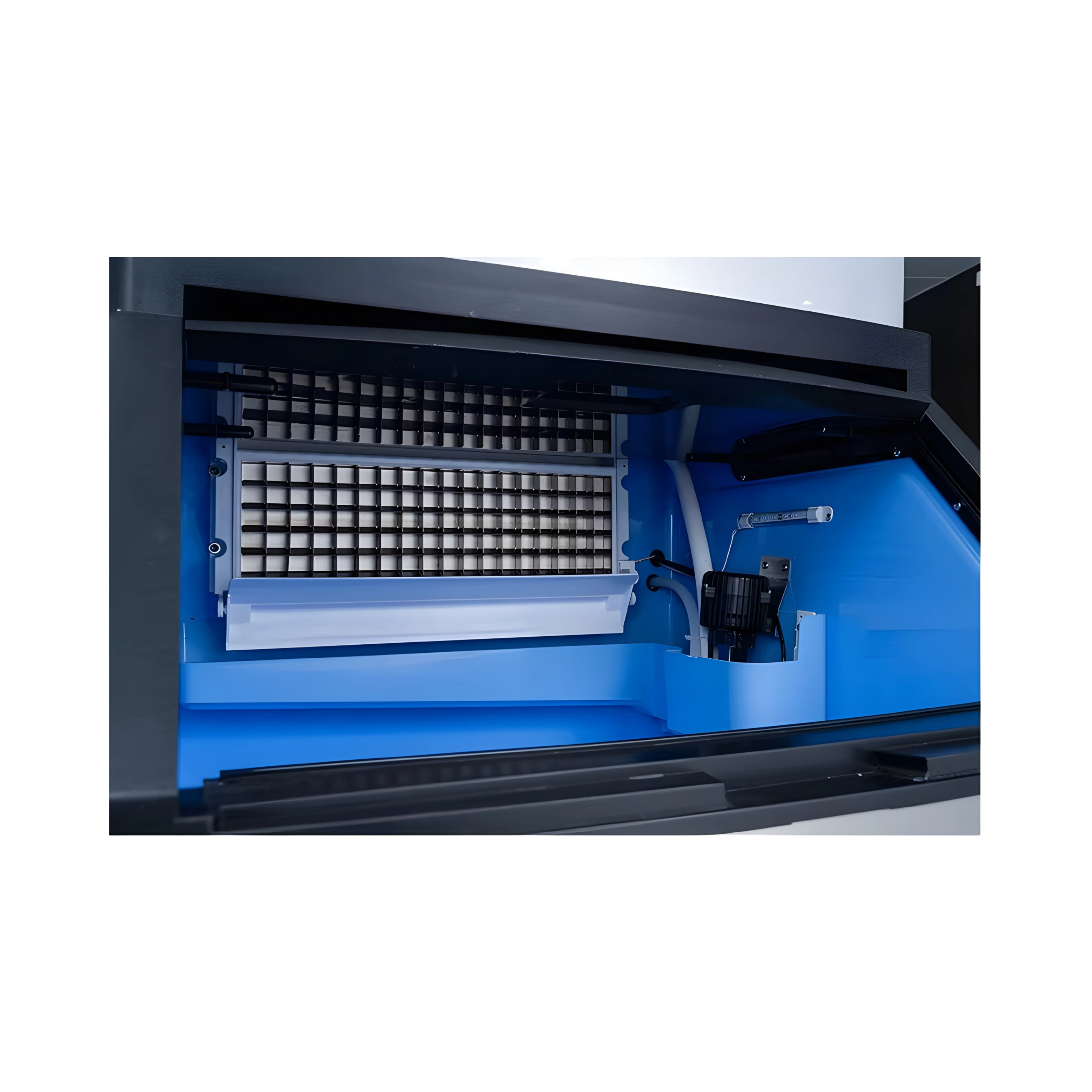

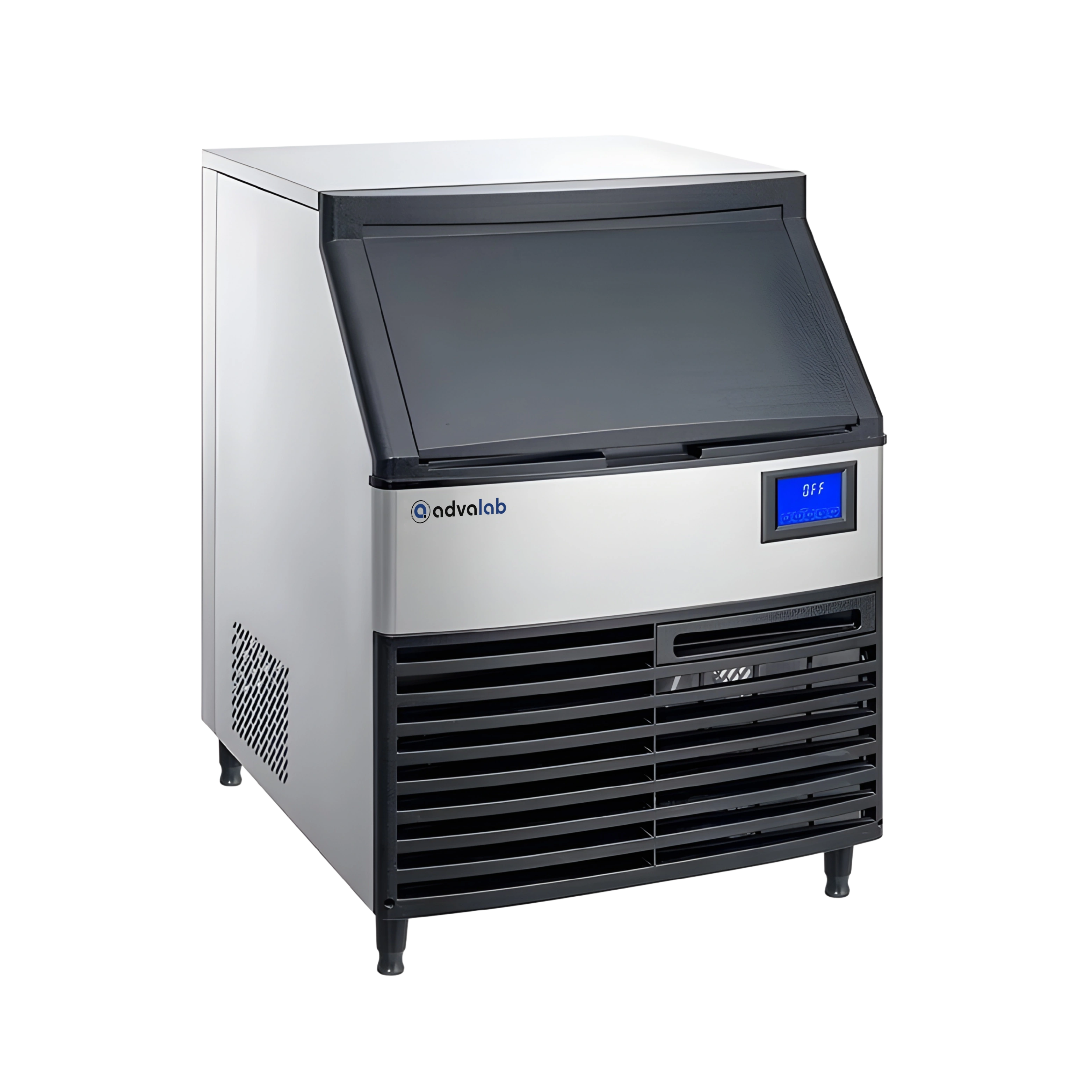

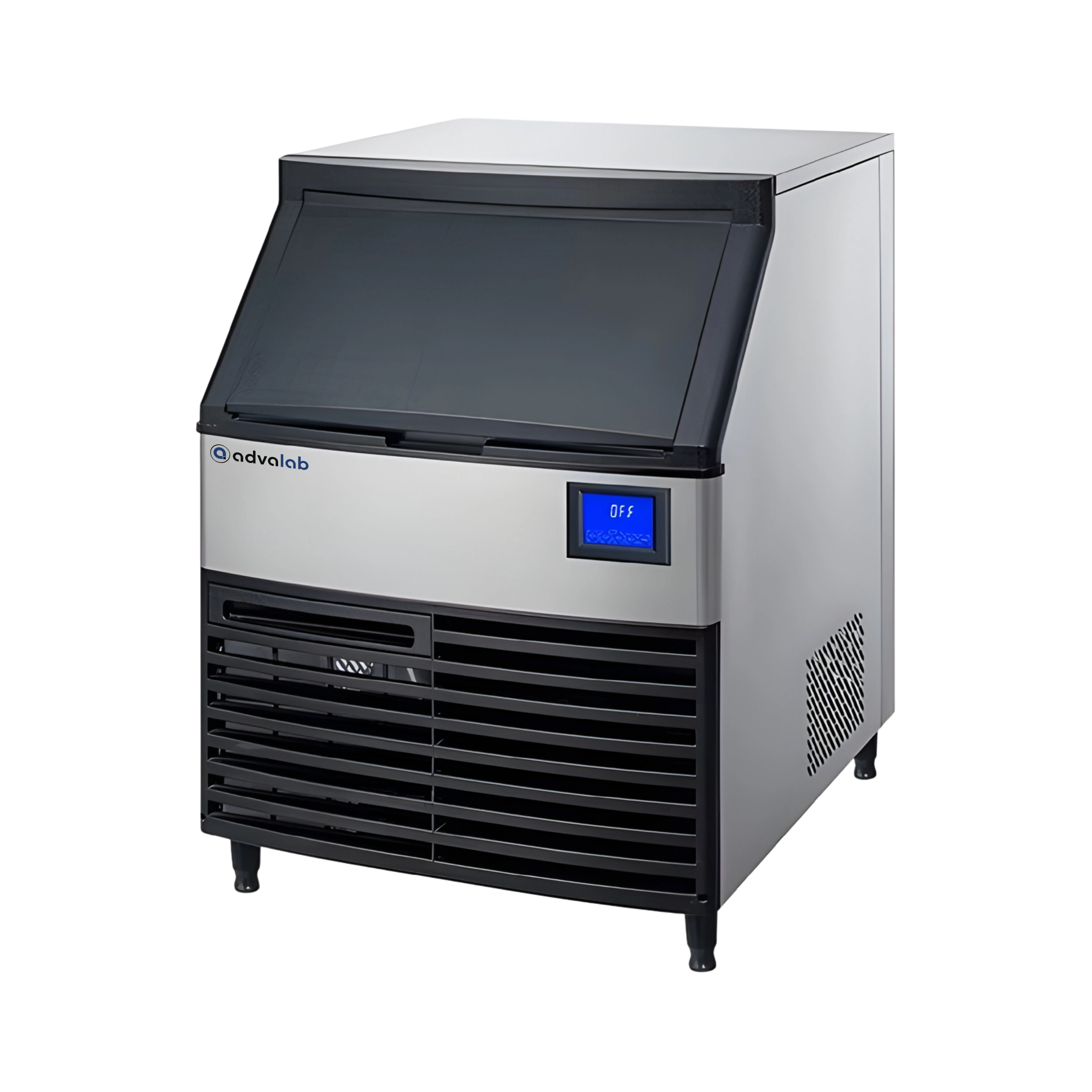

Cube Ice Maker ADIM-504 has a production capacity of 127 kg of ice in 24 hours. This unit features durable stainless-steel construction and energy-efficient components. It has optimized compressor and evaporator for stable ice production and minimized downtime. Designed with integrated water filtration system, it reduces impurities resulting in protecting internal components and improving ice clarity. Our Cube Ice Maker is widely used in commercial setting that demands consistent and efficient ice production.


Capacity 127 kg
Ice Storage 36 kg
Cooling Type Air Cooled
Refrigeration System R290
Power Consumption 830 W
Voltage 220 V / 50 to 60 Hz
110 V / 60 Hz
Dimension (L × W × H) 660 × 685 × 920 mm
Packaging size (L × W × H) 780 × 745 × 900 mm
Net Weight 60 kg
Gross Weight 67 kg
  • Air-cooled condenser
  • User-friendly automation
  • Energy-efficient performance
  • Clean ice Production
  • Reliable continuous operation

Cube Ice Maker ADIM-504 is extensively used in research facilities, laboratories, and educational environments. It is commonly used in pharmaceutical, hospital, and medical fields for storage of samples.

Frequently Asked Questions of Cube Ice Maker ADIM-504

1. What is the daily ice production capacity of Cube Ice Maker ADIM-504?

Cube Ice Maker ADIM-504 produces approximately 127 kilograms of ice every 24 hours. This capacity makes it suitable for medium to high-demand commercial and medical environments. The machine maintains consistent ice output throughout the day to meet continuous operational needs. Its efficient refrigeration system ensures reliable performance without compromising energy consumption.

2. Can Cube Ice Maker ADIM-504 be used in medical environments?

Cube Ice Maker ADIM-504 is well-suited for medical environments such as hospitals, laboratories, and clinics. Its precise ice production provides clean, uniform ice essential for preserving samples and cooling medical equipment. The hygienic design includes an easy-to-clean system that helps meet strict sanitation standards. Automated cleaning features reduce the risk of contamination and maintenance efforts.

3. What type of maintenance does the Cube Ice Maker ADIM-504 require?

Cube Ice Maker ADIM-504 requires regular cleaning of its condenser coils and water filters to maintain efficiency. Periodic inspection and cleaning of the ice-making components help prevent scale buildup and ensure consistent ice quality. The self-cleaning system simplifies routine maintenance and reduces manual effort. It’s also important to check water supply quality to avoid damage and prolong machine life.

4. What water quality is required for optimal operation of Cube Ice Maker ADIM-504?

Cube Ice Maker ADIM-504 requires clean, filtered water free from impurities and minerals. Using purified or softened water helps prevent scale buildup inside the machine, which can reduce efficiency and ice quality. Hard water or water with high mineral content may cause frequent maintenance issues. Regularly checking and maintaining water quality extends the lifespan of internal components.

5. Does Cube Ice Maker ADIM-504 allow for adjustment of ice thickness to meet different needs?

Cube Ice Maker ADIM-504 features automated ice thickness control that allows users to adjust the size of the ice cubes. This flexibility helps tailor ice production to specific requirements across different applications. The system monitors and regulates ice thickness consistently for optimal performance. Adjusting ice thickness can improve energy efficiency and meet varying storage or usage needs.

6. What are Cube Ice Makers?

Cube Ice Makers are designed to produce solid, uniformly shaped ice cubes automatically. They use refrigeration technology to freeze water in molds, forming consistent ice cubes. These systems operate in cycles, releasing the cubes into a storage bin for easy access. Cube Ice Makers are widely used in commercial and residential settings for efficient ice production.

7. How do Cube Ice Makers work?

Cube Ice Makers work by circulating water over freezing plates or molds cooled by a refrigeration system. The water gradually freezes into solid cubes with a consistent shape and size. Once fully frozen, these systems automatically release the ice cubes into a storage bin. The cycle then repeats to produce ice continuously.

8. What are the common applications of Cube Ice Makers?

Cube Ice Makers are commonly used in restaurants, bars, and hotels to provide consistent ice for beverages. They are also used in healthcare facilities for patient care, in catering services for events, and in homes for personal use. Additionally, industries like seafood and laboratories use these systems to preserve products and samples.
