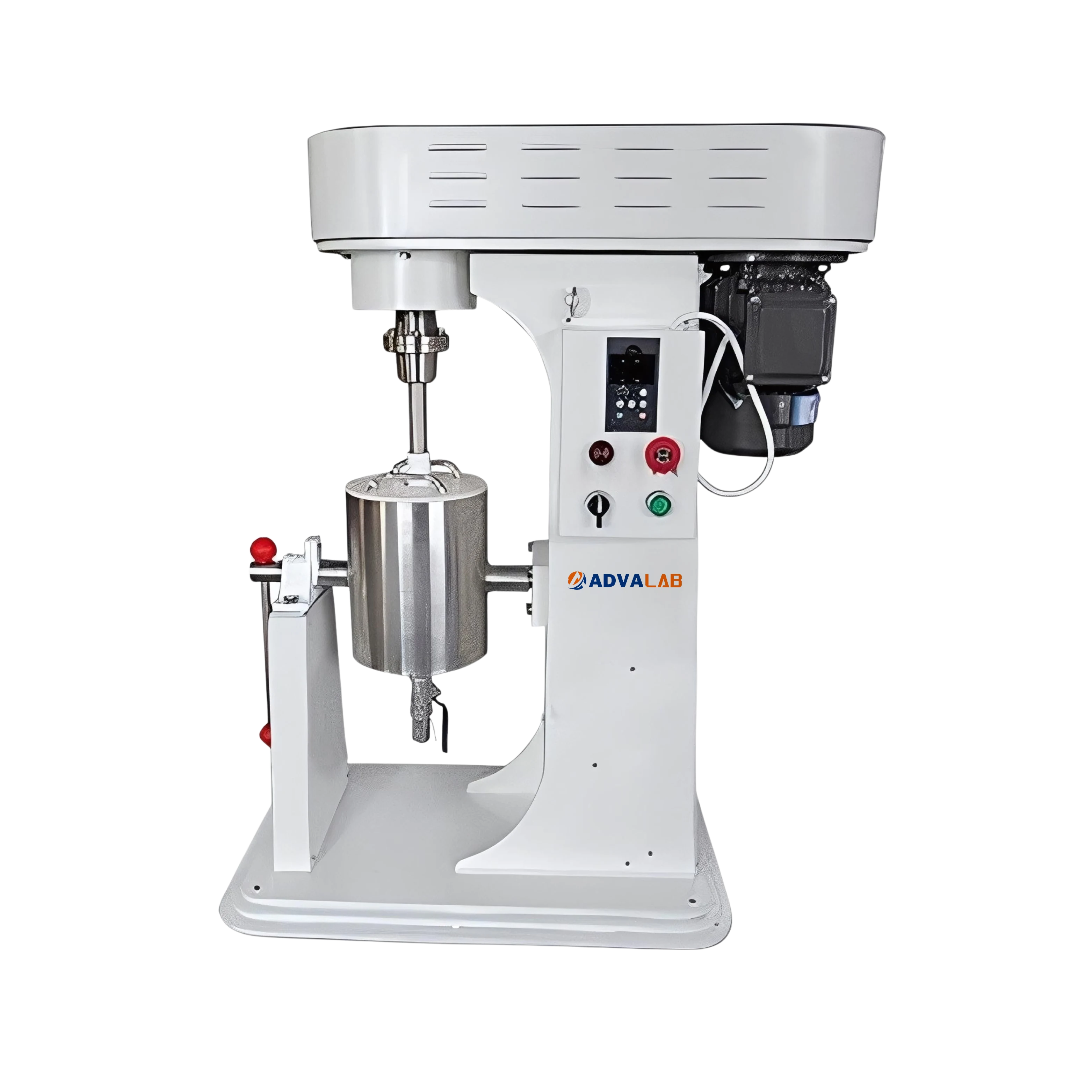

Ball Mill Homogenizer ADBAM-503 offers a 15-liter jar volume with a maximum working capacity of 5.25 liters for efficient fine grinding. It uses a variable rotation speed of 60 to 380 rpm, controlled via a frequency converter to ensure precise milling performance. The stainless-steel milling chamber with water jacket design enhances durability and stable thermal control during continuous operation. Engineered with robust drive power of 2.2 kW, it supports high intensity grinding while maintaining minimal noise and vibration. Designed for precision powder processing, it delivers consistent particle refinement with minimal maintenance requirements.
| Rotation speed | 60 to 380 RPM |
|---|---|
| Volume | 15 L |
| Load capacity | 5.25 L |
| Feed size | ≤10 mm |
| Output granularity | ≤1 µm |
| Speed control mode | Frequency converter |
| Material | 304 stainless steel mill drum with water jacketing |
| Dimension (L×B×H) | 1020×500×1200 mm |
| Weight | 200 kg |
Ball Mill Homogenizer ADBAM-503 is widely used in laboratories, universities, R&D institutions, and pilot-scale production facilities. It is ideal for ultra-fine grinding, sample dispersion, material mixing, and homogenization in industries such as ceramics, chemicals, batteries, pigments, minerals, metallurgy, coatings, and nano-materials research.
