| Cold Trap Temperature | ≤ -60℃ |
| Freeze Drying Time | 36 to 48 h |
| Cold Trap Volume | 28 L |
| Freeze Drying Area | 0.18 (to 0.27) m² |
| Water Capture Capacity | 6 Kg/batch |
| Vacuum Degree | <10 Pa |
| Vacuum Pump | 2 L/s |
| Refrigerant | R404a |
| Shelf Quantity | 3 pcs |
| Shelf Space | 71 mm |
| Loading Capacity | 450 ml |
| Total Loading Capacity | 1800 (to 2700) ml |
| Tray Size | ф240 × 20 mm |
| Tray Quantity | 3 pcs |
| Vial Capacity |
Ø22:270 vials Ø16:555 vials Ø12:990 |
| Cold Trap Size | ф270 × 420 mm |
| Drying Chamber Dimension | Ф300 × 450 mm |
| Noise Level | <66 dB |
| Power Consumption | 0.95 (to1.5) kW |
| Main Unit packing size (W x D x H) | 670 × 700 × 560 mm |
| Dimension (W x D x H) | 410 × 410 × 640 mm |
| Vacuum Pump packaging size (W x D x H) | 220 × 580 × 370 mm |
| Overall Dimension (W x D x H) | 480 × 610 × 905 (to 1450) mm |
| Net Weight | 85 (to 100) Kg |
| Gross Weight | 150 (to170) Kg |

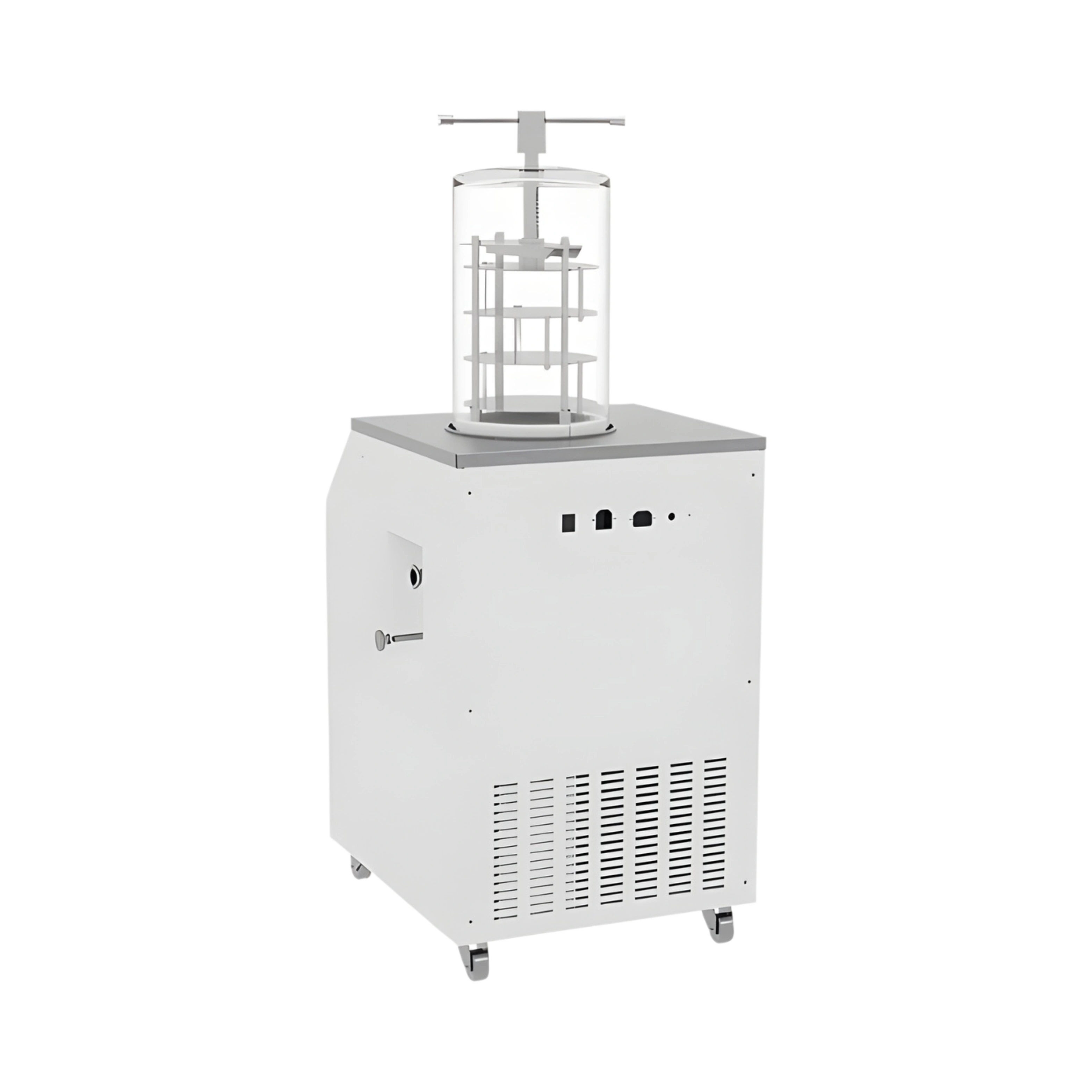

The Floor Type Freeze Dryer ADFFD-510, featuring a large opening and no internal refrigeration coils, is ideal for sample pre-freezing in pharmaceutical and biotechnology labs, ensuring effective moisture removal prior to the freeze-drying process.
Vacuum Pump | 1unit |
Trays | 3 unit |
Drying Rack | 1unit |
Acrylic Cover | 1unit |
Acrylic Bucket | 1unit |
Vacuum Pump Outlet Oil Mist Filter | 1unit |
Vacuum Pump Inlet Dust Filter | 1unit |
Vacuum Pump Inlet Vapor Filter | 1unit |
| Electric Defrosting | 1unit |
| Shelf Heating | 1unit |
1. What are the key features of a Floor Type Freeze Dryer?
Floor Type Freeze Dryers are equipped with several key features for efficient, high-quality drying. These include large chamber capacities, which allow for processing larger sample volumes, and programmable controls. Real-time monitoring tracks key parameters like temperature and vacuum pressure, ensuring optimal drying conditions. Low-noise operation makes them suitable for continuous use in laboratory settings.
2. How does a Floor Type Freeze Dryer work?
The Floor Type Freeze Dryer works through a three-stage process. First, the sample is frozen to ultra-low temperatures, turning the water content into ice. Next, during the primary drying phase, a vacuum is applied to sublimate the ice directly into vapor, bypassing the liquid phase. In the secondary drying phase, residual moisture is removed by gradually increasing the temperature. This ensures that the sample reaches its final dry state while preserving its integrity.
3. What is a Floor Type Freeze Dryer used for?
A Floor Type Freeze Dryer is used for efficiently Freeze-Drying large volumes of sensitive materials in industries like pharmaceuticals, biotechnology, food processing, and chemicals. They preserve vaccines, enzymes, plant extracts, and other moisture-sensitive materials by removing moisture through sublimation. This process maintains the integrity, potency, and stability of the sample without altering its structure or bioactivity, making it ideal for long-term storage.
