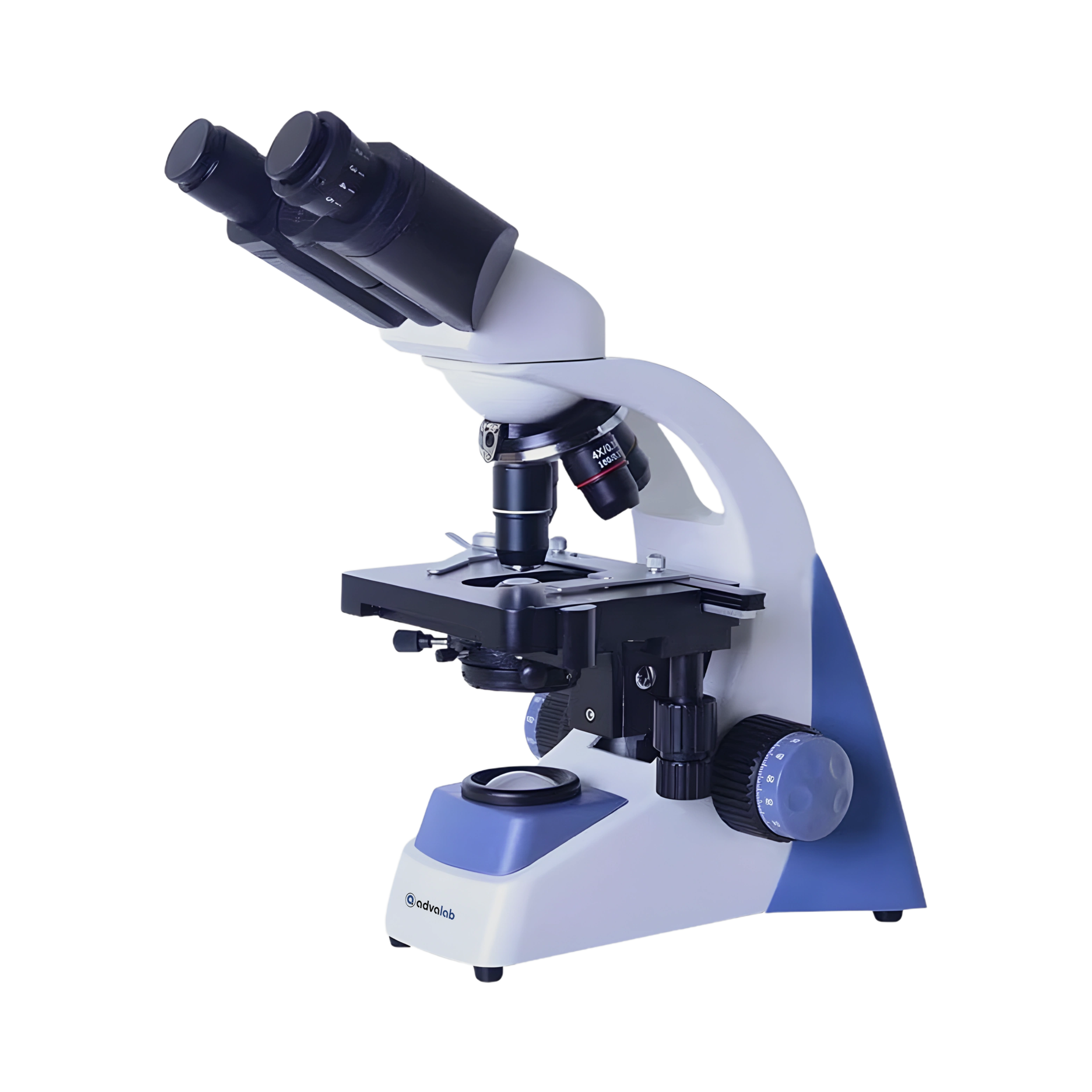

The Biological Microscope ADBM-501 features 4x, 10x, 40x, and 100x oil achromatic objectives for clear, accurate imaging across various magnifications. Its coaxial coarse and fine focusing system allows precise adjustments, even at high magnifications. The hinged binocular head ensures comfortable viewing during extended use. A double-layer mechanical stage enables accurate slide positioning and smooth movement. These features make it ideal for routine laboratory work, medical diagnostics, and educational applications.
| Observation Head | Hinged Binocular |
|---|---|
| Eyepiece | WF10X |
| Focusing Mechanism |
Focusing range: 30 mm Fine scale: 0.002 mm |
| Objective Lenses | Achromatic objective: 4X, 10X, 40X (spring), 100X (spring, oil) |
| Illumination | LED 1W lamp (220V or 110V) |
| Condenser |
NA = 1.25 Abbe condenser Variable diaphragm and colour filter |
| Stage | Double layer 120×125mm |
Biological Microscope ADBM-501 is used in medical laboratories and research facilities for examining biological samples with precision and clarity. It is commonly used in educational institutions for studying cell structure and microorganisms.
