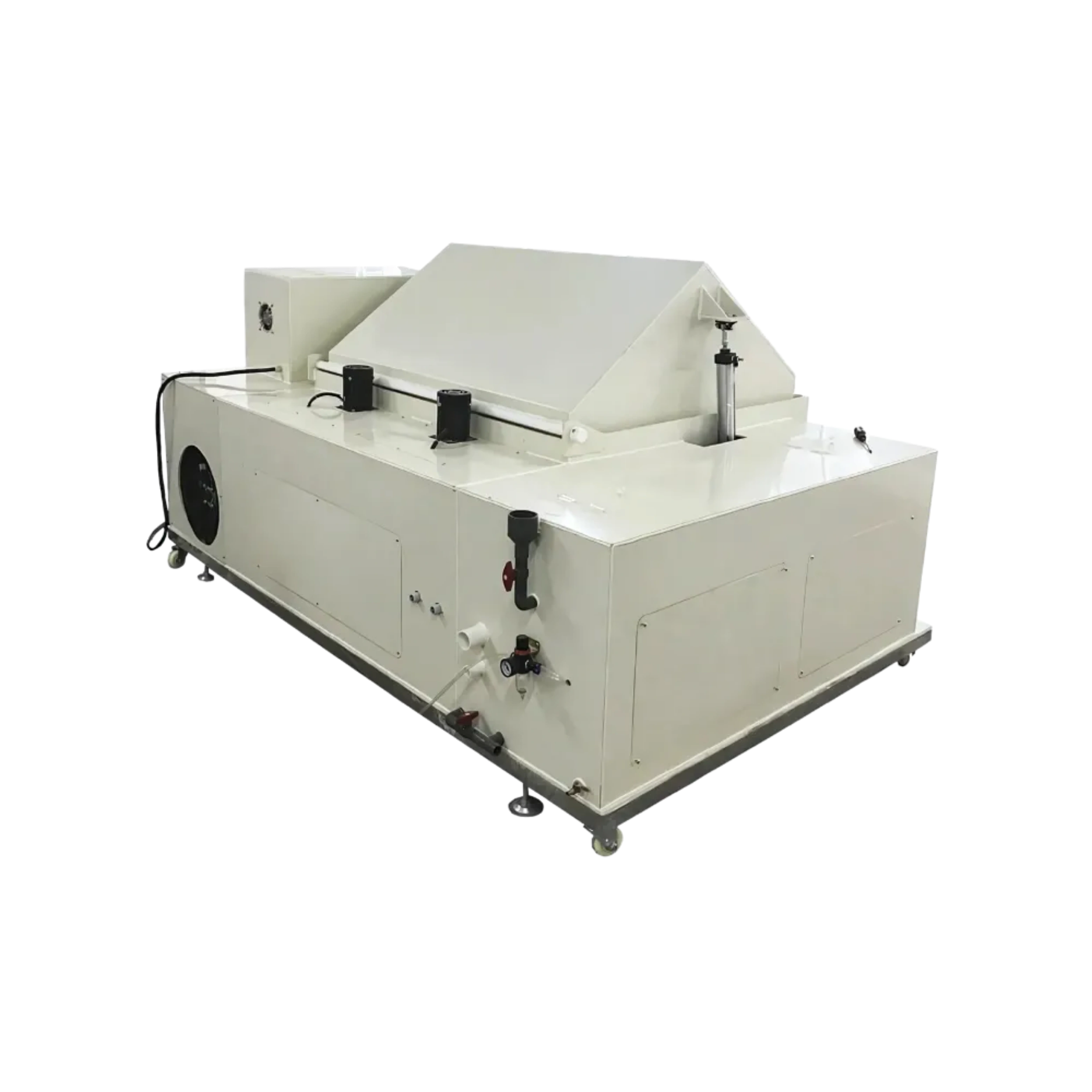

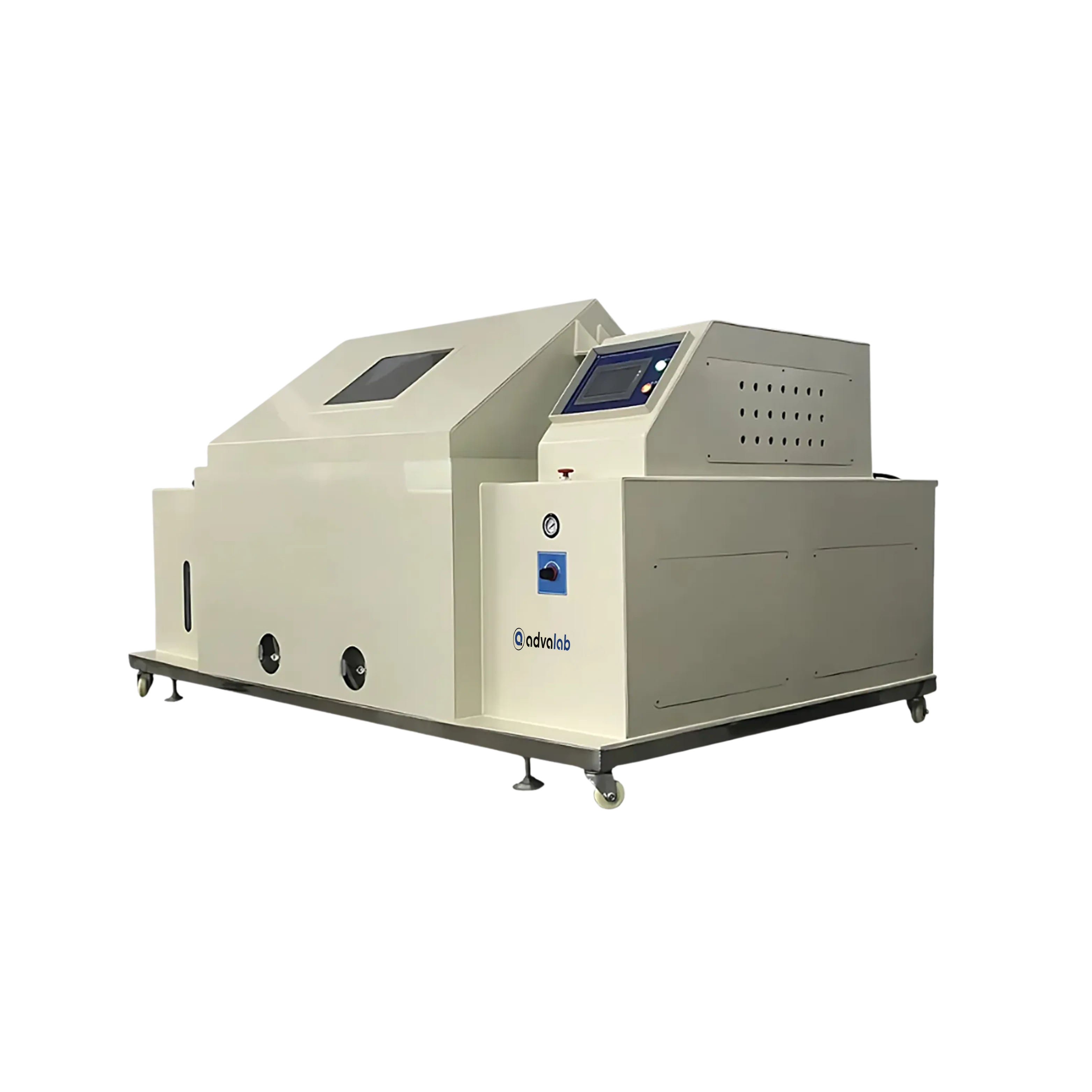

Salt Spray Test Chamber ADST-504 features a 1440L testing capacity and a 40L brine tank capacity. It maintains temperature range from room temperature to 55°C, it ensures controlled and accurate test environments. It has an adjustable atomizer tower and nozzle for uniform salt distribution. Our Salt Spray Test Chamber offers precise corrosion testing with an easy-to-use touch screen interface for simple programming.
| Lab Volume | 1440L |
| Brine Tank Capacity | 40L |
| Spray Pressure | 1.00 ±0.1kgf/cm2 |
| Spray Quantity | 1.0 to 2.0ml/80cm2/hour |
| Spray Way | Continuous or intermittent type spray |
| Test equipment Temp. Range | RT to 55°C |
| Pressure Tank Temp. Range | RT to 70°C |
| Temperature Fluctuations | ≤ ± 0.5°C |
| Temperature Uniformity | ≤ ± 2°C |
| Temperature Precision | ± 1°C |
| Lab Relative Humidity | Above 85%RH |
| Safety Protection Device | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection. |
| Power Supply | AC220V,30A |
| Test Space | 2000 × 1200 × 500 |
| Dimension | 2700 × 1500 × 1500 |
| Weight | 400Kg |
Salt Spray Chamber is ideal for testing Medical Devices, Food Packaging industries, Pharmaceutical Packaging, Biodegradable Plastic Testing, Oil and gas industries and Coating industries.
