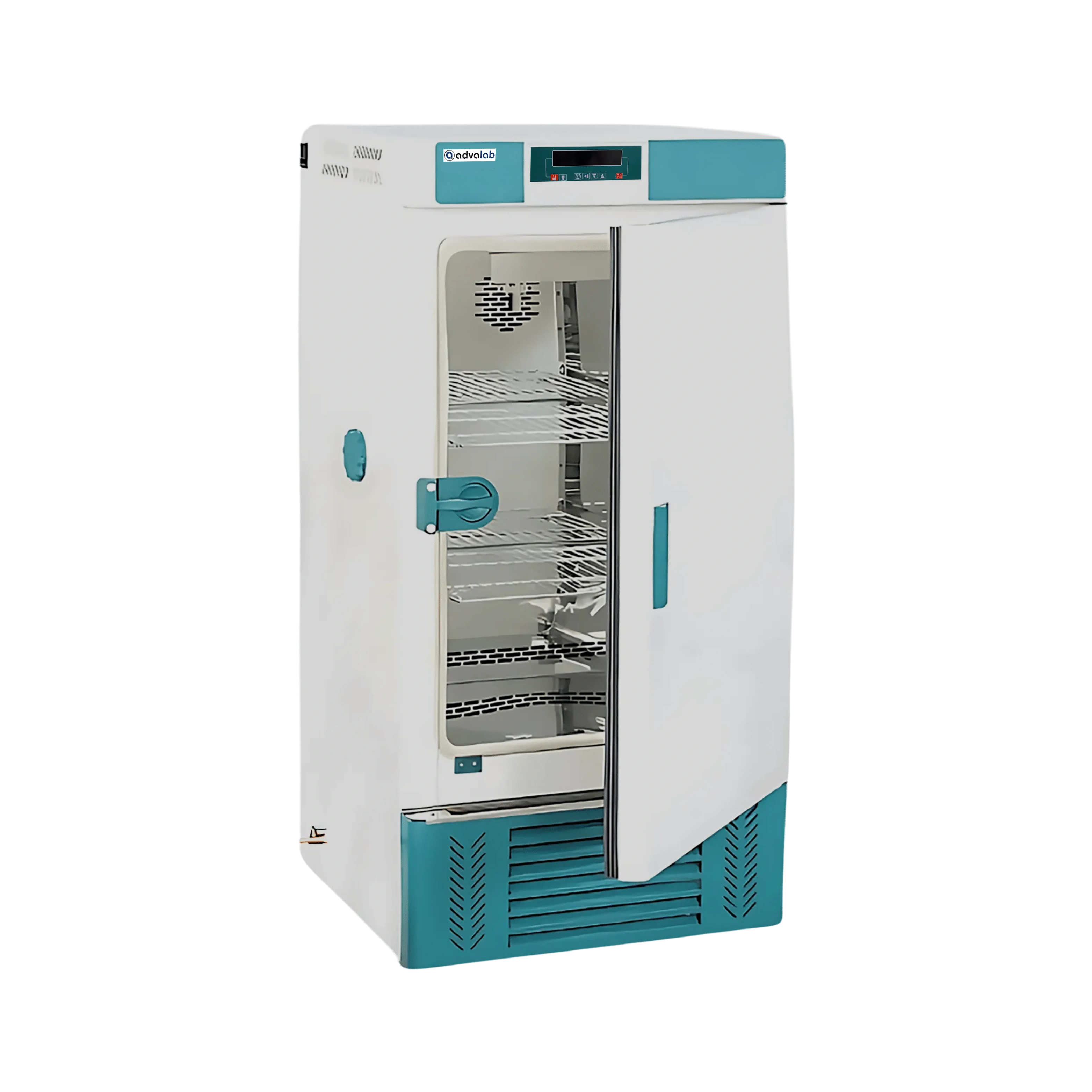

Humidity Chamber ADHR-501 designed with the latest energy-saving pre-heating and cooling technology effectively stimulates temperature range with humidification 0 °C to 65 °C and no humidification 10 °C to 65 °C. Constructed with a scratch-free chemical-resistant stainless chamber that features a storage capacity of 70 L with safety and usability. Easy-to-use LCD screen with a self-diagnostic system for perfect inspection of operational parameters. Integrated with an air-cooled hermetic compressor for rapid cooling provides low energy consumption.
| Capacity | 70 L |
| Temperature Range | With Humidification 0 °C to 65°C No Humidification 10 °C to 65°C |
| Uniformity | ± 1 °C |
| Temperature Motion | High Temp. ± 0.5 °C ,Low Temp. ± 1 °C |
| Resolution | 0.1 °C |
| Control System | Microprocessor PID |
| Power | 1.8 kW |
| Shelf | 2 |
| Voltage | AC220V/8.2 A |
| Internal Size | 415 × 350 × 500 mm |
| External Size(W×D×H) | 571 × 591 × 1051 mm |
| Packaging Size | 686 × 690 × 1211 mm |
| Net Weight | 69 Kg |
| Gross Weight | 92 Kg |
A Humidity Chamber is commonly used in research facilities, laboratories, pharmaceuticals industry for quality assurance and reliability testing of samples.
| Capacity | 150 L |
| Temperature Range | With Humidification 0 °C to 65°C No Humidification 10 °C to 65°C |
| Uniformity | ± 1 °C |
| Capacity | 250 L |
| Temperature Range | With Humidification 0 °C to 65°C No Humidification 10 °C to 65°C |
| Uniformity | ± 1 °C |
| Capacity: | 400 L |
| Temperature Range: | 10 °C to 65 °C |
| Fluctuation: | ± 0.5 °C |
| Capacity: | 250 L |
| Temperature Range: | 10 °C to 65 °C |
| Fluctuation: | ± 0.5 °C |
| Capacity: | 150 L |
| Temperature Range: | 10 °C to 65 °C |
| Fluctuation: | ± 0.5 °C |
| Capacity: | 375 L |
| Temperature Range: | With Light 10 °C to 55°C Without Light 5 °C to 55°C |
| Uniformity: | ≤± 1 °C |
| Capacity: | 175 L |
| Temperature Range with Light: | 10 to 55℃ |
| Temperature Range without Light: | 0 to 55℃ |
| Capacity: | 475 L |
| Temperature Range: | With Light 10 °C to 55°C Without Light 5 °C to 55°C |
| Uniformity: | ≤± 1 °C |
| Capacity: | 275 L |
| Temperature Range with Light: | 10 to 55℃ |
| Temperature Range without Light: | 0 to 55℃ |
| Capacity: | 800 L |
| Temperature Range: | With Light 10 °C to 55°C Without Light 5 °C to 55°C |
| Uniformity: | ≤± 1 °C |
| Capacity: | 1075 L |
| Temperature Range: | With Light 10 °C to 55°C Without Light 5 °C to 55°C |
| Uniformity: | ≤± 1 °C |
| Capacity: | 150 L |
| Temperature Range: | 10 °C to 50 °C |
| Uniformity: | ± 1 °C |
| Capacity: | 300 L |
| Temperature Range: | 10 °C to 50 °C |
| Uniformity: | ± 1 °C |
| Capacity: | 260 L |
| Temperature Range: | 10 °C to 50 °C |
| Uniformity: | ± 1 °C |
| Capacity: | 500 L |
| Temperature Range: | 10 °C to 50 °C |
| Uniformity: | ± 1 °C |
| Capacity: | 1000 L |
| Temperature Range: | 10 °C to 50 °C |
| Uniformity: | ± 1 °C |
| Lab Volume: | 1440L |
| Brine Tank Capacity: | 40L |
| Spray Pressure: | 1.00 ±0.1kgf/cm2 |
| Lab Volume: | 800L |
| Brine Tank Capacity: | 40L |
| Spray Pressure: | 1.00 ± 0.1kgf/cm2 |
| Lab Volume: | 108L |
| Test Equipment Temperature Range: | RT +10 ℃ to 55 ℃ |
| Pressure Tank Temperature Range: | 47 ℃ ±1 ℃ / CASS: 63 ℃ ±1 ℃ |
| Brine Tank Capacity: | 25L |
| Lab Volume: | 270L |
| Test Equipment Temperature Range: | RT to 55℃ |
| Temperature Range: | 10 to 65℃ (with lighting) <br/> 0 to 60℃ (without lighting) |
| Humidity Range: | 40 to 95% RH |
| Illumination Range: | 0 to 6000LX (five stages adjustable) |
| Temperature Range: | 0 to 70℃ |
| Temperature Resolution: | 0.1℃ |
| Temperature Uniformity: | ≤0.5℃ |
| Temperature Range: | 10 to 65℃ (with lighting), 0 to 60℃ (without lighting) |
| Humidity Range: | 40 to 95%RH |
| Illumination Range: | 0 to 6000LX (five stages adjustable) |
| Temperature Range: | 0 to 65℃ |
| Humidity Range: | 40 to 95% RH |
| Temperature Accuracy: | ±0.1℃ |
| Temperature Range: | 0 to 65℃ |
| Humidity Range: | 40 to 95% RH |
| Temperature Accuracy: | ±0.1℃ |
| Temperature Range: | 0 to 65℃ |
| Humidity Range: | 40 to 95% RH |
| Temperature Accuracy: | ±0.1℃ |
| Temperature Range: | 10 to 65℃ (with lighting), 0 to 60℃ (without lighting) |
| Humidity Range : | 40 to 95% RH |
| Illumination Range : | 0 to 6000LX (five stages adjustable) |
