| Temperature Range | 0 to 65℃ |
| Humidity Range | 40 to 95% RH |
| Temperature Accuracy | ±0.1℃ |
| Temperature Fluctuation | ±0.5℃ (within 10 to 40℃) |
| Temperature Uniformity | ±1℃ (within 10 to 40℃) |
| Humidity Fluctuation | ±3% RH |
| Internal Volume | 400 Liters |
| Working Environment | 10 to 30℃ |
| Working Environment (Humidity) | below 70% |
| Power Consumption | 1350 W |
| Power Supply | AC 220V to 50Hz |
| Internal Dimensions (H×W×D) | 1050 × 600 × 640 mm |
| External Dimensions (H×W×D) | 1700 × 745 × 930 mm |
| Shipping Dimensions (H×W×D) | 1900 × 840 × 1080 mm |
| Net Weight | 158 kg |
| Gross Weight | 186 kg |

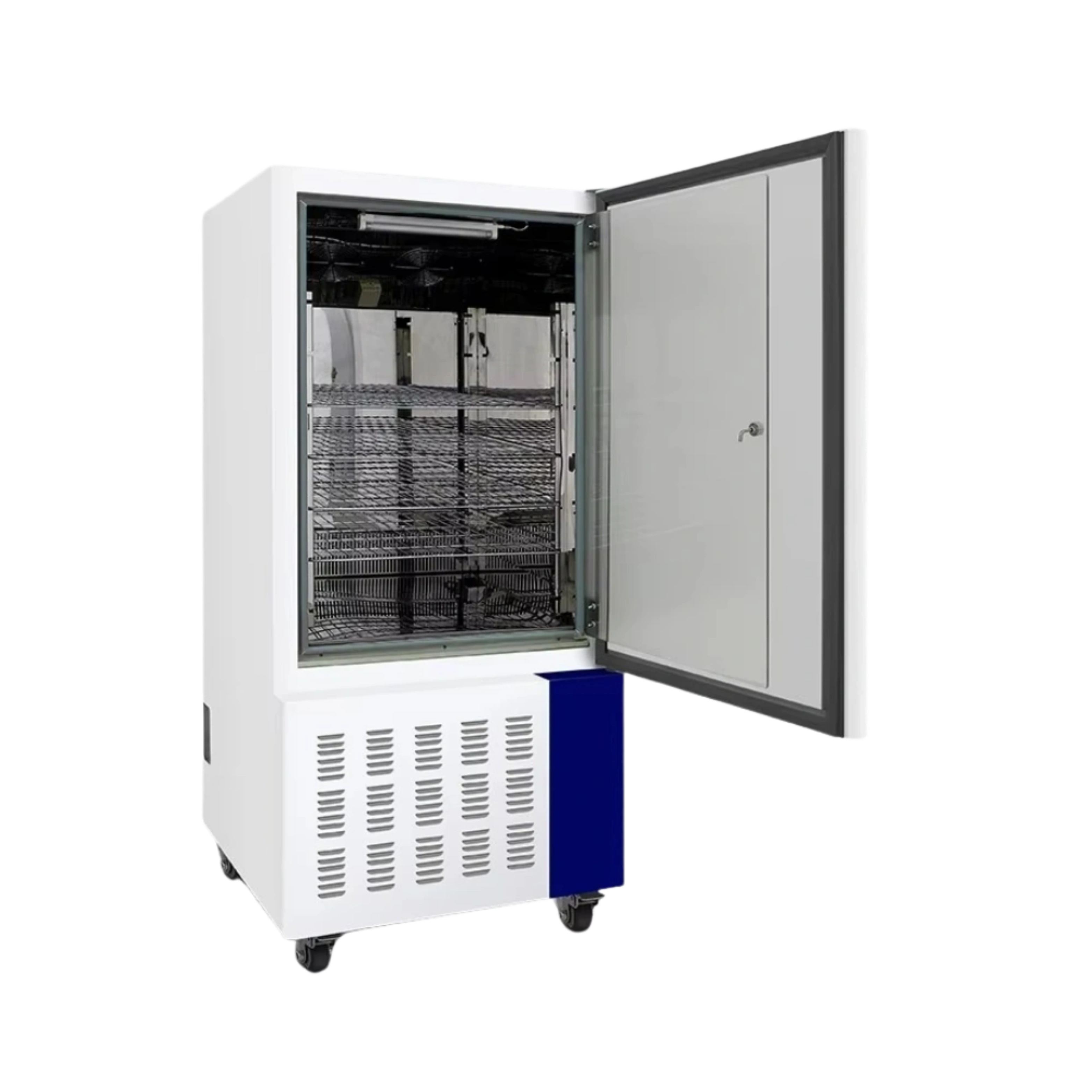

The Drug Stability Test Chamber ADDST-504 is designed for use in pharmaceutical laboratories, supporting stability studies, failure diagnostics, and long-term trials in compliance.
ALLSENSTM Software
Portable Printer | 1 unit |
LCD Touch Screen Controller | 1 unit |
Power Supply Interface | 1 unit |
Air Interface | 1 unit |
Partition Illuminator | 1 unit |
1. What is the working principle of the Double Beam Spectrophotometer ADDS-504?
The Double Beam Spectrophotometer ADDS-504 operates on the principle of splitting a light beam into two paths—one passing through the sample and the other through a reference. This allows simultaneous measurement of both, minimizing errors due to fluctuations in light source intensity. The instrument detects the absorbance of the sample at specific wavelengths. It compares this with the reference to provide accurate and stable readings.
2. What is the primary function of the Drug Stability Test Chamber?
The Drug Stability Test Chamber is specifically engineered for use in pharmaceutical laboratories where environmental conditions control. Its primary function is to simulate long-term, intermediate, and accelerated storage conditions in accordance with regulatory standards. This system is ideal for stability testing, failure analysis, and product shelf-life studies, making it a part of pharmaceutical and quality assurance workflows.
3. What safety features are included in the Drug Stability Test Chamber?
The Drug Stability Test Chamber is equipped with multiple safety features to protect both the samples and the system. These include over-temperature protection, humidity limit alarms, audio-visual alerts, and automatic shutoff. Drug Stability Test Chamber includes door open alarms and password-protected controls to prevent unauthorized access.
4. What is a Drug Stability Test Chamber?
A Drug Stability Test Chamber is a specialized equipment used in pharmaceutical settings to test the stability of products. These units simulate a range of temperature, humidity, and light conditions to accelerate the aging process of drugs. The system is designed to meet industry standards such as Good Manufacturing Practices and is used for accelerated testing.
5. Can the Drug Stability Test Chamber be used for accelerated stability testing?
Yes, the Drug Stability Test Chamber is designed to carry out accelerated stability testing by using elevated temperature and humidity conditions. This type of testing helps predict the shelf life of the drug in a shorter period. It used the environmental stress that might occur during transportation. They help in manufacturing determine how long a drug will remain effective under normal storage conditions.
6. What is the role of forced convection in a Drug Stability Test Chamber?
Forced convection refers to the circulation of air within the Drug Stability Test Chamber, which helps maintain uniform temperature and humidity. This airflow ensures that all samples are exposed to the same controlled environmental conditions. It is improving the accuracy and reproducibility of stability tests. The temperature gradients prevent, which might otherwise skew test results.
