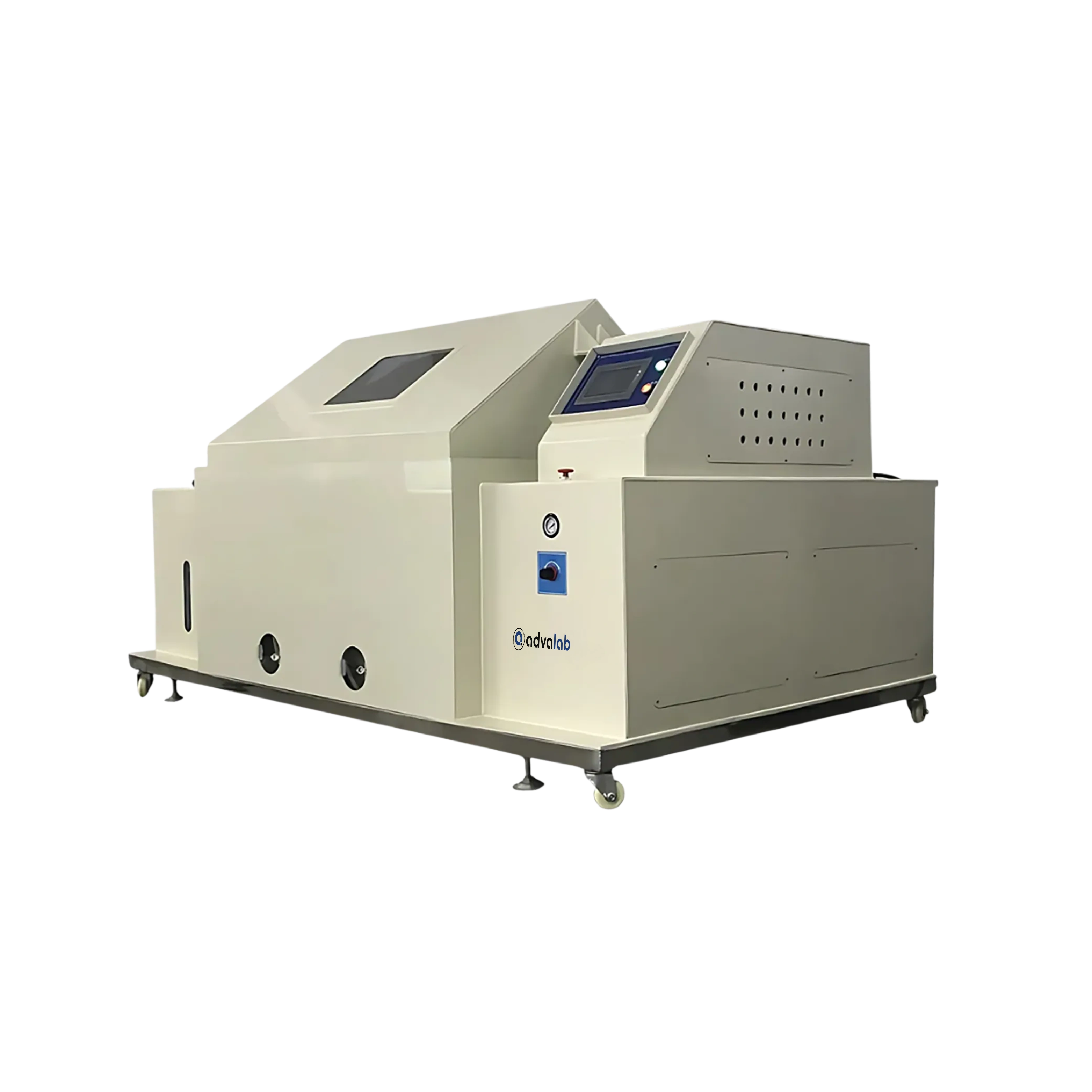

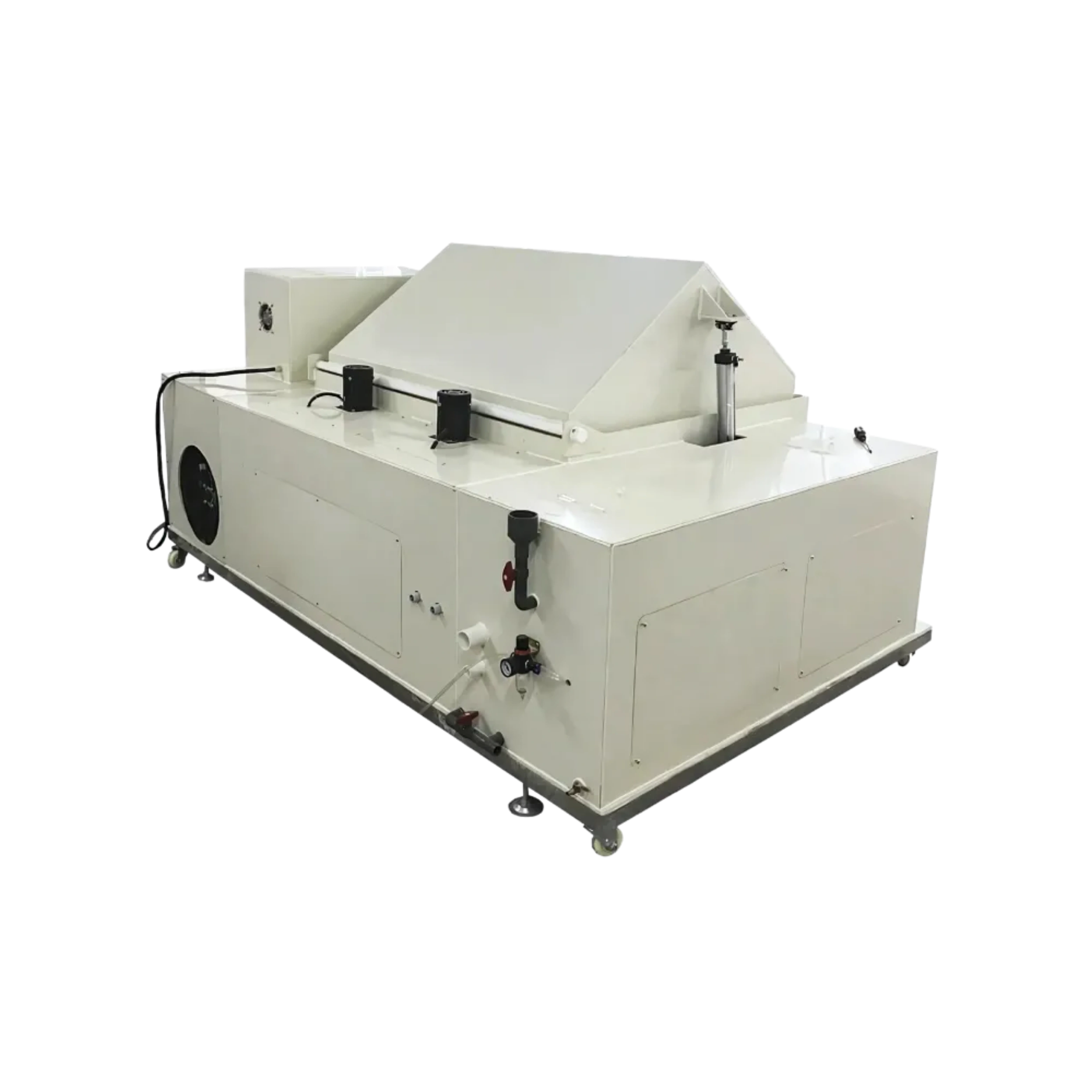

Salt Spray Test Chamber ADST-502 is equipped with a 25L brine tank for holding a saline solution for a prolonged period without regular filling. It maintains uniform temperature control with minimal fluctuations of less than ± 2°C, providing stable conditions crucial for reliable testing. Our system provides a spray pressure of 1.00 ± 0.1kgf/cm², preventing nozzle clogging and ensuring consistent droplet size for corrosion resistance evaluation.
| Brine Tank Capacity | 25L |
| Lab Volume | 270L |
| Test Equipment Temperature Range | RT to 55℃ |
| Pressure Tank Temperature Range | RT to 70℃ |
| Temperature Fluctuations | < ± 0.5℃ |
| Temperature Uniformity | < ± 2℃ |
| Temperature Precision | ± 1 ℃ |
| Spray Pressure | 1.00 ± 0.1kgf/cm2 |
| Lab Relative Humidity | Above 85%RH |
| Spray Quantity | 1.0 to 2.0ml/80cm2/hour |
| Spray Way | Continuous or intermittent type spray(optional) |
| Safety Protection Device | Current discharge protection, overpressure protection, over temperature protection, overload fuse protection |
| Power Supply | AC220V, 15A |
| Test Space (W × H × D) | 900 × 600 × 500 mm |
| Dimension (W × H × D) | 1310 × 880 × 1280 mm |
| Weight | 180 kg |
Salt Spray Test Chamber is ideal for testing corrosion resistance, ensuring the quality and durability of products. It is widely used in various industries, including coatings, marine, construction, metal manufacturing, aerospace, automotive, oil and gas, pharmaceuticals, and biotechnology.
| Lab Volume | 800L |
| Brine Tank Capacity | 40L |
| Spray Pressure | 1.00 ± 0.1kgf/cm2 |
| Lab Volume | 1440L |
| Brine Tank Capacity | 40L |
| Spray Pressure | 1.00 ±0.1kgf/cm2 |
| Brine Tank Capacity | 15L |
| Lab Volume | 108L |
| Test Equipment Temperature Range | RT to 55℃ |
| Capacity: | 275 L |
| Temperature Range: | With Light 10 °C to 55°C Without Light 5 °C to 55°C |
| Uniformity: | ≤± 1 °C |
| Capacity: | 1075 L |
| Temperature Range: | With Light 10 °C to 55°C Without Light 5 °C to 55°C |
| Uniformity: | ≤± 1 °C |
| Capacity: | 375 L |
| Temperature Range: | With Light 10 °C to 55°C Without Light 5 °C to 55°C |
| Uniformity: | ≤± 1 °C |
| Capacity: | 175 L |
| Temperature Range: | With Light 10 °C to 55°C Without Light 5 °C to 55°C |
| Uniformity: | ≤± 1 °C |
| Capacity: | 800 L |
| Temperature Range: | With Light 10 °C to 55°C Without Light 5 °C to 55°C |
| Uniformity: | ≤± 1 °C |
| Capacity: | 475 L |
| Temperature Range: | With Light 10 °C to 55°C Without Light 5 °C to 55°C |
| Uniformity: | ≤± 1 °C |
| Capacity: | 150 L |
| Temperature Range: | With Humidification 0 °C to 65°C No Humidification 10 °C to 65°C |
| Uniformity: | ± 1 °C |
| Capacity: | 250 L |
| Temperature Range: | With Humidification 0 °C to 65°C No Humidification 10 °C to 65°C |
| Uniformity: | ± 1 °C |
| Capacity: | 70 L |
| Temperature Range: | With Humidification 0 °C to 65°C No Humidification 10 °C to 65°C |
| Uniformity: | ± 1 °C |
| Capacity: | 1000 L |
| Temperature Range: | 10 °C to 50 °C |
| Uniformity: | ± 1 °C |
| Capacity: | 1000 L |
| Temperature Range: | 0 °C to 50 °C |
| Uniformity: | ± 0.1 °C |
| Capacity: | 500 L |
| Temperature Range: | 0 °C to 50 °C |
| Uniformity: | ± 0.1 °C |
| Capacity: | 310 L |
| Temperature Range: | 0 °C to 50 °C |
| Uniformity: | ± 0.1 °C |
| Capacity: | 268 L |
| Temperature Range: | 0 °C to 50 °C |
| Uniformity: | ± 0.1 °C |
| Temperature Range: | 0 to 70℃ |
| Temperature Resolution: | 0.1℃ |
| Temperature Uniformity: | ≤0.5℃ |
