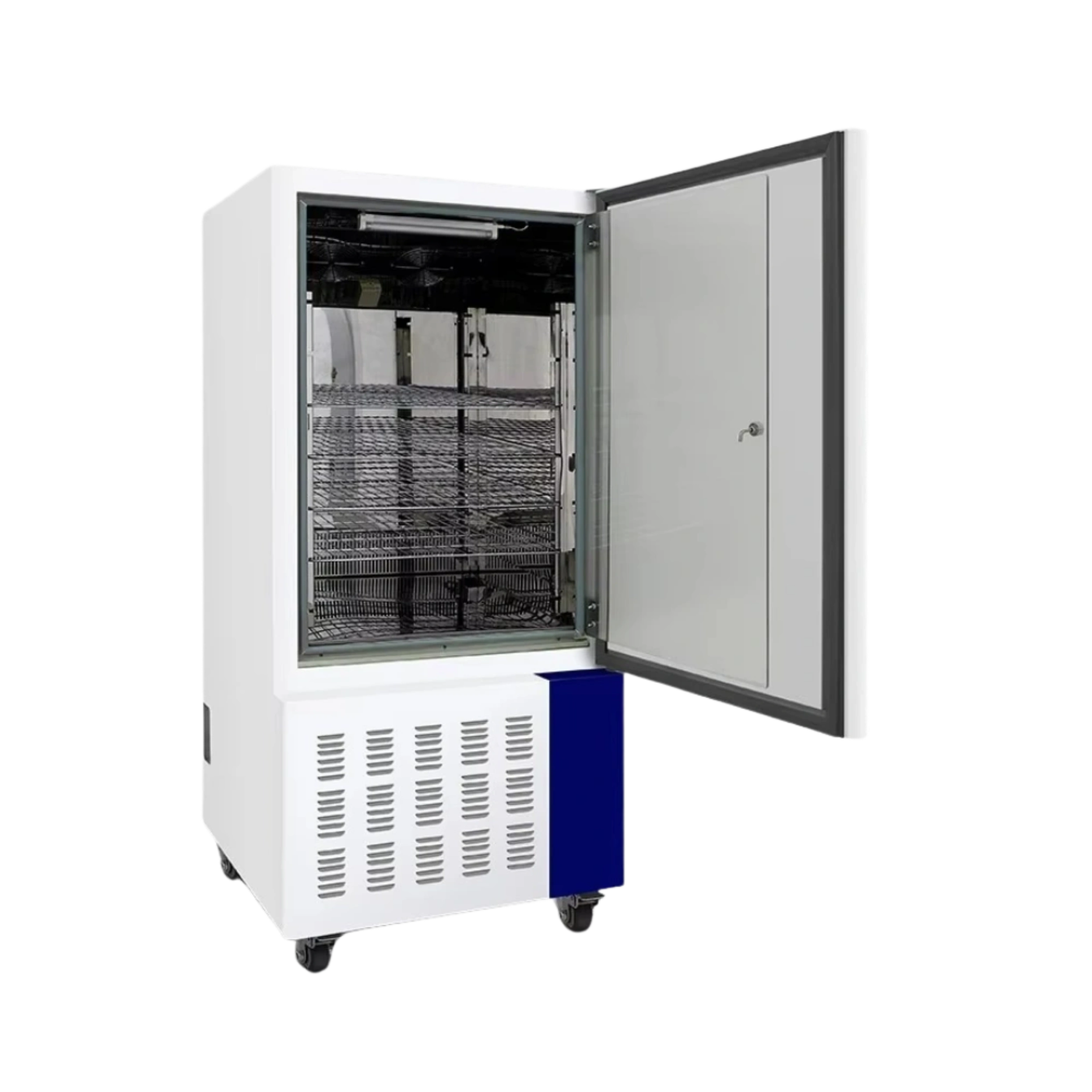

Drug Stability Test Chamber ADDST-505
Drug Stability Test Chamber ADDST-505
Drug Stability Test Chamber ADDST-505

Drug Stability Test Chamber ADDST-505

Our Drug Stability Test Chamber ADDST 505 features a precise temperature range of 0 to 60℃, without lighting. It is equipped with a thirty-stage microprocessor PID controller for accurate regulation. The forced convection system ensures uniform airflow throughout the chamber. With a double-layer insulation design, it reduces power consumption and enhances energy efficiency. Drug Stability Test Chamber is ideal for pharmaceutical applications, delivering reliable results in stability testing.


Temperature Range 10 to 65℃ (with lighting), 0 to 60℃ (without lighting)
Humidity Range 40 to 95%RH
Illumination Range 0 to 6000LX (five stages adjustable)
Humidity Fluctuation ±3%RH
Temperature Accuracy ±0.1℃
Temperature Fluctuation ±0.5℃ (within 10 to 40℃)
Temperature Uniformity ±1℃ (within 10 to 40℃)
Internal Volume 150 Liters
Working Environment 10 to 30℃
Working Environment (Humidity) 70% (below)
Power Consumption 1080 W
Power Supply AC 220V to 50Hz
Internal Dimensions (H×W×D) 760 × 510 × 390 mm
External Dimensions (H×W×D) 1410 × 650 × 680 mm
Shipping Dimensions (H×W×D) 1610 × 750 × 830 mm
Net Weight 107.5 kg
Gross Weight 133 kg
  • Dot-matrix display
  • GMP compliant design
  • Balanced refrigeration
  • Auto defrost
  • Continuous operation

Drug Stability Test Chamber ADDST-505 is used in pharmaceutical labs for stability testing, failure evaluation, and GMP-compliant long-term trials.

ALLSENSTM Software

Portable Printer

1 unit

LCD Touch Screen Controller

1 unit

Power Supply Interface

1 unit

Air Interface

1 unit

Partition Illuminator

1 unit

Frequently Asked Questions of Drug Stability Test Chamber ADDST-505

1. What safety features are included in the Drug Stability Test Chamber?

The Drug Stability Test Chamber is equipped with multiple safety features to protect both the samples and the system. These include over-temperature protection, humidity limit alarms, audio-visual alerts, and automatic shutoff. Drug Stability Test Chamber includes door open alarms and password-protected controls to prevent unauthorized access.

2. What is the primary function of the Drug Stability Test Chamber?

The Drug Stability Test Chamber is specifically engineered for use in laboratories where environmental conditions control. Its primary function is to simulate long-term, intermediate, and accelerated storage conditions in accordance with regulatory standards. This system is ideal for stability testing, failure analysis, and product shelf-life studies, making it a part of pharmaceutical and quality assurance workflows.

3. What is a Drug Stability Test Chamber?

A Drug Stability Test Chamber is a specialized equipment used in pharmaceutical settings to test the stability of products. These units simulate a range of temperature, humidity, and light conditions to accelerate the aging process of drugs. The system is designed to meet industry standards such as Good Manufacturing Practices and is used for accelerated testing.

4. Can the Drug Stability Test Chamber be used for accelerated stability testing?

Yes, the Drug Stability Test Chamber is designed to carry out accelerated stability testing by using elevated temperature and humidity conditions. This type of testing helps predict the shelf life of the drug in a shorter period. It used the environmental stress that might occur during transportation. They help in manufacturing determine how long a drug will remain effective under normal storage conditions.

5. What is the role of forced convection in a Drug Stability Test Chamber?

Forced convection refers to the circulation of air within the Drug Stability Test Chamber, which helps maintain uniform temperature and humidity. This airflow ensures that all samples are exposed to the same controlled environmental conditions. It is improving the accuracy and reproducibility of stability tests. The temperature gradients prevent, which might otherwise skew test results.
