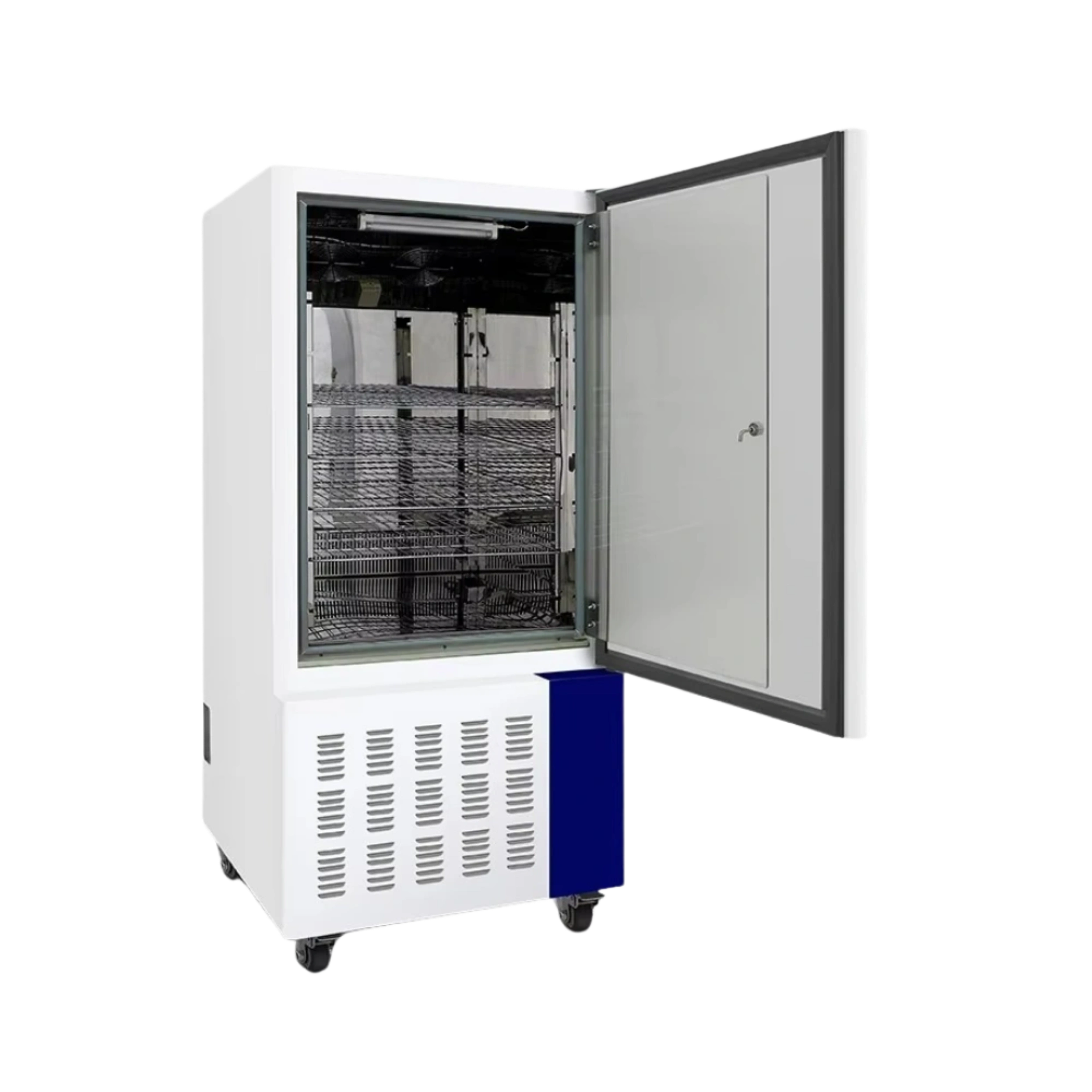

Our Drug Stability Test Chamber ADDST-503 provides a controlled humidity range of 40 to 95% RH, for pharmaceutical stability testing. It features a thirty-stage microprocessor PID controller for reliable environmental regulation. Uniform airflow is maintained throughout the system using a forced convection unit. Double-layer insulation design improves energy efficiency by minimizing heat loss. This Drug Stability Test Chamber is well-suited for GMP-compliant studies, long-term drug trials, and shelf-life testing.
| Temperature Range | 0 to 65℃ |
| Humidity Range | 40 to 95% RH |
| Temperature Accuracy | ±0.1℃ |
| Temperature Fluctuation | ±0.5℃ (within 10 to 40℃) |
| Temperature Uniformity | ±1℃ (within 10 to 40℃) |
| Humidity Fluctuation | ±3% RH |
| Internal Volume | 250 Liters |
| Working Environment | 10 to 30℃ |
| Working Environment (Humidity) | below 70% |
| Power Consumption | 1100 W |
| Power Supply | AC 220V to 50Hz |
| Internal Dimensions (H×W×D) | 1100 × 510 × 450 mm |
| External Dimensions (H×W×D) | 1730 × 650 × 740 mm |
| Shipping Dimensions (H×W×D) | 1930 × 750 × 890 mm |
| Net Weight | 135 kg |
| Gross Weight | 162 kg |
Drug Stability Test Chamber ADDST-503 is used in pharmaceutical laboratories for stability testing, failure analysis, and GMP-compliant long-term trials.
ALLSENSTM Software
Portable Printer 1 unit LCD Touch Screen Controller 1 unit Power Supply Interface 1 unit Air Interface 1 unit Partition Illuminator 1 unit
1. What is a Drug Stability Test Chamber?
A Drug Stability Test Chamber is a specialized equipment used in pharmaceutical settings to test the stability of products. These units simulate a range of temperature, humidity, and light conditions to accelerate the aging process of drugs. The system is designed to meet industry standards such as Good Manufacturing Practices and is used for accelerated testing.
2. What safety features are included in the Drug Stability Test Chamber?
The Drug Stability Test Chamber is equipped with multiple safety features to protect both the samples and the system. These include over-temperature protection, humidity limit alarms, audio-visual alerts, and automatic shutoff. Drug Stability Test Chamber includes door open alarms and password-protected controls to prevent unauthorized access.
3. Can the Drug Stability Test Chamber be used for accelerated stability testing?
Yes, the Drug Stability Test Chamber is designed to carry out accelerated stability testing by using elevated temperature and humidity conditions. This type of testing helps predict the shelf life of the drug in a shorter period. It used the environmental stress that might occur during transportation. They help in manufacturing determine how long a drug will remain effective under normal storage conditions.
4. What is the role of forced convection in a Drug Stability Test Chamber?
Forced convection refers to the circulation of air within the Drug Stability Test Chamber, which helps maintain uniform temperature and humidity. This airflow ensures that all samples are exposed to the same controlled environmental conditions. It is improving the accuracy and reproducibility of stability tests. The temperature gradients prevent, which might otherwise skew test results.
5. What is the primary function of the Drug Stability Test Chamber?
The Drug Stability Test Chamber is specifically engineered for use in pharmaceutical laboratories where environmental conditions control. Its primary function is to simulate long-term, intermediate, and accelerated storage conditions in accordance with regulatory standards. This system is ideal for stability testing, failure analysis, and product shelf-life studies, making it a part of pharmaceutical and quality assurance workflows.
| Temperature Range | 10 to 65℃ (with lighting), 0 to 60℃ (without lighting) |
| Humidity Range | 40 to 95% RH |
| Illumination Range | 0 to 6000LX (five stages adjustable) |
