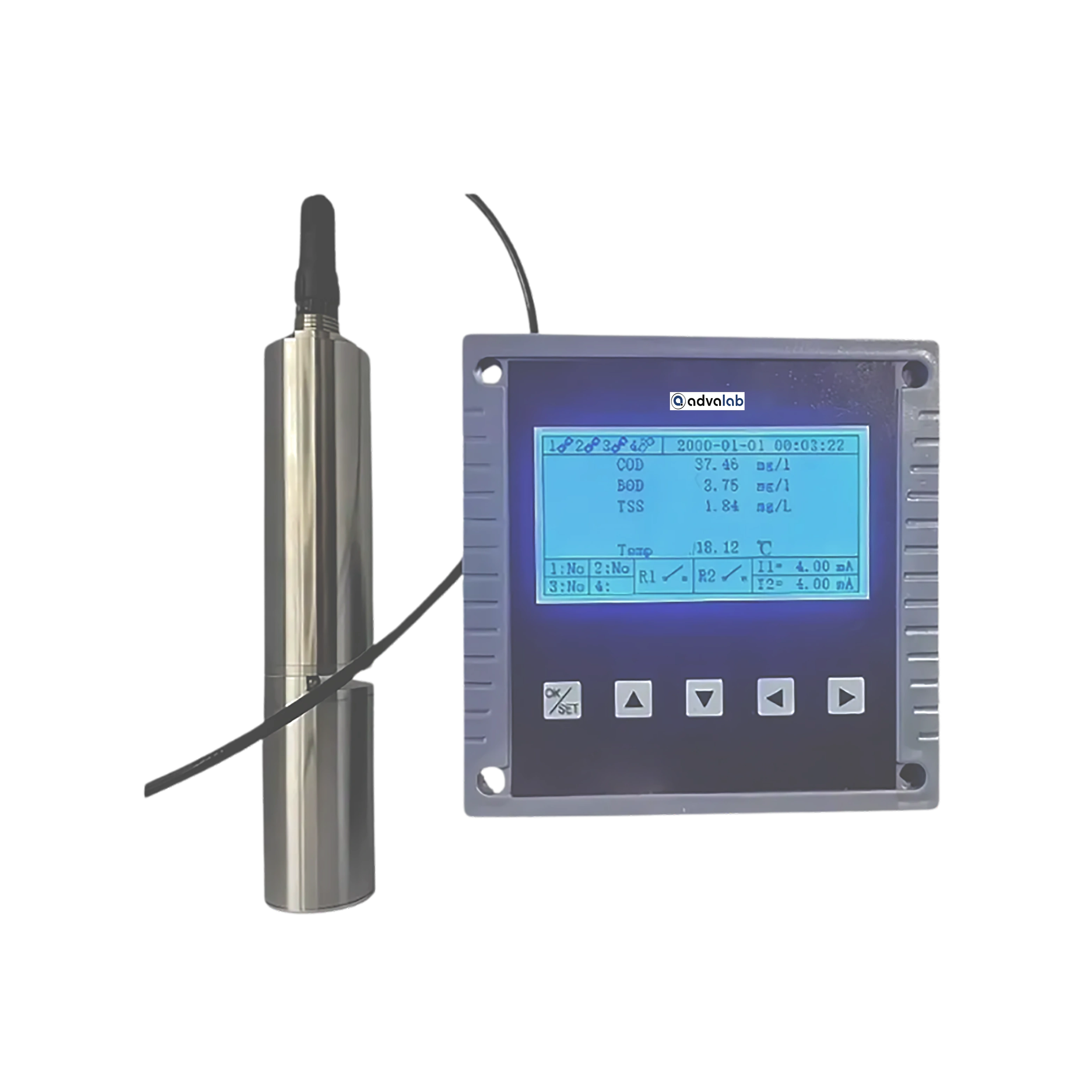

COD Analyzer ADCOD-501

COD Analyzer ADCOD-501 is designed with a measurement range of 0 to 10,000 mg/L ensuring reliable readings. It operates on the UV 254 nm ensuring reliable identification of organic compounds in water. It features a built-in temperature sensor, enabling temperature measurement and compensation during analysis. Our analyzer includes an LCD for convenient operation and monitoring of parameters.

Features :

Digital sensor
RS-485 output signal
Turbidity interference compensation
Multi-parameter testing (COD/BOD/TSS/Temperature)

Specifications :

COD Range	0 to 10000 mg/L (Customized)
Principle	UV 254
Resolution	0.01 mg/L
Housing Material	SS316 / Titanium (Customized)
Output Signal	RS485 / Modbus
Accuracy	3% to 5% FS
Calibration	3-point calibration
Power Supply	12VDC ±5%
Dimension of COD Sensor’s Analyzer	144×144×115 mm (Controller size)
Dimensions of COD Sensor	234×78×46 mm
Weight	0.65 Kg

Applications :

COD Analyzer ADCOD-501 is used to measure the amount of organic pollutants in water. It is widely used in fields such as Water Quality Monitoring, Wastewater Treatment, Environmental Protection, and Process Control.
