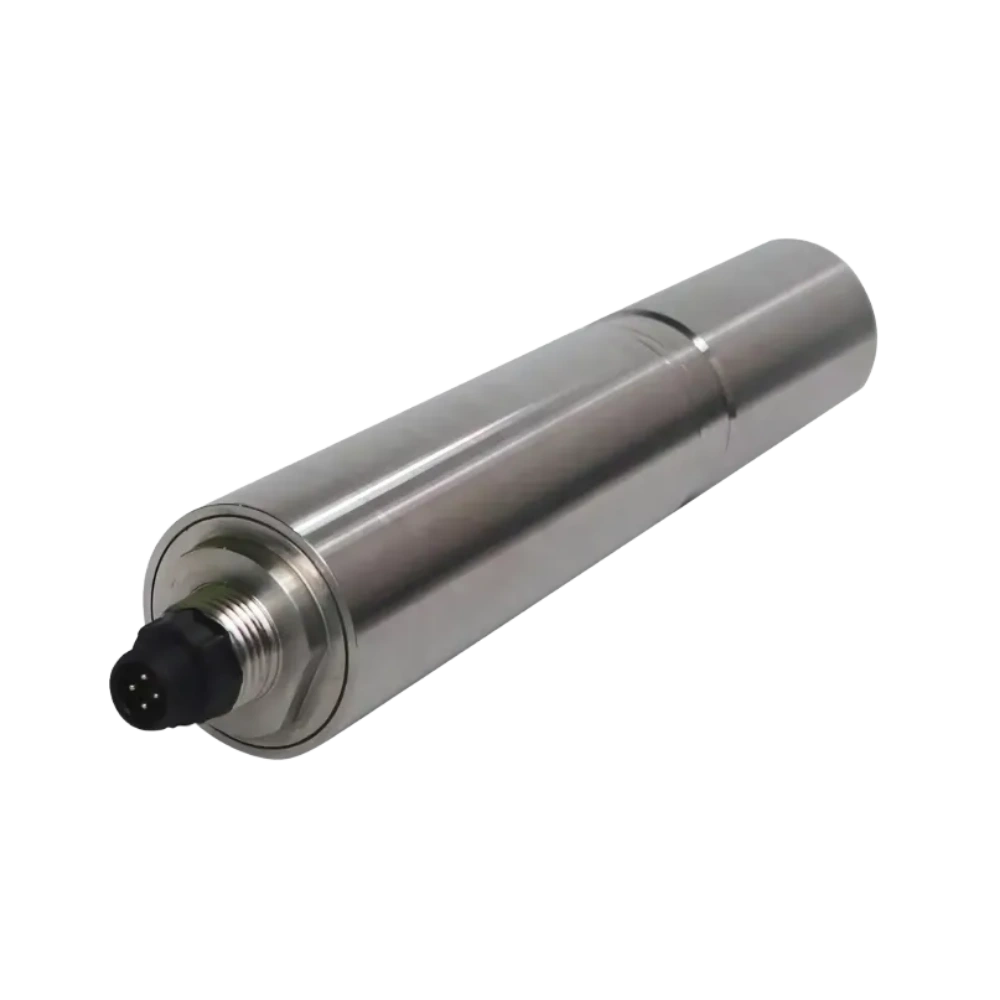

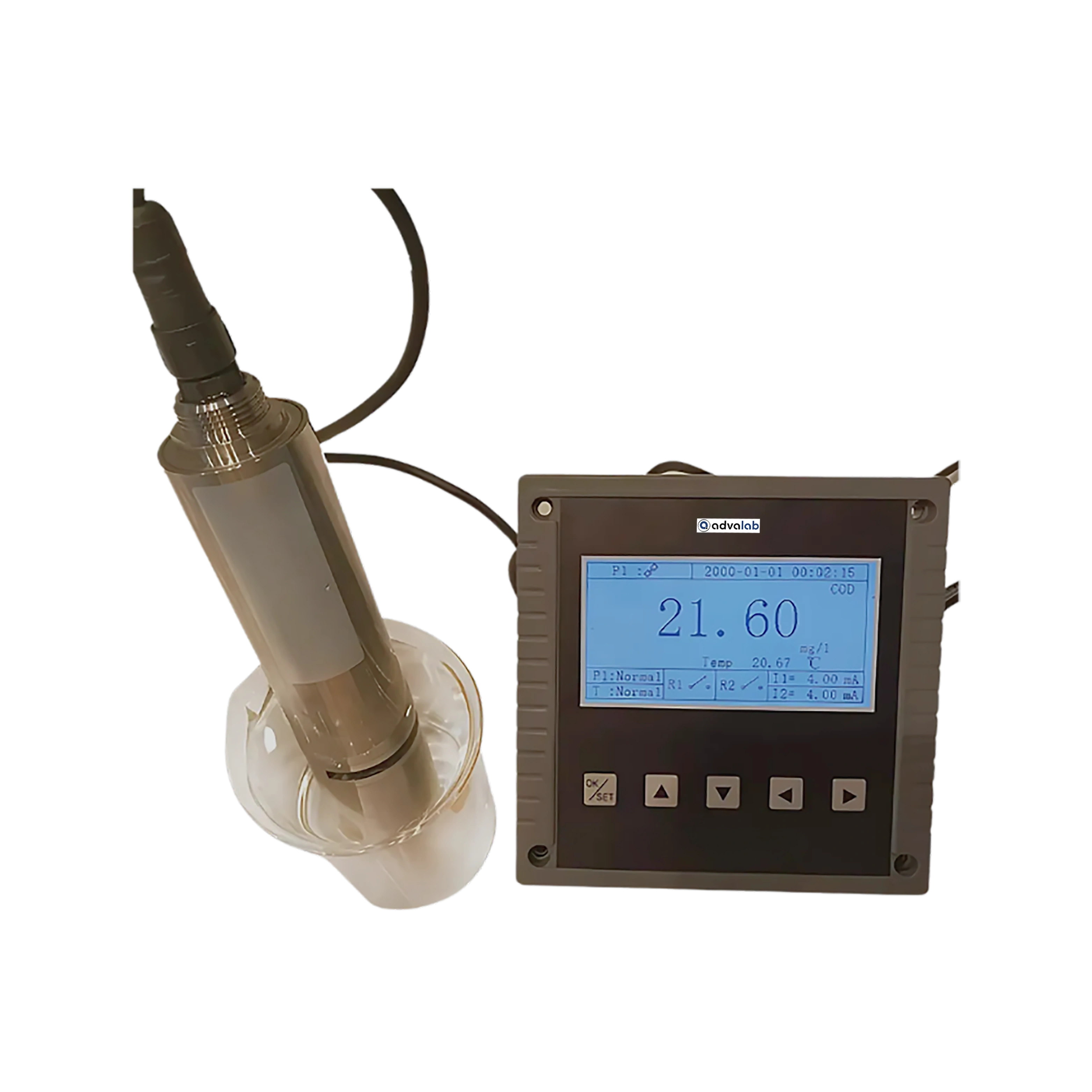

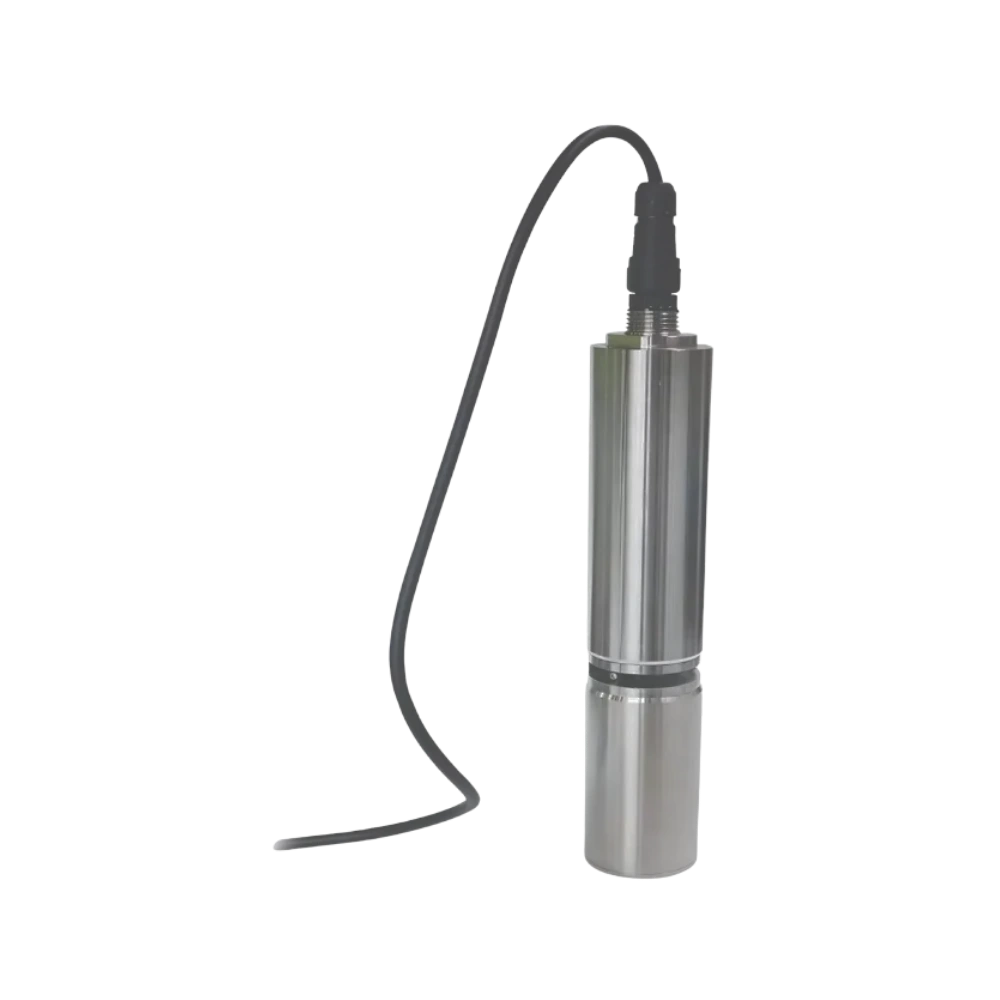

COD Analyzer ADCOD-501 is designed with a measurement range of 0 to 10,000 mg/L ensuring reliable readings. It operates on the UV 254 nm ensuring reliable identification of organic compounds in water. It features a built-in temperature sensor, enabling temperature measurement and compensation during analysis. Our analyzer includes an LCD for convenient operation and monitoring of parameters.
| COD Range | 0 to 10000 mg/L (Customized) |
| Principle | UV 254 |
| Resolution | 0.01 mg/L |
| Housing Material | SS316 / Titanium (Customized) |
| Output Signal | RS485 / Modbus |
| Accuracy | 3% to 5% FS |
| Calibration | 3-point calibration |
| Power Supply | 12VDC ±5% |
| Dimension of COD Sensor’s Analyzer | 144×144×115 mm (Controller size) |
| Dimensions of COD Sensor | 234×78×46 mm |
| Weight | 0.65 Kg |
COD Analyzer ADCOD-501 is used to measure the amount of organic pollutants in water. It is widely used in fields such as Water Quality Monitoring, Wastewater Treatment, Environmental Protection, and Process Control.
| Indication Error: | ≤±5% |
| Repeatability: | 0.03 |
| COD Detection Method: | Potassium dichromate method, Potassium permanganate method |
| COD Test Method: | Potassium dichromate method<br/> Alkaline potassium permanganate |
| COD Measuring Range: | 10 to 15000mg/L<br/> 0.5 to 25mg/L |
| COD Test Limit: | 10mg/L<br/> 0.5mg/L |
.png "Multi Parameter Water Quality Analyzer ADMWA-504")
| Absorbance Detection Range: | 0 to 3Abs |
| Optical Path Stability: | ≤±0.005Abs/30min |
| Absorbance Resolution: | 0.001Abs |
| COD Detection Method: | Potassium dichromate method<br/> Potassium permanganate method |
| COD Measuring Range: | 10 to 15000 mg/L |
| COD Lower Limit of Measurement: | 3 mg/L |
| Dissolved Oxygen Measuring Range: | 0 to 20 mg/L |
| Saturation Measuring Range: | 0 to 200% |
| Temperature Measuring Range: | 0 to 50℃ |
| Dissolved Oxygen Measuring Range: | 0 to 20mg/L；0 to 200% |
| Resolution Ratio: | 0.01mg/L；0.1% |
| Measurement Accuracy: | 0.05mg/L;0.5% |
| Dissolved Oxygen Concentration Measuring Range: | 0 to 20 mg/L |
| Dissolved Oxygen Concentration Resolution: | 0.01 mg/L |
| Dissolved Oxygen Concentration Accuracy: | ≤±0.30 mg/L |
| Test Parameter: | Ammonia nitrogen |
| Measuring Range: | 0.01 to 10mg/L |
| Wavelength: | 420 nm |
| Test Parameter: | Residual Chlorine |
| Measuring Range: | 0.05 to 10 mg/L |
| Wavelength: | 520 nm |
| Test Parameter: | Chlorine dioxide |
| Measuring Range: | 0.1 to 5 mg/L |
| Wavelength: | 520 nm |
| Test Parameter: | Total Chlorine |
| Measuring Range: | 0.05 to 10 mg/L |
| Wavelength: | 520 nm |
| Test Parameter: | Ozone |
| Measuring Range: | 0.05 to 2.5mg/L |
| Wavelength: | 520 nm |
| Measuring Range: | 0 to 1000 NTU (Selectable ranges: 0 to 20 NTU, 0 to 200 NTU, 0 to 1000 NTU) |
| Accuracy: | ±0.1NTU or ±5%<br/> ±0.3NTU or ±8% |
| Repeatability: | ≤±0.1NTU at＜10NTU<br/> ≤±1% at ≥10NTU |
| TSS Measuring Range: | 0 to 1000mg/L |
| TSS Accuracy: | ±0.3mg/L or ±8% |
| TSS Repeatability: | <10mg/L: ≤±0.1mg/L <br/> ≥10mg/L: ≤±1% |
| TDS Range: | 0 to 9999 ppm |
| Conductivity Range: | 0 to 9999 μS/cm |
| Temperature Range: | 0 to 80℃ or 32 to 176℃ |
| Measuring Range: | 0 to 10% |
| Measuring Temperature Range: | 0 to 99℃ |
| Resolution: | 0.01%，0.1℃ |
| Temperature Control Range: | Room temperature to 180℃ |
| Digestion Temperature Range: | 50 to 180℃ |
| Temperature Control Accuracy: | ±0.1℃ |
.png "Thermoreactor ADTR-502")
| Temperature Control Range: | 45 to 180℃ |
| Digestion Temperature: | 45 to 180℃ |
| Temperature Control Accuracy: | ±0.1℃ |
| pH Measuring Range: | -2 to 16 pH |
| pH resolution: | 0.1pH |
| pH indication error: | ±0.2% F.S. |
.png "ORP Meter ADOR-501")
| ORP Measuring Range: | -1000mV to 1000mV |
| ORP Resolution: | 1 mV |
| ORP measurement Accuracy: | ±0.5% F.S. |
| pH Measuring Range: | 0 to 14pH |
| pH Resolution: | 0.01pH |
| pH Measuring Accuracy: | ±0.01pH |
| pH Measuring Range: | 0 to 14 pH |
| pH Resolution: | 0.041 pH |
| pH Indication Error: | ±0.02 pH |
