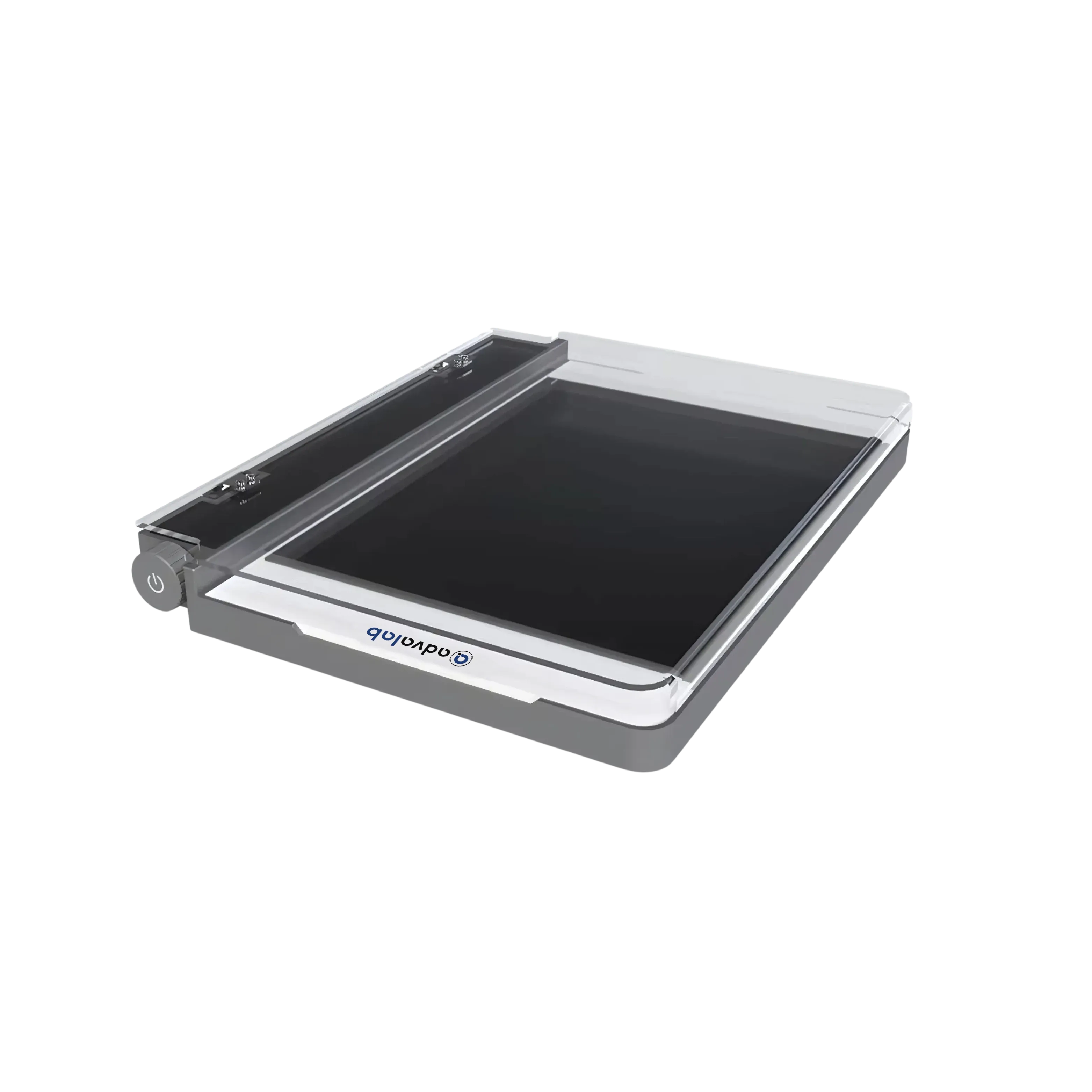

UV Transilluminator ADUT-504 offers high-sensitivity 302 nm LED illumination for precise DNA and RNA gel visualization. It features LED lamp beads that shorten the radiation distance, reducing harm while providing uniform fluorescence. Equipped with UV filter glass, it provides selective absorption for high excitation sensitivity. The stable aluminium alloy base provides a lightweight, compact structure with efficient heat dissipation. They are ideal for observing and cutting gels in molecular biology and genetic research.
| Emission Wavelength | 302 nm |
|---|---|
| Observation Area (L×W) | 200mm×130mm |
| LED Source | Bottom built-in UV LED light module |
| LED Lifetime | Less than 50,000 hours |
| Applicable Fluorescent Dyes | EtBr, SYBR Safe, SYBR Gold, SYBR Green I/II, SYPRO Ruby, SYPRO Orange, SYPRO Red, Coomassie Fluor™ Orange stains, GelRed, Redsafe |
| Base | 30 mm thickness, stable aluminium alloy |
| Power Adapter | 12V 1A |
| Dimension (L×W×H) | 260×192×30 mm |
| Weight | 1.3kg |
UV Transilluminator ADUT-504 is used for visualizing DNA/RNA and protein gel electrophoresis results. It also allows safe and precise gel cutting during molecular biology experiments.
