| Velocity | 0.27 to 0.025 m/s |
| Inflow Air Speed | 0.38 to 0.025 m/s |
| Half Peak Amplitude | ≤ 3µm |
| Number of Colonies | ≤ 0.5 dish/hr |
| Noise | ≤ 65 dB |
| Purification Efficiency | 100 Stages |
| Filter Size | 1295 × 545 × 50 mm |
| Air Tightness | 99.99≤ E ≤99.999 |
| Fluorescent/UV Lamp | 28 W × 2 / 21 W × 1 |
| Dimensions (W× D × H) | 1500× 750 × 1950 mm |
| Purification Area Size | 1300 × 650 × 620 mm |
| Illumination | ≥ 700 LX |
| Weight | 180 Kg |
| Wind Direction | ø 200 mm |

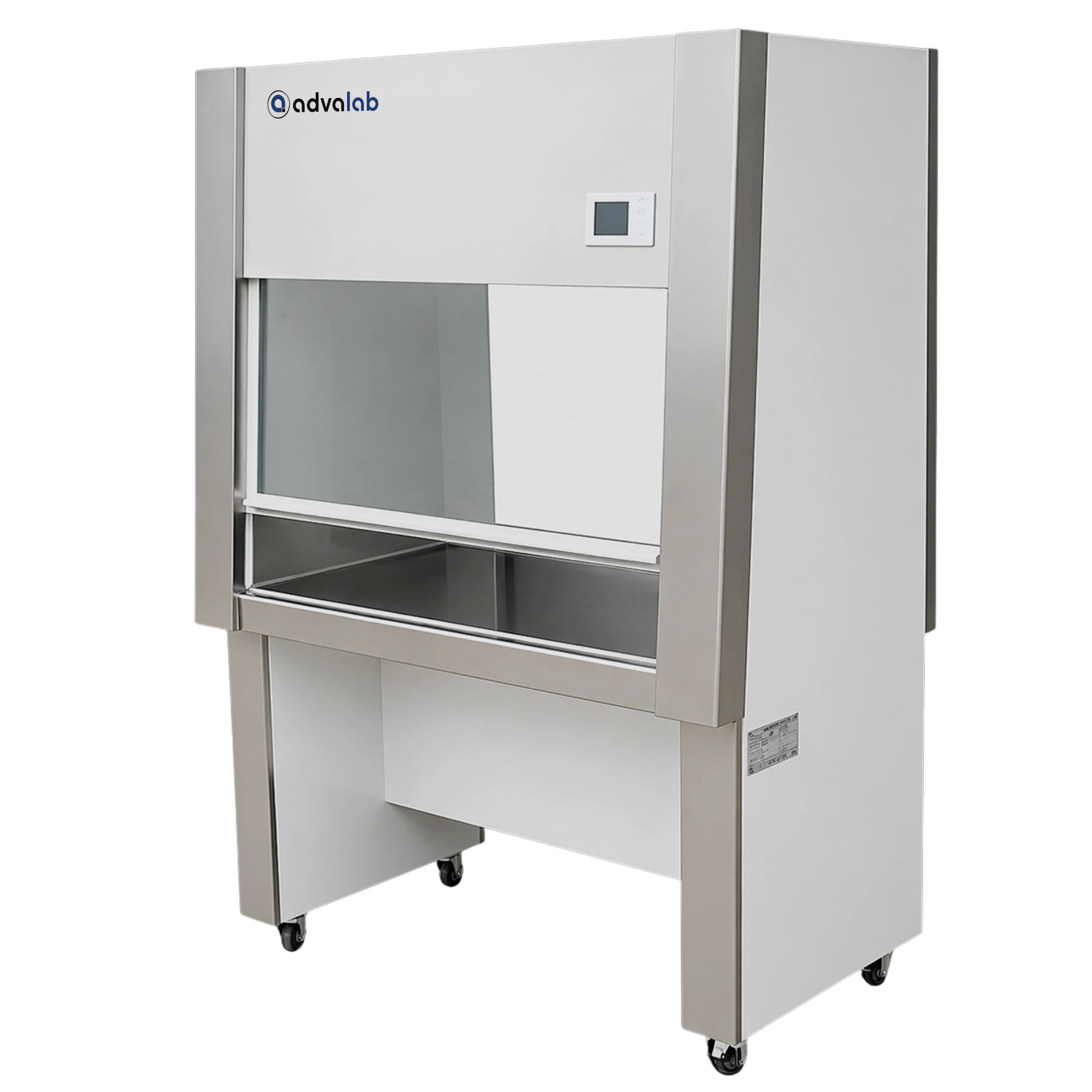

Class A2 Biosafety Cabinet is extensively used in research facilities, laboratories, and educational environments. It is commonly used in pharmaceutical, hospital, and medical fields.
1. What are Class II A2 Biological Safety Cabinets and where are they commonly used?
Class II A2 Biological Safety Cabinets are designed to provide protection to users, laboratory samples, and the surrounding environment from harmful contaminants. These cabinets operate by maintaining a constant inflow of air to prevent exposure to hazardous substances. While simultaneously using high-efficiency ULPA filters to purify the air being recirculated and exhausted. They are used in microbiology labs, clinical research settings and diagnostic centers.
2. Is regular maintenance required for Class II A2 Biological Safety Cabinets?
Yes, regular maintenance is crucial for Class II A2 Biological Safety Cabinets to maintain optimal performance safety. These units need regular cleaning to remove residues and prevent contamination. HEPA filters must be tested regularly to ensure they effectively trap airborne particles. Airflow patterns need to be validated periodically to ensure proper laminar flow and containment.
| External Dimensions (W×D×H) | 1100 × 750 × 2250 mm |
| Internal Dimensions (W×D×H) | 940 × 600 × 660 mm |
| Max Opening Height | 420 mm (17 inches) |
| External Dimension (W×D×H) | 1800 × 755 × 2250 mm |
| Internal Dimension (W×D×H) | 1625 × 600 × 660 mm |
| Max Opening Height | 500 mm (22 inches) |
| External Dimension (W×D×H) | 1300 × 750 × 2250 mm |
| Internal Dimension (W×D×H) | 1150 × 600 × 660 mm |
| Max Opening Height | 420 mm (17 inches) |
| External Dimension (W×D×H) | 1950 × 800 × 2170 mm |
| Internal Dimension (W×D×H) | 1800 × 600 × 660 mm |
| Max Opening Height | 400 mm (16 inches) |
| External Dimension (W×D×H): | 1800 × 775 × 2250 mm |
| Internal Dimension (W×D×H): | 1625 × 600 × 660 mm |
| Max Opening Height: | 480 mm (20 inches) |
| External Dimension (W×D×H): | 1300 × 750 × 2250 mm |
| Internal Dimension (W×D×H): | 1150 × 600 × 660 mm |
| Max Opening Height: | 420 mm (17 inches) |
| External Dimension (W×D×H): | 1100 × 750 × 2250 mm |
| Internal Dimension (W×D×H): | 940 × 600 × 660 mm |
| Max Opening Height: | 420 mm (17 inches) |
| External Dimension (W×D×H): | 1500 × 750 × 2250 mm |
| Internal Dimension (W×D×H): | 1350 × 600 × 660 mm |
| Max Opening Height: | 500 mm (20 inches) |
