| Optical System | Double beam, grating 1200 lines/mm |
| Wavelength Range | 190 to 1100 nm |
| Spectral Bandwidth | 0.5/1/2/4/5 nm |
| Wavelength Setting | Auto |
| Wavelength Accuracy | ± 0.1 nm 656.1 nm, ± 0.3 nm all |
| Wavelength Repeatability | <= 0.1 nm |
| Photometric Accuracy | 0.2 % T (0 to 100 % T), ± 0.002 A (0to 0.5 A), ± 0.004 A (0.5 to 1 A) |
| Photometric Repeatability | ≤ 0.15 % T (0 to 100 % T), 0.001 A (0 to 0.5 A), 0.002 A (0.5 to 1 A) |
| Photometric Stability | ± 0.15 % T, ± 0.002 A (0 to 0.5 A), ± 0.004 A (0.5 to 1 A) |
| Photometric Range | 0 to 200 % T, -0.3 to 3 A, 0 to 9999 C |
| Stray Light | <= 0.03 % T 220 nm, 360 nm |
| Stability | ± 0.0003 A/h 500 nm |
| Work Mode | T, A, C, E |
| Baseline Flatness | ± 0.001 A |
| Noise | 0.0005 A 500 nm |
| Scanning Speed | Hi, Med, Low (Max. 3000nm/min) |
| Display | 7-inch Colour touch screen |
| Light Source | Deuterium and tungsten lamp |
| Detector | Imported silicon photodiode |
| Cuvette Holder | 10 mm Single-hole cell holder |
| Output | USB drive, USB host, RS232 |
| Power | AC 110 to 220 V 50 to 60 Hz |
| Dimensions (L×B×H) | 880×690×520 mm |
| Gross Weight | 45 Kg |

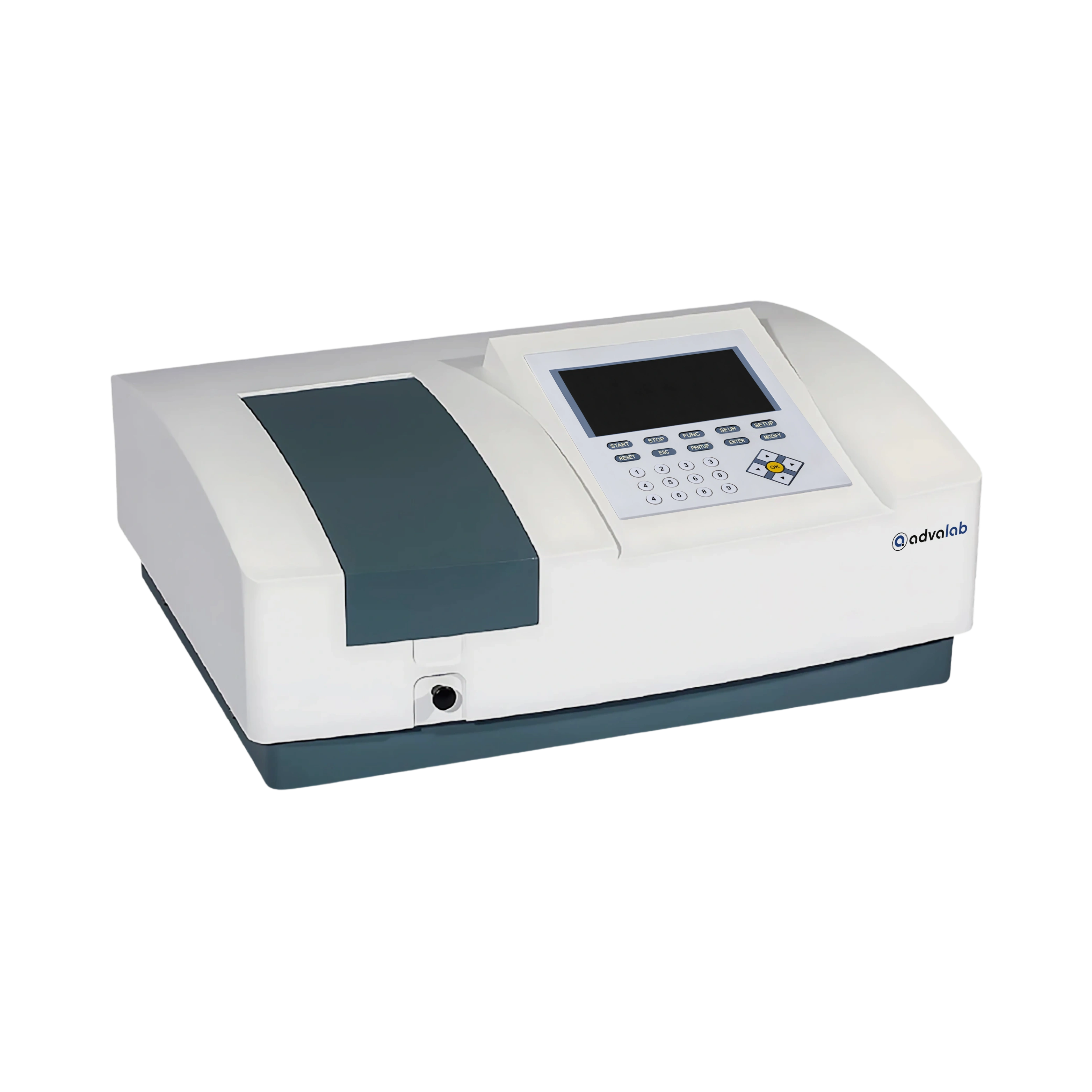

Our Double Beam Spectrophotometer ADDS-529 is used in quality control, research, and clinical labs for precise analysis of absorbance and concentration.
Accessory | Quantity |
10 mm Glass cuvette | 4 Pc |
10 mm Quartz cuvette (UV) | 2 Pc |
Power cord | 1 Pc |
User’s manual | 1 Pc |
PC software | 1 Pc |
1. What is the working principle of the Double Beam Spectrophotometer ADDS-529?
It operates on the principle of splitting a light beam into two paths—one passing through the sample and the other through a reference. This allows simultaneous measurement of both, minimizing errors due to fluctuations in light source intensity. The instrument detects the absorbance of the sample at specific wavelengths. It compares this with the reference to provide accurate and stable readings. This dual-path design enhances precision and repeatability.
2. What are the main applications of the Double Beam Spectrophotometer ADDS-529 in different fields?
The Double Beam Spectrophotometer ADDS-529 is widely used in pharmaceutical analysis, environmental testing, chemical research, food and beverage quality control, and educational labs. It helps determine the concentration of compounds by measuring their absorbance at specific wavelengths. In environmental labs, it can assess water quality by detecting pollutants. In pharmaceuticals, it ensures active ingredient consistency in drugs. Its accuracy and versatility make it suitable for both research and routine analysis.
3. How does the Double Beam Spectrophotometer ADDS-529 differ from a single beam spectrophotometer?
Unlike single beam models, the Double Beam Spectrophotometer ADDS-529 simultaneously measures both sample and reference beams, reducing measurement drift. This real-time comparison compensates for lamp intensity variations and enhances stability. It is more suitable for kinetic studies and high-precision work. While single beam spectrophotometers are simpler and more economical, the ADDS-529 offers superior performance and reliability.
4. What are the key features of the Double Beam Spectrophotometer ADDS-529?
The Double Beam Spectrophotometer ADDS-529 features a wide wavelength range, high photometric accuracy, real-time beam comparison, and user-friendly software. Its optical system ensures stable and reproducible results. It often includes a touchscreen interface and options for data export. The double beam setup allows long-term measurements without frequent recalibration. These features support reliable, high-throughput analysis in professional lab settings.
5. How should the Double Beam Spectrophotometer ADDS-529 be maintained for optimal performance?
To maintain accuracy, the instrument should be calibrated regularly and kept in a dust-free, dry environment. The sample compartment should be cleaned frequently, and the optical components should not be touched with bare hands. Software updates and regular performance checks are also recommended. Lamp life should be monitored and replaced when nearing end-of-life. Proper maintenance extends the device's lifespan and ensures consistent results.
