| Optical System | Single beam, grating 1200 lines/mm |
| Wavelength Range | 190 to 1100 nm |
| Spectral Bandwidth | 2 nm |
| Wavelength Accuracy | ± 0.1nm 656.1nm, ± 0.3nm all |
| Wavelength Repeatability | <=0.1nm |
| Photometric Accuracy | 0.2 % T (0 to 100 % T), ± 0.002A (0 to 0.5 A), ± 0.004 A (0.5 to 1 A) |
| Photometric Repeatability | ≤0.15 % T (0 to 100 % T), 0.00 A (0 to 0.5A), 0.002 A (0.5 to 1A) |
| Photometric Range | 0 to 200 % T, 0.3 to 3A, 0 to 999 C |
| Stray Light | <=0.03 % T, 220 nm, 360 nm |
| Stability | ± 0.0005A/h 500nm |
| Baseline Flatness | ± 0.002 A |
| Noise | 0.0005 A 500nm |
| Work Mode | T, A, C, E |
| Scanning Speed | High, medium, low (Max. 3000 nm/min) |
| Display | 10.1 inches Colour touch screen |
| Light Source | Deuterium and tungsten lamp |
| Detector | Imported silicon photodiode |
| Cuvette Holder | 10 mm 4-Cell holder |
| Output | USB drive, USB host, RS232 |
| Power | AC 110-220V 50-60Hz |
| Dimensions (L×B×H) | 810×660×390 mm |
| Gross Weight | 27 kg |

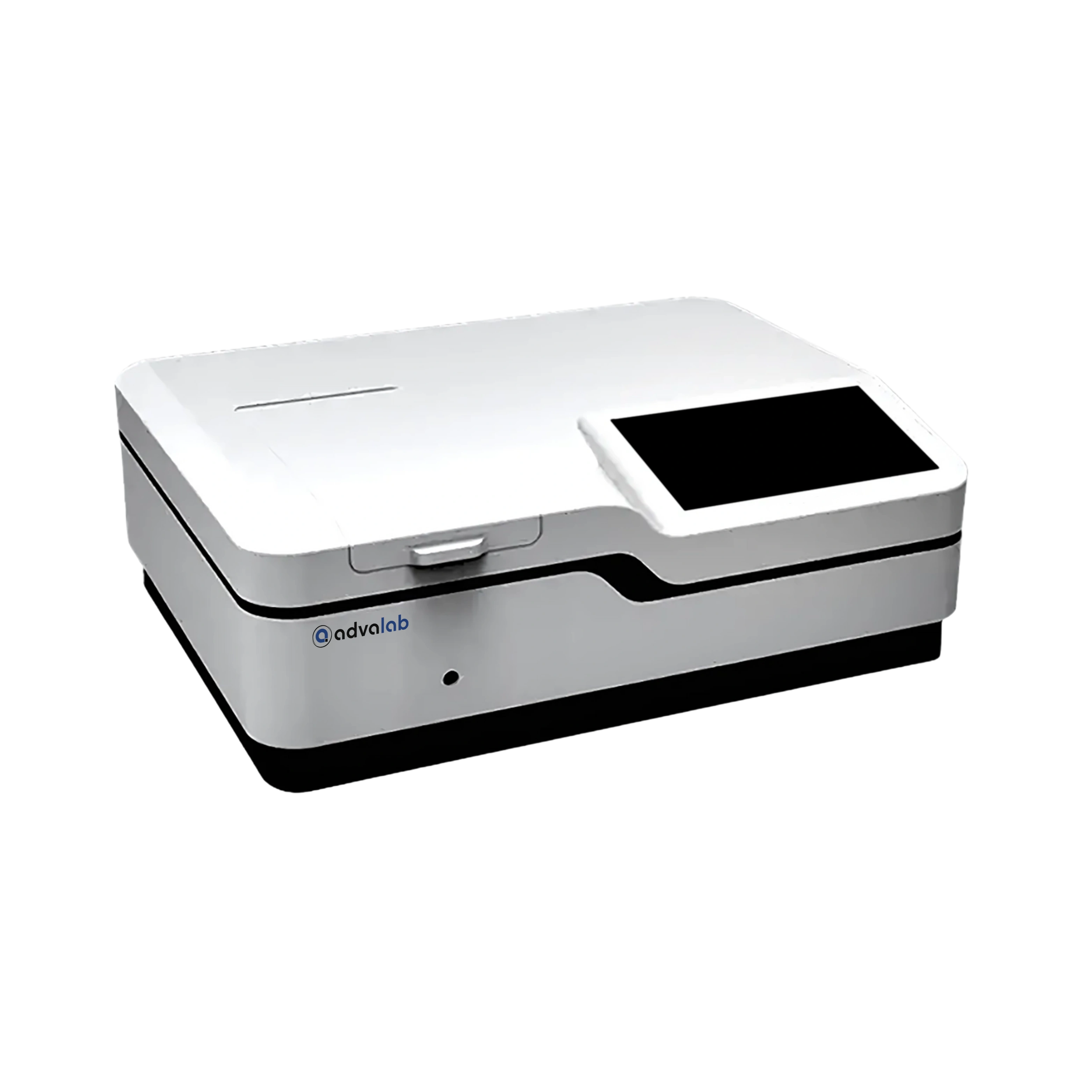

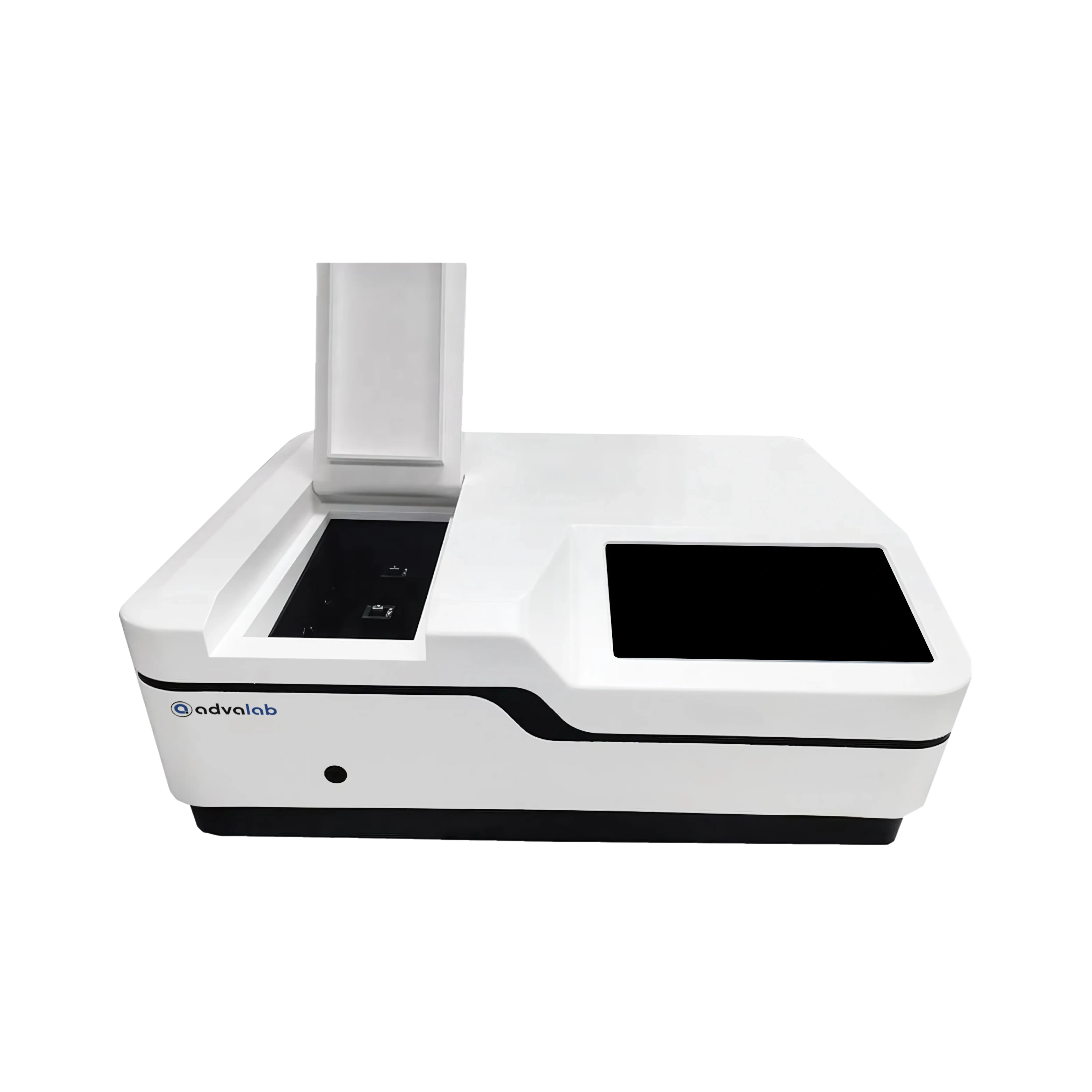

Our Single Beam UV-Vis Spectrophotometer ADSS-510 is used in water and wastewater analysis, forensic science, and biotechnology research for precise quantitative and qualitative analysis of samples.
Accessory | Quantity |
10 mm glass cuvette | 4 Pc |
10 mm quartz cuvette (UV) | 2 Pc |
Power cord | 1 Pc |
User's Manual | 1 Pc |
PC software | 1 Pc |
1. What is the wavelength range of the Single Beam UV-Vis Spectrophotometer ADSS-510 and why is it important?
The Single Beam UV-Vis Spectrophotometer ADSS-510 typically covers a wavelength range from 190 nm to 1100 nm, spanning both UV and visible light regions. This wide range allows it to analyze a variety of compounds with different absorbance characteristics. It can detect both organic and inorganic molecules. The UV region is especially useful for detecting colorless compounds. A broader range increases the versatility of the spectrophotometer.
2. What maintenance and calibration steps are required for optimal use of Single Beam UV-Vis Spectrophotometer ADSS-510?
Routine maintenance includes regular cleaning of the sample holder and optical path. Calibration should be performed with certified reference materials to ensure wavelength and absorbance accuracy. The lamp's performance should be monitored and replaced when intensity drops significantly. Users should store the instrument in a dust-free and dry environment. Software updates and periodic servicing also help maintain long-term accuracy.
3. What kind of samples can be analyzed using the Single Beam UV-Vis Spectrophotometer ADSS-510?
The Single Beam UV-Vis Spectrophotometer ADSS-510 can analyze liquid samples that are clear or slightly colored. It is compatible with aqueous, organic, and some acidic or basic solutions. Solid and gas samples generally require special sample holders or conversion methods. The instrument supports a variety of cuvette types, including quartz for UV measurements. Proper sample preparation is crucial for accurate readings.
4. What are the main applications of the Single Beam UV-Vis Spectrophotometer ADSS-510 in different fields?
The Single Beam UV-Vis Spectrophotometer ADSS-510 is commonly used in chemistry labs, pharmaceuticals, environmental monitoring, and food testing. It helps analyze concentrations of solutions, check purity, and monitor reaction kinetics. In water testing labs, it detects pollutants like nitrates or heavy metals. Pharmaceutical companies use it for drug quality control and raw material testing. It is also useful in academic research and teaching.
5. What is the working principle of the Single Beam UV-Vis Spectrophotometer ADSS-510?
The Single Beam UV-Vis Spectrophotometer ADSS-510 operates based on the principle of absorbance, where light passes through a sample, and the instrument measures how much is absorbed. It uses a single beam of light that passes through the sample cuvette only. The decrease in light intensity is correlated to the concentration of the analyte using Beer-Lambert’s Law. This setup makes it ideal for routine analysis with stable samples. It offers reliable results in both UV and visible regions.
6. What is a Single Beam UV-Vis Spectrophotometer?
A Single Beam UV-Vis Spectrophotometer is an instrument that measures the absorbance or transmittance of light by a sample using a single light path. It scans one sample at a time, requiring a separate blank measurement for reference. This design makes it compact, cost-effective, and ideal for routine laboratory use.
7. Is the Single Beam UV-Vis Spectrophotometer easy to use?
Yes, the Single Beam UV-Vis Spectrophotometer typically features a user-friendly interface with intuitive controls or touchscreen displays for straightforward operation. Its simple setup and minimal maintenance make it ideal for educational and routine lab applications. It allows users to perform accurate measurements.
