| Optical System | Single beam, grating 1200 lines/mm |
| Wavelength Range | 190 to 1100 nm |
| Spectral Bandwidth | 1 nm |
| Wavelength Accuracy | ± 0.1nm 656.1nm, ± 0.3nm all |
| Wavelength Repeatability | <=0.1nm |
| Photometric Accuracy | 0.2 % T (0 to 100 % T), ± 0.002A (0 to 0.5 A), ± 0.004 A (0.5 to 1 A) |
| Photometric Repeatability | ≤0.15 % T (0 to 100 % T), 0.00 A (0 to 0.5A), 0.002 A (0.5 to 1A) |
| Photometric Range | 0 to 200 % T, 0.3 to 3A, 0 to 999 C |
| Stray Light | <=0.03 % T, 220 nm, 360 nm |
| Stability | ± 0.0005A/h 500 nm |
| Baseline Flatness | ± 0.001A |
| Noise | 0.0005A 500 nm |
| Work Mode | T, A, C, E |
| Scanning Speed | High, medium, low (Max. 3000 nm/min) |
| Display | 10.1 inches Colour touch screen |
| Light Source | Deuterium and tungsten lamp |
| Detector | Imported silicon photodiode |
| Cuvette Holder | 10 mm 4-Cell holder |
| Output | USB drive, USB host, RS232 |
| Power | AC 110-220V 50-60Hz |
| Dimensions (L×B×H) | 810×660×390 mm |
| Gross Weight | 27 kg |

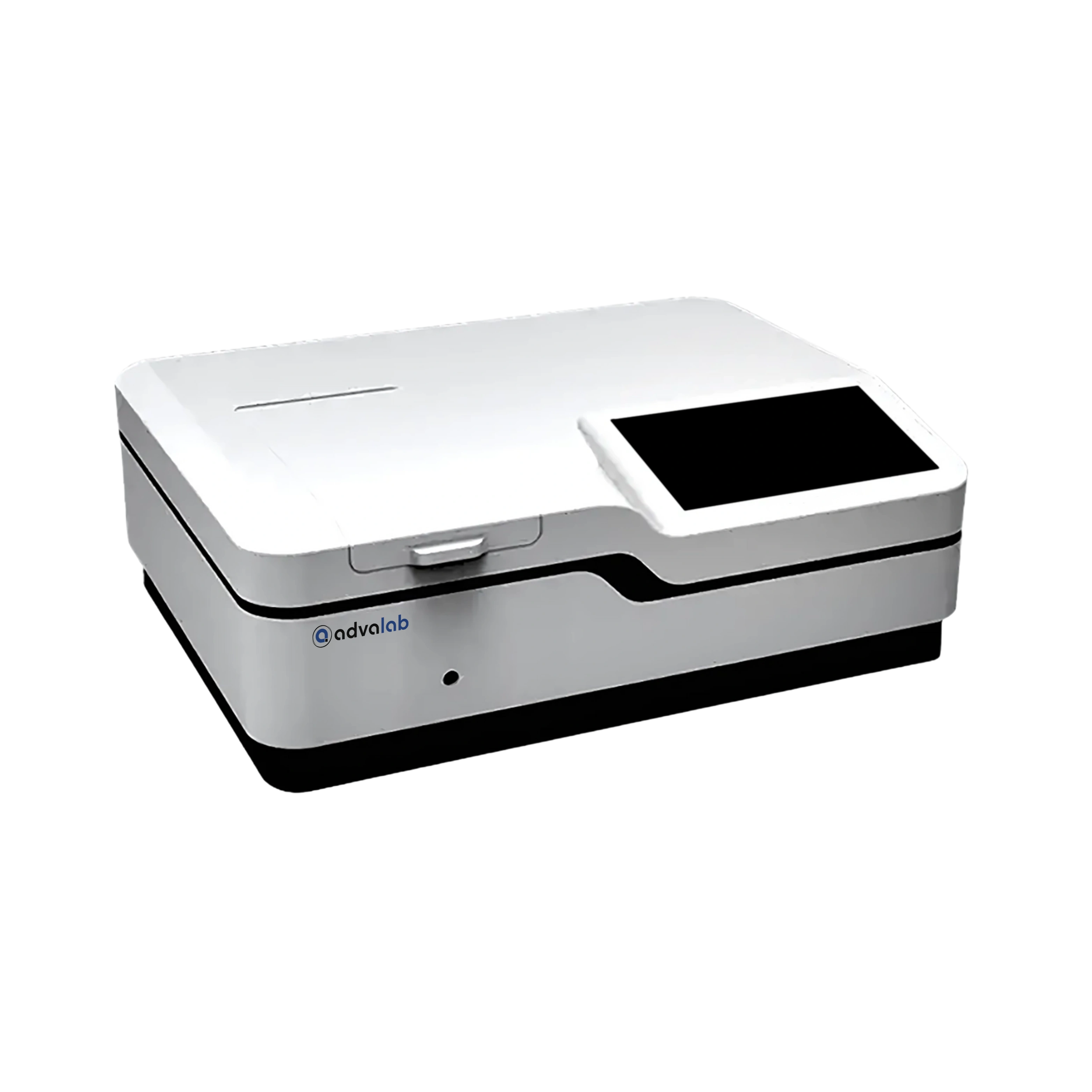

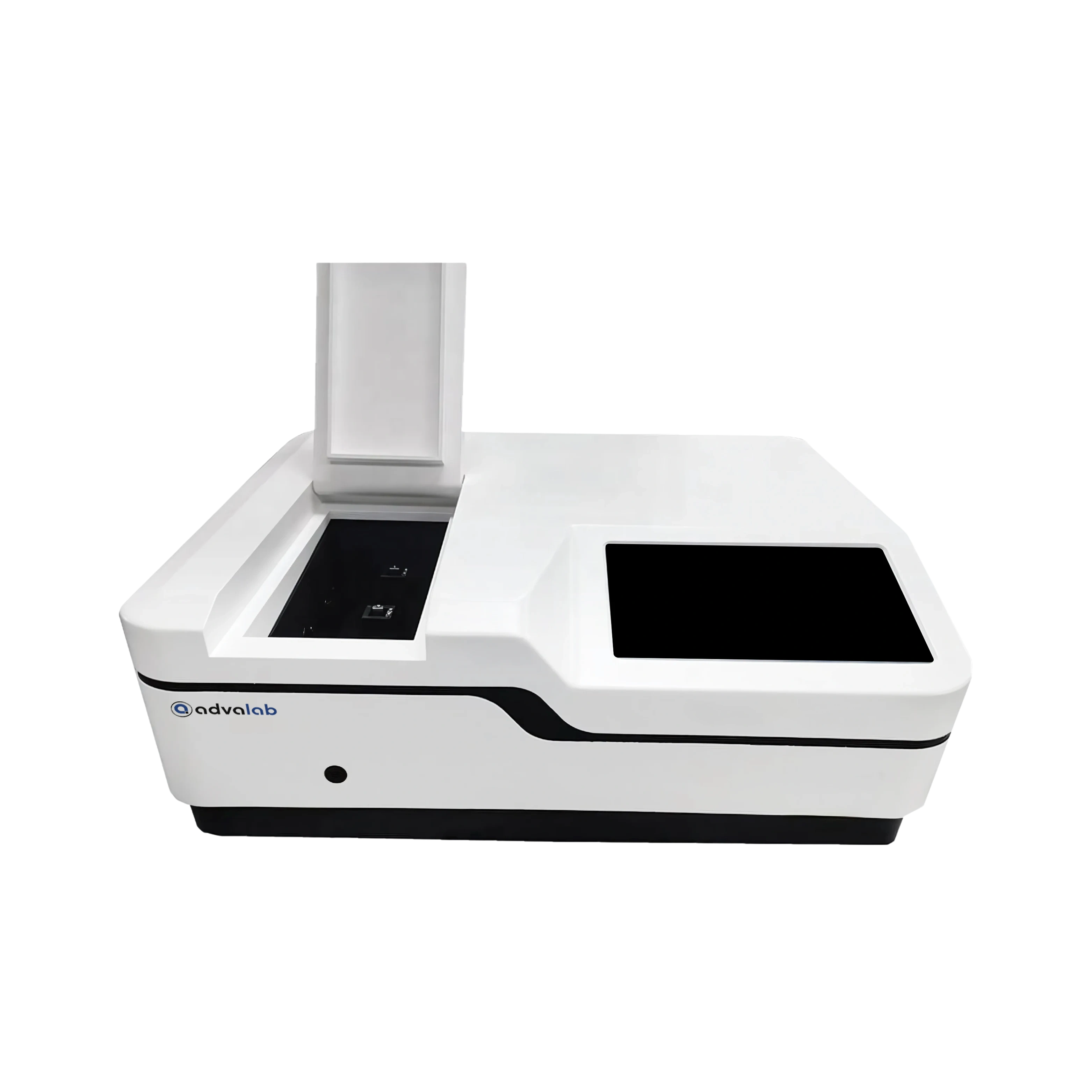

Our Single Beam UV-Vis Spectrophotometer ADSS-511 is used in chemical analysis, food quality control, and academic research for accurate absorbance and concentration measurements.
Accessory | Quantity |
10 mm glass cuvette | 4 Pc |
10 mm quartz cuvette (UV) | 2 Pc |
Power cord | 1 Pc |
User's Manual | 1 Pc |
PC software | 1 Pc |
1. What is the wavelength range of the Single Beam UV-Vis Spectrophotometer ADSS-511?
The Single Beam UV-Vis Spectrophotometer ADSS-511 typically offers 190 to 1100 nm, a wavelength range from , covering both UV and visible regions. This broad range allows it to analyze a wide variety of samples. It is especially useful in biochemical, pharmaceutical, and environmental applications. The instrument ensures consistent performance across the spectrum. Its range makes it versatile for academic and industrial use.
2. What are the main applications of the Single Beam UV-Vis Spectrophotometer ADSS-511?
The Single Beam UV-Vis Spectrophotometer ADSS-511 is widely used in chemical analysis, life sciences, pharmaceuticals, environmental monitoring, and food testing. It measures the absorbance and transmittance of liquid samples to determine concentration and purity. Researchers use it for DNA/RNA quantification, protein analysis, and reaction kinetics. It is also suitable for water quality testing and colorimetric assays. The device’s broad wavelength range makes it ideal for various analytical tasks.
3. How to calibrate the Single Beam UV-Vis Spectrophotometer ADSS-511?
Calibration of the Single Beam UV-Vis Spectrophotometer ADSS-511 is typically done using standard reference materials or solutions with known absorbance values. The instrument’s software may offer auto-calibration features to ensure accuracy. Regular calibration ensures precise measurements over time. It's recommended to follow the manufacturer’s guidelines or SOPs for consistent performance. Proper calibration minimizes errors in absorbance and wavelength readings.
4. What is the wavelength accuracy of the Single Beam UV-Vis Spectrophotometer ADSS-511?
The Single Beam UV-Vis Spectrophotometer ADSS-511 provides ±0.1 nm wavelength accuracy, ensuring reliable and precise identification of substances. This accuracy is critical for detecting specific absorbance peaks. It enhances the reproducibility of experiments. Users can trust it for quantitative and qualitative analysis. The instrument is well-suited for both research and quality control labs.
5. What kind of cuvettes can be used with Single Beam UV-Vis Spectrophotometer ADSS-511?
The sample compartment is designed to fit standard 10 mm pathlength cuvettes. It can accommodate both glass and quartz cuvettes, depending on the wavelength range. Quartz cuvettes are preferred for UV range applications. Optional accessories like cell holders or sippers can be added. The setup ensures flexibility for various testing needs.
6. What is a Single Beam UV-Vis Spectrophotometer?
A Single Beam UV-Vis Spectrophotometer is an instrument that measures the absorbance or transmittance of light by a sample using a single light path. It scans one sample at a time, requiring a separate blank measurement for reference. This design makes it compact, cost-effective, and ideal for routine laboratory use.
7. Is the Single Beam UV-Vis Spectrophotometer easy to use?
Yes, the Single Beam UV-Vis Spectrophotometer typically features a user-friendly interface with intuitive controls or touchscreen displays for straightforward operation. Its simple setup and minimal maintenance make it ideal for educational and routine lab applications. It allows users to perform accurate measurements.
