| Optical System | Single beam, grating 1200 lines/mm |
| Wavelength Range | 190 to 1100 nm |
| Spectral Bandwidth | 1 nm |
| Wavelength Setting | Auto |
| Wavelength Accuracy | ± 0.1 nm 656.1 nm, ± 0.3 nm all |
| Wavelength Repeatability | <= 0.1 nm |
| Photometric Accuracy | 0.2 % T (0 to 100 % T), ± 0.002 A (0to 0.5 A), ± 0.004 A (0.5 to 1 A) |
| Photometric Repeatability | ≤ 0.15 % T (0 to 100 % T), 0.001 A (0 to 0.5 A), 0.002 A (0.5 to 1 A) |
| Photometric Range | 0 to 200 % T, -0.3 to 3 A, 0 to 9999 C |
| Stray Light | <= 0.03 % T 220 nm, 360 nm |
| Stability | ± 0.0005 A/h 500 nm |
| Work Mode | T, A, C, E |
| Baseline Flatness | ± 0.001 A |
| Noise | 0.0005 A 500 nm |
| Scanning Speed | Hi, Med, Low (Max. 3000nm/min) |
| Display | 7-inch Colour touch screen |
| Light Source | Deuterium and tungsten lamp |
| Detector | Imported silicon photodiode |
| Cuvette Holder | 10mm Manual 4-cell holder |
| Output | USB drive, USB host, RS232 |
| Power | AC 110 to 220 V 50 to 60 Hz |
| Dimensions (L×B×H) | 810×660×390 mm |
| Gross Weight | 27 Kg |

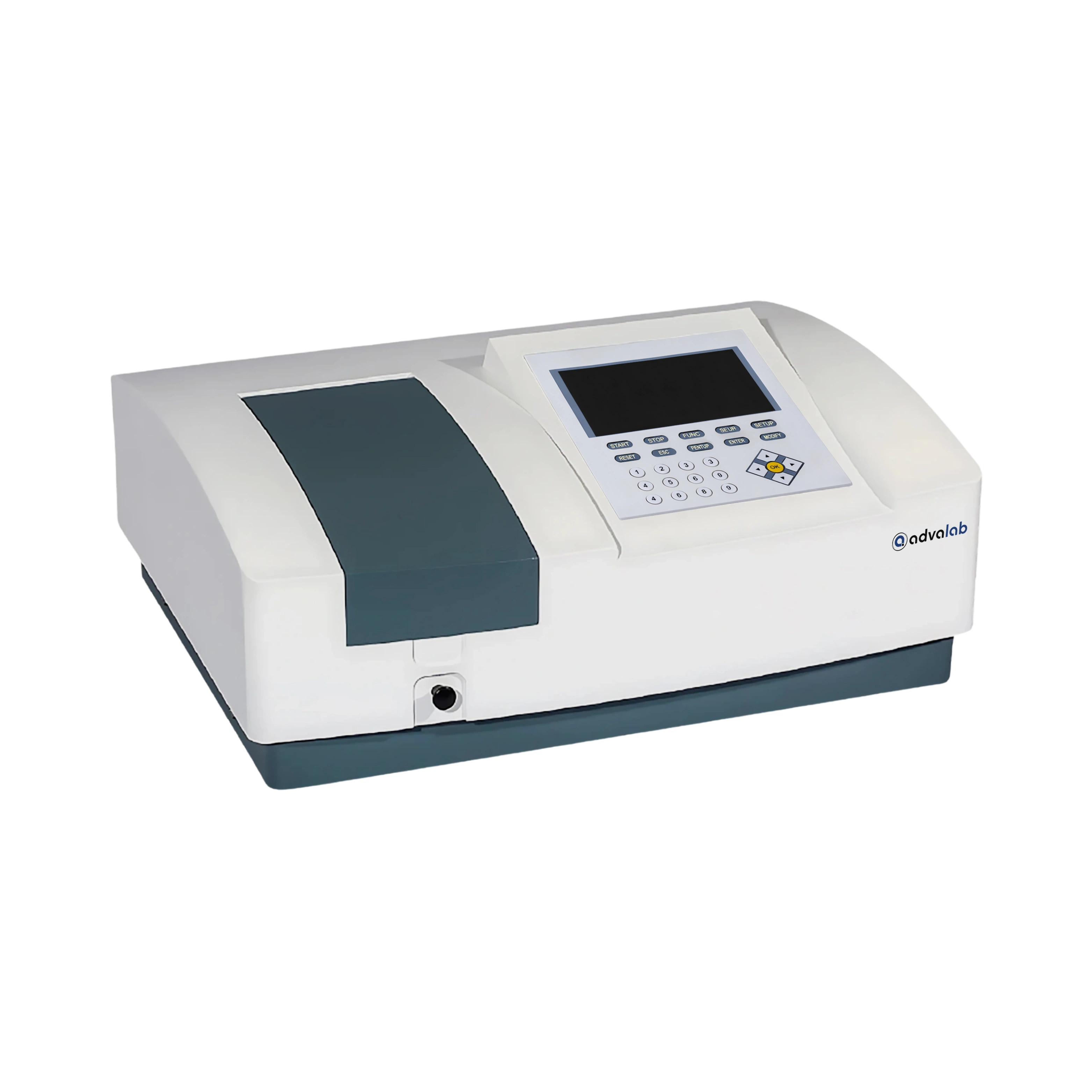

Our Single Beam UV-Vis Spectrophotometer ADSS-524 is used in chemical analysis, food quality control, and academic research for accurate absorbance and concentration measurements.
Accessory | Quantity |
10 mm glass cuvette | 4 Pc |
10 mm quartz cuvette (UV) | 2 Pc |
Power cord | 1 Pc |
Manual | 1 Pc |
PC software | 1 Pc |
1. How does the Single Beam UV-Vis Spectrophotometer ADSS-524 ensure accurate measurement results?
The Single Beam UV-Vis Spectrophotometer ADSS-524 uses a single-beam optical system with a high-quality monochromator and photodetector to provide consistent readings. It incorporates baseline correction and auto-zero features to minimize errors. The instrument also supports cuvettes with various path lengths, improving measurement flexibility. Its digital interface and software enhance data precision and repeatability. These features help maintain reliability during absorbance and transmittance measurements.
2. What kind of samples can be analyzed using the Single Beam UV-Vis Spectrophotometer ADSS-524?
The Single Beam UV-Vis Spectrophotometer ADSS-524 is designed to analyze liquid samples such as solutions, chemical reagents, and biological fluids. It is widely used in laboratories for applications like DNA/protein quantification, colorimetric assays, and quality control in industries. The spectrophotometer supports various cuvette types, allowing analysis of different sample volumes and concentrations. Users can perform both qualitative and quantitative analysis with ease. This versatility makes it suitable for research, education, and industrial settings.
3. Is the Single Beam UV-Vis Spectrophotometer ADSS-524 user-friendly for routine lab operations?
Yes, the Single Beam UV-Vis Spectrophotometer ADSS-524 is built with a simple interface and intuitive navigation for ease of use. It features a digital display, onboard memory, and USB connectivity for data export. The instrument is compact, making it ideal for laboratories with limited bench space. Calibration and maintenance procedures are straightforward, reducing downtime. Overall, it supports fast and efficient workflows in routine lab operations.
4. What maintenance does the Single Beam UV-Vis Spectrophotometer ADSS-524 require for optimal performance?
Routine maintenance involves cleaning the sample compartment, checking the lamp alignment, and ensuring the cuvettes are free from residue. The UV lamp should be monitored and replaced after a certain number of hours as per the user manual. Regular calibration using standard solutions helps maintain accuracy. The software also provides prompts for maintenance schedules. Following these practices extends the instrument’s lifespan and ensures consistent performance.
5. What is the main function of the Single Beam UV-Vis Spectrophotometer ADSS-524?
The Single Beam UV-Vis Spectrophotometer ADSS-524 is used to measure the absorbance and transmittance of light by a sample in the ultraviolet and visible regions of the spectrum. It helps determine the concentration of substances in solution through Beer-Lambert’s Law. This model supports applications in chemistry, biology, environmental science, and industry. Its user-friendly interface and reliable results make it ideal for routine lab testing. The single beam design simplifies operation while maintaining good accuracy.
6. What is a Single Beam UV-Vis Spectrophotometer?
A Single Beam UV-Vis Spectrophotometer is an instrument that measures the absorbance or transmittance of light by a sample using a single light path. It scans one sample at a time, requiring a separate blank measurement for reference. This design makes it compact, cost-effective, and ideal for routine laboratory use.
7. Is the Single Beam UV-Vis Spectrophotometer easy to use?
Yes, the Single Beam UV-Vis Spectrophotometer typically features a user-friendly interface with intuitive controls or touchscreen displays for straightforward operation. Its simple setup and minimal maintenance make it ideal for educational and routine lab applications. It allows users to perform accurate measurements.
