| Optical System | Single beam, grating 1200 lines/mm |
| Wavelength Range | 190 to 1100 nm |
| Spectral Bandwidth | 0.5/1/2/4/5 nm |
| Wavelength Setting | Auto |
| Wavelength Accuracy | ± 0.1 nm 656.1 nm, ± 0.3 nm all |
| Wavelength Repeatability | <= 0.1 nm |
| Photometric Accuracy | 0.2 % T (0 to 100 % T), ± 0.002 A (0to 0.5 A), ± 0.004 A (0.5 to 1 A) |
| Photometric Repeatability | ≤ 0.15 % T (0 to 100 % T), 0.001 A (0 to 0.5 A), 0.002 A (0.5 to 1 A) |
| Photometric Range | 0 to 200 % T, -0.3 to 3 A, 0 to 9999 C |
| Stray Light | <= 0.03 % T 220 nm, 360 nm |
| Stability | ± 0.0005 A/h 500 nm |
| Work Mode | T, A, C, E |
| Baseline Flatness | ± 0.001 A |
| Noise | 0.0005 A 500 nm |
| Scanning Speed | Hi, Med, Low (Max. 3000nm/min) |
| Display | 7-inch Colour touch screen |
| Light Source | Deuterium and tungsten lamp |
| Detector | Imported silicon photodiode |
| Cuvette Holder | 10 mm Manual 4-cell holder |
| Output | USB drive, USB host, RS232 |
| Power | AC 110 to 220 V 50 to 60 Hz |
| Dimensions (L×B×H) | 810×660×390 mm |
| Gross Weight | 27 Kg |

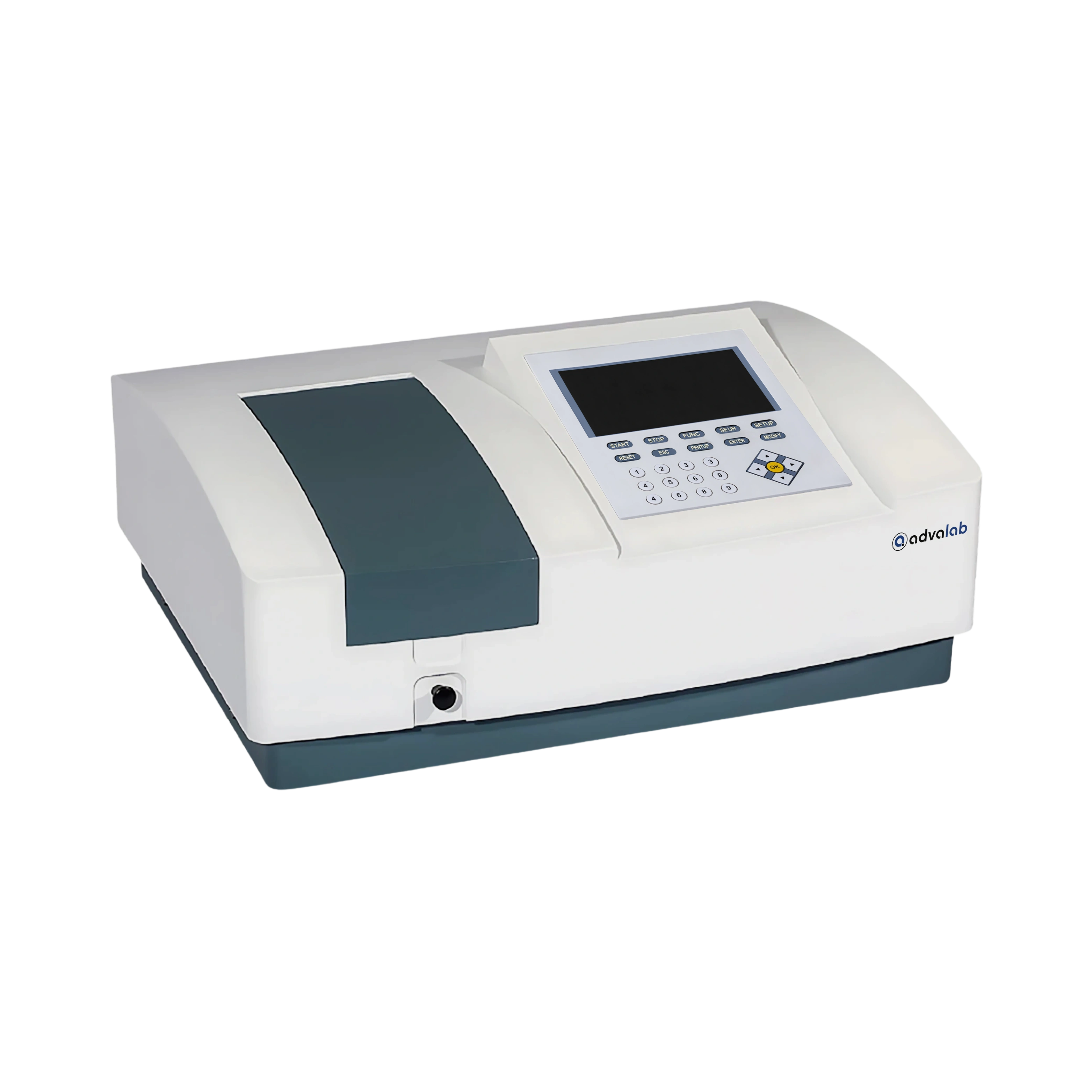

Our Single Beam UV-Vis Spectrophotometer ADSS-525 is used in forensic science, agriculture field, and research area for analysing sample composition.
Accessory | Quantity |
10 mm Glass cuvette | 4 Pc |
10 mm Quartz cuvette (UV) | 2 Pc |
Power cord | 1 Pc |
Manual | 1 Pc |
1. Can the Single Beam UV-Vis Spectrophotometer ADSS-525 perform quantitative analysis?
Yes, the Single Beam UV-Vis Spectrophotometer ADSS-525 can perform quantitative analysis using standard curves or direct concentration input. Users can create calibration curves from known standards and then test unknown samples. This feature is widely used in environmental, pharmaceutical, and academic labs. It allows precise detection of chemical concentrations in liquids. Proper sample preparation and calibration improve the accuracy of results.
2. Is calibration necessary for the Single Beam UV-Vis Spectrophotometer ADSS-525, and how is it done?
Yes, periodic calibration ensures reliable performance and accuracy. Wavelength calibration is typically done using standard filters or reference materials. Photometric calibration uses neutral density filters or known concentration solutions. Many units feature auto-calibration or prompts for easy guidance. Proper calibration maintains the instrument’s trustworthiness, especially in regulated or high-precision labs.
3. How does a Single Beam UV-Vis Spectrophotometer ADSS-525 differ from a double beam system?
In a single beam system like the ADSS-525, all light passes through the sample only, not a reference simultaneously. This simplifies the design and reduces cost, making it ideal for standard measurements. However, it may require more frequent baseline corrections to maintain accuracy. Double beam systems split light between sample and reference paths, offering greater stability over time. Still, for most routine lab work, a single beam design is sufficiently accurate and cost-effective.
4. Can the Single Beam UV-Vis Spectrophotometer ADSS-525 be connected to a computer for data analysis?
Yes, the Single Beam UV-Vis Spectrophotometer ADSS-525 generally includes a USB or RS232 interface for PC connectivity. It often comes with dedicated software to record, store, and analyze spectral data. Users can generate absorbance curves, perform multi-wavelength analysis, and save results digitally. This feature is especially useful in research and quality control environments. It streamlines data management and enhances reporting accuracy.
5. What types of samples can be analyzed with Single Beam UV-Vis Spectrophotometer ADSS-525?
The Single Beam UV-Vis Spectrophotometer ADSS-525 can analyze a wide range of liquid samples using standard cuvettes. It is suitable for colored solutions, enzyme reactions, DNA/protein quantification, and chemical concentration studies. It works best with clear, homogeneous samples to ensure light passes accurately through the solution. Solid samples may require accessories or different instruments. The flexibility makes it suitable for educational, research, and industrial labs.
6. What is a Single Beam UV-Vis Spectrophotometer?
A Single Beam UV-Vis Spectrophotometer is an instrument that measures the absorbance or transmittance of light by a sample using a single light path. It scans one sample at a time, requiring a separate blank measurement for reference. This design makes it compact, cost-effective, and ideal for routine laboratory use.
7. Is the Single Beam UV-Vis Spectrophotometer easy to use?
Yes, the Single Beam UV-Vis Spectrophotometer typically features a user-friendly interface with intuitive controls or touchscreen displays for straightforward operation. Its simple setup and minimal maintenance make it ideal for educational and routine lab applications. It allows users to perform accurate measurements.
