| Optical System | Single Beam, Grating 1200 lines/mm |
| Wavelength Range | 190 to 1100 nm |
| Spectral Bandwidth | 2 nm |
| Wavelength Accuracy | ± 0.1nm 656.1nm, ± 0.3nm all |
| Wavelength Repeatability | <=0.1nm |
| Photometric Accuracy | 0.2 % T (0 to 100 % T), ± 0.002A (0 to 0.5 A), ± 0.004 A (0.5 to 1 A) |
| Photometric Repeatability | ≤0.15 % T (0 to 100 % T), 0.00 A (0 to 0.5A), 0.002 A (0.5 to 1A) |
| Photometric Range | 0 to 200 % T, 0.3 to 3A, 0 to 999 C |
| Stray Light | <=0.03 % T, 220 nm, 360 nm |
| Stability | ±0.0005A/h 500nm |
| Baseline Flatness | ± 0.002 A |
| Noise | 0.0005A 500 nm |
| Work Mode | T, A, C, E |
| Scanning Speed | High, medium, low (Max. 3000 nm/min) |
| Display | 7-inch Colour Screen |
| Light Source | Deuterium and tungsten lamp |
| Detector | Imported silicon photodiode |
| Cuvette Holder | 10 mm manual 4-cell holder |
| Output | USB drive, USB host, RS232 |
| Power | AC 110 to 220V 50 to 60Hz |
| Dimensions (L×B×H) | 810×660×390 mm |
| Gross Weight | 27 kg |

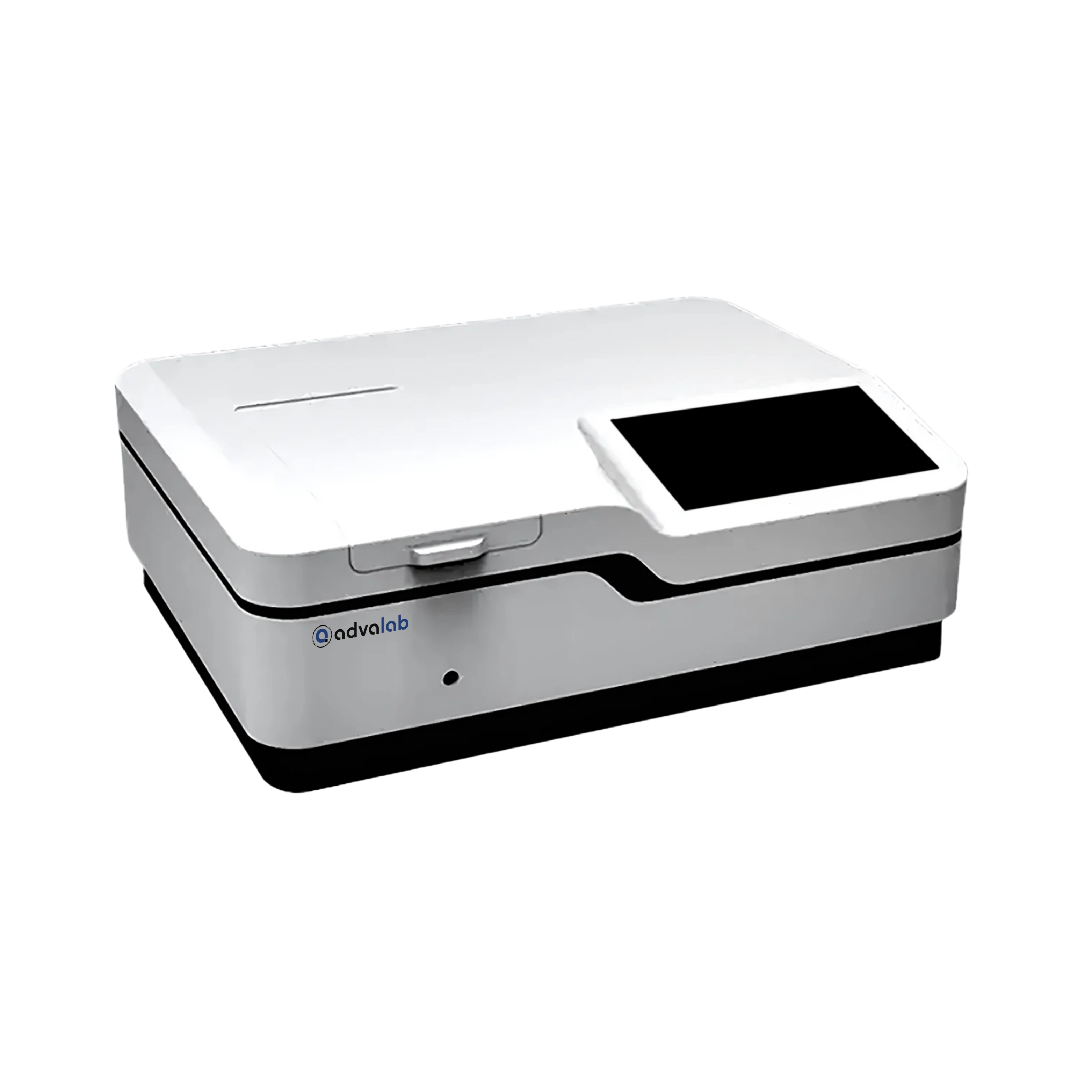

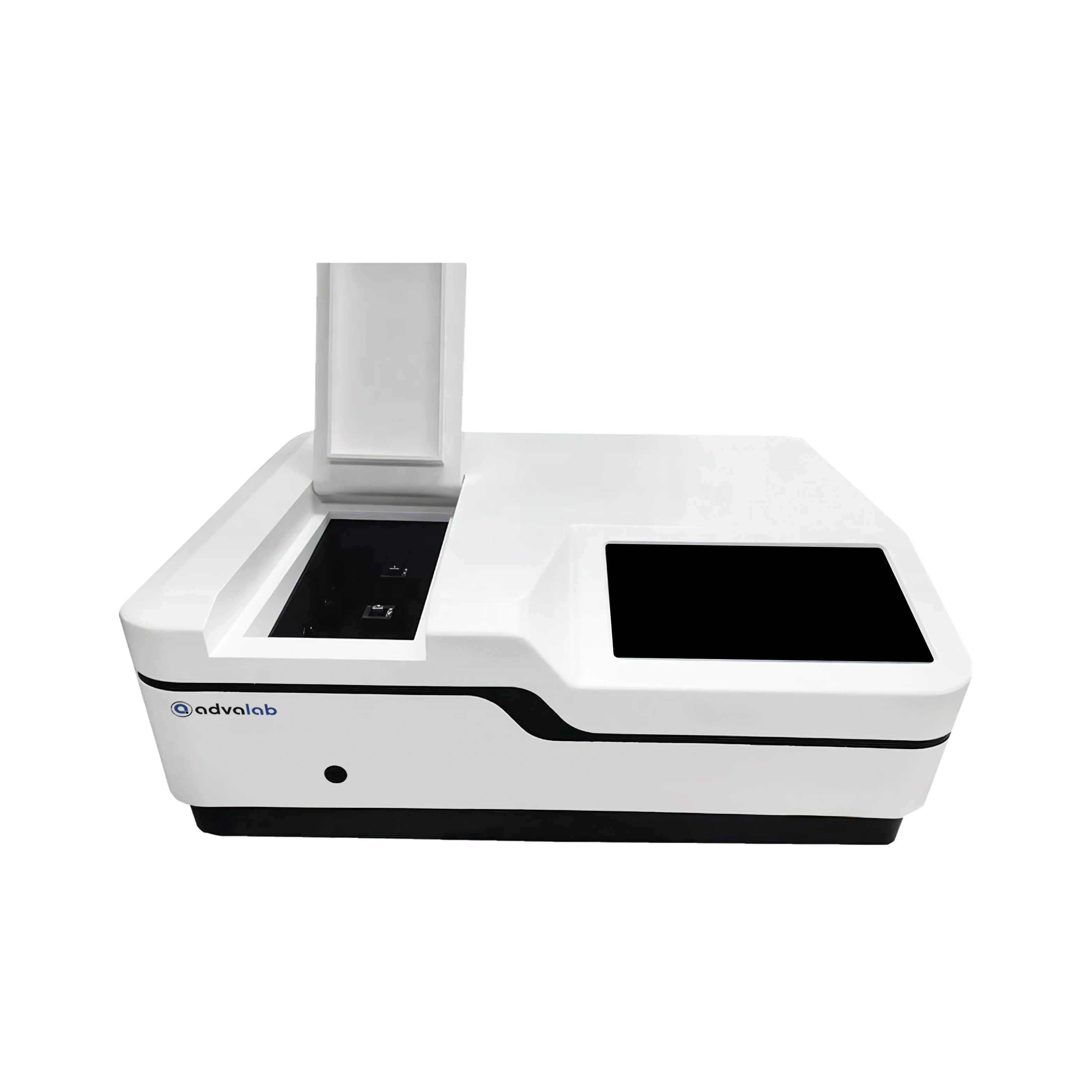

Our Single Beam UV-Vis Spectrophotometer ADSS-513 is used in water quality analysis, pharmaceutical testing, and academic research through precise absorbance measurements.
Accessory | Quantity |
10 mm glass cuvette | 4 Pc |
10 mm quartz cuvette (UV) | 2 Pc |
Power cord | 1 Pc |
User's Manual | 1 Pc |
PC software | 1 Pc |
1. What maintenance does the Single Beam UV-Vis Spectrophotometer ADSS-513 require for optimal performance?
Routine maintenance involves cleaning the sample compartment, checking the lamp alignment, and ensuring the cuvettes are free from residue. The UV lamp should be monitored and replaced after a certain number of hours as per the user manual. Regular calibration using standard solutions helps maintain accuracy. The software also provides prompts for maintenance schedules. Following these practices extends the instrument’s lifespan and ensures consistent performance.
2. Is the Single Beam UV-Vis Spectrophotometer ADSS-513 user-friendly for routine lab operations?
Yes, the Single Beam UV-Vis Spectrophotometer ADSS-513 is built with a simple interface and intuitive navigation for ease of use. It features a digital display, onboard memory, and USB connectivity for data export. The instrument is compact, making it ideal for laboratories with limited bench space. Calibration and maintenance procedures are straightforward, reducing downtime. Overall, it supports fast and efficient workflows in routine lab operations.
3. What kind of samples can be analyzed using the Single Beam UV-Vis Spectrophotometer ADSS-513?
The Single Beam UV-Vis Spectrophotometer ADSS-513 is designed to analyze liquid samples such as solutions, chemical reagents, and biological fluids. It is widely used in laboratories for applications like DNA/protein quantification, colorimetric assays, and quality control in industries. The spectrophotometer supports various cuvette types, allowing analysis of different sample volumes and concentrations. Users can perform both qualitative and quantitative analysis with ease. This versatility makes it suitable for research, education, and industrial settings.
4. How does the Single Beam UV-Vis Spectrophotometer ADSS-513 ensure accurate measurement results?
The Single Beam UV-Vis Spectrophotometer ADSS-513 uses a single-beam optical system with a high-quality monochromator and photodetector to provide consistent readings. It incorporates baseline correction and auto-zero features to minimize errors. The instrument also supports cuvettes with various path lengths, improving measurement flexibility. Its digital interface and software enhance data precision and repeatability. These features help maintain reliability during absorbance and transmittance measurements.
5. What is the wavelength range of the Single Beam UV-Vis Spectrophotometer ADSS-513?
The Single Beam UV-Vis Spectrophotometer ADSS-513 typically covers a wavelength range from 190 nm to 1100 nm, suitable for both UV and visible light analysis. This wide range enables users to analyze various substances with different absorbance characteristics. The instrument is ideal for both qualitative and quantitative applications in chemistry and biology. Its wavelength accuracy and reproducibility ensure reliable results. This makes it an essential tool for routine laboratory analysis.
6. What is a Single Beam UV-Vis Spectrophotometer?
A Single Beam UV-Vis Spectrophotometer is an instrument that measures the absorbance or transmittance of light by a sample using a single light path. It scans one sample at a time, requiring a separate blank measurement for reference. This design makes it compact, cost-effective, and ideal for routine laboratory use.
7. Is the Single Beam UV-Vis Spectrophotometer easy to use?
Yes, the Single Beam UV-Vis Spectrophotometer typically features a user-friendly interface with intuitive controls or touchscreen displays for straightforward operation. Its simple setup and minimal maintenance make it ideal for educational and routine lab applications. It allows users to perform accurate measurements.
| Optical System | Single beam |
| Monochromator | C-T Monochromator, blazed holographic grating 1200 lines/nm |
| Wavelength Range | 190 to 1020 nm |
| Optical System | Single beam, grating 1200 lines/mm |
| Wavelength Range | 190 to 1100 nm |
| Spectral Bandwidth | 1 nm |
| Optical System | Single beam, grating 1200 lines/mm |
| Wavelength Range | 190 to 1100 nm |
| Spectral Bandwidth | 2 nm |
| Optical System | Single beam, grating 1200 lines/mm |
| Wavelength Range | 190 to 1100 nm |
| Spectral Bandwidth | 2 nm |
| Wavelength Range: | 325 to 1050 nm |
| Wavelength Accuracy: | ± 2 nm |
| Wavelength Reproducibility: | 1 nm |
| Wavelength Range: | 320 to 1050 nm |
| Wavelength Accuracy: | ± 2 nm |
| Wavelength Reproducibility: | 1 nm |
| Display: | 7-inch Colour Screen |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 0.1/0.2/0.5/1/2/4 /5 nm |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 2 nm |
| Optical System: | Double Beam, Grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 0.5/1/2/4/5 nm |
| Optical System: | Single beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 2 nm |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 0.5/1/2/4/5 nm |
| Wavelength Range: | 190 to 1100 nm |
| Wavelength Accuracy: | ± 0.3 nm |
| Wavelength Repeatability: | ≤ 0.2 nm |
| Display: | 7-inch Colour Screen |
| Optical System: | Double Beam, Grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 0.5/1/2/4/5 nm |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 2 nm |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 1 nm |
| Display: | 10.1 TFT coloured capacitive touch screen |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Display: | 7-inch Colour screen |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 1 nm |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 1 nm |
| Optical System: | Double Beam, Grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 2 nm |
| Wavelength Range: | 190 to 1100 nm |
| Wavelength Accuracy: | ± 0.3 nm |
| Wavelength Repeatability: | ≤ 0.2 nm |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 1 nm |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 0.5/1/2/4/5 nm |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 0.1/0.2/0.5/1/ 2/4/5 nm |
| Display: | 7-inch Colour Screen |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 2 nm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 0.5/ 1/ 2/ 5 nm |
| Working Modes: | Transmittance, Absorbance, Concentration, Energy |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 1 nm |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 2 nm |
| Display: | 7-inch Colour Screen |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 1 nm |
| Display: | 7-inch Colour Screen |
| Optical System: | Double beam, grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Display: | 7-inch Colour Screen |
| Optical System: | Double Beam, Grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Wavelength Range: | 195 to 1000 nm |
| Wavelength Accuracy: | ± 2 nm |
| Transmittance Range: | 0 to 199.9 |
| Wavelength Range: | 340 to 1000 nm |
| Wavelength Accuracy: | ± 3 nm |
| Transmittance Range: | 0 to 199.9 |
| Wavelength Range: | 325 to 1000 nm |
| Wavelength Accuracy: | ± 2 nm |
| Transmittance Range: | 0 to 199.9 |
| Optical System: | Split Beam, Grating 1200 lines/mm |
| Wavelength Range: | 190 to 1100 nm |
| Spectral Bandwidth: | 2 nm |
