Flammable Storage Cabinet ADFSC-506

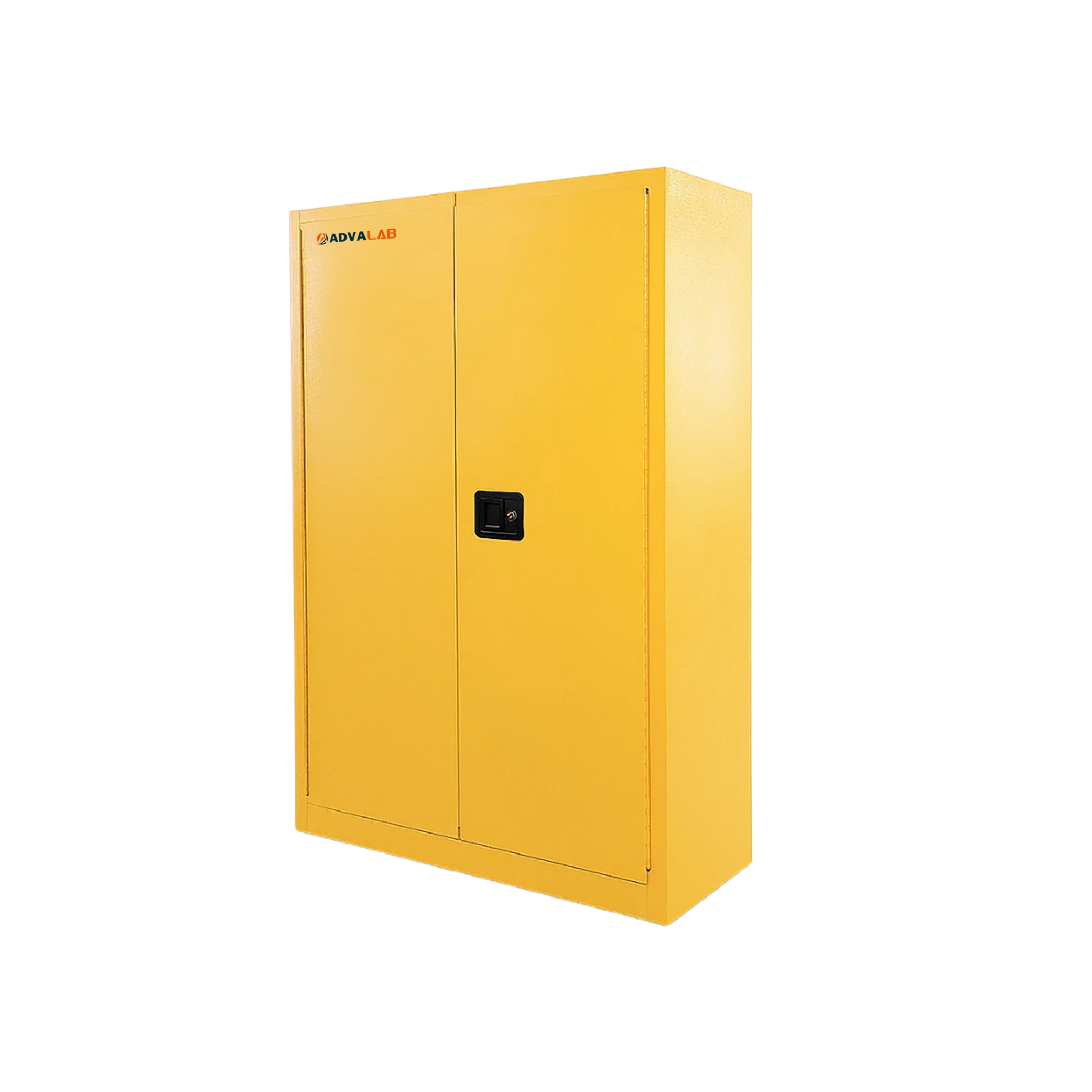

Flammable Storage Cabinet ADFSC-506 (Lateral view)
Flammable Storage Cabinet ADFSC-506 (Lateral view)

Flammable Storage Cabinet ADFSC-506

Flammable Storage Cabinet ADFSC-506 provides 170L (45 Gallons) of secure and efficient chemical storage capacity. It features a bright resin powder-coated surface that is dustproof, rustproof, and moisture proof. Adjustable galvanized steel shelves support heavy loads and help manage spills. A continuous piano hinge ensures smooth and durable door operation. They are ideal for laboratories, industrial sites, and chemical storage areas requiring high-standard fire safety.


Capacity 170L/45 Gallons
Construction Made of double-layer 18 Ga (1.2 mm) steel with spot welding
Surface Coating Resin powder coating
Fire Resistance 38 mm gap between steel layers forms effective fireproof insulation layer
Leakage Protection 2-inch (53 mm) deep built-in tray at the base
Locking System Three-point linkage lock system
Ventilation Built-in vents on both left and right sides
Shelf 2 shelves (Adjustable in 80 mm centres)
Shelf Bearing 100Kg shelf bearing
Shelf Design Anti-overflow laminate
Hinge Type Full-length continuous piano hinge
Door Type Double door
Labelling High-visibility label for safety identification under low-light condition
External Dimensions (L×W×H) 1650×1090×460mm
  • Double-wall construction
  • Dual-side ventilation
  • Leakproof tray
  • Three-point locking
  • Reflective safety labels

Flammable Storage Cabinet ADFSC-506 is ideal for safely storing hazardous liquids and chemicals in controlled environments. It is widely used in laboratories, industrial facilities, research centres, and chemical storage areas.

  • Automatic Door
  • Secure Padlock Configuration

Flammable Storage Cabinet ADFSC-506 | 170 Liters capacity | Double door
Flammable Storage Cabinet ADFSC-506 | Double-wall construction | Dual-side ventilation

Frequently Asked Questions of Flammable Storage Cabinet ADFSC-506

1. Is Flammable Storage Cabinet ADFSC-506 corrosion resistant?

Yes, Flammable Storage Cabinet ADFSC-506 is designed for long-term durability with a high-quality resin powder coating that provides excellent protection against corrosion. This finish is not only rustproof, but also dustproof and moisture proof, making it ideal for harsh laboratory or industrial environments.

2. Is the Flammable Storage Cabinet ADFSC-506 lockable?

Yes, Flammable Storage Cabinet ADFSC-506 is equipped with a three-point linkage lock system that ensures secure and reliable door closure. This mechanism locks the top, bottom, and side of the door simultaneously, enhancing both safety and theft resistance.

3. How does Flammable Storage Cabinet ADFSC-506 prevent vapor buildup?

Flammable Storage Cabinet ADFSC-506 features dual side vents with built-in flame arrestors that allow safe ventilation of flammable vapours. This system reduces internal vapor concentration, minimizes explosion risks, and maintains a safer storage environment.

4. Can the shelves in Flammable Storage Cabinet ADFSC-506 be adjusted?

Yes, Flammable Storage Cabinet ADFSC-506 includes adjustable steel shelves that can be repositioned at 80 mm intervals. Each shelf is designed to support up to 100 kg, providing flexible storage for containers of different sizes and spill management.

5. What safety labels are provided in Flammable Storage Cabinet ADFSC-506?

Flammable Storage Cabinet ADFSC-506 comes with high-visibility reflective safety labels that remain clearly visible in low-light or emergency conditions. These labels enhance hazard awareness and support compliance with fire safety and chemical storage regulations.

6. What is the purpose of Flammable Storage Cabinets?

Flammable Storage Cabinets are designed to safely store flammable and combustible liquids by containing potential fire hazards. They help prevent accidental ignition, protect personnel and property, and support compliance with safety regulations in industrial and laboratory settings.

7. Where are Flammable Storage Cabinets commonly used?

Flammable Storage Cabinets are commonly used in laboratories, research centres, factories, educational institutions, workshops, and industrial facilities. They are essential in any environment where flammable or combustible liquids are handled, stored, or dispensed for operational safety.

8. What is the most important safety feature in Flammable Storage Cabinets?

Flammable Storage Cabinets feature double-wall steel construction with an insulating air gap, which acts as a fire barrier. This core design helps delay heat transfer during a fire, protecting the contents and giving personnel critical time to respond safely.
