Flammable Storage Cabinet ADFSC-505
Flammable Storage Cabinet ADFSC-505 (Lateral view)

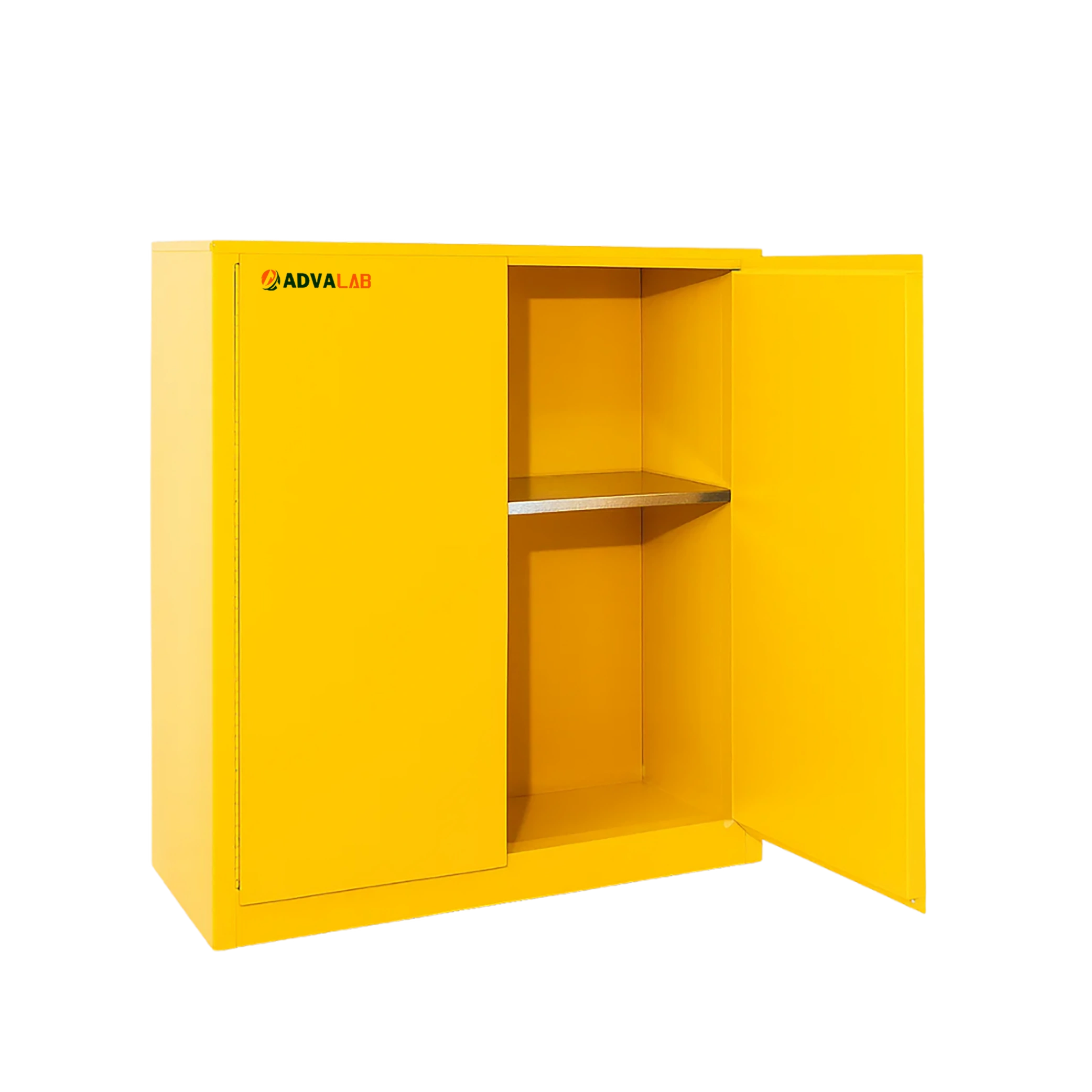

Flammable Storage Cabinet ADFSC-505 (Internal view)

Flammable Storage Cabinet ADFSC-505

Flammable Storage Cabinet ADFSC-505 offers a storage capacity of 114L (30 gallons), suitable for safely storing flammable liquids. It features durable double-layer steel construction with an internal insulation gap for fire resistance. Equipped with dual-side ventilation, it reduces vapor buildup and enhances safety. A three-point linkage locking system ensures secure closure while minimizing static and spark risks. They are ideal for laboratories, industrial facilities, and chemical storage areas needing safe containment.


Capacity 114 Liters / 30 Gallons
Construction Made of double-layer 18 Ga (1.2 mm) steel with spot welding
Surface Coating Resin powder coating
Fire Resistance 38 mm gap between steel layers forms effective fireproof insulation layer
Leakage Protection 2-inch (53 mm) deep built-in tray at the base
Locking System Three-point linkage lock system
Ventilation Built-in vents on both left and right sides
Shelf Single shelf (Adjustable in 80 mm centres)
Shelf Bearing 50Kg shelf bearing
Shelf Design Anti-overflow laminate
Hinge Type Full-length continuous piano hinge
Door Type Double door
Labelling High-visibility label for safety identification under low-light condition
External Dimensions (L×W×H) 1120×1090×460 mm
  • Spot-welded construction
  • Adjustable shelf
  • Piano hinge
  • Reliable door operation
  • High-visibility warning label

Flammable Storage Cabinet ADFSC-505 is used in laboratories, research centres, and industrial facilities for safe storage of flammable liquids, ensuring fire risk reduction and regulatory compliance.

  • Automatic Door
  • Secure Padlock Configuration

Flammable Storage Cabinet ADFSC-505 | 114 liters capacity | Double door
Flammable Storage Cabinet ADFSC-505 | Spot-welded construction | Adjustable shelf

Frequently Asked Questions of Flammable Storage Cabinet ADFSC-505

1. Does Flammable Storage Cabinet ADFSC-505 help with vapor control?

Yes, Flammable Storage Cabinet ADFSC-505 is equipped with dual-side ventilation ports located on the left and right panels. These vents are designed to promote continuous airflow, effectively reducing the concentration of volatile chemical vapours inside the cabinet.

2. Can Flammable Storage Cabinet ADFSC-505 be used in dim lighting conditions?

Yes, Flammable Storage Cabinet ADFSC-505 is designed with safety in mind and features a high-visibility warning label. This label is made from reflective or brightly coloured material, ensuring that hazard information remains easily readable even in low-light or emergency situations.

3. What kind of locking system is used in Flammable Storage Cabinet ADFSC-505?

Flammable Storage Cabinet ADFSC-505 is equipped with a reliable three-point linkage lock system designed for enhanced safety. This mechanism secures the cabinet door at the top, middle, and bottom, providing a tight seal that minimizes the risk of accidental openings.

4. Where is Flammable Storage Cabinet ADFSC-505 typically used?

Flammable Storage Cabinet ADFSC-505 is commonly used in environments where safe handling and storage of hazardous chemicals are essential. These include laboratories, industrial plants, research facilities, and educational institutions that work with flammable liquids and materials.

5. What is the weight capacity of the shelf in Flammable Storage Cabinet ADFSC-505?

Flammable Storage Cabinet ADFSC-505 is equipped with a sturdy single shelf that supports a weight capacity of up to 50 kilograms. This makes it suitable for safely storing a wide range of chemical containers, including larger bottles and metal cans.

6. What is the purpose of Flammable Storage Cabinets?

Flammable Storage Cabinets are designed to safely store flammable and combustible liquids by containing potential fire hazards. They help prevent accidental ignition, protect personnel and property, and support compliance with safety regulations in industrial and laboratory settings.

7. Where are Flammable Storage Cabinets commonly used?

Flammable Storage Cabinets are commonly used in laboratories, research centres, factories, educational institutions, workshops, and industrial facilities. They are essential in any environment where flammable or combustible liquids are handled, stored, or dispensed for operational safety.

8. What is the most important safety feature in Flammable Storage Cabinets?

Flammable Storage Cabinets feature double-wall steel construction with an insulating air gap, which acts as a fire barrier. This core design helps delay heat transfer during a fire, protecting the contents and giving personnel critical time to respond safely.
