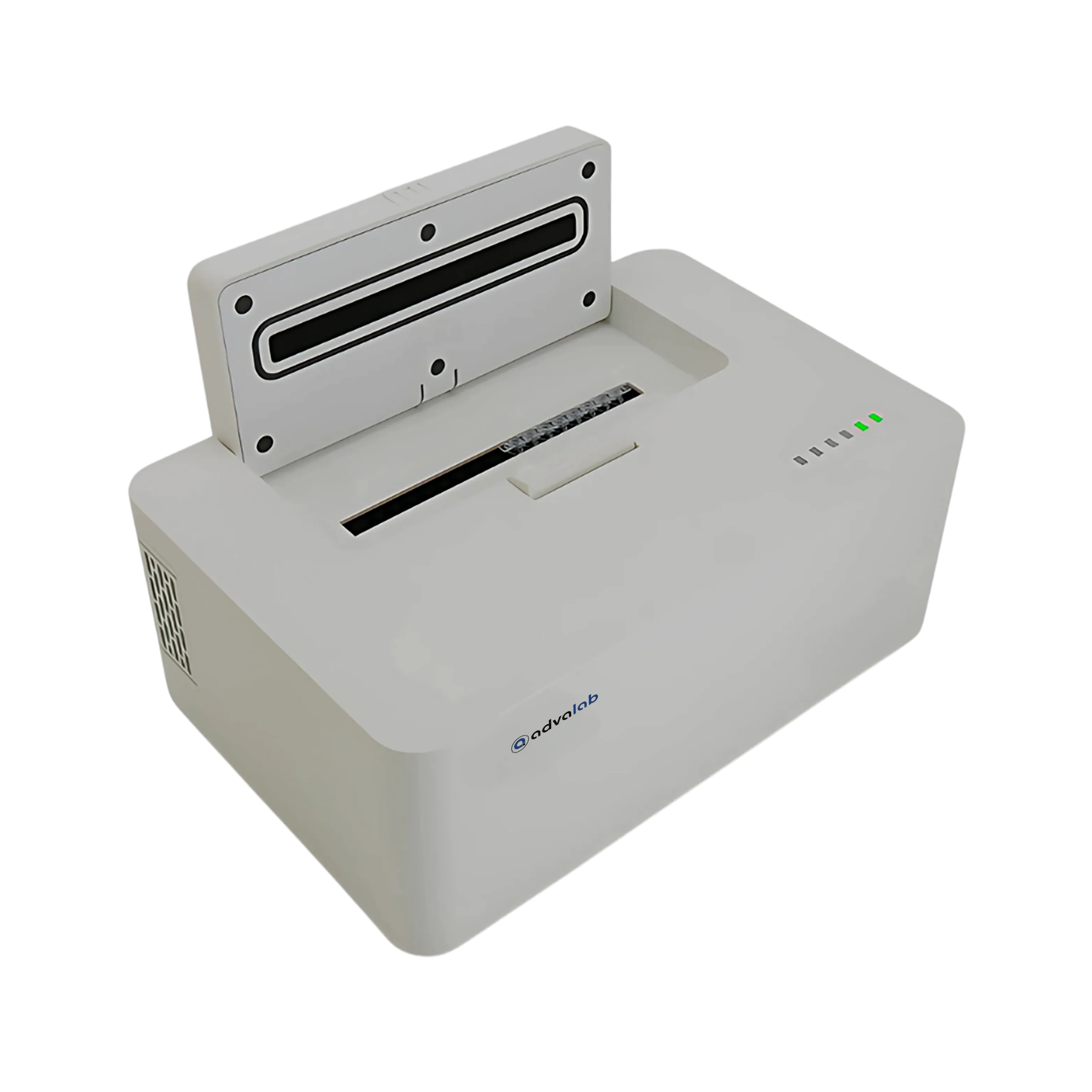

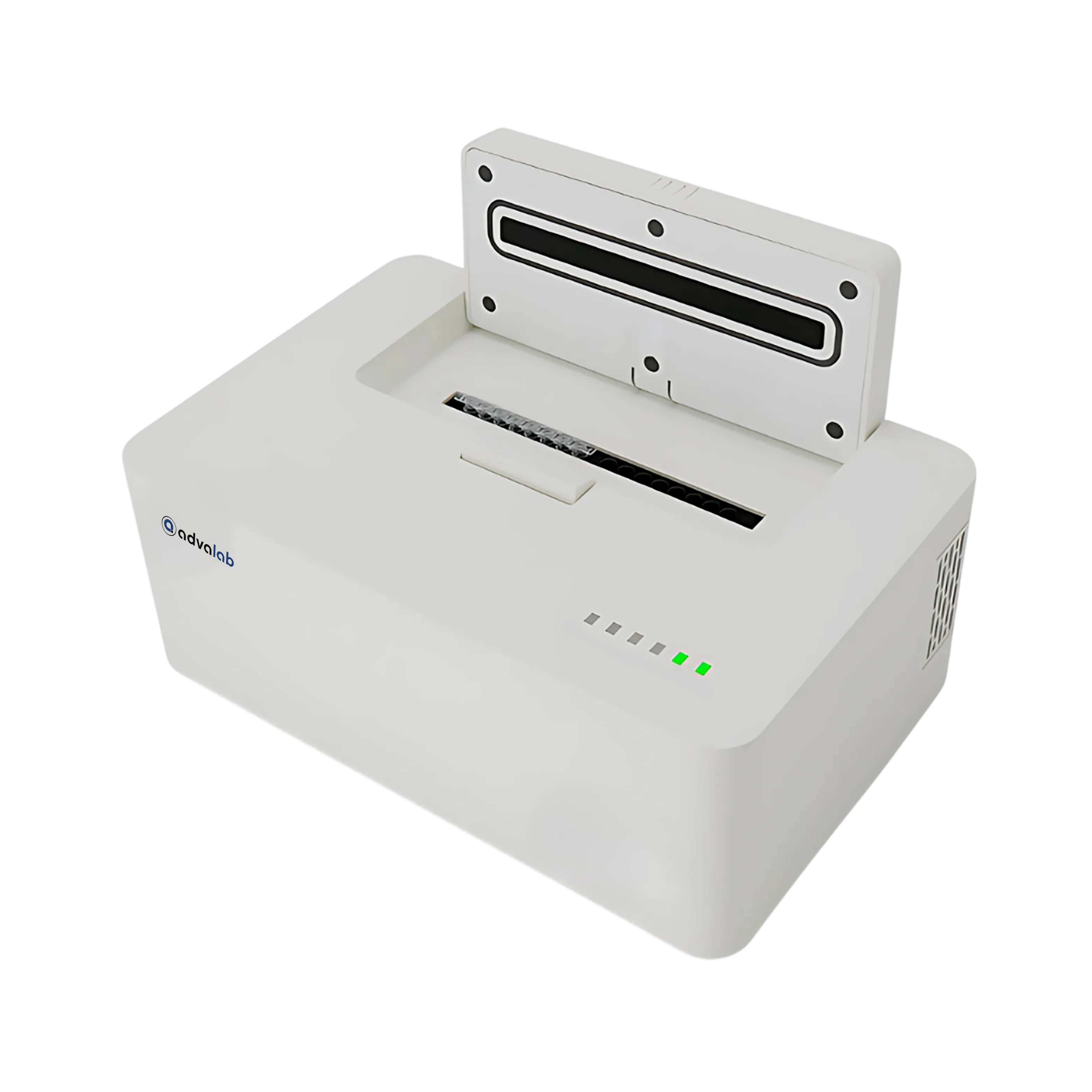

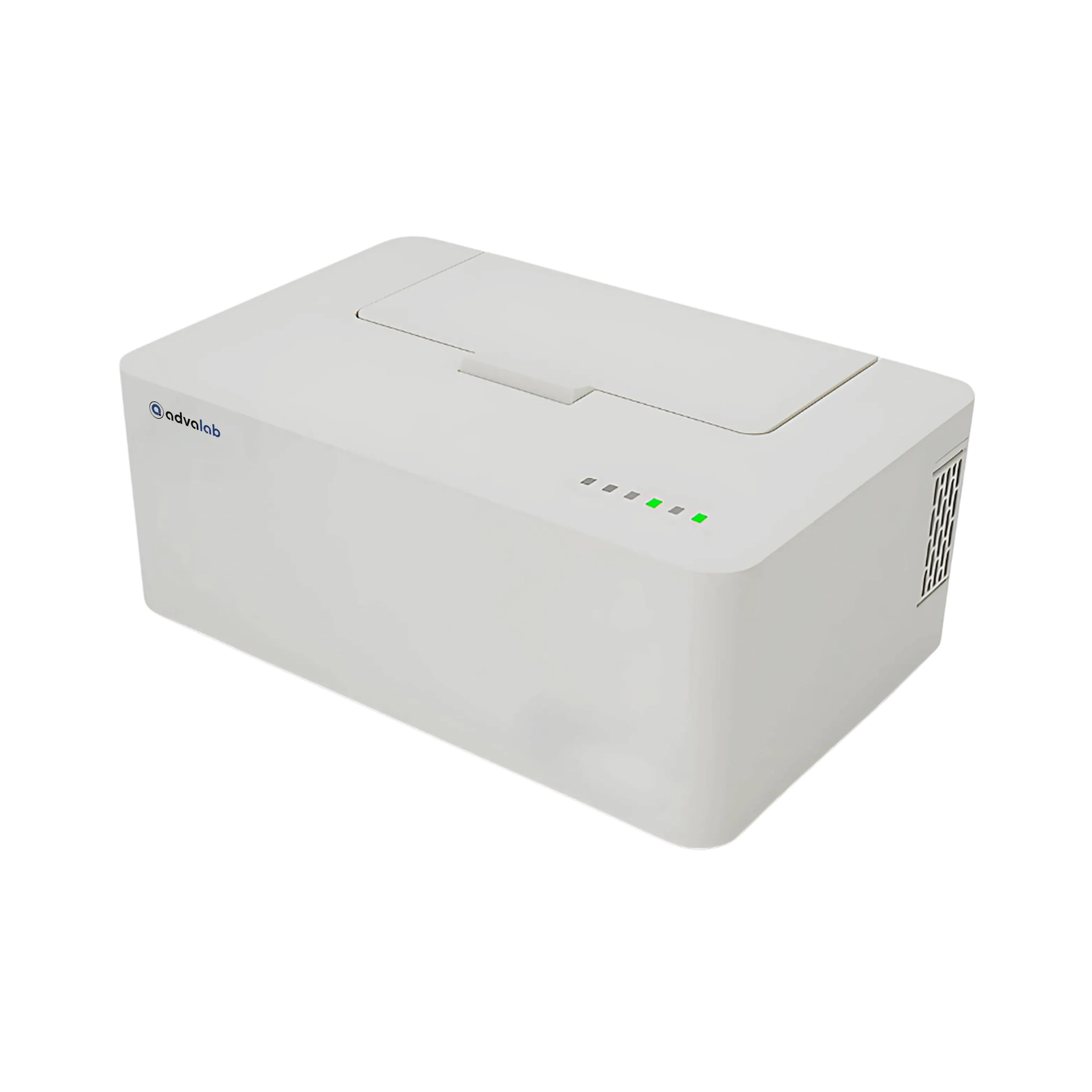

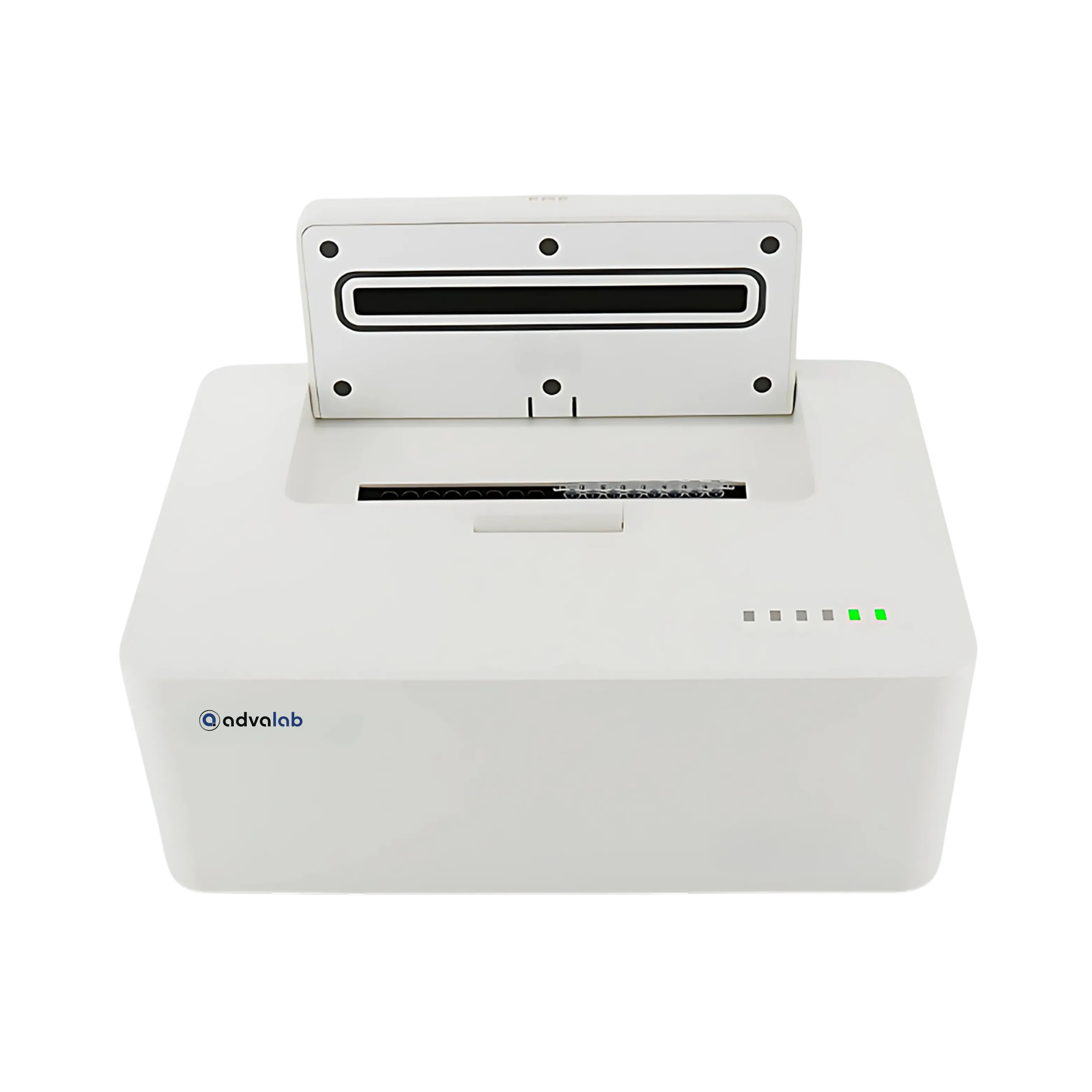

Real-Time PCR Machine ADPCR-502
Real-Time PCR Machine ADPCR-502
Real-Time PCR Machine ADPCR-502
Real-Time PCR Machine ADPCR-502
Real-Time PCR Machine ADPCR-502
Real-Time PCR Machine ADPCR-502

Real-Time PCR Machine ADPCR-502

Our Real-Time PCR Machine ADPCR-502 includes four fluorescence channels, allowing broad dye compatibility. It delivers ultra-sensitive detection, enabling recognition of minimal genetic material. The system maintains accurate temperature regulation for reliable and uniform results. An integrated UV sterilization feature eliminates aerosol-based contamination. This Real-Time PCR Machine is extensively applied in clinical testing, food analysis, forensic investigations, and molecular biology.


Fluorescent Channels 4 (CH1: FAM/SYBR Green I,CH2: HEX/JOE/VIC, CH3: ROX/Texas Red, CH4: CY5)
Sensitivity 1 Copy
Temperature Accuracy < 0.2°C
Dynamic Range 1 to 10¹⁰ copies
Block Setting Range 10 to 99.9°C
Reaction Volume 5 to 100 µl
Color Wavelength 400 to 700nm
Uniformity ±0.2°C
Max Ramp Rate >4°C/s
Average Ramp Rate >2.5°C/s (50 to 90°C)
Detection System Four PD, scientific grade for advanced multiplex and micro-reaction assays
Block Technology ETSC for fast, uniform heating
Control System PC-based, USB/RS232 interface
Contamination Control Built-in UV lamp for aerosol degradation
Sample Compatibility 16 × 0.2 ml tubes or 8-strip
Power Supply 100 to 240V, 300 VA
Product Dimensions (L×W×H) 324 × 212 × 122 mm
Packaging Dimensions (L × W × H) 387 × 302 × 273 mm
Net Weight 5.8 kg
Gross Weight 7.7 kg
  • Automatic result export
  • Stable thermal block
  • Fast amplification speed
  • Real-time monitoring
  • Easy software interface

Real-Time PCR Machine ADPCR-502 is utilized in clinical diagnostics for the rapid and precise detection and quantification of pathogens, offering high sensitivity and accuracy in genetic material analysis.

Real-Time PCR Machine ADPCR-502 | Fluorescent Channels	4 (CH1: FAM/SYBR Green I,CH2: HEX/JOE/VIC, CH3: ROX/Texas Red, CH4: CY5) | Sensitivity 1 Copy
Real-Time PCR Machine ADPCR-502 | Automatic result export | Stable thermal block

Frequently Asked Questions of Real-Time PCR Machine ADPCR-502

1. What temperature accuracy does the Real-Time PCR Machine ADPCR-502 offer?

Real-Time PCR Machine ADPCR-502 delivers precise temperature regulation with a deviation of less than 0.2°C, ensuring uniform conditions across all sample wells. Its advanced thermal block with Edge Temperature Self Compensation maintains stable and consistent heat distribution, minimizing edge effects and improving amplification reproducibility for all reaction types.

2. Does Real-Time PCR Machine ADPCR-502 include contamination control features?

Yes, the Real-Time PCR Machine ADPCR-502 includes a built-in UV disinfection lamp emitting at 70 ?W/cm², designed to eliminate aerosol contaminants and reduce the risk of false positives. This feature is especially beneficial when running high-sensitivity assays, when working in shared laboratory environments where cleanliness is critical.

3. How many fluorescent channels are available in Real-Time PCR Machine ADPCR-502?

Real-Time PCR Machine ADPCR-502 features four dedicated fluorescence detection channels CH1, CH2, CH3 and CH4 engineered to accommodate dyes. This four-channel design allows multiplex assays, enabling simultaneous amplification and detection of multiple targets in a single run, improving throughput and data efficiency for complex diagnostic workflows.

4. How sensitive is the Real-Time PCR Machine ADPCR-502?

The Real-Time PCR Machine ADPCR-502 offers ultra-high sensitivity capable of detecting even a single copy of DNA or RNA. This makes it highly reliable for early disease detection, low abundance gene expression analysis, and trace-level pathogen identification in critical research.

5. Can the Real-Time PCR Machine ADPCR-502 be used for rapid field testing?

Yes, it is optimized for compactness, speed, and portability, making it ideal for point-of-care diagnostics, veterinary surveillance, environmental screening, and outbreak response scenarios such as avian influenza. Its fast ramp rate and user-friendly software reduce turnaround time, supporting high throughput testing outside traditional labs.

6. What are Real-Time PCR Machines?

Real-Time PCR Machines are high-precision instruments that perform polymerase chain reactions while monitoring the amplification process in real time using fluorescent dyes. These systems provide quantitative data on nucleic acid levels and allow users to track amplification as it happens, making them essential for applications requiring accuracy and speed.

7. Where are Real-Time PCR Machines used?

Real-Time PCR Machines are widely used across various fields, including clinical diagnostics for detecting viruses and bacteria, gene expression studies in research labs, agricultural biotechnology for GMO detection, and environmental testing for microbial contamination. Their ability to deliver rapid and reliable results makes them invaluable in both routine and specialized testing workflows.
