Real-Time PCR Machine ADPCR-505
Real-Time PCR Machine ADPCR-505 (front view)

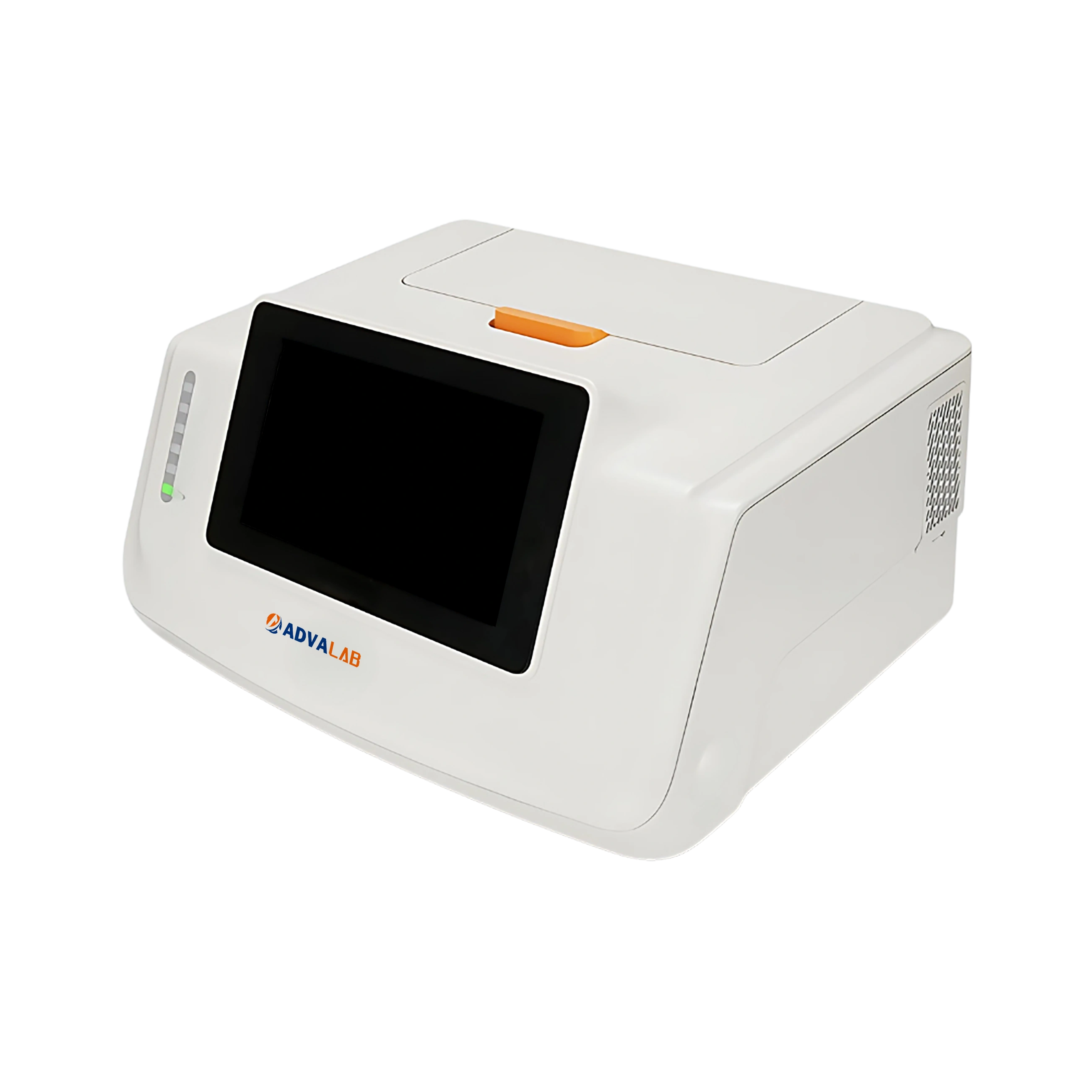

Real-Time PCR Machine ADPCR-505 (side view)

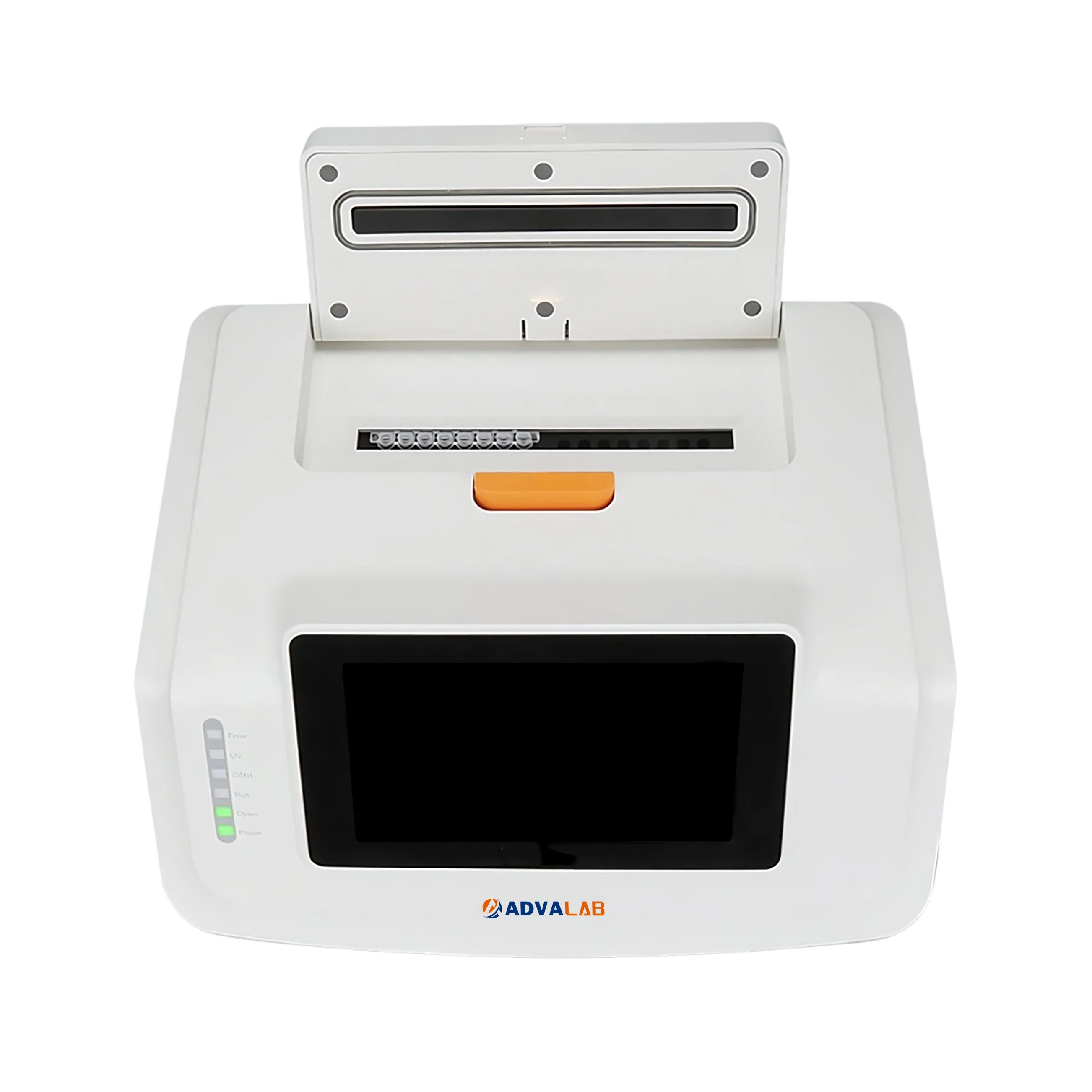

Real-Time PCR Machine ADPCR-505 (top view)

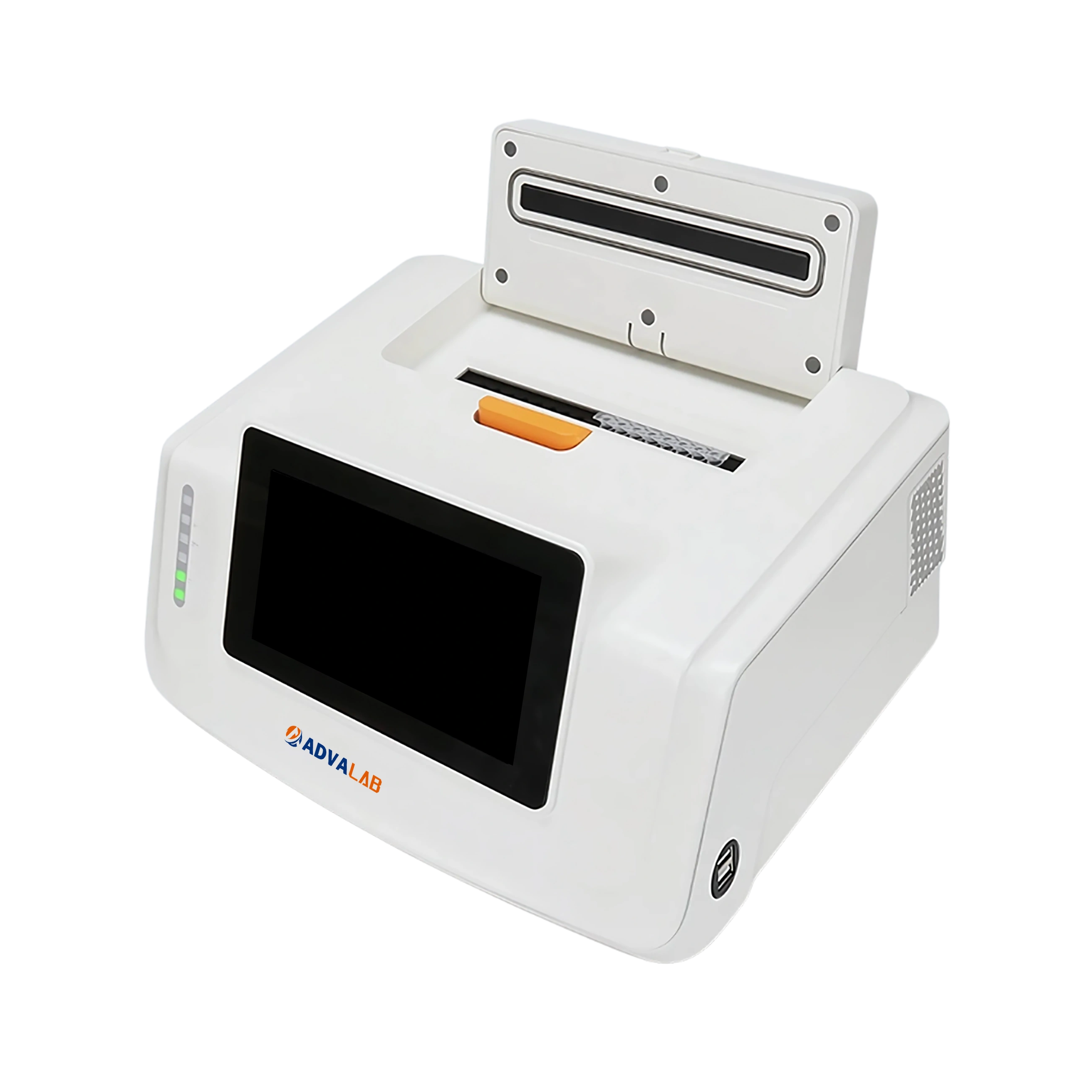

Real-Time PCR Machine ADPCR-505 (left side view)

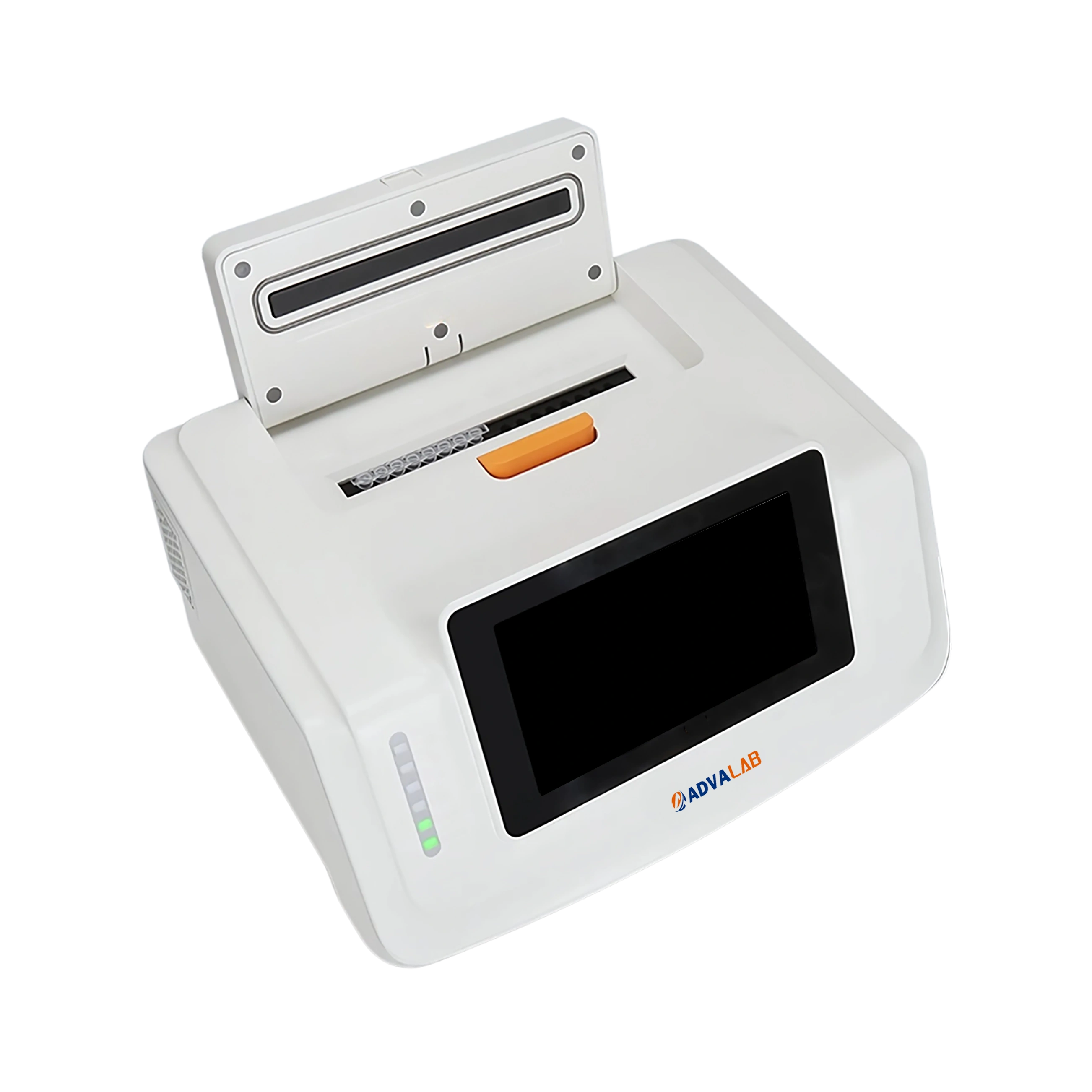

Real-Time PCR Machine ADPCR-505 (right side view)

Real-Time PCR Machine ADPCR-505

Real-Time PCR Machine ADPCR-505 includes dual optical channels compatible with fluorophores such as FAM and HEX. It offers excellent sensitivity, detecting even trace amounts of nucleic acid. With accurate temperature regulation, it delivers uniform amplification across samples. Integrated UV sterilization minimizes contamination risks. This Real-Time PCR Machine is extensively utilized in genetic screening, clinical testing, food quality control, and forensic investigations.


Fluorescent Channels 2 CH1: FAM/SYBR Green I
CH2: HEX/JOE/VIC
Sensitivity 1 copy
Dynamic Range 1 to 10¹⁰ copies
Temperature Accuracy < 0.2°C
Temperature Uniformity < ±0.2°C
Reaction Volume 5 to 100 µl
Block Setting Range 10 to 99.9°C
Max Ramp Rate > 4°C/s
Average Ramp Rate > 2.5°C/s (50 to 90°C)
Hot Lid Temperature 30 to 105°C (Default: 105°C)
Temperature Control Peltier technology
Optical Sensor High-sensitivity photodiode module
Color Wavelength Range 400 to 700 nm
Rn Value > 0.998
Coefficient of Variation < 0.6%
Detection System Dual PD detection, independent excitation fluorescence detection, suitable for multiple PCR
Contamination Control Built-in UV scan degradation function
Sample Compatibility 16 × 0.2ml tubes, 8-strip tubes, non-skirted or half-skirted plates
Power Supply 100 to 240V, 50/60Hz, 300 VA
Product Dimensions (L×W×H) 341 × 274.5 × 188 mm
Packaging Dimensions (L×W×H) 387 × 302 × 273 mm
Net Weight 6.8 kg
Gross Weight 11.8 kg
  • Direct printer connectivity
  • Strong signal clarity
  • Low background noise
  • Android-based system
  • Touchscreen interface

Real-Time PCR Machine ADPCR-505 is utilized in diagnostic labs for precise and sensitive detection of infectious agents, supporting timely diagnosis and effective medical intervention.

Real-Time PCR Machine ADPCR-505 | Fluorescent Channels	2 CH1: FAM/SYBR Green I CH2: HEX/JOE/VIC | Sensitivity 1 copy
Real-Time PCR Machine ADPCR-505 | Direct printer connectivity | Strong signal clarity

Frequently Asked Questions of Real-Time PCR Machine ADPCR-505

1. What makes Real-Time PCR Machine ADPCR-505 suitable for multiplex assays?

The Real-Time PCR Machine ADPCR-505 is equipped with multiple optical channels, allowing simultaneous detection of various fluorophores. It facilitates multiplexing by enabling accurate identification of several targets in a single reaction. High-performance optics enhance resolution and signal precision. This ensures efficient detection without cross-channel interference. It’s ideal for complex diagnostic and research workflows.

2. How does Real-Time PCR Machine ADPCR-505 maintain temperature uniformity?

It uses advanced block technology with Peltier elements to provide even thermal distribution. This guarantees that all wells experience consistent conditions throughout cycles. Uniform ramping rates and controlled cooling further enhance stability. Such precision minimizes variability in amplification outcomes. It's crucial for reproducible and trustworthy qPCR results.

3. What is the sample capacity of Real-Time PCR Machine ADPCR-505?

The Real-Time PCR Machine ADPCR-505 supports a wide range of formats including 16 × 0.2 ml tubes, 8-strip tubes, and various PCR plates. This flexibility allows it to adapt to different experiment sizes and throughput needs. Its design accommodates both small and high-volume workflows. Ideal for academic, clinical, and industrial laboratories. Efficient layout ensures optimal heat contact and consistent performance.

4. What contamination control features does Real-Time PCR Machine ADPCR-505 offer?

It includes a built-in UV sterilization lamp for automatic disinfection. This reduces the risk of carryover contamination between runs. The closed-lid design ensures a sealed environment during amplification. These features support clean, safe operation in sensitive molecular settings. Especially beneficial for pathogen detection and high-sensitivity testing.

5. Is Real-Time PCR Machine ADPCR-505 easy to use for beginners?

Yes, it features a user-friendly touchscreen interface with intuitive controls. Built-in software supports step-by-step programming and automatic optimization. Visual graphs, preset templates, and real-time data tracking simplify the learning curve. It’s designed for both novice users and advanced professionals. Touch navigation ensures quick setup and monitoring.

6. What are Real-Time PCR Machines?

Real-Time PCR Machines are high-precision instruments that perform polymerase chain reactions while monitoring the amplification process in real time using fluorescent dyes. These systems provide quantitative data on nucleic acid levels and allow users to track amplification as it happens, making them essential for applications requiring accuracy and speed.

7. Where are Real-Time PCR Machines used?

Real-Time PCR Machines are widely used across various fields, including clinical diagnostics for detecting viruses and bacteria, gene expression studies in research labs, agricultural biotechnology for GMO detection, and environmental testing for microbial contamination. Their ability to deliver rapid and reliable results makes them invaluable in both routine and specialized testing workflows.
