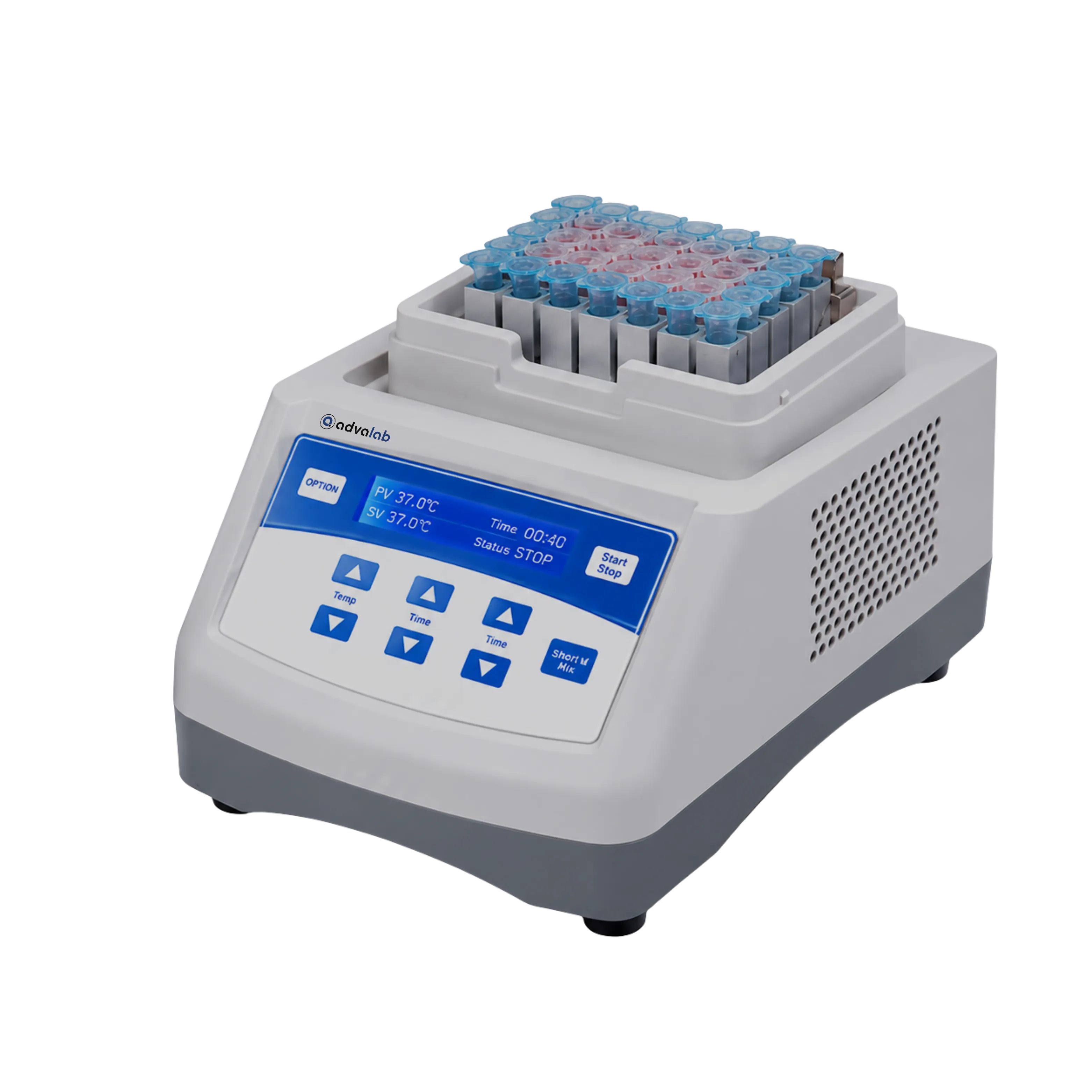

Dry Bath Incubator ADDB-504

Dry Bath Incubator ADDB-504

Dry Bath Incubator ADDB-504 offers a temperature set range of 0°C to 100°C, enabling precise control. It utilizes a high-purity aluminum block to ensure uniform heat distribution instead of water bath. This system features an intuitive interface with programmable timing and multi-step operation capabilities. Equipped with built-in safety mechanisms ensures enhanced operational reliability during extended use. Our Dry Bath Incubator is used for sample incubation, enzyme reactions, DNA amplification, and other thermal-sensitive laboratory procedures.


Temperature Setting Range 0℃ to 100℃
Temperature Control Range RT 5℃ to 100℃
Temperature Accuracy ≤±0.3℃
Temperature Uniformity ≤±0.3℃
Heating Time ≤12min (from 25℃ to100℃)
Timing Range 1sec to 99min59sec / ∞
Display Accuracy 0.1℃
Voltage AC 220 V or 110 V / 50 / 60 Hz
Power Requirement 150 W
Dimension (W × D × H) 260 × 195 × 150 mm
Net Weight 2.5 kg
  • Digital LCD display
  • User calibration function
  • Multiple tube compatibility
  • Auto resume function
  • Durable thermal block

Dry Bath Incubator ADDB-504 is widely used for sample preservation, enzymatic reactions, and DNA amplification processes. It also supports electrophoresis denaturation, serum solidification, and other temperature-sensitive lab procedures.

Block No.DescriptionQuantity
Block 0196 mm x 0.2 ml1 Pc
Block 0254 mm x 0.5 ml1 Pc
Block 0335 mm x 1.5 ml1 Pc
Block 0435 mm x 2.0 ml1 Pc
Block 0515 mm x 0.5 ml + 20 mm x 1.5 ml1 Pc
Block 0696 mm x 0.2 ml (ELISA Plate)1 Pc
Block 0724 mm x 5 ml1 Pc
Block 0815 mm x 10 ml1 Pc
Block 0912 mm x 15 ml1 Pc
Block 106 mm x 50 ml (round shape bottom)1 Pc
Block 106 mm x 50 ml (cone shape bottom)1 Pc

Frequently Asked Questions of Dry Bath Incubator ADDB-504

1. How is the Dry Bath Incubator ADDB-504 different from traditional water baths?

Dry Bath Incubator ADDB-504 differs from traditional water baths by using high-purity aluminum blocks for heat conduction instead of water, which eliminates issues like evaporation, contamination, and the need for regular water replacement. This design ensures more uniform and precise temperature control while reducing maintenance. Additionally, the Dry Bath Incubator is safer and cleaner, making it ideal for sensitive laboratory applications.

2. Is the Dry Bath Incubator ADDB-504 easy to maintain?

Dry Bath Incubator ADDB-504 is designed for easy maintenance. It has interchangeable blocks can be quickly removed and cleaned, helping maintain hygiene and prevent contamination. The system eliminates water-related issues like spills and mineral buildup. This user-friendly design ensures efficient upkeep with minimal effort.

3. What is the power consumption of the Dry Bath Incubator ADDB-504?

Dry Bath Incubator ADDB-504 consumes 150 watts of power, making it energy-efficient for laboratory use. It is compatible with both AC220V and AC110V power supplies. This flexibility allows it to be used in various regions without the need for additional adapters. Overall, its power consumption balances performance and efficiency.

4. Can the Dry Bath Incubator ADDB-504 be used for long-duration experiments?

Dry Bath Incubator ADDB-504 is suitable for extended use with a timer function that can be set for up to 99 hours and 59 minutes. This allows for hands-free operation during long incubations or reactions. The device also has safety features to prevent overheating during prolonged use. It is ideal for experiments requiring steady temperatures over time.

5. How accurate is the temperature control on the Dry Bath Incubator ADDB-504?

Dry Bath Incubator ADDB-504 provides precise temperature control, ensuring stable and uniform heating throughout the incubation process. Its microprocessor-based system continuously monitors and adjusts the temperature. This accuracy helps maintain the integrity of sensitive samples and reactions. Users can rely on consistent results during experiments.

6. What is a Dry Bath Incubator?

A Dry Bath Incubator is a laboratory instrument designed to regulate and maintain a stable temperature for samples, eliminating the need for water. It is commonly used for heating, growing, or storing biological or chemical samples under controlled conditions. Its precise temperature control makes it ideal for applications such as enzyme reactions, DNA denaturation, and sample incubation.

7. Can a Dry Bath Incubator be used for cell culture?

A Dry Bath Incubator is not suitable for cell culture, as it lacks the ability to control humidity and CO? levels, which are essential for proper cell growth. It is designed for molecular biology applications like PCR or enzyme reactions. For cell culture, a CO? incubator with precise environmental control is more appropriate. These incubators also maintain optimal temperature, pH, and gas conditions crucial for maintaining cell viability.

8. How do I ensure even heating in a Dry Bath Incubator?

To ensure even heating in a Dry Bath Incubator, always use the appropriate block size for your sample containers. Make sure the block is correctly positioned and seated within the incubator. Regularly calibrating the incubator ensures accurate temperature readings. Avoid overcrowding to allow for uniform heat distribution, and ensure the incubator door remains closed during operation to maintain stable conditions.

9. What are the typical features of a Dry Bath Incubator?

Features of a Dry Bath Incubator: • Digital temperature control: Allows for precise adjustments and displays the current temperature. • Timer function: Allows users to set incubation times. • Multiple blocks: Our incubators offer interchangeable blocks to accommodate different sample sizes. • Over-temperature alarm: Alerts users if the temperature exceeds the set point.
