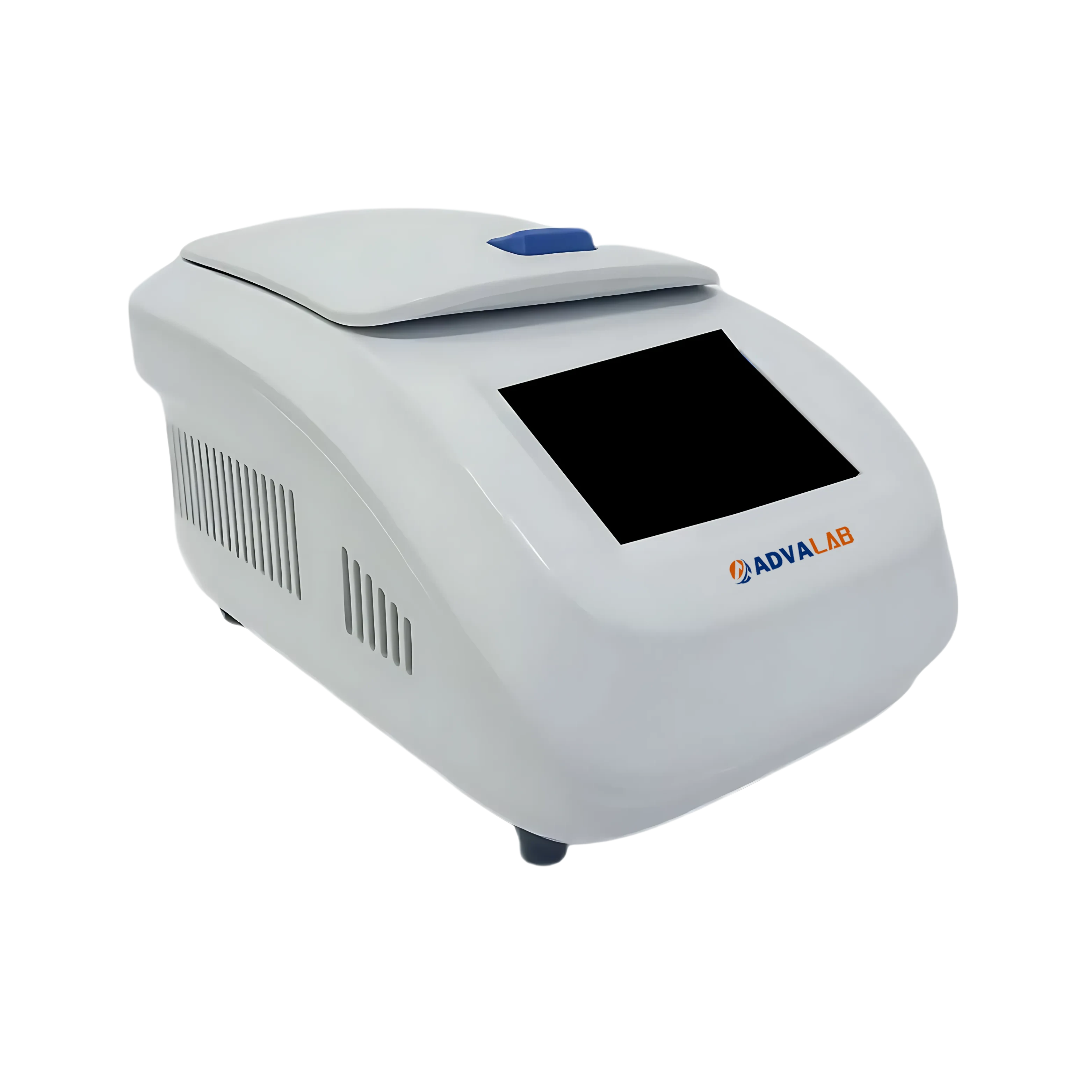

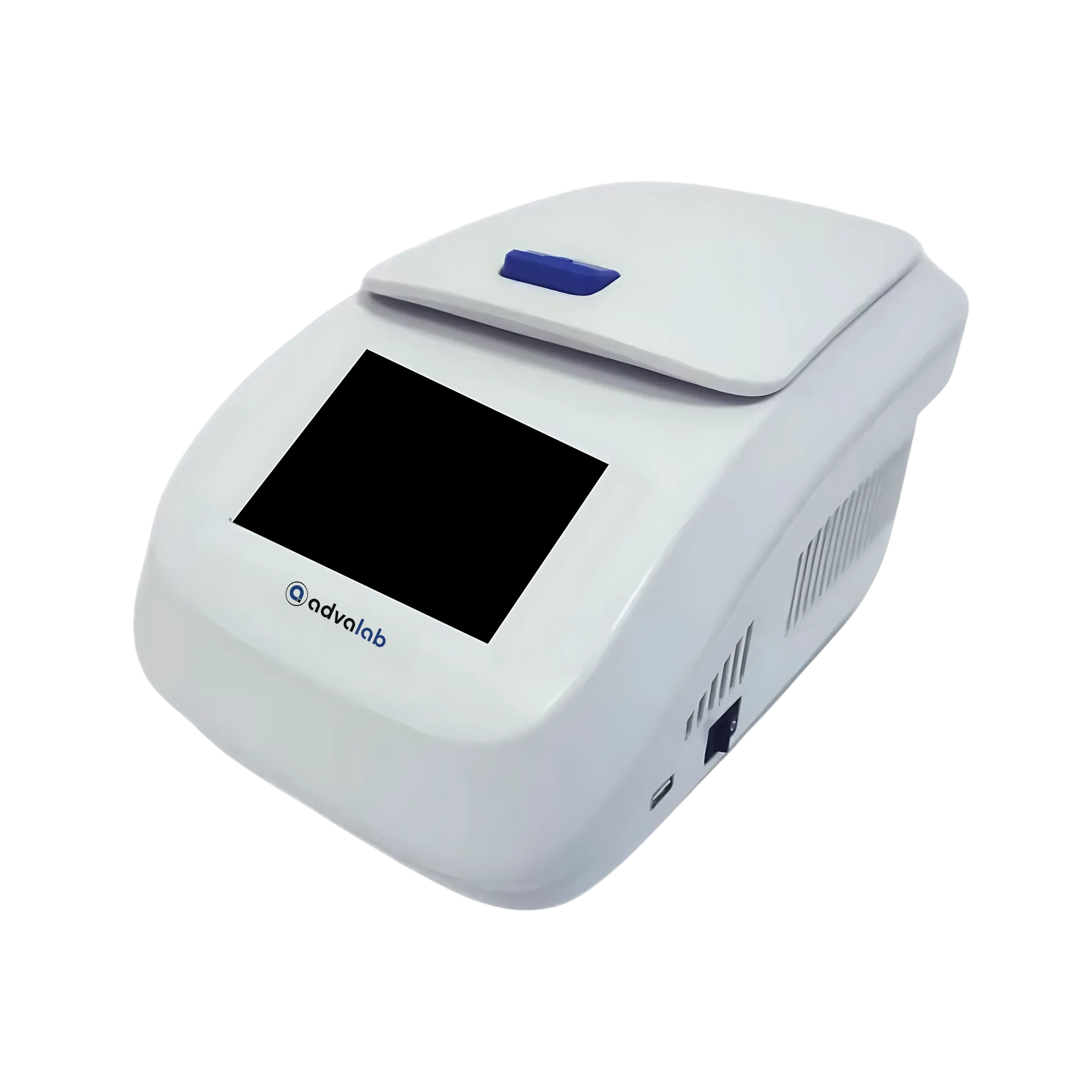

Heated Lid Dry Bath Incubator ADHDB-501 operates with a temperature range from -30°C to 105°C. It utilizes advanced Peltier technology for efficient thermal control in both heating and cooling cycles. Designed with a microcomputer-controlled heated lid, it provides precise regulation. The unit also features a TFT display for accurate monitoring and adjustment of settings. Our Heated Lid Dry Bath Incubator ideal for laboratory applications, it supports sample preservation, DNA amplification and protein denaturation.
| Block Temperature Setting Range | RT -30°C to 105°C |
| Temperature Set Range | -10°C to 105°C |
| Lid Temperature Setting Range | RT +5°C to 110°C |
| Block Temperature Accuracy | ±0.5°C |
| Lid Temperature Accuracy | ±1.0°C |
| Block Temperature Uniformity | ±0.3°C at 37°C |
| Heating Up Rate | 37°C to 100°C ≤ 7°C/min at R.T. 25°C |
| Cooling Rate | 100°C to 37°C ≤ 7°C/min |
| Display Accuracy | 0.1°C |
| Timer | 1s to 99min 59sec (0=infinite) |
| Maximum Steps | 10 |
| Maximum Cycles | 99 |
| Power Supply | AC 100 to 230V, 50/60Hz |
| Maximum Power Consumption | 300 W |
| Dimension (W×D×H) | 200×315×175 mm |
| Net Weight | 3.3 kg |
Our Heated Lid Dry Bath Incubator ADHDB-501 is ideal for laboratory applications, supporting sample preservation, DNA amplification, and protein denaturation, delivering reliable results in research and clinical labs.
Accessory Capacity Quantity Block 01 96×0.2ml (φ5.37×10.5) 1 Pc Block 02 54×0.5ml (φ8×20.3) 1 Pc Block 03 35×1.5ml (φ10.8×30.5) 1 Pc Block 04 35×2.0ml (φ10.8×32) 1 Pc
1. Can this Heated Lid Dry Bath Incubator provide both heating and cooling functions?
Yes, our Heated Lid Dry Bath Incubator provides both heating and cooling systems. This allows for precise temperature control, making it ideal for applications that require both temperature elevation and reduction. The combination of heating and cooling ensures versatile performance, offering consistent temperature regulation.
2. Can this Heated Lid Dry Bath Incubator comes with an LCD display?
Yes, our Heated Lid Dry Bath Incubator comes with a 5-inch touch screen LCD display. This user-friendly display allows for easy temperature adjustments, real-time monitoring, and precise control, enhancing the overall experience and accuracy of your incubation process. The display offers clear visibility of settings and status for efficient operation.
3. How long does it take to reach the desired temperature in a Heated Lid Dry Bath Incubator?
Our Heated Lid Dry Bath Incubator reaches temperatures between 37°C and 100°C in less than 7 minutes, ensuring quick and efficient heating for your samples. The rapid heating time helps minimize waiting and increases productivity in laboratory workflows. The incubator maintains a stable temperature, providing reliable and consistent performance for various applications.
4. Does the Heated Lid Dry Bath Incubator need more space?
The Impact Design of the Heated Lid Dry Bath Incubator is optimized for a compact size, which makes it highly efficient for spaces with limited room. This compact design ensures that it takes up minimal counter space while still providing optimal temperature control for incubating samples. The size is particularly advantageous in labs or environments where space is a premium, allowing for greater flexibility in organizing equipment.
5. How does the heated lid benefit the incubator in a Heated Lid Dry Bath Incubator?
The heated lid in a Heated Lid Dry Bath Incubator plays a crucial role in maintaining sample integrity by preventing condensation from forming on the tube caps or sample surfaces. This helps keep the samples dry and prevents dilution or contamination that could result from moisture buildup. The heated lid ensures consistent thermal contact across the entire block, promoting even temperature distribution.
6. What is a Heated Lid Dry Bath Incubator?
A Heated Lid Dry Bath Incubator is a laboratory instrument designed to maintain precise temperatures for samples in vials, tubes, or other containers. It uses a heated lid to ensure consistent, uniform temperature distribution. Unlike water-based baths, this type of incubator operates without liquids, preventing contamination and the risk of spills.
7. How does the Heated Lid Dry Bath Incubator work?
The Heated Lid Dry Bath Incubator works by using a heating system within the lid and sometimes the base. The temperature is controlled to provide a consistent environment for samples. The heated lid ensures that the top portion of the samples remains heated, reducing the risk of condensation or temperature gradients. This dual-heating system ensures uniform temperature distribution, improving the accuracy and reliable results.
8. What are the advantages of using a Heated Lid Dry Bath Incubator?
A Heated Lid Dry Bath Incubator offers several advantages over traditional water baths or other incubation methods. One of the main benefits is the absence of liquid, which eliminates the risk of contamination, spillage, and the need for frequent cleaning associated with water baths. The heated lid ensures uniform temperature distribution, reducing temperature gradients and minimizing condensation.
9. Can I use a Heated Lid Dry Bath Incubator for different types of samples?
Yes, Heated Lid Dry Bath Incubator are versatile and can be used for a wide range of sample types, including DNA/RNA extraction, enzyme reactions, cell culture, and more. The incubator typically supports various block types to accommodate different test tubes and microplates.
10. How to clean Heated Lid Dry Bath Incubator?
To clean a Heated Lid Dry Bath Incubator, first ensure the unit is turned off and completely cooled down. Wipe the exterior and blocks with a soft cloth dampened with mild soap and water. Avoid harsh chemicals and abrasives. For stains, use a gentle disinfectant. Ensure no liquid enters the interior and let it dry before use.
