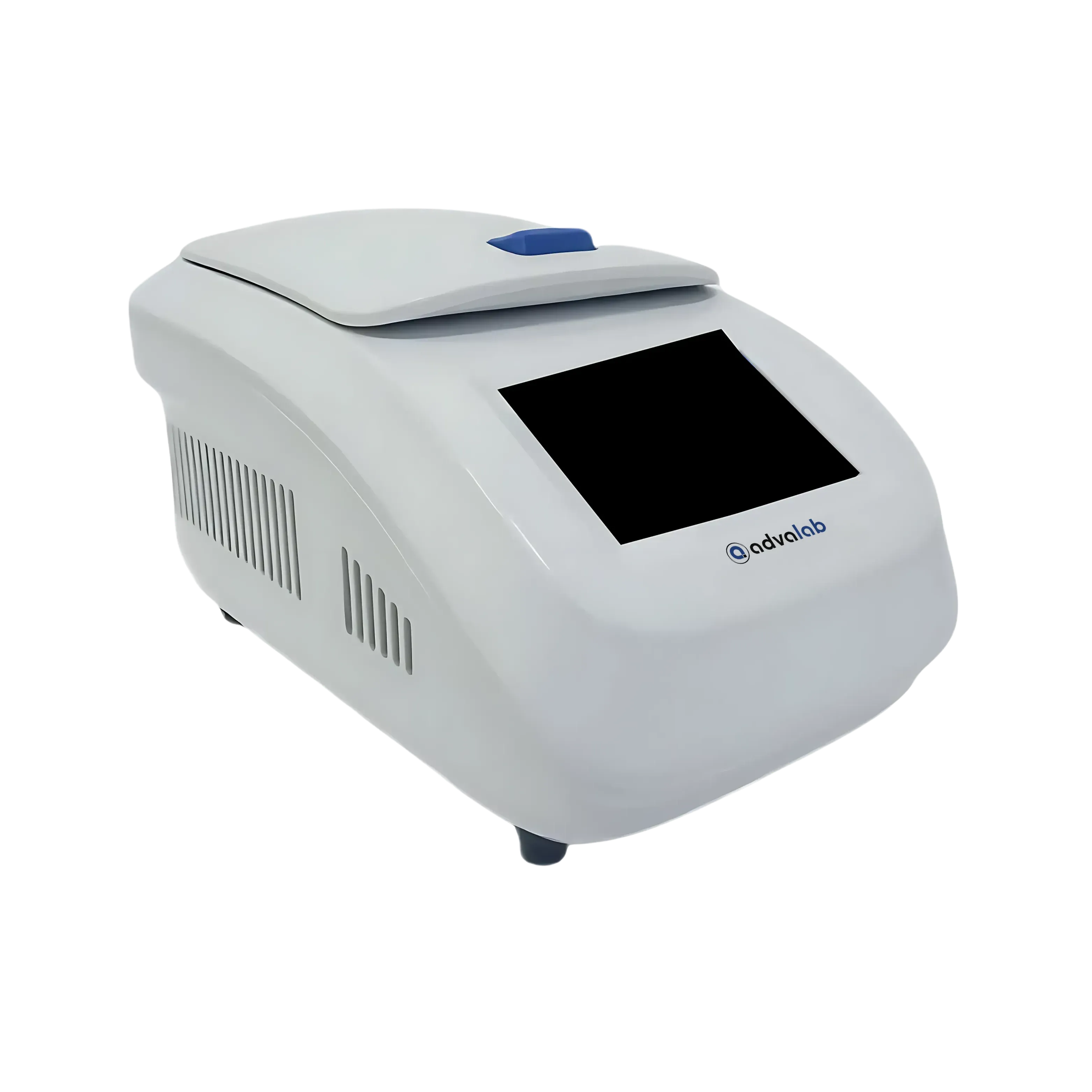

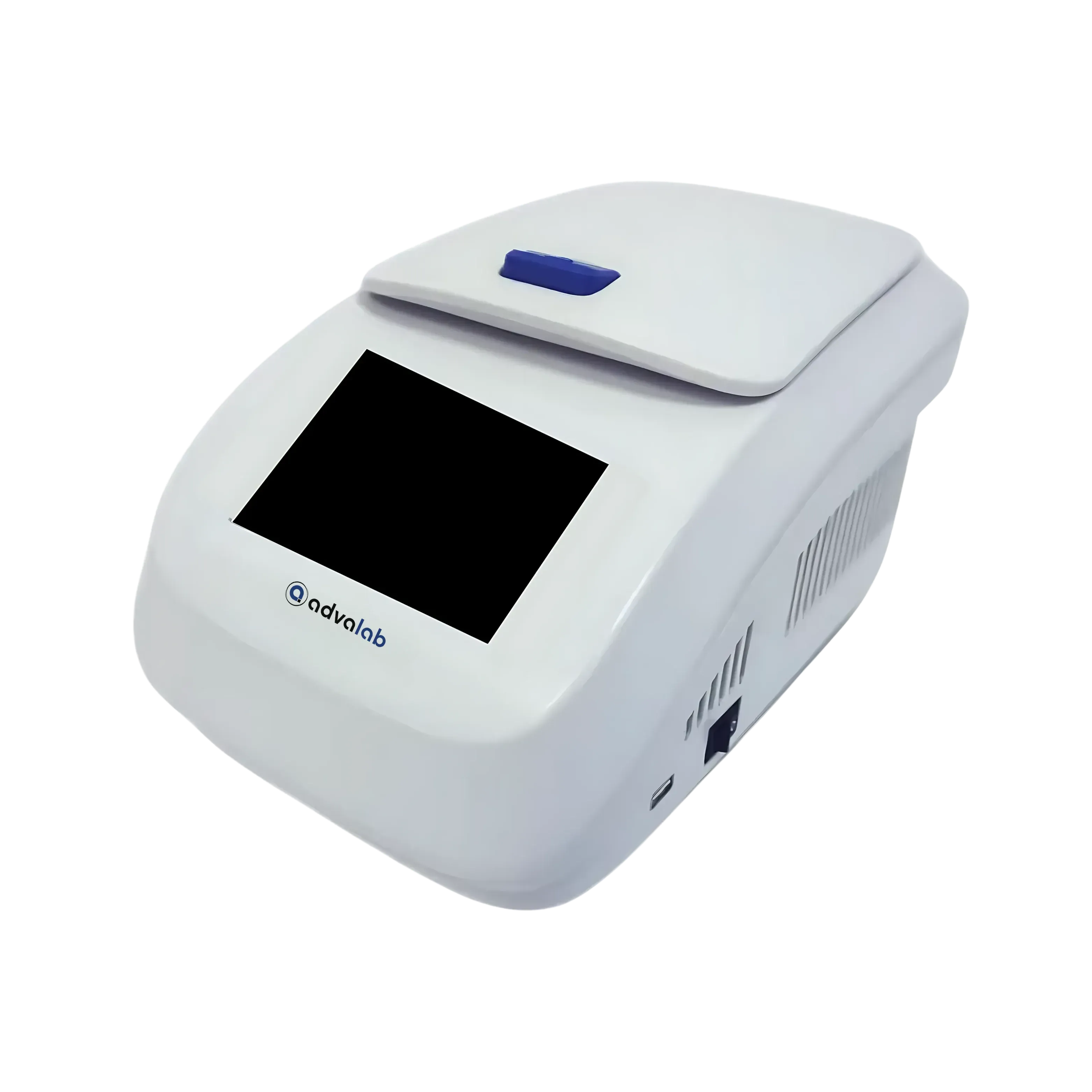

Heated Lid Dry Bath Incubator ADHDB-502

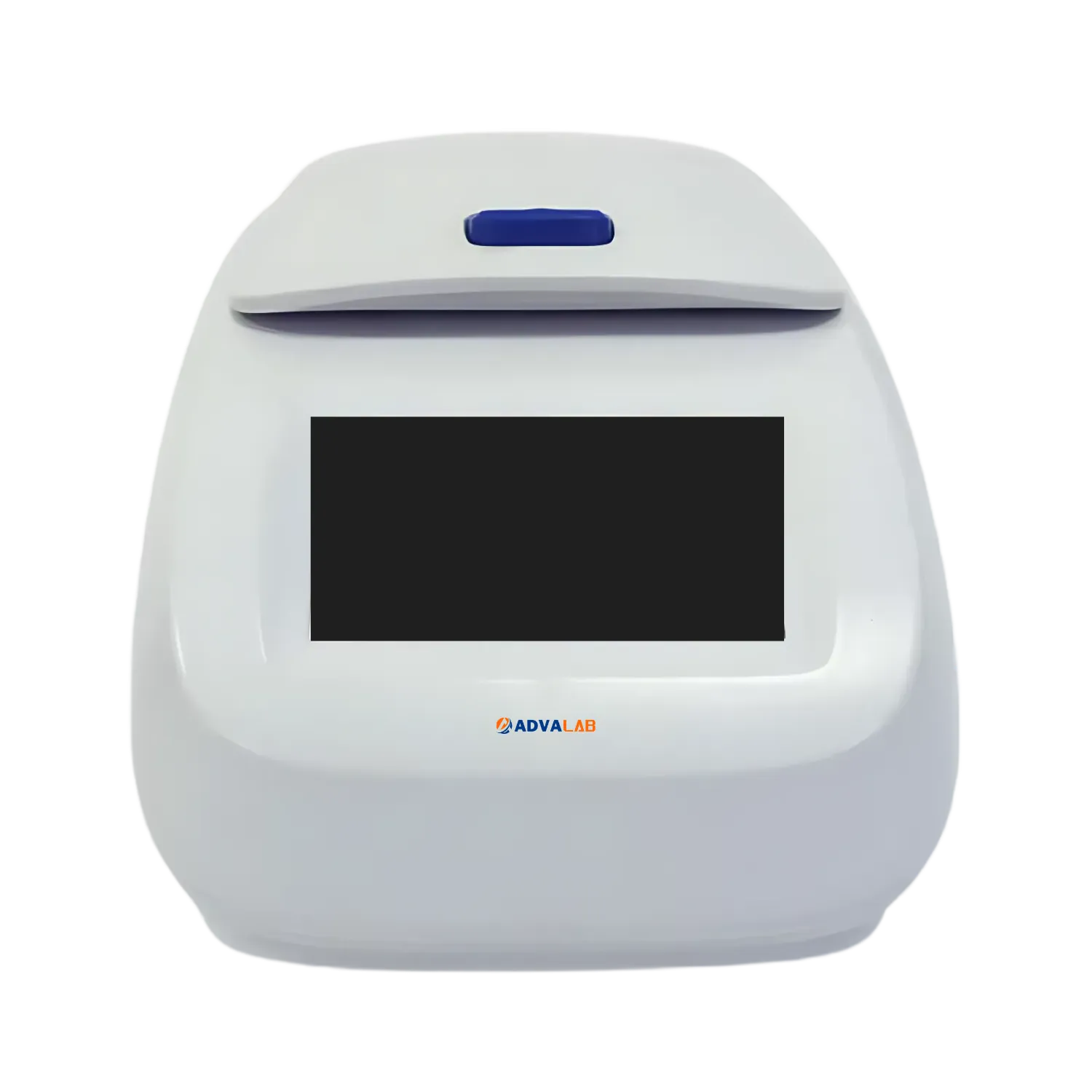

Heated Lid Dry Bath Incubator ADHDB-502, front view

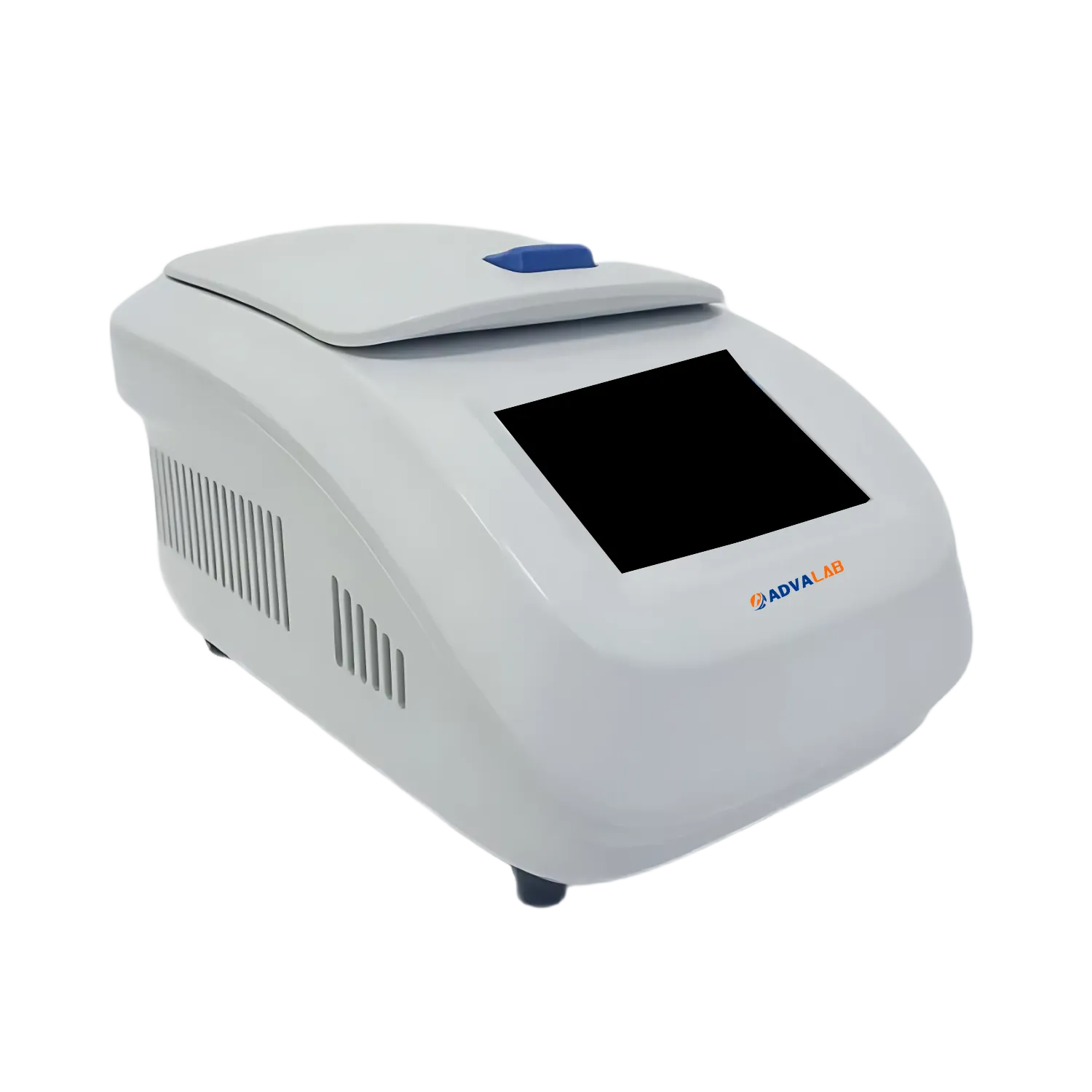

Heated Lid Dry Bath Incubator ADHDB-502, left view
Heated Lid Dry Bath Incubator ADHDB-502, right view
Heated Lid Dry Bath Incubator ADHDB-502, side view

Heated Lid Dry Bath Incubator ADHDB-502

Heated Lid Dry Bath Incubator ADHDB-502 operates within a temperature range from 5℃ to 105℃. Featuring a microcomputer-controlled heated cover, it ensures precise regulation. The heated lid provides uniform and accurate thermal management across both block and top surface. It utilizes advanced Peltier technology for precise and efficient heating. Our Heated Lid Dry Bath Incubator is perfect for laboratory applications, ensuring reliable DNA amplification and protein denaturation.


Block Temperature Setting Range RT +5℃ to 105℃
Temperature Set Range 0℃ to 105℃
Lid Temperature Setting Range RT +5°C to 110°C
Block Temperature Accuracy ±0.5°C
Lid Temperature Accuracy ±1.0°C
Block Temperature Uniformity ±0.3°C at 37°C
Heating Up Rate 37°C to 100°C ≤ 7°C/min at R.T. 25°C
Display Accuracy 0.1°C
Timer 1s to 99min 59sec (0=infinite)
Maximum Steps 10
Maximum Cycles 99
Power Supply AC100 to 120V/ AC100 to 240V, 50/60Hz
Maximum Power Consumption 180 W
Dimension (W×D×H) 200×315×175 mm
Net Weight 2.8 kg
  • TFT display
  • Consistent temperature distribution
  • Customizable cycling programs
  • Heated lid management
  • User-friendly operation

Our Heated Lid Dry Bath Incubator ADHDB-502 is perfect for laboratory applications, enabling sample preservation, DNA amplification, and protein denaturation, while providing reliable results in research and clinical labs.

Accessory

Capacity

Quantity

Block 01

96×0.2ml (φ5.37×10.5)

1 Pc

Block 02

54×0.5ml (φ8×20.3)

1 Pc

Block 03

35×1.5ml (φ10.8×30.5)

1 Pc

Block 04

35×2.0ml (φ10.8×32)

1 Pc



Heated Lid Dry Bath Incubator ADHDB-502 | Display Accuracy 0.1°C | Maximum Steps 10
Heated Lid Dry Bath Incubator ADHDB-502 | TFT display | Consistent temperature distribution

Frequently Asked Questions of Heated Lid Dry Bath Incubator ADHDB-502

1. How do I calibrate the temperature on a Heated Lid Dry Bath Incubator?

Our Heated Lid Dry Bath Incubator comes equipped with built-in temperature calibration settings, making the process straightforward and user-friendly. To calibrate, simply access the calibration mode through the control panel. This feature ensures that the incubator maintains accurate and consistent temperatures for sensitive laboratory applications, without the need for external calibration tools or software.

2. Does the Heated Lid Dry Bath Incubator support both heating and cooling functions?

No, this Heated Lid Dry Bath Incubator is designed specifically for heating applications and does not offer active cooling functionality. It features a heated lid to prevent condensation and ensure uniform temperature distribution across samples, making it ideal for protocols that require stable and consistent heating.

3. Are Heated Lid Dry Bath Incubators energy-efficient?

Yes, Heated Lid Dry Bath Incubators are generally energy-efficient, especially due to their compact design and focused heating technology. They use precise digital temperature control and insulated heating blocks to minimize energy waste while maintaining accurate and stable temperatures. the heated lid helps retain heat within the chamber, reducing overall power consumption by preventing heat loss.

4. Is the Heated Lid Dry Bath Incubator portable?

Yes, our Heated Lid Dry Bath Incubator is designed to be highly portable. Its compact footprint and lightweight construction make it easy to carry and position wherever needed. Despite its small size, it still delivers reliable performance, ensuring you don’t have to compromise on functionality while on the move. This makes it an ideal choice for mobile labs, academic settings, and limited-space environments.

5. Can Heated Lid Dry Bath Incubator be used for different types of tubes or sample containers?

Yes, our Heated Lid Dry Bath Incubator can accommodate various sizes of tubes and containers. It's designed with flexibility in mind, allowing users to incubate different sample types while maintaining consistent heat. Interchangeable block modules make it easy to adapt the incubator to fit microtubes, centrifuge tubes, vials, or other samples.

6. What is a Heated Lid Dry Bath Incubator?

A Heated Lid Dry Bath Incubator is a laboratory instrument designed to maintain precise temperatures for samples in vials, tubes, or other containers. It uses a heated lid to ensure consistent, uniform temperature distribution. Unlike water-based baths, this type of incubator operates without liquids, preventing contamination and the risk of spills.

7. How does the Heated Lid Dry Bath Incubator work?

The Heated Lid Dry Bath Incubator works by using a heating system within the lid and sometimes the base. The temperature is controlled to provide a consistent environment for samples. The heated lid ensures that the top portion of the samples remains heated, reducing the risk of condensation or temperature gradients. This dual-heating system ensures uniform temperature distribution, improving the accuracy and reliable results.

8. What are the advantages of using a Heated Lid Dry Bath Incubator?

A Heated Lid Dry Bath Incubator offers several advantages over traditional water baths or other incubation methods. One of the main benefits is the absence of liquid, which eliminates the risk of contamination, spillage, and the need for frequent cleaning associated with water baths. The heated lid ensures uniform temperature distribution, reducing temperature gradients and minimizing condensation.

9. Can I use a Heated Lid Dry Bath Incubator for different types of samples?

Yes, Heated Lid Dry Bath Incubator are versatile and can be used for a wide range of sample types, including DNA/RNA extraction, enzyme reactions, cell culture, and more. The incubator typically supports various block types to accommodate different test tubes and microplates.

10. How to clean Heated Lid Dry Bath Incubator?

To clean a Heated Lid Dry Bath Incubator, first ensure the unit is turned off and completely cooled down. Wipe the exterior and blocks with a soft cloth dampened with mild soap and water. Avoid harsh chemicals and abrasives. For stains, use a gentle disinfectant. Ensure no liquid enters the interior and let it dry before use.
