Dry Bath Incubator ADDB-505

Dry Bath Incubator ADDB-505

Dry Bath Incubator ADDB-505 offers a precise temperature control range from room temperature -30℃ to 100℃. It is controlled by microcomputer that uses high purity aluminium material as a heat conduction medium. This unit supports interchangeable blocks, accommodating a wide variety of tube sizes for enhanced versatility. Designed with built-in over-temperature protection, it ensures safe and reliable operation. Our Dry Bath Incubator is widely used in preservation and reaction of samples in laboratories.


Temperature Setting Range -10℃ to 100℃
Temperature Control Range RT -30℃ to 100℃
Temperature Accuracy ≤ ± 0.3℃
Temperature Uniformity ≤ ± 0.3℃
Heating Time ≤ 10min (from 25℃ to100℃)
Cooling Time ≤ 10min (from 100℃ to 25℃)
≤ 25min (from RT. to 30℃)
Display Accuracy 0.1℃
Time Range 1min to 99min59sec / ∞
Auto Warming Yes
Auto Running Yes
Auto Heating Yes
Auto Resume to Run Yes
Multi Points Running Yes (Max 5 points)
Multi Points Running Circularly Yes (Max 99 times)
Voltage AC100 to 240V, 50 / 60Hz
Power Requirement 150 W
Dimension (L × W × H) 260 × 195 × 150 mm
Net Weight 4.5 kg
  • User-friendly interface
  • LCD Display
  • Automatic fault detection
  • Buzzer alarm function
  • Temperature calibration function

Dry Bath Incubator ADDB-505 is commonly used for precise incubation and temperature control in laboratories. It is ideal for applications such as sample preparation, enzyme reactions, nucleic acid amplification, and electrophoresis.

Block No.DescriptionQuantity
Block 0196 mm x 0.2 ml1 Pc
Block 0254 mm x 0.5 ml1 Pc
Block 0335 mm x 1.5 ml1 Pc
Block 0435 mm x 2.0 ml1 Pc
Block 0515 mm x 0.5 ml + 20 mm x 1.5 ml1 Pc
Block 0696 mm x 0.2 ml (ELISA Plate)1 Pc
Block 0724 mm x 5 ml1 Pc
Block 0815 mm x 10 ml1 Pc
Block 0912 mm x 15 ml1 Pc
Block 106 mm x 50 ml (round shape bottom)1 Pc
Block 106 mm x 50 ml (cone shape bottom)1 Pc

Frequently Asked Questions of Dry Bath Incubator ADDB-505

1. What is the temperature range of Dry Bath Incubator ADDB-505?

Dry Bath Incubator ADDB-505 offers a versatile temperature range from -10 to 100 degree celsius, making it suitable for both cooling and heating applications. This broad range allows precise temperature control for a variety of laboratory procedures. Its reliable temperature regulation ensures consistent results throughout your experiments.

2. Is the Dry Bath Incubator ADDB-505 user-friendly?

Dry Bath Incubator ADDB-505 is designed with user-friendliness in mind. It features a clear digital display and intuitive controls that make setting and monitoring temperatures simple. The easy-to-navigate interface helps minimize user errors and speeds up operation. Overall, it provides a hassle-free experience for laboratory personnel.

3. How easy is it to clean and maintain the Dry Bath Incubator ADDB-505?

Dry Bath Incubator ADDB-505 is designed for easy cleaning and maintenance, featuring metal blocks that can be quickly replaced when needed. These blocks are simple to remove, clean, and disinfect, helping to maintain a hygienic workspace. This unit has compact and straightforward design further facilitates routine upkeep. This ease of maintenance ensures long-term reliable performance with minimal downtime.

4. What safety features does the Dry Bath Incubator ADDB-505 include?

Dry Bath Incubator ADDB-505 includes several important safety features to protect both the user and the instrument. It has built-in over-temperature protection to prevent overheating during operation. Additionally, this unit offers automatic fault detection with alerts to quickly identify any issues. These safety measures ensure reliable and secure performance in the laboratory.

5. Does Dry Bath Incubator ADDB-505 support calibration?

Dry Bath Incubator ADDB-505 supports user calibration, allowing precise adjustment of its temperature settings to match specific laboratory standards. This feature ensures accuracy and reliability in temperature control during experiments. Calibration helps maintain consistent performance over time. It is designed to be simple and convenient for users to perform as needed.

6. What is a Dry Bath Incubator?

A Dry Bath Incubator is a laboratory instrument designed to regulate and maintain a stable temperature for samples, eliminating the need for water. It is commonly used for heating, growing, or storing biological or chemical samples under controlled conditions. Its precise temperature control makes it ideal for applications such as enzyme reactions, DNA denaturation, and sample incubation.

7. Can a Dry Bath Incubator be used for cell culture?

A Dry Bath Incubator is not suitable for cell culture, as it lacks the ability to control humidity and CO? levels, which are essential for proper cell growth. It is designed for molecular biology applications like PCR or enzyme reactions. For cell culture, a CO? incubator with precise environmental control is more appropriate. These incubators also maintain optimal temperature, pH, and gas conditions crucial for maintaining cell viability.

8. How do I ensure even heating in a Dry Bath Incubator?

To ensure even heating in a Dry Bath Incubator, always use the appropriate block size for your sample containers. Make sure the block is correctly positioned and seated within the incubator. Regularly calibrating the incubator ensures accurate temperature readings. Avoid overcrowding to allow for uniform heat distribution, and ensure the incubator door remains closed during operation to maintain stable conditions.

9. What are the typical features of a Dry Bath Incubator?

Features of a Dry Bath Incubator: • Digital temperature control: Allows for precise adjustments and displays the current temperature. • Timer function: Allows users to set incubation times. • Multiple blocks: Our incubators offer interchangeable blocks to accommodate different sample sizes. • Over-temperature alarm: Alerts users if the temperature exceeds the set point.

Similar Products of Dry Bath Incubator

Temperature Setting Range 0℃ to 110℃
Temperature Control Range RT +5℃ to 110℃
Temperature Accuracy ≤ ± 0.3 at 37℃
Temperature Setting Range 0℃ to 100℃
Temperature Control Range RT 5℃ to 100℃
Temperature Accuracy ≤±0.3℃
Temperature Range RT + 5℃ to 150℃
Heating Up Rate ≤ 10 min, 20℃ to 100℃
≤ 30 min, 20℃ to 150℃
Temperature Stability ±0.3℃ at 40℃
±0.5℃ at 100℃
±1℃ at 120℃
Temperature Range RT+5℃ to 105℃
Temperature Accuracy ±0.3℃
Temperature Set Range 0℃ to 105℃

Heated Lid Dry Bath Incubator

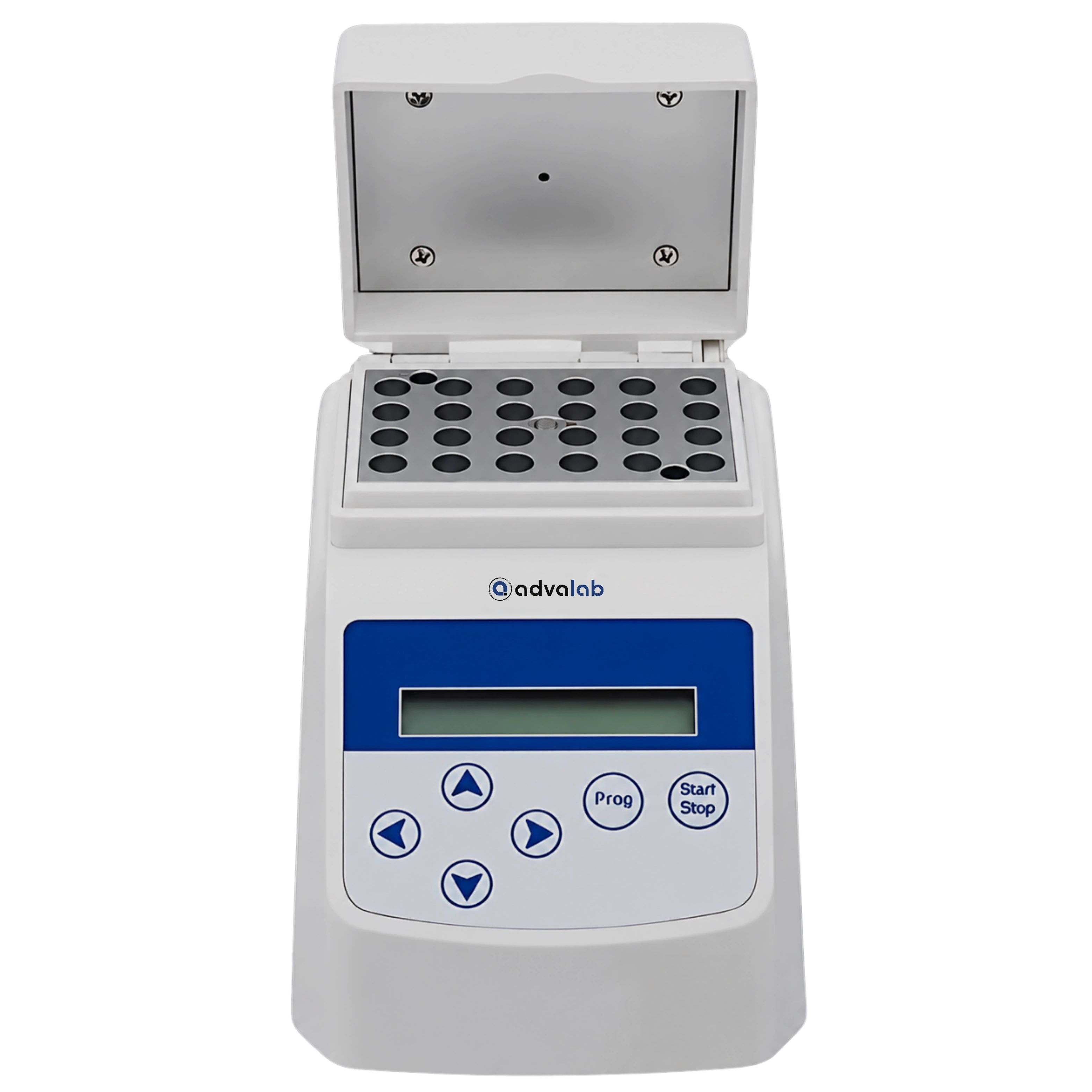

Heated Lid Dry Bath Incubator ADHDB-503
