Heated Lid Dry Bath Incubator ADHDB-503
Heated Lid Dry Bath Incubator ADHDB-503, front view

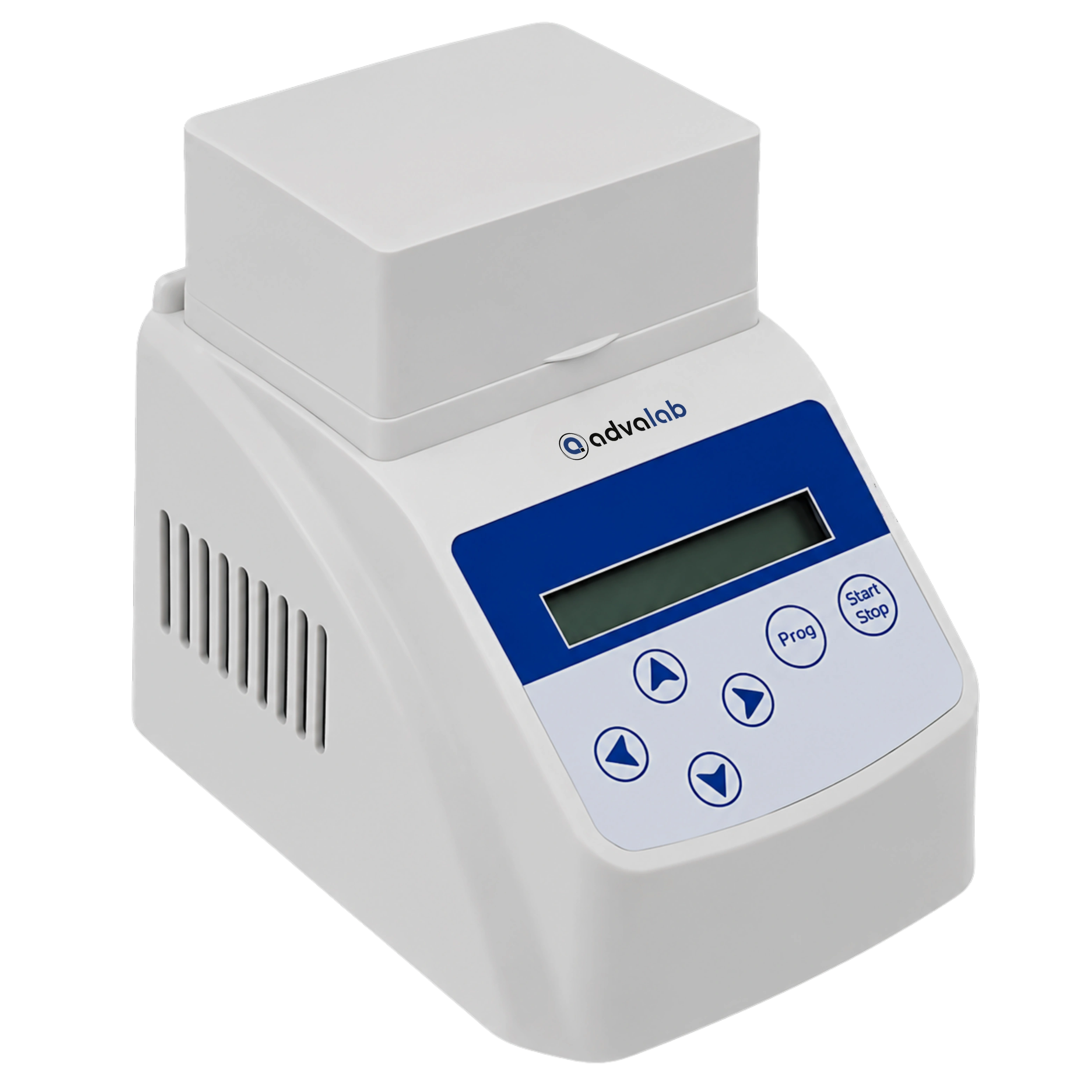

Heated Lid Dry Bath Incubator ADHDB-503, right view

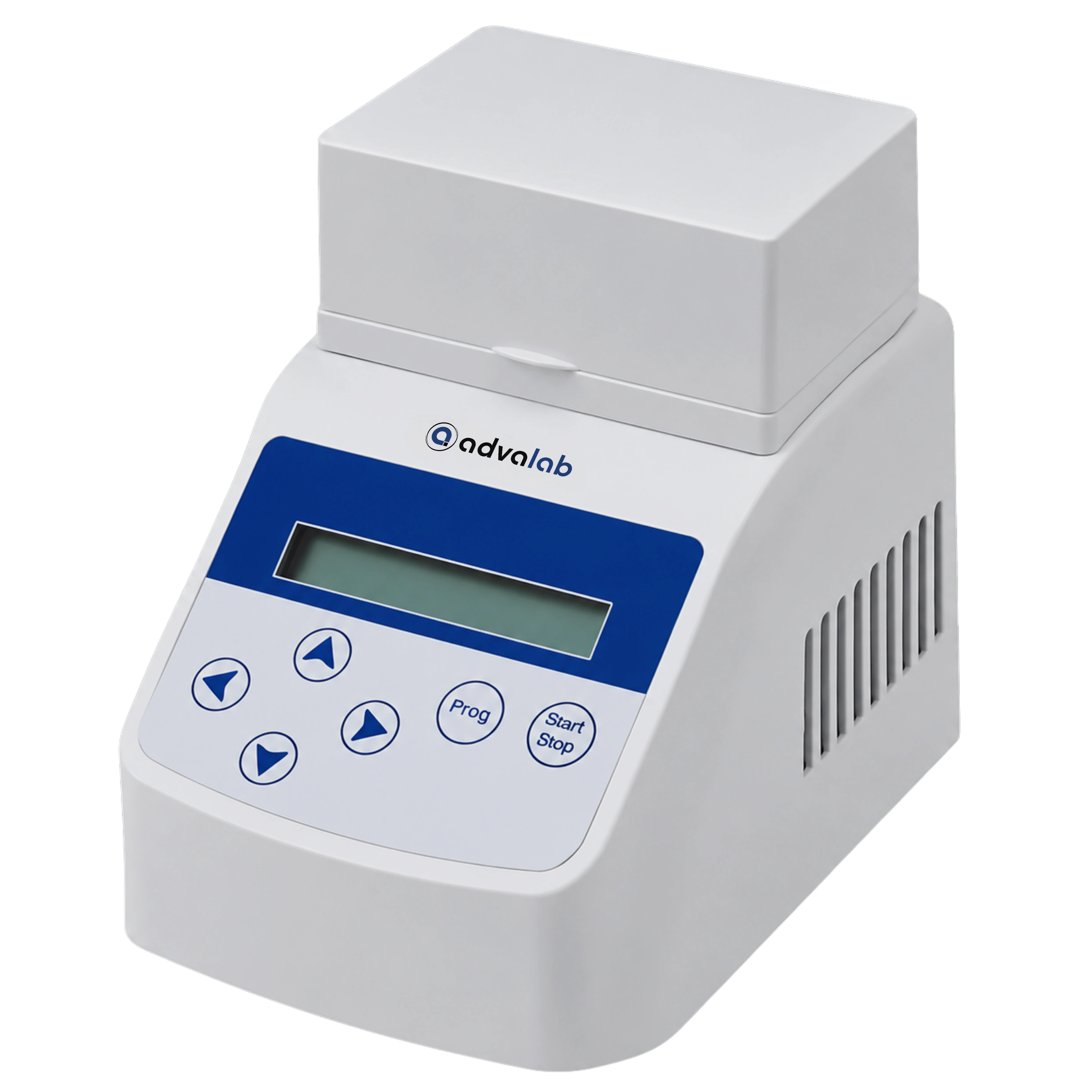

Heated Lid Dry Bath Incubator ADHDB-503, left view

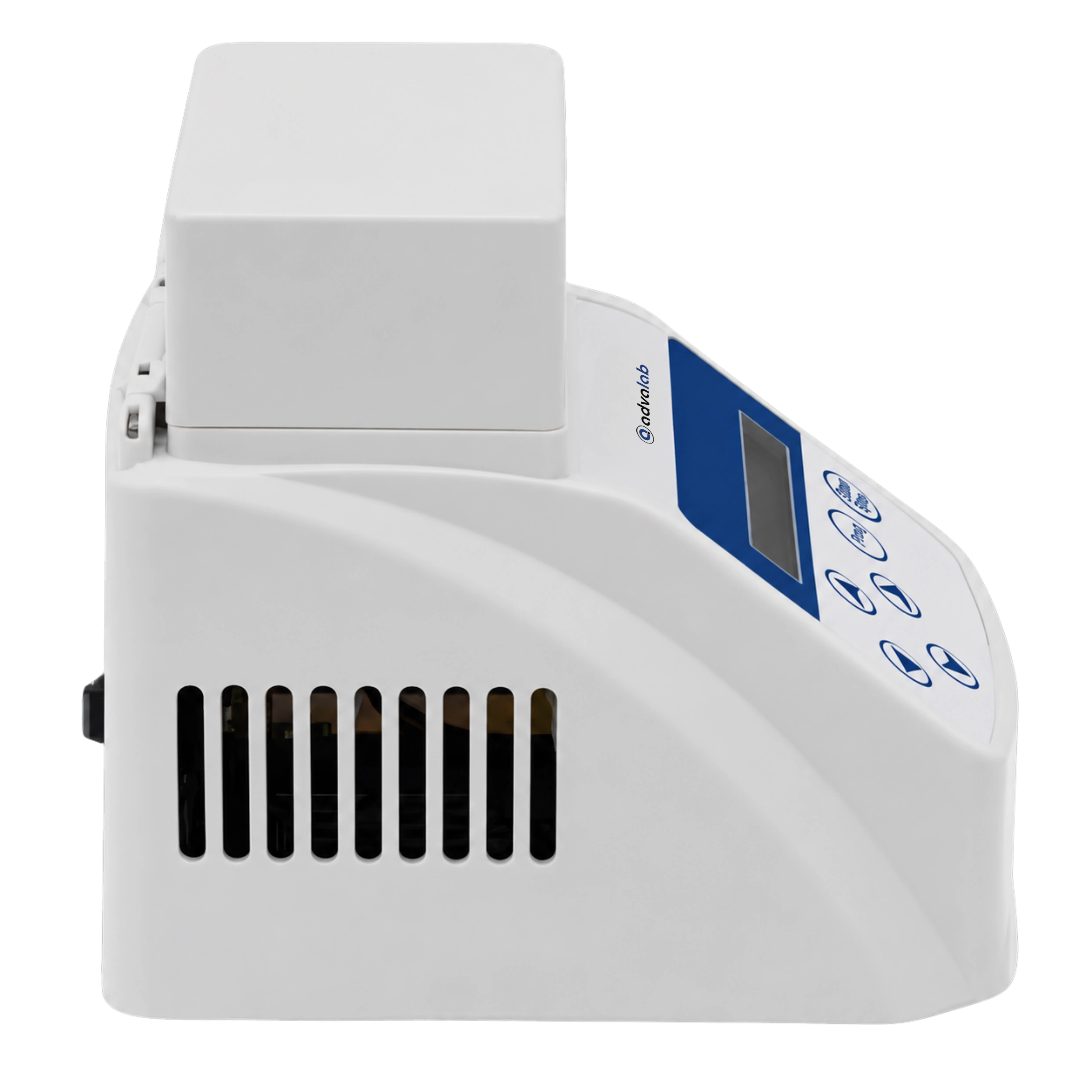

Heated Lid Dry Bath Incubator ADHDB-503, side view
Heated Lid Dry Bath Incubator ADHDB-503, top open view

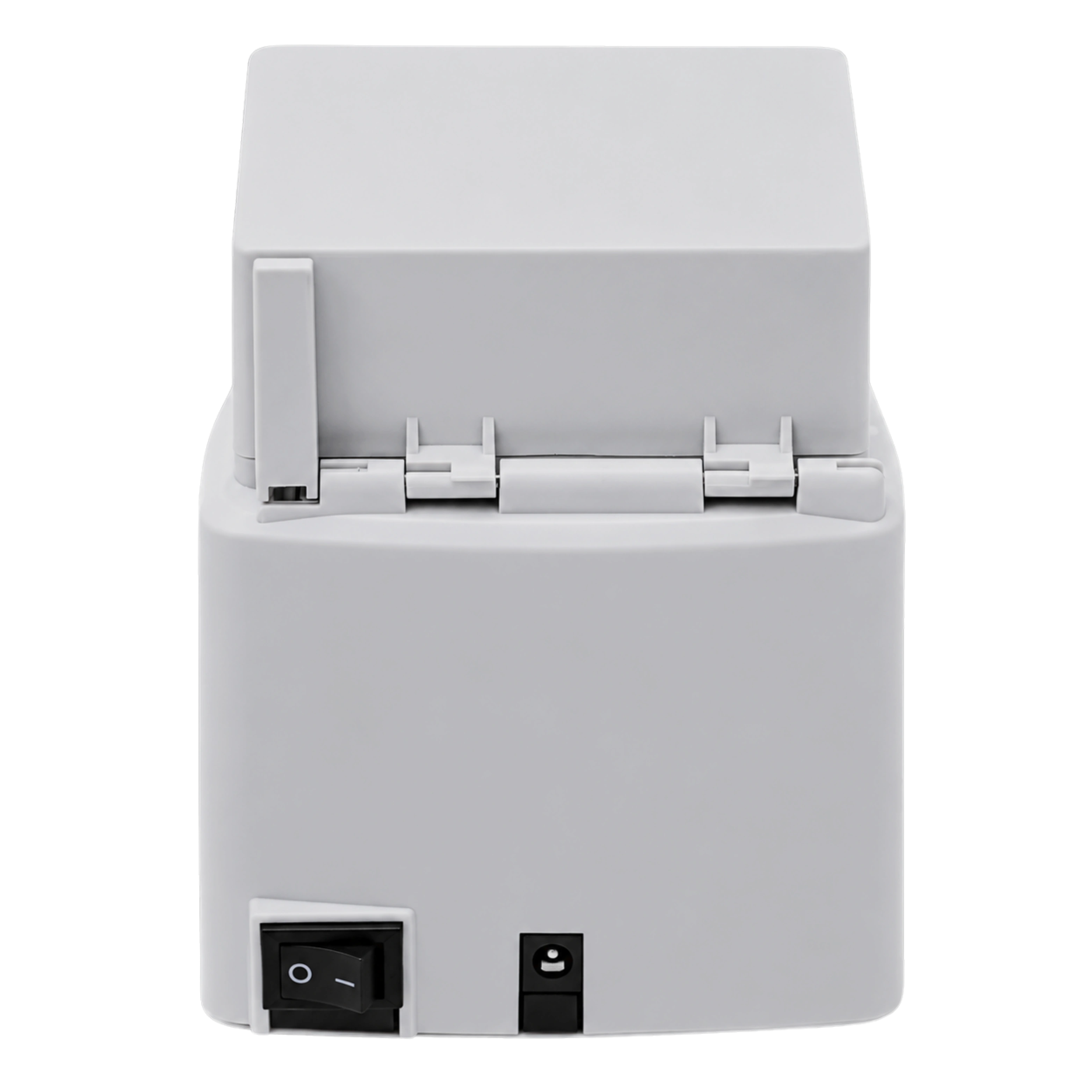

Heated Lid Dry Bath Incubator ADHDB-503, back view

Heated Lid Dry Bath Incubator ADHDB-503

Heated Lid Dry Bath IncubatorADHDB-503 operates with a temperature range from 5℃ to 100℃. It is designed with a heating lid for efficient heat distribution. Featuring a natural cooling down rate, it ensures effective thermal reduction. The unit includes a display that shows both the temperature and timer for easy monitoring. Our Heated Lid Dry Bath Incubator is a versatile solution for mobile applications, offering space-saving design and portability.

$ 480.00
Temperature Range RT+5℃ to 100℃
Temperature Accuracy ±0.3℃
Temperature Set Range 0℃ to100℃
Heating Up Rate 20℃ to 100℃, ≤ 15 minutes
Temperature Stability ±0.3℃ at 40℃
±0.3℃ at 100℃
Display Accuracy 0.1℃
Time Range 1to 99h,1to 99m,1to 99s,(0=infinite)
Maximum Temperature 100℃
Cooling Down Rate Natural cooling
Heating Lid Yes
Maximum Power Supply 60 W
Dimensions (W×D×H) 110×153×137 mm
Net Weight ≤ 1kg
  • Interchangeable blocks
  • Error detection
  • Precision accuracy
  • Automatic detection with alarm
  • PID controller

Our Heated Lid Dry Bath IncubatorADHDB-503 is a versatile tool, ideal for off-grid power supplies where space and portability are essential, making it perfect for laboratory applications.

Accessory

Description

Tube Capacity

Quantity

Block 01

0.2ml tube (φ6.1×17)

32 ml

1 Pc

Block 02

0.5ml tube (φ8×23)

24 ml

1 Pc

Block 03

1.5ml tube (φ10.8×31)

15 ml

1 Pc

Block 04

2.0ml tube (φ10.8×31)

15 ml

1 Pc

Block 05

Cuvette

8 ml

1 Pc

Block 06

15ml tube (Working without lid) (φ16.9×98)

6 ml

1 Pc

Block 07

50ml tube (Working without lid) (φ29.5×90)

2 ml

1 Pc

Block 08

5ml tube (Working without lid) (φ13.5×30)

12 ml

1 Pc

Frequently Asked Questions of Heated Lid Dry Bath Incubator ADHDB-503

1. Does the Heated Lid Dry Bath Incubator have a lid?

Yes, our Heated Lid Dry Bath Incubator is equipped with a heating lid that helps ensure uniform temperature distribution across all samples. The heated lid minimizes heat loss and ensures consistent incubation conditions, improving the efficiency and accuracy of the process. It is designed to prevent condensation and maintain stable thermal conditions for sensitive samples.

2. What safety features does the Heated Lid Dry Bath Incubator offer for temperature control?

The Heated Lid Dry Bath Incubator includes a built-in over-temperature protection system that automatically deactivates the heating element if the temperature exceeds a preset safety limit. This safety mechanism helps protect both the device and the samples from overheating, especially during extended or unattended operations. It ensures reliable use in demanding lab environments.

3. How does the Heated Lid Dry Bath Incubator alert users to system errors or malfunctions?

The Heated Lid Dry Bath Incubator is equipped with an automatic failure detection system that constantly monitors internal operations for any irregularities. If a malfunction or error occurs, a buzzer alarm is triggered and a warning is displayed on the screen, providing immediate notification to the user.

4. How does the PID system work in the Heated Lid Dry Bath Incubator?

The Heated Lid Dry Bath Incubator uses a PID system to continuously adjust the temperature and maintain precise, stable control. This system reduces temperature fluctuations, ensuring more accurate and consistent results. By constantly monitoring and making small adjustments to the heating element, this system ensures rapid stabilization and prevents overheating or underheating.

5. How does the cooling process work in the Heated Lid Dry Bath Incubator?

The Heated Lid Dry Bath Incubator cools down through a natural convection process, gradually lowering its temperature without the use of active cooling components. This passive cooling method ensures energy efficiency and minimal mechanical complexity. It allows the unit to safely return to ambient temperature after the incubation cycle.

6. What is a Heated Lid Dry Bath Incubator?

A Heated Lid Dry Bath Incubator is a laboratory instrument designed to maintain precise temperatures for samples in vials, tubes, or other containers. It uses a heated lid to ensure consistent, uniform temperature distribution. Unlike water-based baths, this type of incubator operates without liquids, preventing contamination and the risk of spills.

7. How does the Heated Lid Dry Bath Incubator work?

The Heated Lid Dry Bath Incubator works by using a heating system within the lid and sometimes the base. The temperature is controlled to provide a consistent environment for samples. The heated lid ensures that the top portion of the samples remains heated, reducing the risk of condensation or temperature gradients. This dual-heating system ensures uniform temperature distribution, improving the accuracy and reliable results.

8. What are the advantages of using a Heated Lid Dry Bath Incubator?

A Heated Lid Dry Bath Incubator offers several advantages over traditional water baths or other incubation methods. One of the main benefits is the absence of liquid, which eliminates the risk of contamination, spillage, and the need for frequent cleaning associated with water baths. The heated lid ensures uniform temperature distribution, reducing temperature gradients and minimizing condensation.

9. Can I use a Heated Lid Dry Bath Incubator for different types of samples?

Yes, Heated Lid Dry Bath Incubator are versatile and can be used for a wide range of sample types, including DNA/RNA extraction, enzyme reactions, cell culture, and more. The incubator typically supports various block types to accommodate different test tubes and microplates.

10. How to clean Heated Lid Dry Bath Incubator?

To clean a Heated Lid Dry Bath Incubator, first ensure the unit is turned off and completely cooled down. Wipe the exterior and blocks with a soft cloth dampened with mild soap and water. Avoid harsh chemicals and abrasives. For stains, use a gentle disinfectant. Ensure no liquid enters the interior and let it dry before use.

Similar Products of Heated Lid Dry Bath Incubator

Block Temperature Setting Range RT -30°C to 105°C
Temperature Set Range -10°C to 105°C
Lid Temperature Setting Range RT +5°C to 110°C

$1,130.00

Block Temperature Setting Range RT +5℃ to 105℃
Temperature Set Range 0℃ to 105℃
Lid Temperature Setting Range RT +5°C to 110°C

Constant Temperature Incubator

Electric-Constant Temperature Incubator ADEI-504
Capacity:80 L
Temperature Range:5 °C to 65 °C
Ambient Temperature:5 °C to 35 °C
Electric-Constant Temperature Incubator ADEI-503
Capacity:50 L
Temperature Range:5 °C to 65 °C
Ambient Temperature:5 °C to 35 °C
Electric-Constant Temperature Incubator ADEI-501
Capacity:20 L
Temperature Range:5 °C to 65 °C
Ambient Temperature:5 °C to 35 °C
Electric-Constant Temperature Incubator ADEI-505
Capacity:160 L
Temperature Range:5 °C to 65 °C
Ambient Temperature:5 °C to 35 °C
Electric-Constant Temperature Incubator ADEI-502
Capacity:30 L
Temperature Range:5 °C to 65 °C
Ambient Temperature:5 °C to 35 °C
Electric-Constant Temperature Incubator ADEI-506
Capacity:270 L
Temperature Range:5 °C to 65 °C
Ambient Temperature:5 °C to 35 °C

Shaking Incubator

Shaking Incubator ADSR-508
Capacity:500 ml × 28
Temperature Range:4 °C to 50 °C
Frequency:20 to 300 Rpm
Shaking Incubator ADSI-501
Capacity:170 L
Speed:40 to 300 rpm
Maximum Volume:100 mL × 48 / 250 mL × 25
Shaking Incubator ADSR-506
Capacity:500 ml × 28
Temperature Range:5 °C to 50 °C
Frequency:20 to 300 Rpm
Shaking Incubator ADSR-501
Capacity:250 ml × 36
Temperature Range:5 °C to 65 °C
Frequency:20 to 300 Rpm
Shaking Incubator ADSI-503
Temperature Range:Incubation: 5℃ to 60℃ <br/> Refrigeration: 4℃ to 60℃
Temperature Accuracy:0.1℃
Temperature Uniformity:≤±1℃ [37℃]

$17,490.00

Shaking Incubator ADSR-507
Capacity:500 ml × 3
Temperature Range:4 °C to 50 °C
Frequency:20 to 300 Rpm
Shaking Incubator ADSR-505
Capacity:500 ml × 3
Temperature Range:5 °C to 50 °C
Frequency:20 to 300 Rpm
Shaking Incubator ADSR-503
Capacity:250 ml × 36
Temperature Range:5 °C to 65 °C
Frequency:20 to 300 Rpm
Shaking Incubator ADSR-502
Capacity:500 ml × 56
Temperature Range:5 °C to 65 °C
Frequency:20 to 300 Rpm
Shaking Incubator ADSR-504
Capacity:500 ml × 56
Temperature Range:5 °C to 65 °C
Frequency:20 to 300 Rpm
Shaking Incubator ADSI-502
Capacity:285 L
Speed:40 to 300 rpm
Maximum Volume:250 mL × 35 / 500 mL × 25

Illumination Incubator

Illumination Incubator ADIL-501
Temperature Range:10 to 65℃ (with lighting), 0 to 60℃ (without lighting)
Illumination Range:0 to15000 Lux
Temperature Accuracy:±0.1℃

$3,990.00

Illumination Incubator ADIL-503
Temperature Range:10 to 65℃ (with lighting), 0 to 60℃ (without lighting)
Illumination Range:0 to15000 Lux
Temperature Accuracy:±0.1℃

$5,250.00

Illumination Incubator ADIL-502
Temperature Range:10 to 65℃ (with lighting), 0 to 60℃ (without lighting)
Illumination Range:0 to 15000 Lux (five-stage adjustable)
Temperature Accuracy:±0.1℃

$4,310.00

Mold Incubator

Digital Mold Incubator ADDM-506
Capacity:250 L
Temperature Range:0 °C to 60 °C
Fluctuation:± 0.5 °C
Mold Incubator ADDM-502
Volume:250 L
Temperature Range:4 to 70°C
Temperature Resolution:0.1°C

$3,270.00

Mold Incubator ADDM-503
Volume:400 L
Temperature Range:4 to 70°C
Temperature Resolution:0.1°C

$4,500.00

Digital Mold Incubator ADDM-505
Capacity:150 L
Temperature Range:0 °C to 60 °C
Fluctuation:± 0.5 °C
Digital Mold Incubator ADDM-504
Capacity:400 L
Temperature Range:0 °C to 60 °C
Fluctuation:± 0.5 °C
Mold Incubator ADDM-508
Volume:800 L
Temperature Range:4 to 70°C
Temperature Resolution:0.1°C

$8,470.00

Digital Mold Incubator ADDM-507
Capacity:400 L
Temperature Range:0 °C to 60 °C
Fluctuation:± 0.5 °C
Mold Incubator ADDM-501
Volume:150 L
Temperature Range:4 to 70°C
Temperature Resolution:0.1°C

$2,750.00

CO2 Incubator

Digital CO2 Incubator ADDI-502
Capacity:160 L
Temperature Range:5 °C to 55 °C
Fluctuation:± 0.5 °C
Digital CO2 Incubator ADDI-501
Capacity:80 L
Temperature Range:5 °C to 55 °C
Fluctuation:± 0.5 °C

Biological Incubator

Biological Incubator ADBT-502
Capacity:150 L
Temperature Range:0 °C to 65 °C
Fluctuation:± 0.5 °C
Biological Incubator ADBT-503
Capacity:250 L
Temperature Range:0 °C to 65 °C
Fluctuation:± 0.5 °C
Biological Incubator ADBT-504
Capacity:400 L
Temperature Range:0 °C to 65 °C
Fluctuation:± 0.5 °C
Biological Incubator ADBT-501
Capacity:100 L
Temperature Range:0 °C to 65 °C
Fluctuation:± 0.5 °C

BOD Cooling Incubator

BOD Cooling IncubatorADIB-502
Capacity:150 L
Temperature Range:0°C to 65 °C
Time range:0 to 99.9 hr
CO₂ Incubator ADOI-501
Capacity:80 L
Temperature:5°C to 50 °C
Ambient Temperature:5 °C to 35 °C
BOD Cooling IncubatorADIB-509
Capacity:250 L
Temperature Range:0°C to 65 °C
Time range:0 to 99.9 hr
CO₂ Incubator ADOI-502
Capacity:160 L
Temperature:5 °C to 50 °C
Ambient Temperature:5 °C to 35 °C
BOD Cooling IncubatorADIB-506
Capacity:250 L
Temperature Range:0°C to 65 °C
Time range:0 to 99.9 hr
BOD Cooling IncubatorADIB-501
Capacity:70 L
Temperature Range:0°C to 65 °C
Time range:0 to 99.9 hr
CO₂ Incubator ADOI-504
Capacity:160 L
Temperature:5°C to 50 °C
Ambient Temperature:5 °C to 35 °C
BOD Cooling IncubatorADIB-508
Capacity:150 L
Temperature Range:0°C to 65 °C
Time range:0 to 99.9 hr
BOD Cooling IncubatorADIB-505
Capacity:150 L
Temperature Range:0°C to 65 °C
Time range:0 to 99.9 hr
BOD Cooling IncubatorADIB-507
Capacity:70 L
Temperature Range:0°C to 65 °C
Time range:0 to 99.9 hr
BOD Cooling IncubatorADIB-503
Capacity:250 L
Temperature Range:0°C to 65 °C
Time range:0 to 99.9 hr
BOD Cooling IncubatorADIB-504
Capacity:70 L
Temperature Range:0°C to 65 °C
Time range:0 to 99.9 hr
CO₂ Incubator ADOI-503
Capacity:80 L
Temperature:5°C to 50 °C
Ambient Temperature:5 °C to 35 °C

Microbiology Cooling Incubator

Microbiology Cooling IncubatorADMC-502
Capacity:150 L
Temperature Range:0°C to 60 °C
Time range:1 to 9999 min
Microbiology Cooling IncubatorADMC-501
Capacity:80 L
Temperature Range:0°C to 60 °C
Time range:1 to 9999 min
Microbiology Cooling IncubatorADMC-506
Capacity:400 L
Temperature Range:0°C to 60 °C
Time range:1 to 9999 min
Microbiology Cooling IncubatorADMC-504
Capacity:250 L
Temperature Range:0°C to 60 °C
Time range:1 to 9999 min
Microbiology Cooling IncubatorADMC-505
Capacity:300 L
Temperature Range:0°C to 60 °C
Time range:1 to 9999 min
Microbiology Cooling IncubatorADMC-503
Capacity:200 L
Temperature Range:0°C to 60 °C
Time range:1 to 9999 min

Cooling Incubator

Cooling IncubatorADIC-504
Capacity:475 L
Temperature Range:­10°C to 75 °C
Time range:0 to 99hr59min
Cooling IncubatorADIC-506
Capacity:1075 L
Temperature Range:­10°C to 75 °C
Time range:0 to 99hr59min
Cooling IncubatorADIC-501
Capacity:175 L
Temperature Range:­10°C to 75 °C
Time range:0 to 99hr59min
Cooling IncubatorADIC-505
Capacity:800 L
Temperature Range:­10°C to 75 °C
Time range:0 to 99hr59min
Cooling IncubatorADIC-503
Capacity:375 L
Temperature Range:­10°C to 75 °C
Time range:0 to 99hr59min
Cooling IncubatorADIC-502
Capacity:275 L
Temperature Range:­10°C to 75 °C
Time range:0 to 99hr59min

Biochemical Incubator

Biochemical Incubator ADBI-503
Volume:100 L
Temperature Range:5 to 60°C
Temperature Resolution:0.1°C

$2,190.00

Biochemical Incubator ADBI-501
Volume:150 L
Temperature Range:5 to 60°C
Temperature Resolution:0.1°C

$2,470.00

Biochemical Incubator ADBI-502
Volume:250 L
Temperature Range:5 to 60°C
Temperature Resolution:0.1°C

$2,440.00

Biological CO2 Incubator

Biological CO2 Incubator ADBL-502
Capacity:160 L
Temperature:RT 3°C to 50 °C
Time Range:1 to 9999 min
Biological CO2 Incubator ADBL-507
Capacity:80 L
Temperature:RT 3°C to 50 °C
Time Range:1 to 9999 min
Biological CO2 Incubator ADBL-505
Capacity:80 L
Temperature:RT 3°C to 50 °C
Time Range:1 to 9999 min
Biological CO2 Incubator ADBL-501
Capacity:80 L
Temperature:RT 3°C to 50 °C
Time Range:1 to 9999 min
Biological CO2 Incubator ADBL-504
Capacity:160 L
Temperature:RT 3°C to 50 °C
Time Range:1 to 9999 min
Biological CO2 Incubator ADBL-503
Capacity:80 L
Temperature:RT 3°C to 50 °C
Time Range:1 to 9999 min
Biological CO2 Incubator ADBL-508
Capacity:160 L
Temperature:RT 3°C to 50 °C
Time Range:1 to 9999 min
Biological CO2 Incubator ADBL-506
Capacity:160 L
Temperature:RT 3°C to 50 °C
Time Range:1 to 9999 min

Plant Growth Incubator

Plant Growth Incubator ADPG-504
Capacity:350 L
Temperature Range:With Light 10 °C to 60°C Without Light 4 °C to 60°C
Uniformity:± 2 °C
Plant Growth Incubator ADPG-503
Capacity:250 L
Temperature Range:With Light 10 °C to 60°C Without Light 4 °C to 60°C
Uniformity:± 1 °C
Plant Growth Incubator ADPG-502
Capacity:350 L
Temperature Range:With Light 10 °C to 60°C Without Light 4 °C to 60°C
Uniformity:± 2 °C
Plant Growth Incubator ADPG-501
Capacity:250 L
Temperature Range:With Light 10 °C to 60°C Without Light 4 °C to 60°C
Uniformity:± 1 °C
Plant Growth Incubator ADPG-505
Capacity:450 L
Temperature Range:With Light 10 °C to 60°C Without Light 4 °C to 60°C
Uniformity:± 2 °C

Microbiology Incubator

Microbiology Incubator ADMIF-502
Volume:130L
Temperature Range :RT+5 to 100°C
Temperature Fluctuation :±0.2°C

$3,360.00

Microbiology Incubator ADMIF-503
Volume :280 L
Temperature Range :RT+5 to 100°C
Temperature Fluctuation :±0.2°C

$4,400.00

Microbiology Incubator ADMIF-504
Volume:450 L
Temperature Range :RT+5 to 100°C
Temperature Fluctuation :±0.2°C

$5,630.00

Microbiology Incubator ADMIF-501
Volume:65L
Temperature Range :RT+5 to 100°C
Temperature Fluctuation :±0.2°C

$2,960.00

Electric Heating Incubator

Electric Heating Incubator ADEHI-511
Volume:280 L
Temperature Range :RT+5 to 100°C
Temperature Fluctuation:±0.3°C

$3,090.00

Electric Heating Incubator ADEHI-513
Volume:70 L
Temperature Range:RT+5 to 100°C
Temperature Fluctuation:±0.5°C

$2,220.00

Electric Heating Incubator ADEHI-507
Volume:1001 L
Temperature Range:RT+5 to 85°C
Temperature Resolution:0.1°C

$6,700.00

Electric Heating Incubator ADEHI-506
Volume:655 L
Temperature Range:RT+5 to 85°C
Temperature Resolution:0.1°C

$4,300.00

Electric Heating Incubator ADEHI-501
Volume :40 L
Temperature Range :RT+5 to 85°C
Temperature Resolution :0.1°C
Electric Heating Incubator ADEHI-512
Volume:452 L
Temperature Range:RT+5 to 100°C
Temperature Fluctuation:±0.3°C

$4,820.00

Electric Heating Incubator ADEHI-509
Volume:130 L
Temperature Range :RT+5 to 100°C
Temperature Fluctuation :±0.3°C

$2,380.00

Electric Heating Incubator ADEHI-503
Volume :142 L
Temperature Range :RT+5 to 85°C
Temperature Resolution :0.1°C

$1,420.00

Electric Heating Incubator ADEHI-504
Volume :234 L
Temperature Range :RT+5 to 85°C
Temperature Resolution :0.1°C

$1,800.00

Electric Heating Incubator ADEHI-502
Volume :76 L
Temperature Range :RT+5 to 85°C
Temperature Resolution :0.1°C

$1,240.00

Electric Heating Incubator ADEHI-514
Volume:140 L
Temperature Range:RT+5 to 100°C
Temperature Fluctuation:±0.5°C

$2,430.00

Electric Heating Incubator ADEHI-515
Volume:300 L
Temperature Range:RT+5 to 100°C
Temperature Fluctuation:±0.5°C

$3,130.00

Electric Heating Incubator ADEHI-508
Volume:64 L
Temperature Range :RT+5 to 100°C
Temperature Fluctuation :±0.3°C

$2,150.00

Electric Heating Incubator ADEHI-505
Volume:452 L
Temperature Range:RT+5 to 85°C
Temperature Resolution:0.1°C

$3,970.00

Electric Heating Incubator ADEHI-510
Volume:210 L
Temperature Range :RT+5 to 100°C
Temperature Fluctuation :±0.3°C

$2,830.00

Water Jacketed Incubator

Water Jacketed Incubator ADJW-501
Volume:46 L
Temperature Range:2°C to 65°C
Temperature Resolution :0.1°C

$1,330.00

Water Jacketed Incubator ADJW-502
Volume:70 L
Temperature Range :2°C to 65°C
Temperature Resolution:0.1°C

$1,420.00

Water Jacketed Incubator ADJW-504
Volume:247 L
Temperature Range:2°C to 65°C
Temperature Resolution:0.1°C

$2,520.00

Water Jacketed Incubator ADJW-503
Volume:160 L
Temperature Range:2°C to 65°C
Temperature Resolution:0.1°C

$1,920.00

Dry Bath Incubator

Dry Bath Incubator ADDB-507
Temperature Range:RT+5℃ to 105℃
Temperature Accuracy:±0.3℃
Temperature Set Range:0℃ to 105℃
Dry Bath Incubator ADDB-513
Temperature Range:RT-25℃ to 100℃
Temperature Accuracy:±0.3℃
Temperature Set Range:-10℃ to 100℃
Dry Bath Incubator ADDB-510
Temperature Range:RT + 5℃ to 150℃
Heating Up Rate:≤ 10 min, 20℃ to 100℃ <br/> ≤ 30 min, 20℃ to 150℃
Temperature Stability :±0.3℃ at 40℃ <br/> ±0.5℃ at 100℃ <br/> ±1℃ at 120℃
Dry Bath Incubator ADDB-508
Temperature Range:RT+5°C to 100°C
Temperature Accuracy:±0.3°C
Temperature Set Range:5°C to 100°C
Dry Bath Incubator ADDB-511
Temperature Range:RT + 5℃ to 150℃
Heating Up Rate:≤ 10 min, 20℃ to 100℃ <br/> ≤ 30 min, 20℃ to 150℃
Temperature Stability :±0.3℃ at 40℃ <br/> ±0.5℃ at 100℃ <br/> ±1℃ at 120℃

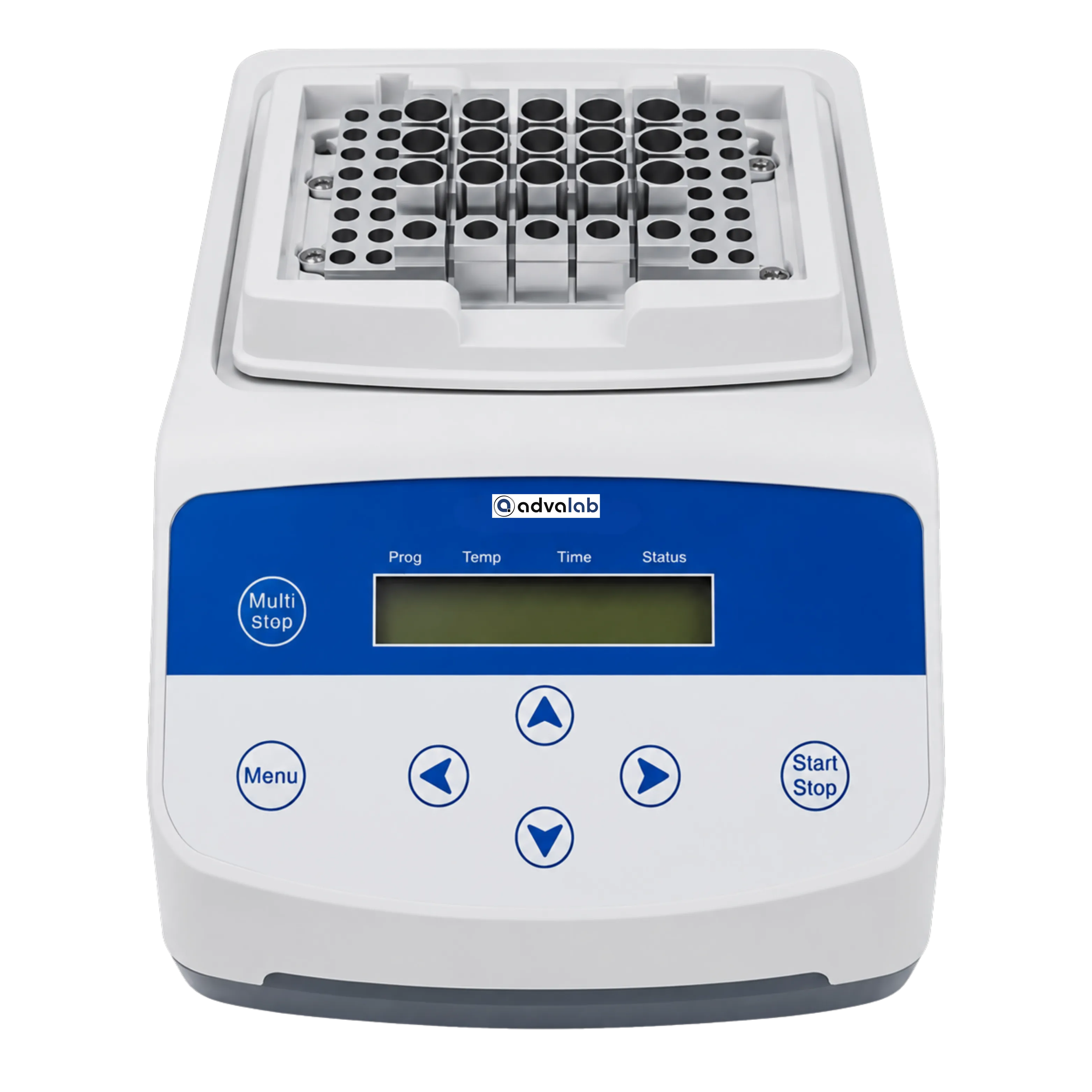

Dry Bath Incubator ADDB-509
Temperature Range:RT-30℃ to 100℃
Temperature Accuracy:±0.3°C
Temperature Set Range:-10℃ to 100℃

$1,010.00

Dry Bath Incubator ADDB-514
Temperature Range:RT + 5℃ to 150℃
Heating Up Rate:≤ 10 min, 20℃ to 100℃ <br/> ≤ 30 min, 20℃ to 150℃
Temperature Stability :±0.3℃ at 40℃ <br/> ±0.5℃ at 100℃ <br/> ±1℃ at 120℃
Dry Bath Incubator ADDB-515
Temperature Range:RT + 5℃ to 150℃
Heating Up Rate:≤ 10 min, 20℃ to 100℃ <br/> ≤ 30 min, 20℃ to 150℃
Temperature Stability :±0.3℃ at 40℃ <br/> ±0.5℃ at 100℃ <br/> ±1℃ at 120℃
Dry Bath Incubator ADDB-512
Temperature Range:RT+5℃ to 100℃
Temperature Accuracy:±0.3℃
Temperature Set Range:0℃ to100℃

Microplate Incubator

Microplate Incubator ADMI-501
Temperature Control Range:RT +5 to 80℃
Temperature Set Range:5℃ to 80℃
Temperature Accuracy:±0.3℃
