Dry Bath Incubator ADDB-514
Dry Bath Incubator ADDB-514,front view

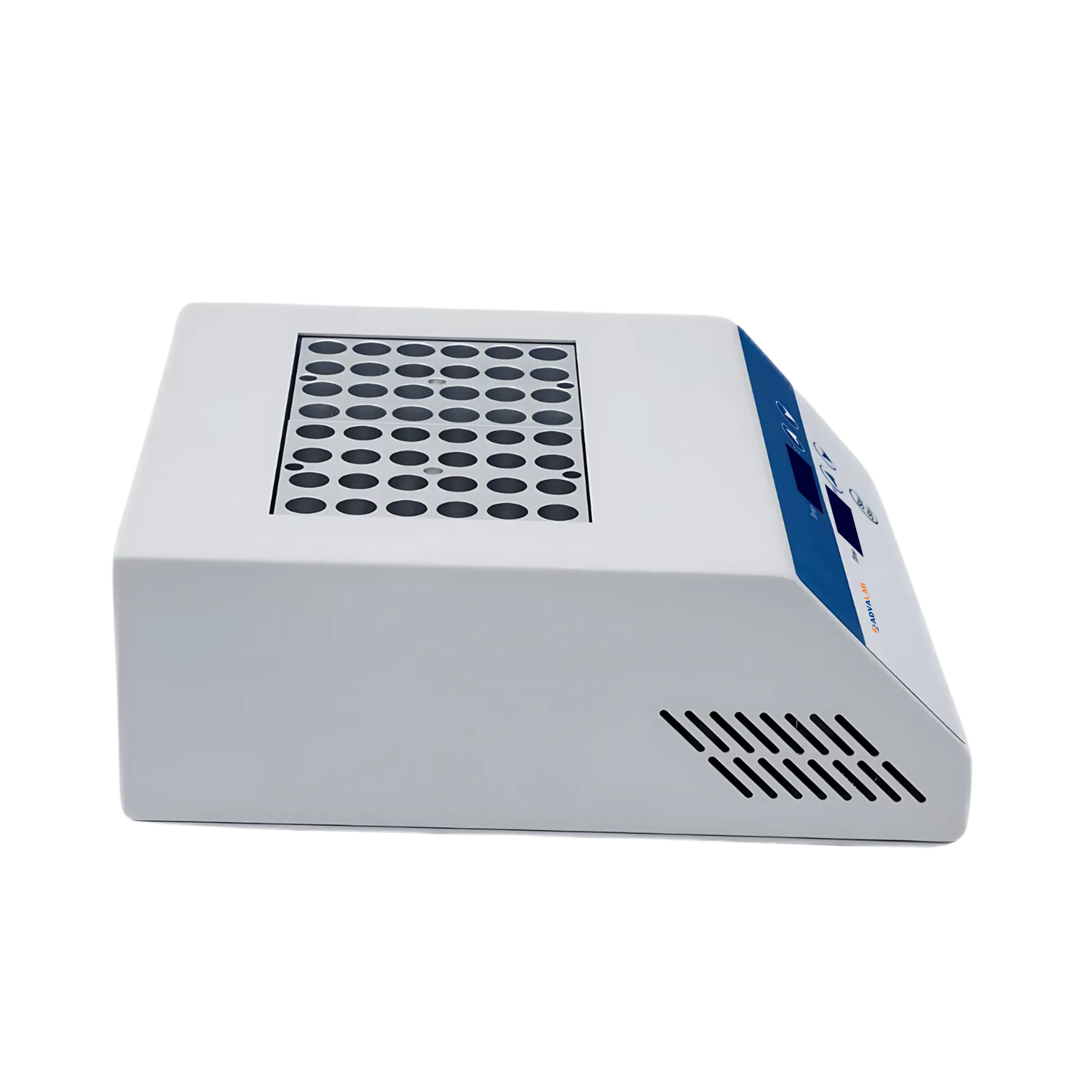

Dry Bath Incubator ADDB-514,side view
Dry Bath Incubator ADDB-514,back view

Dry Bath Incubator ADDB-514

Dry Bath Incubator ADDB-514 supports a temperature range between 5℃ and 150℃. Designed with removable blocks, this allows for easy maintenance and hygienic operation. Its integrated microcomputer delivers precise thermal management and consistent operation. This unit features a precision calibration function to ensure optimal temperature accuracy. The Dry Bath Incubator is ideal for DNA amplification and electrophoresis pre-denaturation.

USD 590.00
Temperature Range RT + 5℃ to 150℃
Heating Up Rate ≤ 10 min, 20℃ to 100℃
≤ 30 min, 20℃ to 150℃
Temperature Stability ±0.3℃ at 40℃
±0.5℃ at 100℃
±1℃ at 120℃
Display Accuracy 0.1℃
Timer 1 min to 99 h 59 min / 0: infinite
Maximum Temperature 150℃
Power Consumption 400 W
Dimensions (W×D×H) 220×260×100 mm
  • Overheat protection mechanism
  • Built in alarm system for fault detection
  • Intuitive operation
  • Consistent accuracy
  • Space saving design

Our Dry Bath Incubator ADDB-514 is perfectly suited for preservation, DNA amplification and electrophoresis pre-denaturation, making it ideal for a wide range of molecular biology applications.

Tube Diameter

Capacity

Size (W×D×H)

Quantity

Block 01 for 6mm (φ6.5×47)

48 ml

96.5×76.5×50 mm

1 Pc

Block 02 for 7mm (φ7.5×47)

48 ml

96.5×76.5×50 mm

1 Pc

Block 03 for 10mm (φ10.5×47)

24 ml

96.5×76.5×50 mm

1 Pc

Block 04 for 12mm (φ12.5×47)

24 ml

96.5×76.5×50 mm

1 Pc

Block 05 for 13mm (φ13.5×47)

24 ml

96.5×76.5×50 mm

1 Pc

Block 06 for 15mm (φ15.5×47)

12 ml

96.5×76.5×50 mm

1 Pc

Block 07 for 16mm (φ16.5×47)

12 ml

96.5×76.5×50 mm

1 Pc

Block 08 for 19mm (φ19.5×47)

12 ml

96.5×76.5×50 mm

1 Pc

Block 09 for 20mm (φ20.5×47)

12 ml

96.5×76.5×50 mm

1 Pc

Block 10 for 26mm (φ26.5×47)

8 ml

96.5×76.5×50 mm

1 Pc

Block 11 for 28mm (φ28.5×47)

6 ml

96.5×76.5×50 mm

1 Pc

Block 12 for 38mm (φ38.5×47)

3 ml

96.5×76.5×50 mm

1 Pc

Block 13 for 0.2ml tubes (φ6.1×17)

48 ml

96.5×76.5×50 mm

1 Pc

Block 14 for 0.5ml tubes (φ8×23)

48 ml

96.5×76.5×50 mm

1 Pc

Block 15 for 1.5ml tubes (φ10.8×31)

24 ml

96.5×76.5×50 mm

1 Pc

Block 16 for 2ml tubes (φ10.8×31)

24 ml

96.5×76.5×50 mm

1 Pc

Lid

-

174×117×52

1 Pc

Dry Bath Incubator ADDB-514 | Heating Up Rate ≤ 10 min, 20℃ to 100℃ | Temperature Stability ±0.3℃ at 40℃
Dry Bath Incubator ADDB-514 | Overheat protection mechanism | Built in alarm system for fault detection

Frequently Asked Questions of Dry Bath Incubator ADDB-514

1. Are there any safety features for temperature control in the Dry Bath Incubator?

Yes, this Dry Bath Incubator comes with built-in over-temperature protection, which automatically prevents the unit from exceeding safe temperature thresholds, ensuring both user safety and the preservation of sensitive samples.

2. Can Dry Bath Incubators be used for extended incubation periods?

Yes, our Dry Bath Incubators are built to maintain consistent temperature stability over long durations, making them ideal for overnight or multi-hour protocols. They offer precise thermal control, ensuring reliable results throughout extended incubation. Equipped with features like built-in timers and accurate temperature regulation, they prevent overheating or fluctuations during prolonged use.

3. What types of tubes are compatible with a Dry Bath Incubator?

This Dry Bath Incubators are compatible with a range of tube sizes, including 0.2 mL, 0.5 mL, 1.5 mL, 2.0 mL, 15 mL, and 50 mL. The compatibility depends on the interchangeable heating block installed, providing flexibility for various laboratory applications and sample volumes.

4. Is there any special maintenance required for the Dry Bath Incubator?

This Dry Bath Incubator requires minimal maintenance to ensure optimal performance. Regular cleaning is necessary to prevent dust and residue buildup. To protect internal components, avoid spilling liquids into the chamber. Periodically inspect the power cord and heating block for any signs of wear or damage.

5. What types of samples are suitable for incubation in a Dry Bath Incubator?

This Dry Bath Incubators are versatile and can handle a wide range of sample types commonly used in molecular biology, clinical diagnostics, and biochemical research. They are particularly well-suited for temperature-sensitive processes such as DNA and RNA amplification (e.g., PCR) and enzyme-driven reactions. In clinical applications, they are also used for warming blood, serum, and other biological fluids that require precise temperature control.

6. What is a Dry Bath Incubator?

A Dry Bath Incubator is a laboratory instrument designed to regulate and maintain a stable temperature for samples, eliminating the need for water. It is commonly used for heating, growing, or storing biological or chemical samples under controlled conditions. Its precise temperature control makes it ideal for applications such as enzyme reactions, DNA denaturation, and sample incubation.

7. Can a Dry Bath Incubator be used for cell culture?

A Dry Bath Incubator is not suitable for cell culture, as it lacks the ability to control humidity and CO? levels, which are essential for proper cell growth. It is designed for molecular biology applications like PCR or enzyme reactions. For cell culture, a CO? incubator with precise environmental control is more appropriate. These incubators also maintain optimal temperature, pH, and gas conditions crucial for maintaining cell viability.

8. How do I ensure even heating in a Dry Bath Incubator?

To ensure even heating in a Dry Bath Incubator, always use the appropriate block size for your sample containers. Make sure the block is correctly positioned and seated within the incubator. Regularly calibrating the incubator ensures accurate temperature readings. Avoid overcrowding to allow for uniform heat distribution, and ensure the incubator door remains closed during operation to maintain stable conditions.

9. What are the typical features of a Dry Bath Incubator?

Features of a Dry Bath Incubator: • Digital temperature control: Allows for precise adjustments and displays the current temperature. • Timer function: Allows users to set incubation times. • Multiple blocks: Our incubators offer interchangeable blocks to accommodate different sample sizes. • Over-temperature alarm: Alerts users if the temperature exceeds the set point.
