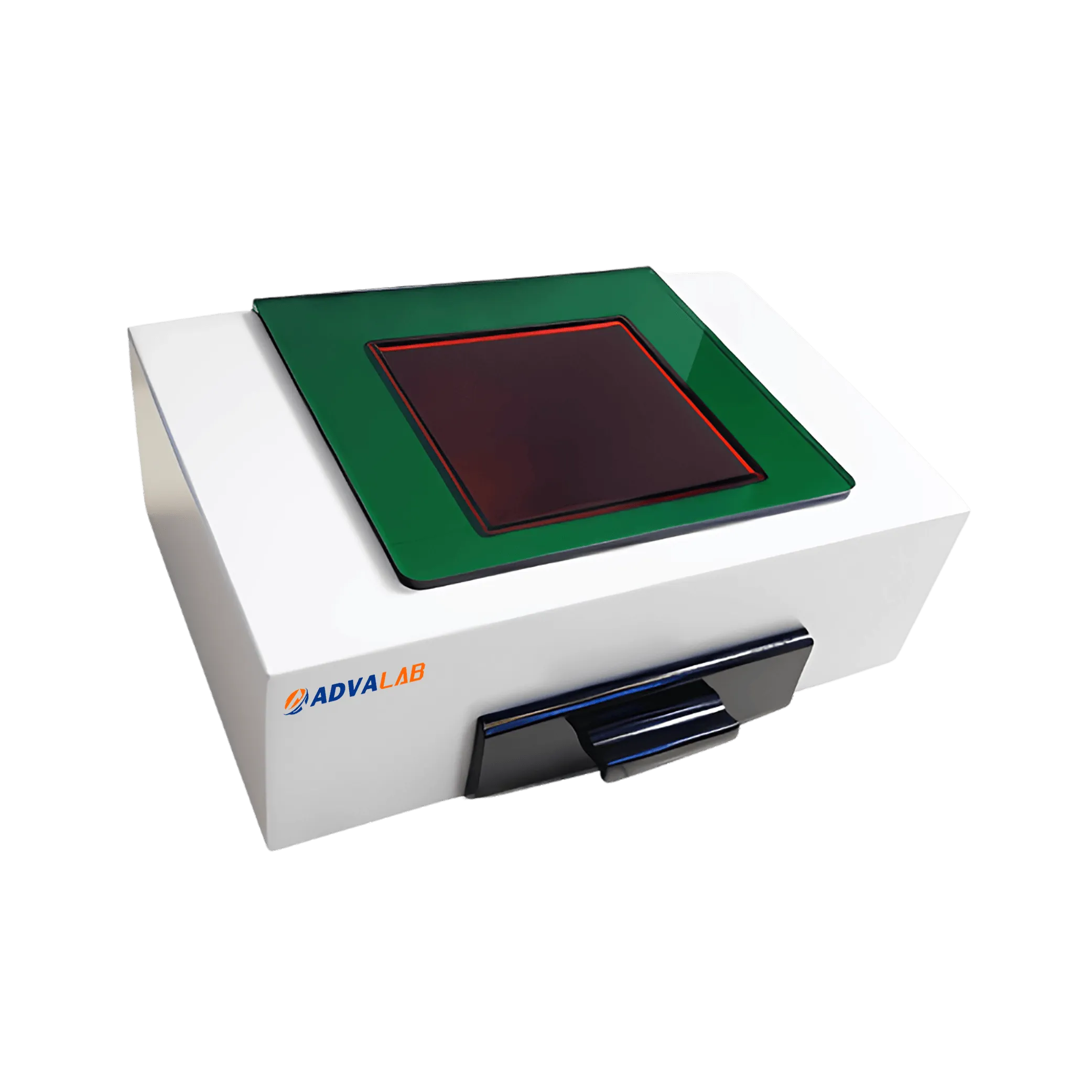

Electrophoresis Pattern Visualizer ADEPV-501

1. What kind of gels can I use with the Electrophoresis Pattern Visualizer ADEPV-501?

The Electrophoresis Pattern Visualizer ADEPV-501 supports a wide range of electrophoresis gels, including agarose and polyacrylamide. It is suitable for visualizing DNA, RNA, and protein samples within its 120×120 mm transmission area. Gels must be stained with non-toxic fluorescent dyes responsive to visible light. This makes it ideal for labs prioritizing safety and routine molecular biology work.

2. Do I require ethidium bromide for staining in the Electrophoresis Pattern Visualizer ADEPV-501?

No, the Electrophoresis Pattern Visualizer ADEPV-501 eliminates the need for ethidium bromide, a toxic and carcinogenic dye. It supports safer fluorescent alternatives like SYBR Safe and GelGreen. These dyes fluoresce under visible light, making the process less hazardous. It’s a health-conscious and environmentally friendly option for modern lab work.

3. What is the maximum gel size Electrophoresis Pattern Visualizer ADEPV-501 can support?

The maximum gel size supported by the Electrophoresis Pattern Visualizer ADEPV-501 is 120×120 mm. This covers most standard gels used in molecular biology labs. It provides sufficient workspace while maintaining a compact design. For larger gels, trimming or sectional imaging may be necessary.

4. What fluorescent dyes are compatible with the Electrophoresis Pattern Visualizer ADEPV-501?

The Electrophoresis Pattern Visualizer ADEPV-501 is compatible with a variety of non-toxic, visible-light excitable dyes. Common choices include SYBR Safe, GelGreen, and SYPRO Ruby. These dyes emit fluorescence under blue or green light, not requiring harmful UV. Dyes like ethidium bromide and DAPI are not suitable for use with this system.

5. Is Electrophoresis Pattern Visualizer ADEPV-501 compatible with gel documentation cameras or Imaging Systems?

Yes, the Electrophoresis Pattern Visualizer ADEPV-501 can be paired with standard gel documentation systems. While it lacks a built-in camera, its stable visible light output allows for clear imaging with external cameras. For high-quality images, use a camera equipped with the correct emission filter for your dye. This makes it adaptable to a variety of documentation and imaging setups.

6. What is the purpose of an Electrophoresis Pattern Visualizer in the lab?

An Electrophoresis Pattern Visualizer is used to observe and analyze band patterns formed during gel electrophoresis. It helps researchers identify the presence, size, and intensity of DNA, RNA, or protein samples. Clear visualization enhances accuracy in molecular diagnostics and research. These tools are commonly used in biology, forensic, and clinical laboratories.

7. Are Electrophoresis Pattern Visualizers suitable for teaching labs?

These visualizers are well-suited for educational environments due to their simplicity and safety. They help students understand electrophoresis techniques through real-time observation of gel results. The systems are easy to operate, requiring minimal training. Their reliability makes them ideal for repeated classroom use.

8. What factors should be considered when choosing a Pattern Visualizer?

Important factors include the size of the viewing area, type of light source, and dye compatibility. Portability and ease of maintenance are also valuable for dynamic lab environments. The presence of brightness controls or filter options can improve result clarity. Always ensure the system meets safety standards and lab-specific requirements.
