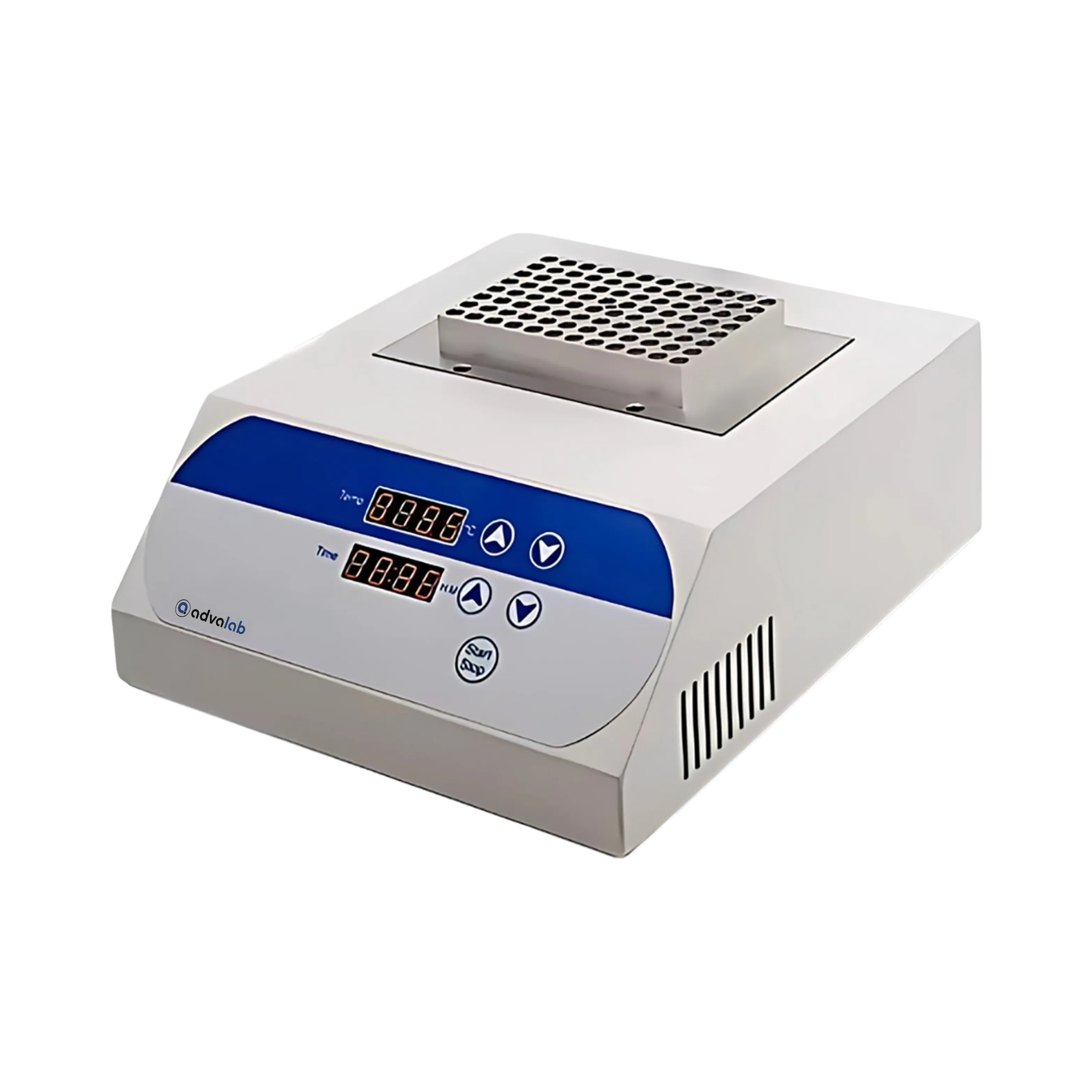

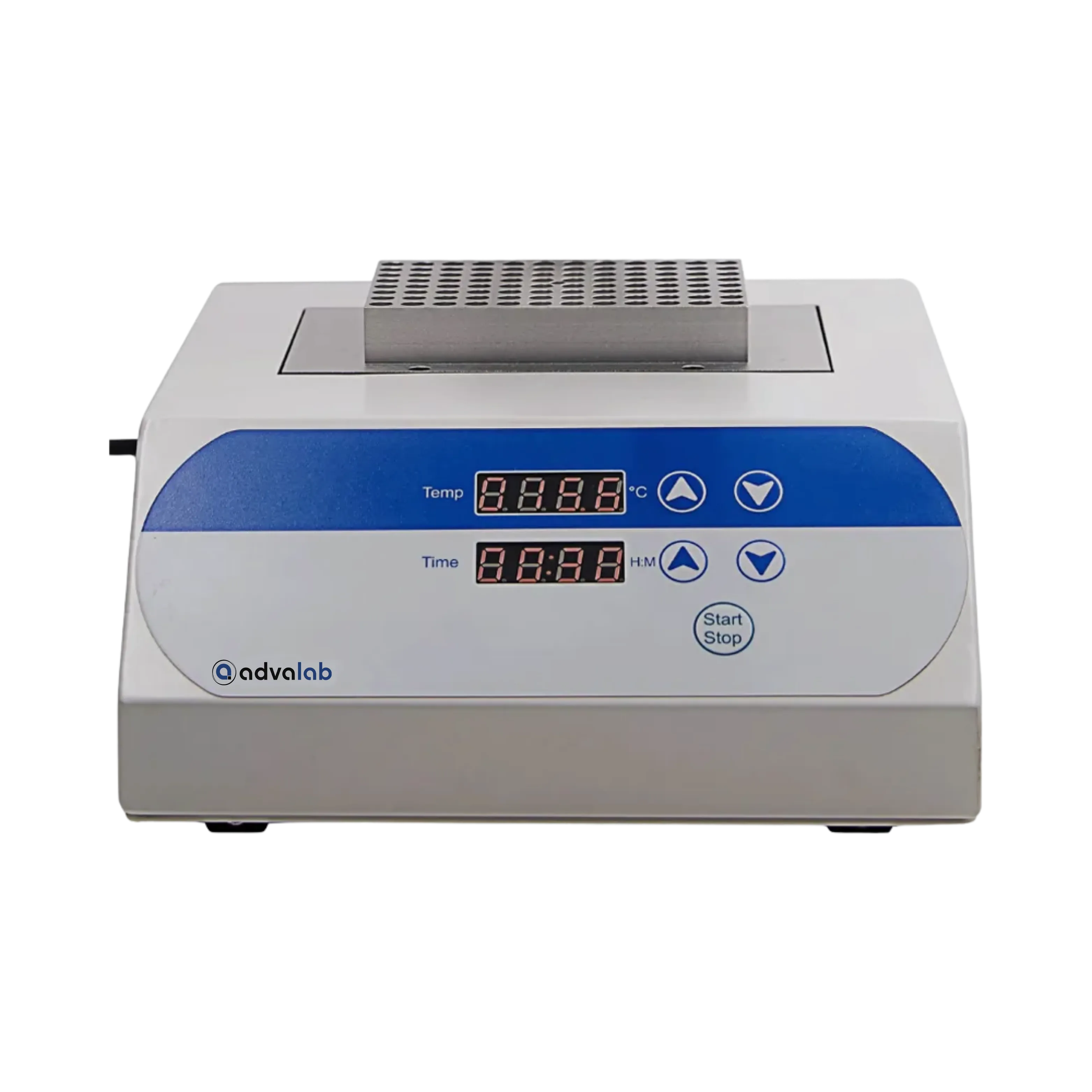

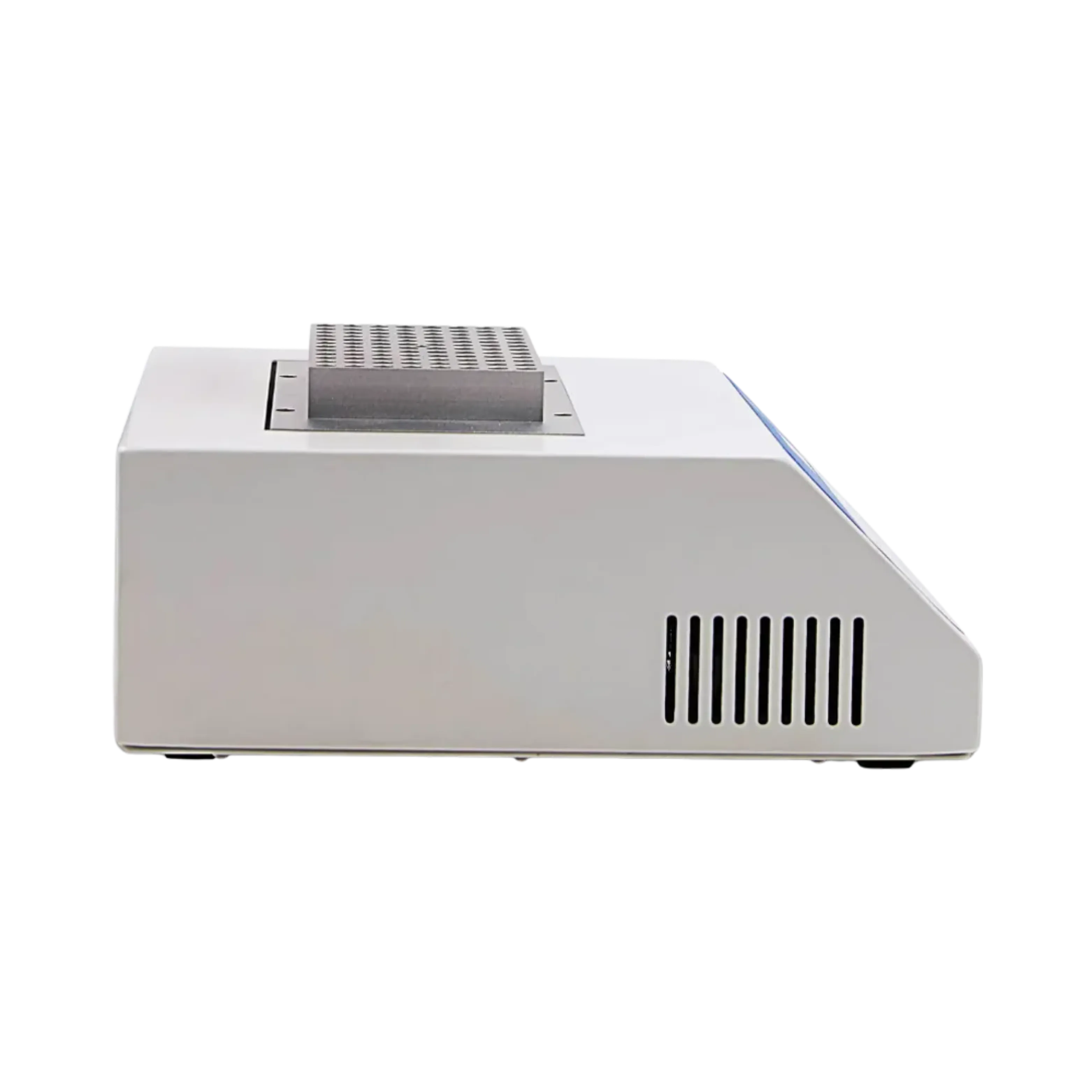

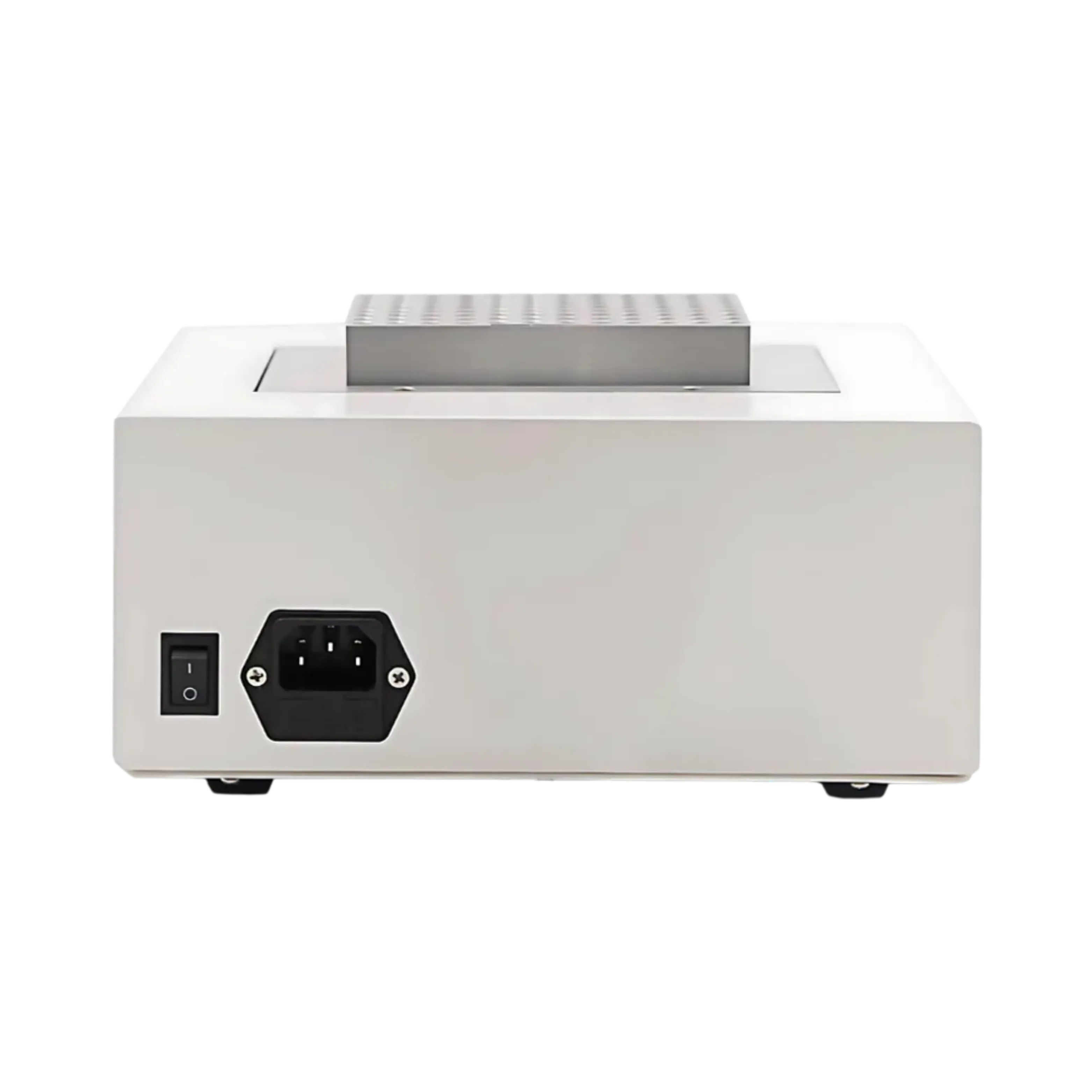

Dry Bath Incubator ADDB-511 provides a temperature range from 5℃ to 150℃. It is designed with a precision calibration function for optimal thermal accuracy. The advanced microprocessor control delivers accurate operation and consistent performance. This unit features a buzzer alarm that activates once the program is complete. Our Dry Bath Incubator is ideal for pre-denaturation of electrophoresis and serum coagulation in laboratory applications.


Temperature Range RT + 5℃ to 150℃
Heating Up Rate ≤ 10 min, 20℃ to 100℃
≤ 30 min, 20℃ to 150℃
Temperature Stability ±0.3℃ at 40℃
±0.5℃ at 100℃
±1℃ at 120℃
Display Accuracy 0.1℃
Timer 1 min to 99 h 59 min / 0: infinite
Maximum Temperature 150℃
Power Consumption 400W
Dimensions (W × D × H) 220 × 260 × 100 mm
  • Interchangeable blocks
  • High accuracy performance
  • User friendly interface
  • Thermal overload safeguard
  • Thermal control capability

Our Dry Bath Incubator ADDB-511 is widely used for the preservation and incubation of samples and DNA amplification in laboratory applications.

Tube Diameter

Capacity

Size (W×D×H)

Quantity

Block 01 for 6mm (φ6.5×47)

48 ml

96.5×76.5×50 mm

1 Pc

Block 02 for 7mm (φ7.5×47)

48 ml

96.5×76.5×50 mm

1 Pc

Block 03 for 10mm (φ10.5×47)

24 ml

96.5×76.5×50 mm

1 Pc

Block 04 for 12mm (φ12.5×47)

24 ml

96.5×76.5×50 mm

1 Pc

Block 05 for 13mm (φ13.5×47)

24 ml

96.5×76.5×50 mm

1 Pc

Block 06 for 15mm (φ15.5×47)

12 ml

96.5×76.5×50 mm

1 Pc

Block 07 for 16mm (φ16.5×47)

12 ml

96.5×76.5×50 mm

1 Pc

Block 08 for 19mm (φ19.5×47)

12 ml

96.5×76.5×50 mm

1 Pc

Block 09 for 20mm (φ20.5×47)

12 ml

96.5×76.5×50 mm

1 Pc

Block 10 for 26mm (φ26.5×47)

8 ml

96.5×76.5×50 mm

1 Pc

Block 11 for 28mm (φ28.5×47)

6 ml

96.5×76.5×50 mm

1 Pc

Block 12 for 38mm (φ38.5×47)

3 ml

96.5×76.5×50 mm

1 Pc

Block 13 for 0.2ml tubes (φ6.1×17)

48 ml

96.5×76.5×50 mm

1 Pc

Block 14 for 0.5ml tubes (φ8×23)

48 ml

96.5×76.5×50 mm

1 Pc

Block 15 for 1.5ml tubes (φ10.8×31)

24 ml

96.5×76.5×50 mm

1 Pc

Block 16 for 2ml tubes (φ10.8×31)

24 ml

96.5×76.5×50 mm

1 Pc

Block 17 for 0.2ml(φ6.7×16)

96 ml

96.5×76.5×50 mm

1 Pc

Block 18 for Flat

96 Elisa

96.5×76.5×50 mm

1 Pc

Dry Bath Incubator ADDB-511 | Heating Up Rate ≤ 10 min, 20℃ to 100℃ | Temperature Stability ±0.3℃ at 40℃
Dry Bath Incubator ADDB-511 | Interchangeable blocks | High accuracy performance

Frequently Asked Questions of Dry Bath Incubator ADDB-511

1. What materials are compatible with the Dry Bath Incubator?

The Dry Bath Incubator is designed to accommodate a range of sample containers, including test tubes, microplates, PCR tubes, and vials. It is important to use containers that fit snugly within the block to ensure accurate and consistent temperature control. The heat blocks are typically made of aluminum, known for its superior thermal conductivity and even heat distribution.

2. Which blocks are suitable for 0.2 mL tubes and 96-well ELISA plates in the Dry Bath Incubator?

For 0.2 mL tubes, use a block designed for small-diameter tubes typically used in PCR applications. For 96-well ELISA plates, a flat block specifically made to hold microplates is recommended. Both block types are compatible with this Dry Bath Incubator and ensure a proper fit and uniform heating.

3. Is it possible to adjust the temperature on the Dry Bath Incubator?

Yes, the temperature on the Dry Bath Incubator is adjustable and can be set to the desired value within its specified range. The temperature is controlled via a digital interface, with a built-in microcontroller or thermostat ensuring precise temperature regulation with minimal fluctuations, making it ideal for experiments that demand strict thermal control.

4. Can the Dry Bath Incubator be easily transported?

Yes, Dry Bath Incubators are generally lightweight and compact, making them highly portable. This portability makes them a preferred choice over larger, bulkier incubators or water baths. Our model is designed with durability in mind, allowing for easy use in fieldwork, mobile labs, and various on-the-go applications such as on-site diagnostics, educational purposes, and small-scale research.

5. Is the Dry Bath Incubator suitable for PCR sample preparation?

Yes, Dry Bath Incubators are ideal for PCR sample preparation due to their precise and stable temperature control. They facilitate essential steps such as enzyme activation, DNA denaturation, and reagent preheating. By eliminating the need for water, they offer a cleaner and more convenient alternative. Their accurate temperature regulation ensures optimal conditions for successful PCR reactions, especially for activating hot-start polymerases before amplification.

6. What is a Dry Bath Incubator?

A Dry Bath Incubator is a laboratory instrument designed to regulate and maintain a stable temperature for samples, eliminating the need for water. It is commonly used for heating, growing, or storing biological or chemical samples under controlled conditions. Its precise temperature control makes it ideal for applications such as enzyme reactions, DNA denaturation, and sample incubation.

7. Can a Dry Bath Incubator be used for cell culture?

A Dry Bath Incubator is not suitable for cell culture, as it lacks the ability to control humidity and CO? levels, which are essential for proper cell growth. It is designed for molecular biology applications like PCR or enzyme reactions. For cell culture, a CO? incubator with precise environmental control is more appropriate. These incubators also maintain optimal temperature, pH, and gas conditions crucial for maintaining cell viability.

8. How do I ensure even heating in a Dry Bath Incubator?

To ensure even heating in a Dry Bath Incubator, always use the appropriate block size for your sample containers. Make sure the block is correctly positioned and seated within the incubator. Regularly calibrating the incubator ensures accurate temperature readings. Avoid overcrowding to allow for uniform heat distribution, and ensure the incubator door remains closed during operation to maintain stable conditions.

9. What are the typical features of a Dry Bath Incubator?

Features of a Dry Bath Incubator: • Digital temperature control: Allows for precise adjustments and displays the current temperature. • Timer function: Allows users to set incubation times. • Multiple blocks: Our incubators offer interchangeable blocks to accommodate different sample sizes. • Over-temperature alarm: Alerts users if the temperature exceeds the set point.

Similar Products of Dry Bath Incubator

Temperature Range RT+5℃ to 105℃
Temperature Accuracy ±0.3℃
Temperature Set Range 0℃ to 105℃
Temperature Range RT + 5℃ to 150℃
Heating Up Rate ≤ 10 min, 20℃ to 100℃
≤ 30 min, 20℃ to 150℃
Temperature Stability ±0.3℃ at 40℃
±0.5℃ at 100℃
±1℃ at 120℃
Temperature Range RT. 5℃ to 130℃
Temperature Accuracy ± 0.5℃ at 40℃
± 1℃ at 40℃
Temperature Uniformity ± 0.5℃
Temperature Range RT+5℃ to 100℃
Temperature Accuracy ±0.3℃
Temperature Set Range 0℃ to 100℃

Heated Lid Dry Bath Incubator

Heated Lid Dry Bath Incubator ADHDB-503
Temperature Range:RT+5℃ to 100℃
Temperature Accuracy:±0.3℃
Temperature Set Range:0℃ to100℃

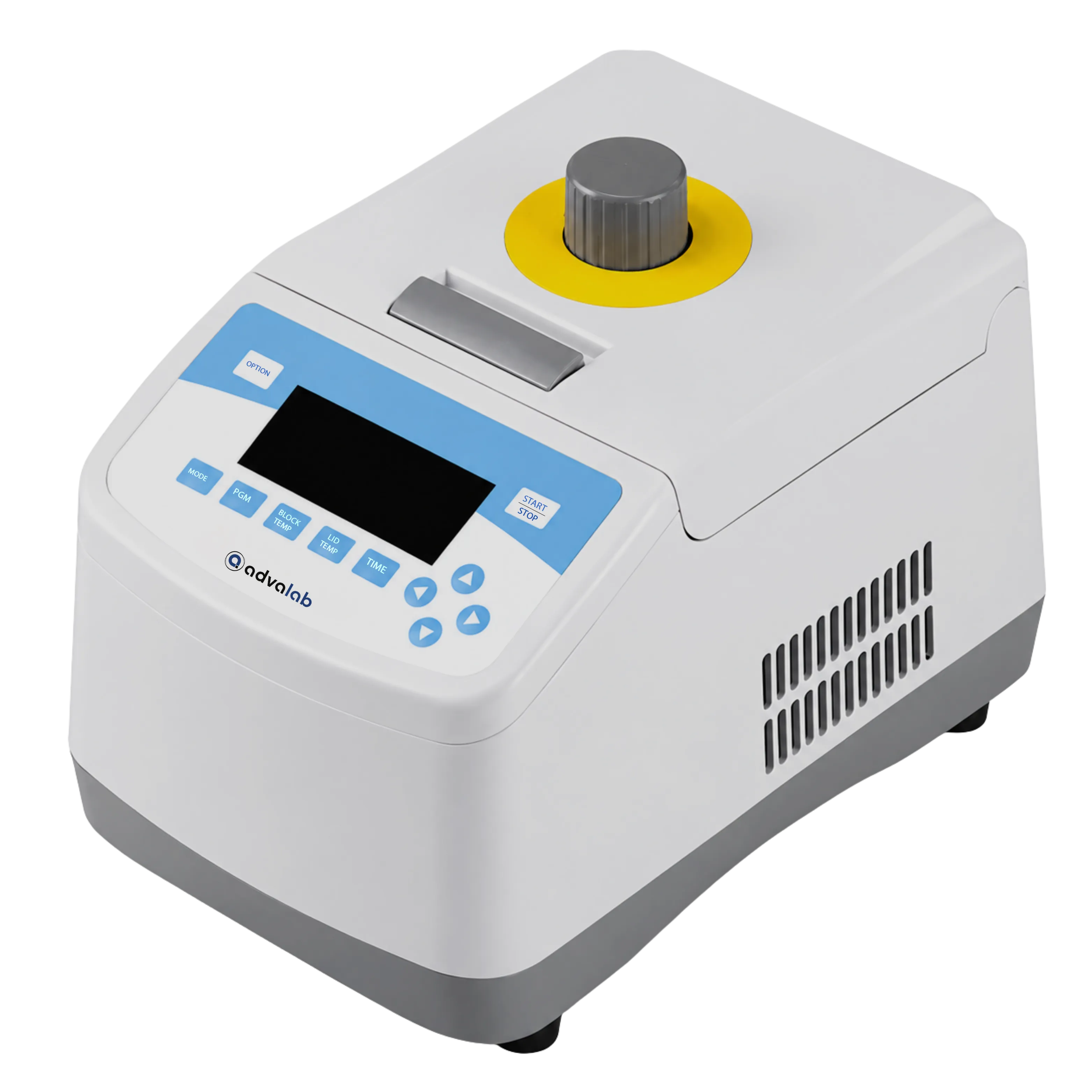

Heated Lid Dry Bath Incubator ADHDB-505
Temperature Setting Range:-10℃ to 100℃
Temperature Control Range:RT -25℃ to 100℃
Temperature Accuracy:≤ ± 0.3℃ at 37℃

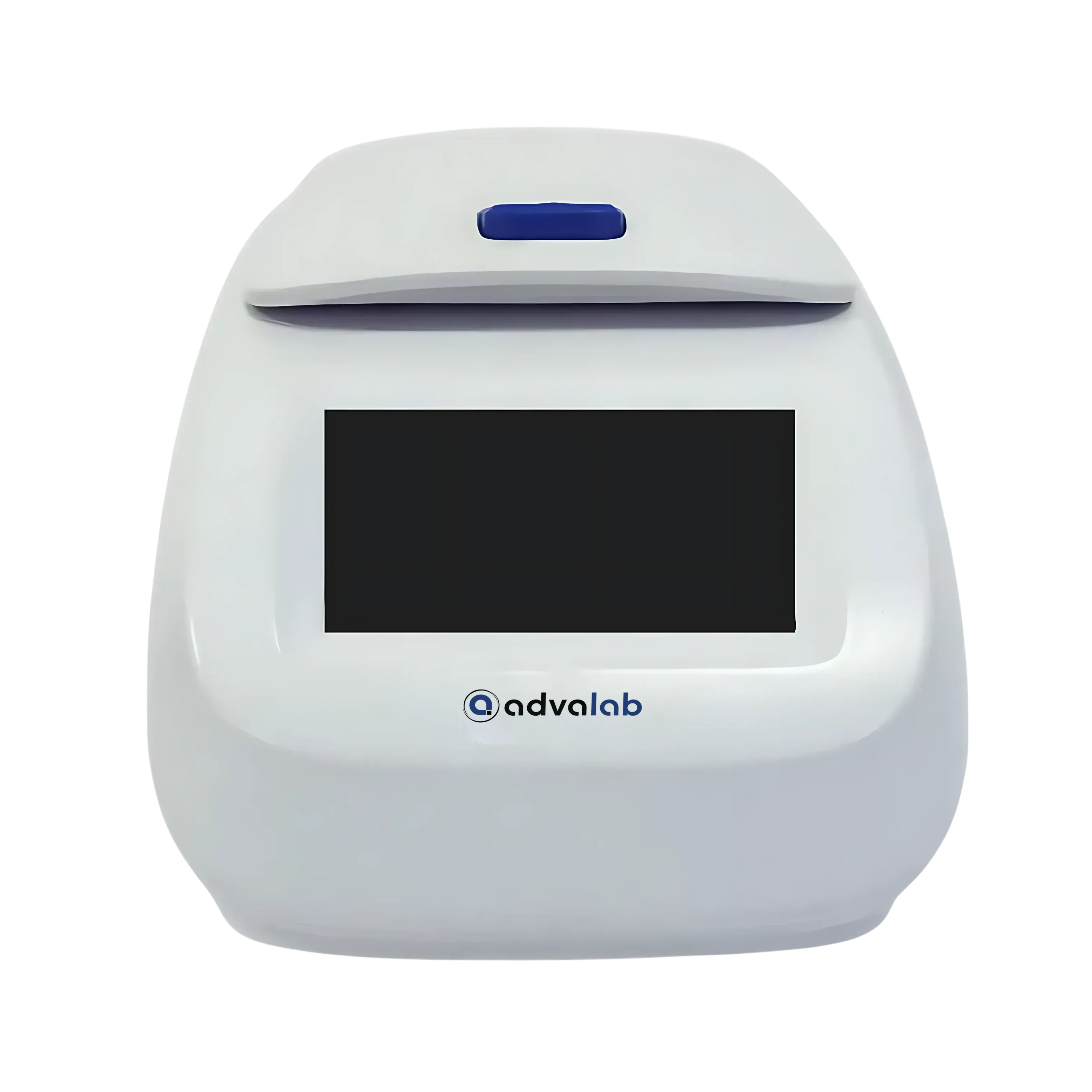

Heated Lid Dry Bath Incubator ADHDB-502
Block Temperature Setting Range:RT +5℃ to 105℃
Temperature Set Range:0℃ to 105℃
Lid Temperature Setting Range:RT +5°C to 110°C
Heated Lid Dry Bath Incubator ADHDB-501
Block Temperature Setting Range:RT -30°C to 105°C
Temperature Set Range:-10°C to 105°C
Lid Temperature Setting Range:RT +5°C to 110°C

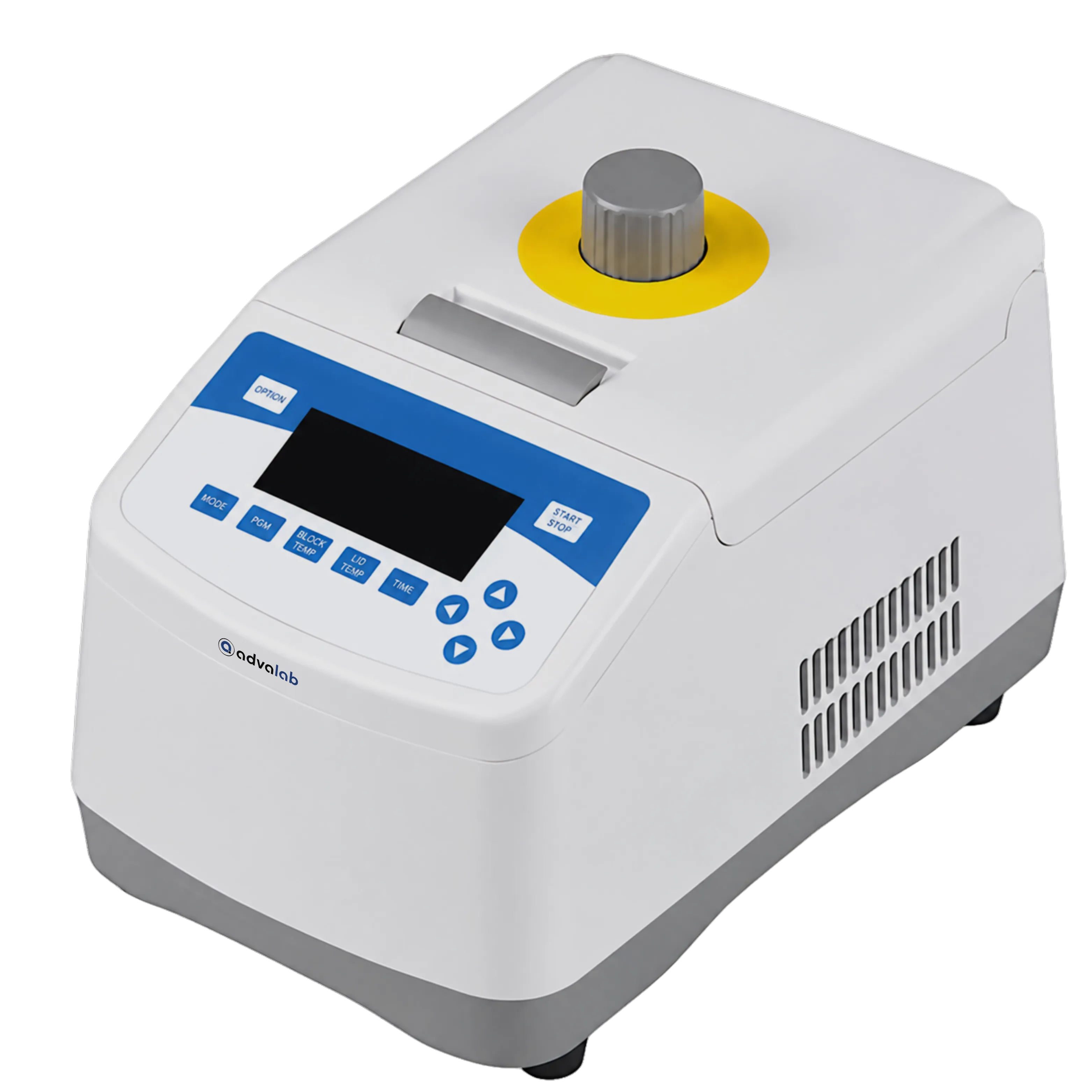

Heated Lid Dry Bath Incubator ADHDB-504
