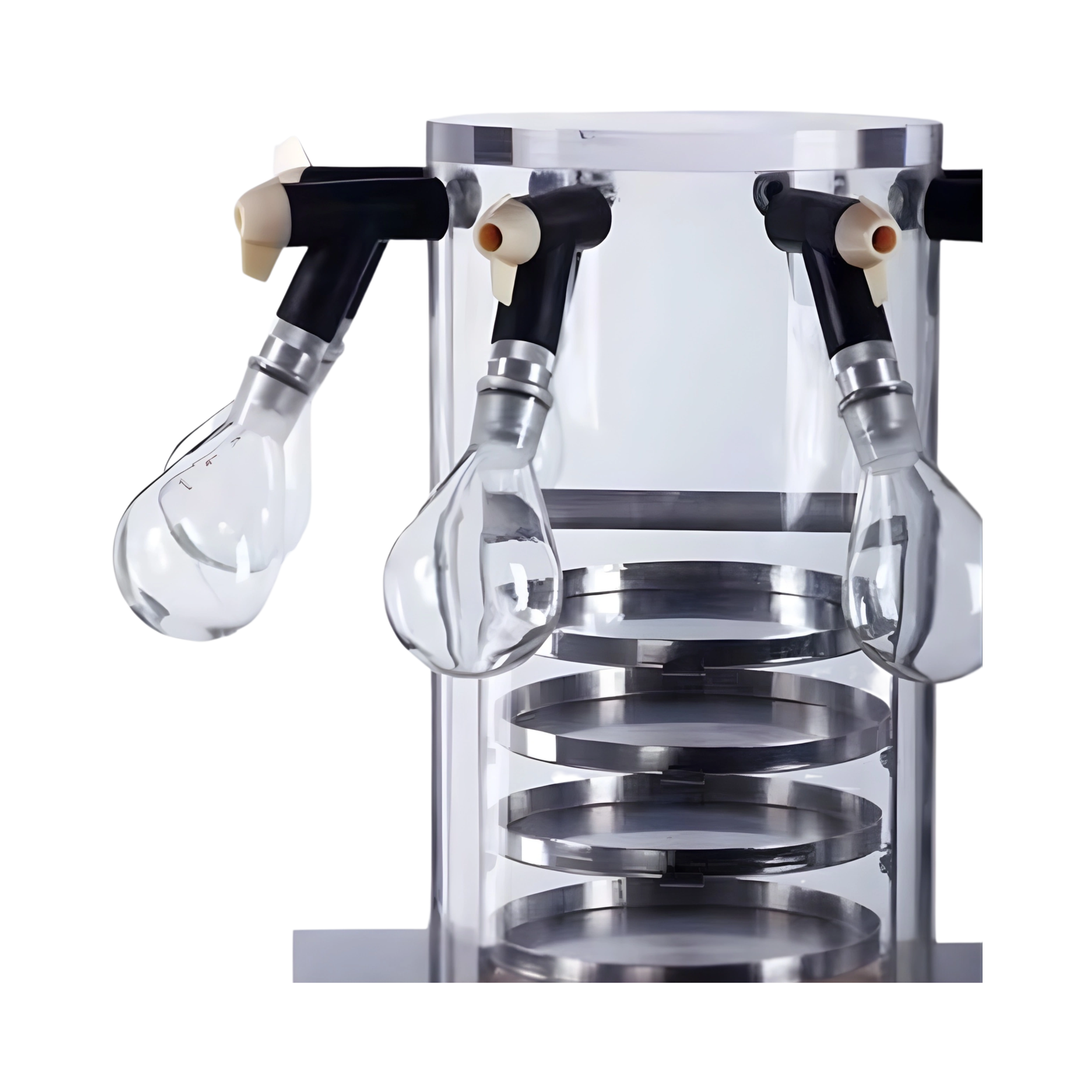

Floor Type Freeze Dryer ADFFD-504

1. What is the freeze-drying time of the Floor Type Freeze Dryer?

The freeze-drying time for the Floor Type Freeze Dryer typically ranges from 36 to 48 hours, depending on the specific characteristics of the sample. The time required for drying is determined by factors, including the volume of the sample, the temperature and the moisture content that needs to be removed. For more moisturize-rich samples, the process may take longer, while less complex samples can be dried more quickly.

2. How does the cold trap prevent condensation and frost in the Floor Type Freeze Dryer?

The cold trap is a crucial component in freeze-drying systems, designed to collect moisture that is sublimated from the samples. It features a heat-insulated top surface of the cold trap to prevent condensation and frost buildup. When water vapor is removed from the samples, it is directed to the cold trap, where it is rapidly frozen. Without adequate insulation, the cold trap itself could become too cold, causing condensation to form on its surface.

3. Can the Floor Type Freeze Dryer be used for sensitive biological samples?

Yes, it is specifically designed to handle sensitive biological samples that require precise preservation. Freeze-drying is one of the best methods to preserve materials because it removes moisture at very low temperatures. The controlled environment ensures that active ingredients, molecular structures, are maintained, after long-term storage. It offers control over pressure, and drying time, allowing us to optimize conditions for each unique sample.

4. What type of control system does the Floor Type Freeze Dryer use?

The Floor Type Freeze Dryer is equipped with a Programmable Logic Controller system, which is one of the most flexible control systems. The system is paired with an intuitive touch screen interface that allows users to adjust all key parameters. This includes temperature control, vacuum pressure, drying time, and critical variables. The user-friendly interface simplifies operation and ensures those with minimal technical expertise can operate the system effectively.

5. How does the self-diagnosis feature work in the Floor Type Freeze Dryer?

The self-diagnosis feature plays a vital role in monitoring the condition of the machine's key components in real-time. The system continuously checks the working status of critical parts such as the pump, cold trap, manifold, and valves. If the system detects any irregularities such as an unexpected temperature fluctuation, a malfunctioning pump. The self-diagnosis feature stores historical fault data, helping with preventive maintenance planning.

6. What are the key features of a Floor Type Freeze Dryer?

Floor Type Freeze Dryers are equipped with several key features for efficient, high-quality drying. These include large chamber capacities, which allow for processing larger sample volumes, and programmable controls. Real-time monitoring tracks key parameters like temperature and vacuum pressure, ensuring optimal drying conditions. Low-noise operation makes them suitable for continuous use in laboratory settings.

7. How does a Floor Type Freeze Dryer work?

The Floor Type Freeze Dryer works through a three-stage process. First, the sample is frozen to ultra-low temperatures, turning the water content into ice. Next, during the primary drying phase, a vacuum is applied to sublimate the ice directly into vapor, bypassing the liquid phase. In the secondary drying phase, residual moisture is removed by gradually increasing the temperature. This ensures that the sample reaches its final dry state while preserving its integrity.

8. What is a Floor Type Freeze Dryer used for?

A Floor Type Freeze Dryer is used for efficiently Freeze-Drying large volumes of sensitive materials in industries like pharmaceuticals, biotechnology, food processing, and chemicals. They preserve vaccines, enzymes, plant extracts, and other moisture-sensitive materials by removing moisture through sublimation. This process maintains the integrity, potency, and stability of the sample without altering its structure or bioactivity, making it ideal for long-term storage.
