| Nitrogen Flow Rate | 15 L/min |
| Nitrogen Pressure |
0.02Mpa (Gas needle≤16pcs) 0.05Mpa (Gas needle>16pcs) |
| Block Quantity | 2 |
| Temperature Control Range | RT. 5℃ to 160℃ |
| Temperature Set Range | 0℃ to 160℃ |
| Maximum Vertical Travel | 200 mm |
| Temperature Uniformity | ≤ ± 0.5 ℃ |
| Temperature Accuracy |
≤ ± 0.5℃ at 40℃ ≤ ± 1℃ at 120℃ |
| Heating Up Rate | ≤15min (from 25℃ to 160℃) |
| Timer | 1min to 99min59sec / infinite |
| Power Consumption | 500 W |
| Voltage | AC 220V or 110V, 50 / 60Hz |
| Dimension (W× D × H) | 260 × 220 × 450 mm |
| Net Weight | 7.5 kg |

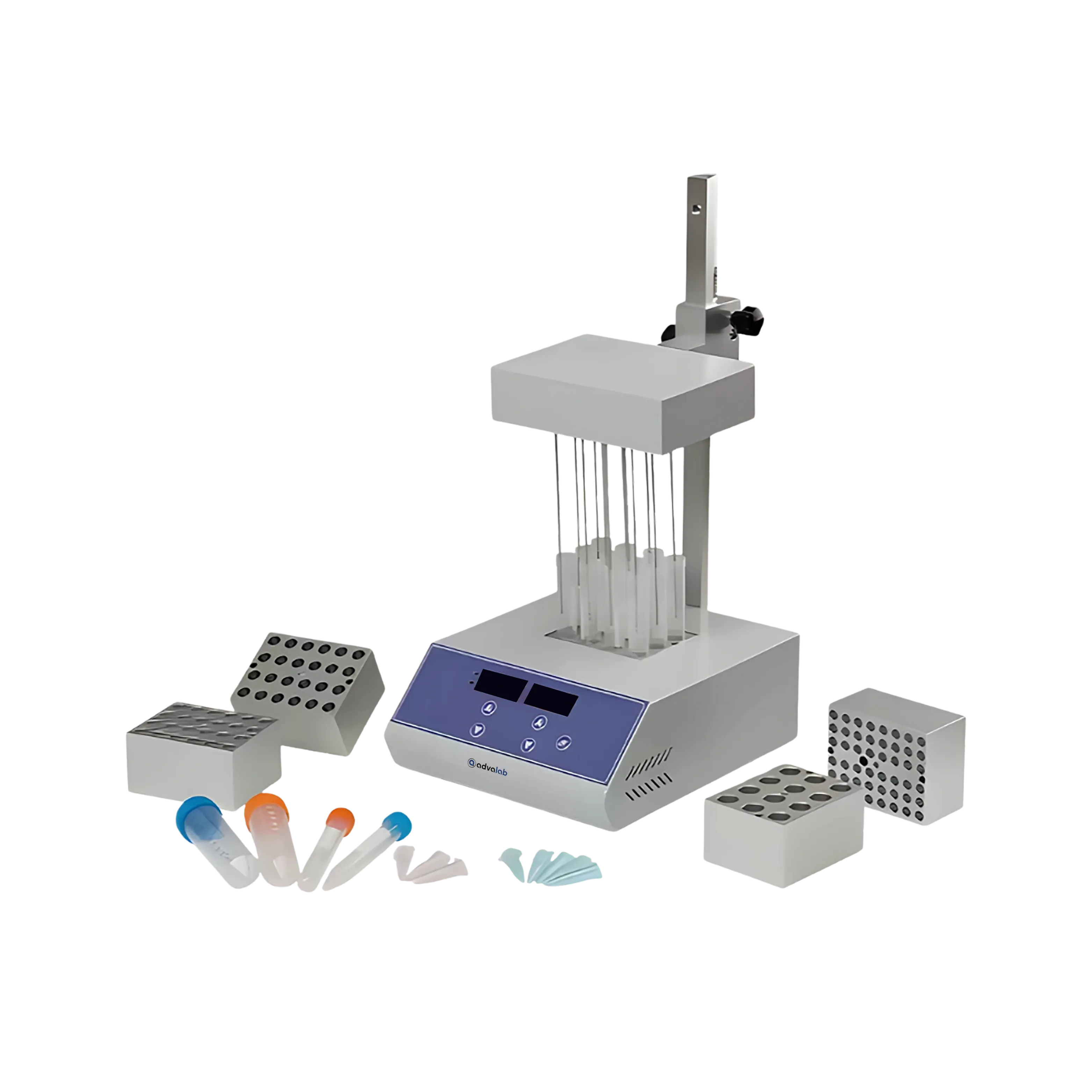

Sample Concentrator ADSCO-504 is used for residue analysis, food testing, environmental monitoring, and pharmaceutical applications. It is commonly used in commodity inspection laboratories to concentrate samples by evaporating solvents efficiently.
Block No.
| Description (Diameter of tubes × Capacity) | Quantity |
| Block 01 | 10 mm × 24
| 1 Pc |
| Block 02 | 12 mm × 24
| 1 Pc |
| Block 03 | 13 mm × 24
| 1 Pc |
| Block 04 | 15 mm × 16
| 1 Pc |
| Block 05 | 16 mm × 16
| 1 Pc |
| Block 06 | 19 mm × 12
| 1 Pc |
| Block 07 | 20 mm × 12
| 1 Pc |
| Block 08 | 26 mm × 8
| 1 Pc |
| Block 09 | 28 mm × 4
| 1 Pc |
| Block 10 | 40 mm × 3
| 1 Pc |
| Block 11 | 1.5 ml (centrifuge tube)
| 1 Pc |
| Block 12 | 2.0 ml (centrifuge tube)
| 1 Pc |
| Flow Control Valve | - | 1 Pc |
1. What types of samples can the Sample Concentrator ADSCO-504 concentrate?
Sample Concentrator ADSCO-504 can handle a variety of liquid samples commonly found in laboratories. It is suitable for environmental, pharmaceutical, food, and chemical samples. This unit gently evaporates solvents without degrading sensitive components. This makes it ideal for preparing samples for further analysis and testing.
2. How many samples can be processed simultaneously by Sample Concentrator ADSCO-504?
Sample Concentrator ADSCO-504 is designed with two heating blocks, allowing multiple samples to be processed at the same time. This setup increases efficiency by enabling batch processing. It supports various tube sizes, accommodating different sample volumes simultaneously. This makes it suitable for labs that require high-throughput sample preparation.
3. How is the temperature controlled in Sample Concentrator ADSCO-504?
The temperature in the Sample Concentrator ADSCO-504 is controlled using an advanced microprocessor with PID fuzzy control technology. This ensures precise and stable temperature regulation throughout the process. The heated aluminum blocks provide uniform heat distribution to all samples. The system also includes built-in safety features to prevent overheating and maintain consistent performance.
4. Is the Sample Concentrator ADSCO-504 safe to use?
Sample Concentrator ADSCO-504 is designed with various safety features. It includes built-in alarms and fault protection to alert users of any issues. The precise temperature control prevents overheating and sample damage. It has stable construction ensures reliable and secure operation in the laboratory.
5. What kind of maintenance does the Sample Concentrator ADSCO-504 require?
Sample Concentrator ADSCO-504 requires regular cleaning of the heating blocks to prevent residue buildup. It is important to check and maintain the nitrogen connections to ensure proper gas flow. Periodic inspection of electrical components helps maintain safety and performance. Routine maintenance ensures the concentrator operates efficiently and reliably over time.
