| Section Thickness Range | 0 to 60 µm |
| Section Thickness Setting |
0 to 2 µm in 0.5 µm steps 2 to 10 µm in 1 µm steps 10 to 20 µm in 2 µm steps 20 to 60 µm in 5 µm steps |
| Sectioning Precision | ± 5% |
| Blade Holder Angle | 0 to 10° |
| Net Volume | 0.12 CBM |
| Horizontal Specimen Stroke | 20 mm |
| Specimen Orientation |
Horizontal 80° Vertical 80° Full rotation 360° |
| Blade Holder Base Movement |
Front or Back ±25 mm Left or Right ±25 mm |
| Packaging Dimensions (W × D × H) | 530 × 520 × 480 mm |
| Net Weight | 40 kg |
| Gross Weight | 45 kg |

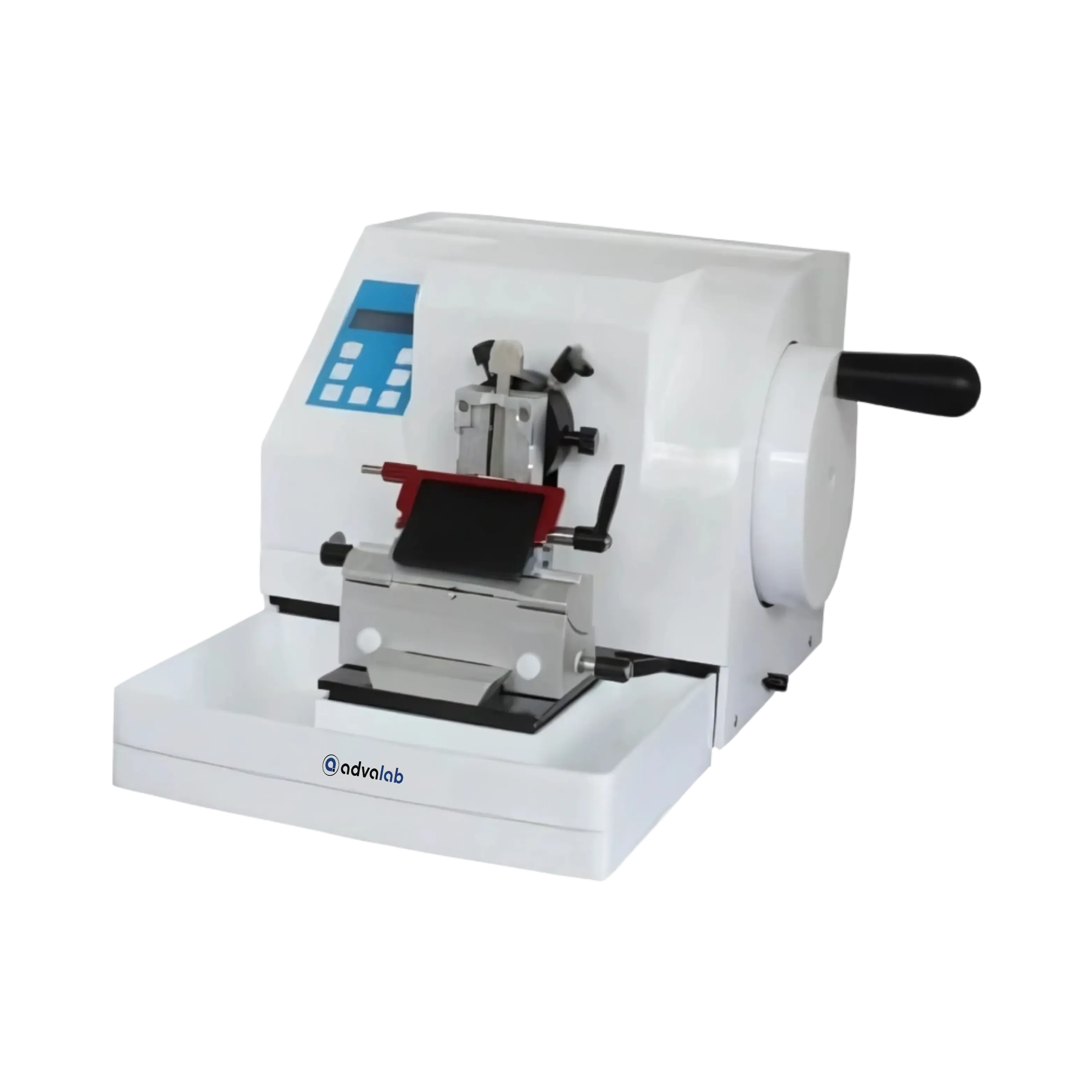

This Semi-Automatic Microtome ADSAM-502 is widely used in histopathology and research laboratories to prepare thin, precise tissue slices required for microscopic evaluation and diagnostic analysis.
Disposable Blade Holder | 1 pc |
Specimen Cassette | 1 pc |
Hexagonal Wrench | 1 set |
Brush | 1 pc |
1. What is the sectioning range of the Semi-Automatic Microtome ADSAM-502?
The Semi-Automatic Microtome ADSAM-502 offers a sectioning range of 0 to 60 µm, enabling highly precise preparation of tissue samples. This flexibility supports both fine slicing and slightly thicker cuts for diverse laboratory needs. It provides dependable performance for delicate histological work where precision is critical. Laboratories benefit from its adaptability when handling multiple specimen types.
2. How does the clipper-built case of the Semi-Automatic Microtome ADSAM-502 improve usability?
The clipper-built case of the Semi-Automatic Microtome ADSAM-502 provides organized storage for blades, wax blocks, and essential consumables. Its practical design ensures easier workflow and better accessibility during routine operations. Users save time by keeping frequently used materials within reach. This feature enhances safety by preventing misplacement of sharp tools.
3. What is the role of the lockable handwheel in the Semi-Automatic Microtome ADSAM-502?
The lockable handwheel in the Semi-Automatic Microtome ADSAM-502 secures the wheel at any desired position to guarantee safe handling. This safety feature allows easy specimen replacement without risk of accidental movement. It helps technicians work with greater confidence and precision. The dual-locking system further minimizes operational hazards.
4. How does the specimen orient system of the Semi-Automatic Microtome ADSAM-502 benefit users?
The orienting system of the Semi-Automatic Microtome ADSAM-502 enables adjustment along multiple axes, ensuring accurate specimen alignment. This precision leads to uniform slices, improving consistency in diagnostic and research applications. Operators achieve reproducible results across various tissues. Such accuracy is vital for reliable microscopic analysis and reporting.
5. What is the function of the special blade holder in the Semi-Automatic Microtome ADSAM-502?
The special blade holder in the Semi-Automatic Microtome ADSAM-502 is engineered for safe and direct use of disposable blades. It improves operational safety while extending blade efficiency, reducing replacement frequency in routine use. Users benefit from easier installation and secure blade positioning. The design supports smoother cutting, lowering the risk of tissue damage.
6. What are Semi-Automatic Microtomes?
Semi-Automatic Microtomes are laboratory units designed to cut thin and uniform tissue sections. They feature adjustable blade mounts and specimen holders to ensure precise and reproducible slicing for microscopic analysis. These systems reduce manual effort while improving accuracy in section preparation.
7. Where are Semi-Automatic Microtomes commonly used?
Semi-Automatic Microtomes are widely employed in histopathology, research, and clinical laboratories. They are suitable for preparing precise tissue slices for diagnostics, staining, and microscopic examination. These units handle a variety of tissue types, ensuring reliable results across different laboratory applications.
| Section Thickness Range | 0.5 to 100 µm |
| Section Thickness Setting |
0.5 to 5 µm in 0.5 µm steps 5 to 20 µm in 1 µm steps 20 to 60 µm in 5 µm steps 60 to 100 µm in 10 µm steps |
| Trimming Section Range | 1 to 600 µm |
| Section Thickness Range: | 0.5 to 100 µm (depending on increments) |
| Section Thickness Setting : | 0.5 to 5 µm in 0.5 µm steps <br> 5 to 20 µm in 1 µm steps <br> 20 to 60 µm in 5 µm steps <br> 60 to 100 µm in 10 µm steps |
| Trimming Thickness Range : | 1 to 600 µm |
