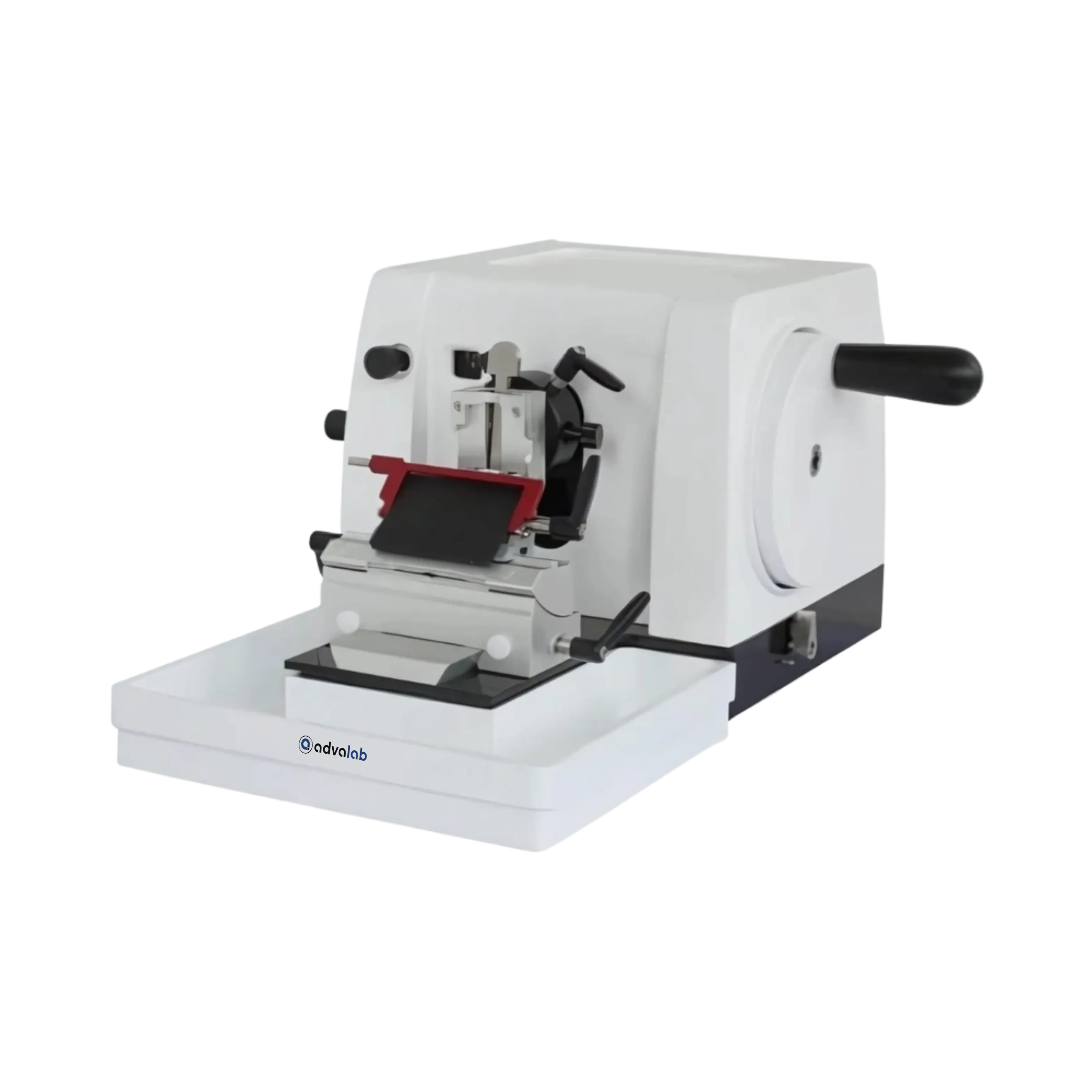

Semi-Automatic Microtome ADSAM-502 delivers a sectioning range of 0 to 60 µm, ensuring precise tissue preparation. Its intuitive controls guarantee uniform and reproducible results across multiple sample types. The blade holder angle enhances cutting stability while supporting accurate positioning. With a low-maintenance design, the system reduces the need for regular lubrication. It is an ideal choice for histopathology and research laboratories, producing reliable thin sections for diagnostics and microscopic analysis.
| Section Thickness Range | 0 to 60 µm |
|---|---|
| Section Thickness Setting |
0 to 2 µm in 0.5 µm steps 2 to 10 µm in 1 µm steps 10 to 20 µm in 2 µm steps 20 to 60 µm in 5 µm steps |
| Sectioning Precision | ± 5% |
| Blade Holder Angle | 0 to 10° |
| Net Volume | 0.12 CBM |
| Horizontal Specimen Stroke | 20 mm |
| Specimen Orientation |
Horizontal 80° Vertical 80° Full rotation 360° |
| Blade Holder Base Movement |
Front or Back ±25 mm Left or Right ±25 mm |
| Packaging Dimensions (W × D × H) | 530 × 520 × 480 mm |
| Net Weight | 40 kg |
| Gross Weight | 45 kg |
This Semi-Automatic Microtome ADSAM-502 is widely used in histopathology and research laboratories to prepare thin, precise tissue slices required for microscopic evaluation and diagnostic analysis.
