| Capacity | 580 L |
| Temperature Range | 2 to 15°C |
| Cooling Performance | 4°C |
| Cabinet Type | Upright |
| Cooling Type | Forced air cooling |
| Defrost Mode | Auto |
| Refrigerant | R290 |
| Controller | Microprocessor |
| Display | LED |
| Alarm | Audible, Remote |
| Interior Material | Galvanized steel powder coating |
| Exterior Material | Galvanized steel powder coating (white) |
| High and Low Temperature Alarm | Yes |
| Remote Alarm Contact | Yes |
| Sensor Failure | Yes |
| Door Lock | Yes |
| Door Ajar | Yes |
| Inner LED light | Yes |
| Power Failure | Optional |
| Caster | Yes |
| Test Hole | Yes |
| Climate Class | No |
| Shelves or Inner Doors | 5/- |
| Foaming Door | Optional |
| Temperature Recorder | Optional |
| USB Interface | Optional |
| Power Supply | 220/50 V/Hz |
| Power Performance | 280 W |
| Power Consumption | 3.3 (kwh/24h） |
| Interior Dimensions (W×D×H) | 660 x 690 x 400 mm |
| Exterior Dimensions (W×D×H) | 780 x 830 x 1965 mm |
| Packing Dimensions (W×D×H) | 820 x 880 x 2175 mm |
| Net Weight | 144 kg |
| Gross Weight | 173 kg |

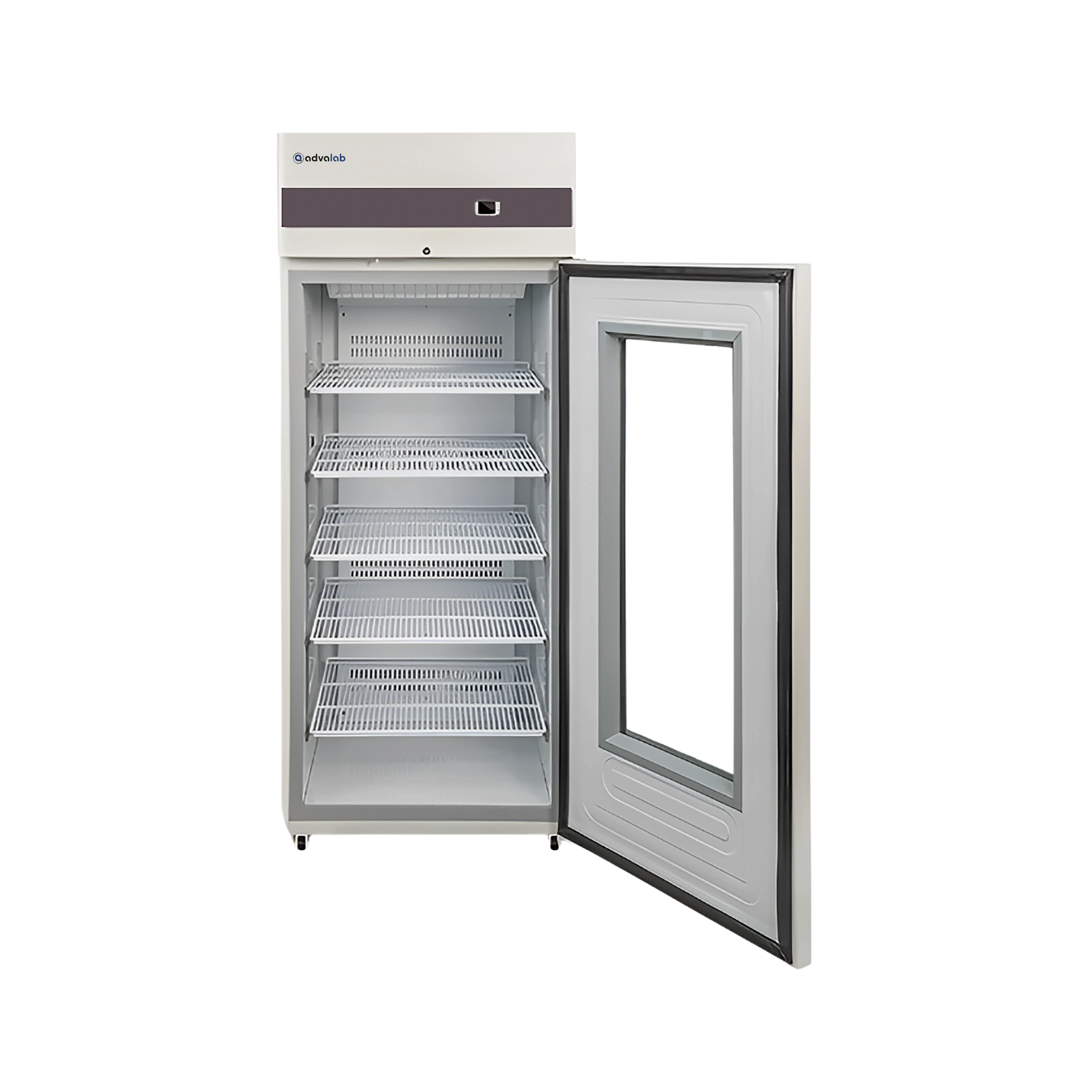

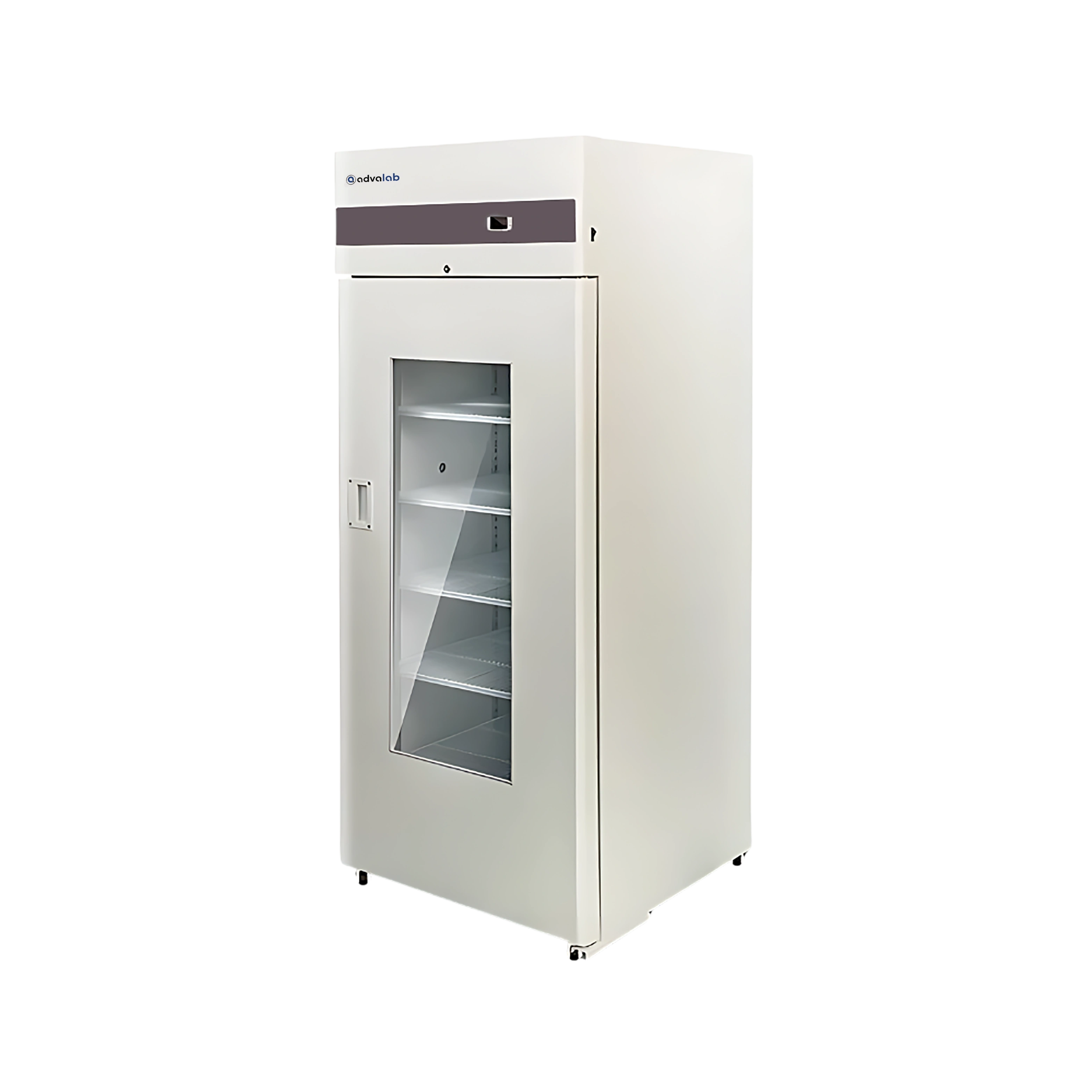

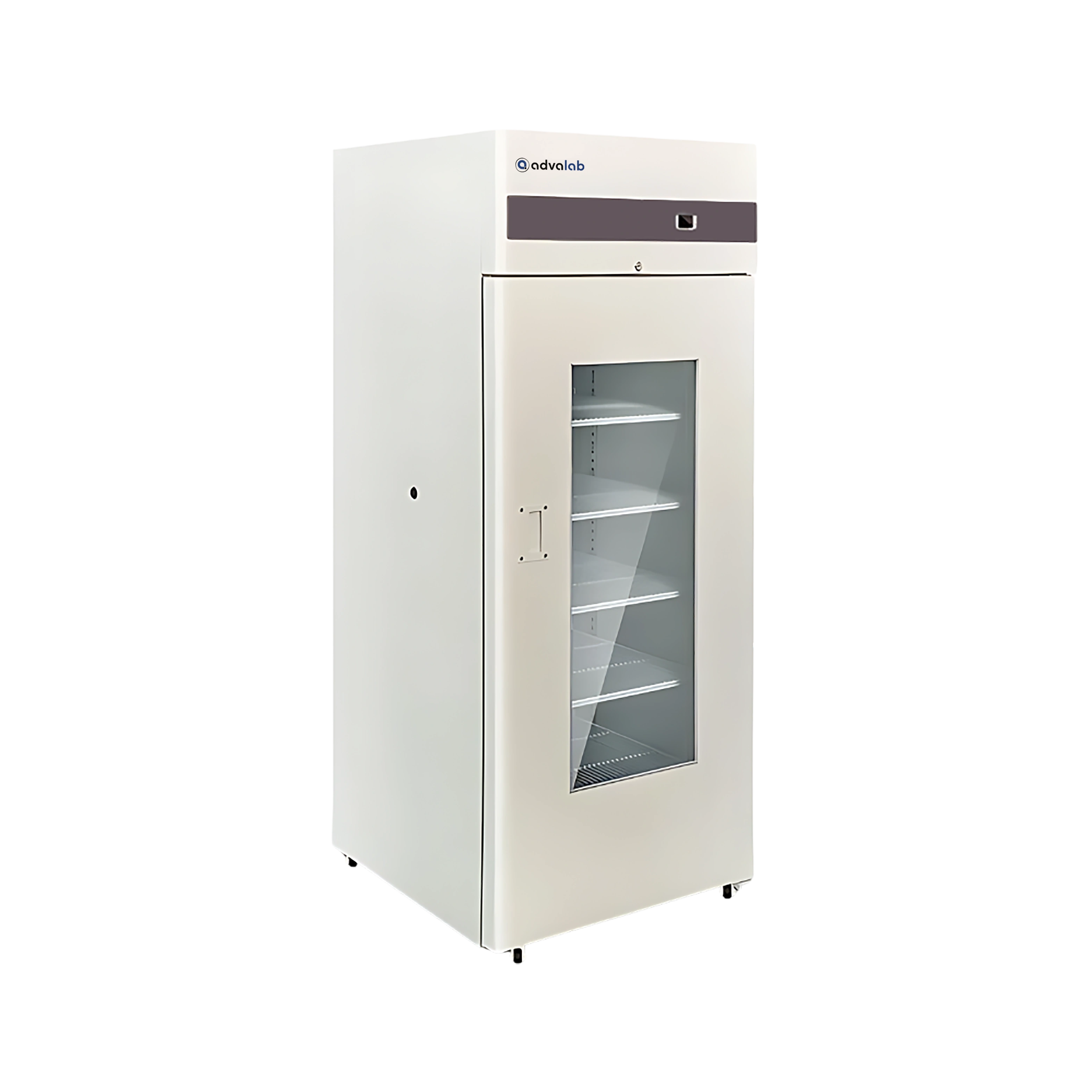

This Medical Refrigerator ADML-507 is used in hospitals, blood banks, pharmaceutical labs, and research institutes to securely store vaccines, medicines, and biological samples under controlled temperature conditions.
1. What is the capacity of this Medical Refrigerator ADML-507?
This Medical Refrigerator ADML-507 offers a generous 580-liter chamber, accommodating large quantities of medical inventory. It allows efficient organization of diverse items. The design supports both daily and long-term storage. Multiple shelves enable categorized placement. It's well-suited for facilities with high storage demand.
2. How does Medical Refrigerator ADML-507 maintain internal temperature?
The Medical Refrigerator ADML-507 uses a forced-air circulation system that evenly distributes cooled air. This design eliminates temperature fluctuations inside. A microprocessor precisely regulates conditions. Multiple sensors ensure consistent internal climate. The system keeps sensitive contents secure at set levels.
3. What features improve user convenience in Medical Refrigerator ADML-507?
The Medical Refrigerator ADML-507 is designed with user-friendly features such as a large LED display for clear temperature visibility and easy operation. It includes a built-in data logger and USB port for effortless data retrieval and documentation. Adjustable shelves provide flexible storage options for items of various sizes. Audible and remote alarms alert users to any deviations.
4. What safety mechanisms are built in Medical Refrigerator ADML-507?
Medical Refrigerator ADML-507 features audible alerts and remote alarm notifications to warn of issues. These activate during temperature shifts, door openings, and power loss. Backup battery alerts help prevent unnoticed failures. Safety locks ensure restricted access. Overall, the unit reduces risk of material spoilage.
5. What kind of cooling method does the Medical Refrigerator ADML-507 use?
Medical Refrigerator ADML-507 employs a forced-air cooling mechanism for uniform temperature distribution. This ensures every section of the cabinet maintains consistent conditions. The airflow system reduces cold spots and prevents freezing damage. It keeps all medical items stable and secure. Continuous circulation enhances performance efficiency.
6. What is a Medical Refrigerator used for?
A Medical Refrigerator is specifically designed to store temperature-sensitive medical items such as vaccines, medications, blood samples, insulin, and laboratory reagents. They maintain a consistent temperature to preserve the effectiveness and safety of these products. These units play an important role in preventing spoilage and ensuring compliance with medical storage regulations.
7. How is a Medical Refrigerator different from a Domestic Refrigerator?
Unlike Household Refrigerators, Medical Refrigerators provide precise temperature control, uniform cooling, and specialized features such as alarms, data logging, and lockable doors. They are built to meet healthcare and laboratory standards for the safe storage of critical materials. Their reliability and accuracy make them essential in professional medical and scientific environments.
