| Capacity |
Refrigerator: 170 L Freezer: 100 L |
| Temperature Range |
Refrigerator: 2 to 8 Freezer: -10 to -25 |
| Cooling Performance |
Refrigerator: 4°C Freezer: -25°C |
| Cabinet Type | Upright |
| Cooling Type |
Refrigerator: Forced air cooling Freezer: Direct cooling |
| Defrost Mode |
Ref: Auto Freezer: Manual |
| Refrigerant | R600a |
| Controller | Microprocessor |
| Display | LED |
| Interior Material | Aluminum powder coating (White) |
| Exterior Material | Galvanized steel powder coating (white) |
| High and Low Temperature Alarm | Yes |
| Sensor Failure | Yes |
| Door Open Alarm | Yes |
| Door Lock | Yes |
| Remote Alarm Contact | Yes |
| Inner LED light |
Refrigerator: Yes Freezer: No |
| Glass Door | Optional |
| Caster | Yes |
| Climate Class | No |
| Shelves or Inner Doors |
Refrigerator:3 Freezer: 2 |
| Foaming Thickness | 50 mm |
| Temperature Recorder | Optional |
| Power Supply | 220/50 V/Hz |
| Power Performance | 215 W |
| Power Consumption | 2.8 (kwh/24h） |
| Interior Dimensions (W×D×H) |
Refrigerator: 500 × 460 × 730 mm Freezer: 500 × 460 × 445 mm |
| Exterior Dimensions (W×D×H) | 650 x 650 x 1860 mm |

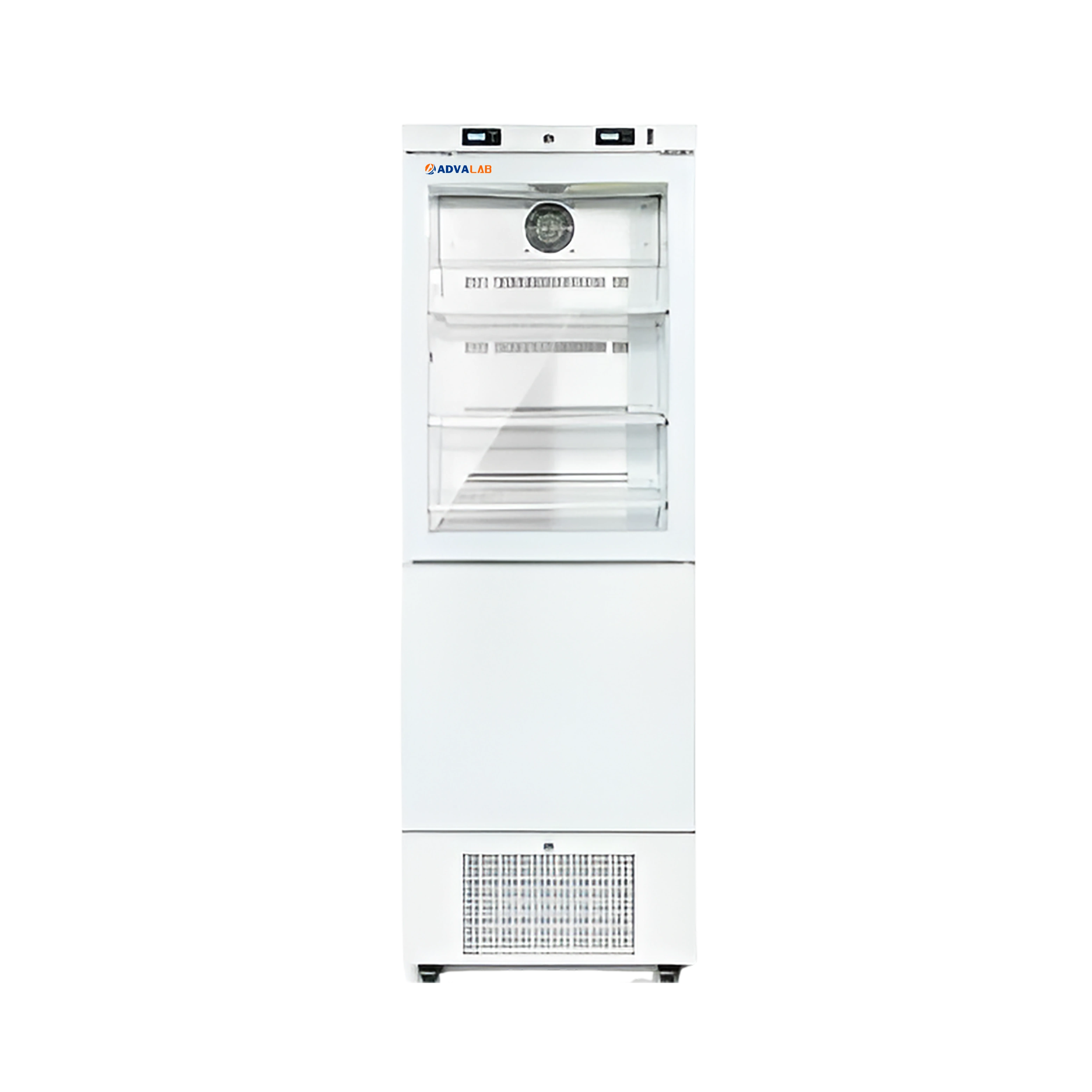

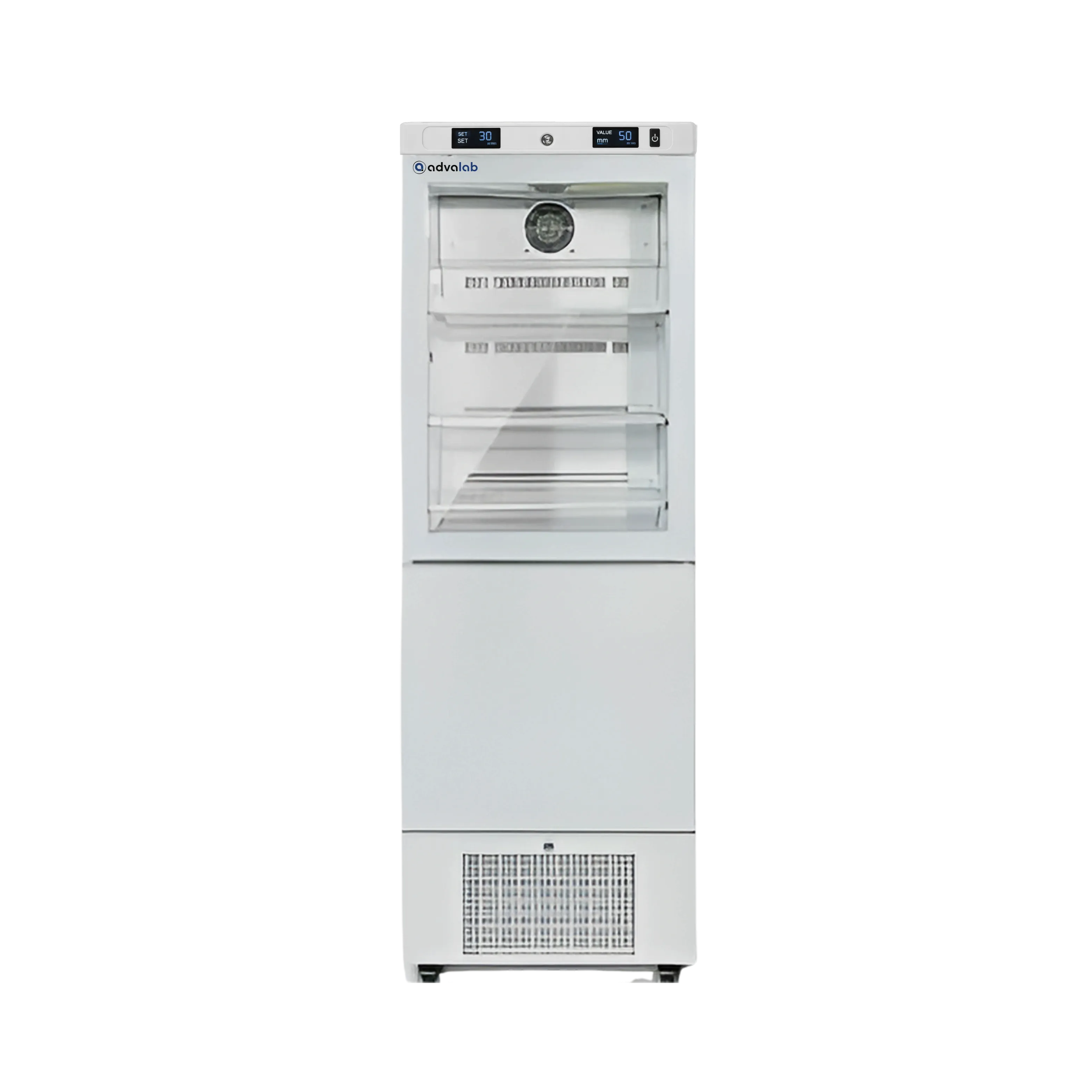

Pharmaceutical Refrigerator ADPL-504 used in medical and research settings to safely store vaccines, medicines, and biological materials.
1. What is the total storage capacity of the Pharmaceutical Refrigerator ADPL-504?
The Pharmaceutical Refrigerator ADPL-504 offers a combined capacity of 270 liters, with 170 liters for refrigeration and 100 liters for freezing. This dual-chamber design allows organized storage of temperature-sensitive items. It’s ideal for facilities that require both cooling and freezing in one compact unit.
2. What temperature ranges does this Pharmaceutical Refrigerator ADPL-504 support?
The refrigerator maintains a range of 2°C to 8°C, while the freezer supports -10°C to -25°C.This allows precise preservation of a wide variety of pharmaceutical and biological materials. The temperature is controlled by an advanced microprocessor system.
3. Is this Pharmaceutical Refrigerator ADPL-504 suitable for storing vaccines and biological samples?
Yes, Pharmaceutical Refrigerator ADPL-504 built to store vaccines, medicines, biological specimens, and reagents securely. The stable temperature environment protects sensitive materials from degradation. It meets cold chain requirements for pharmaceutical-grade storage.
4. In which environments can this Pharmaceutical Refrigerator ADPL-504 be installed?
Pharmaceutical Refrigerator ADPL-504 is ideal for hospitals, epidemic prevention centers, pharmaceutical companies, and research labs. Its dual-function design supports multiple applications in one device. The unit performs reliably even under demanding usage conditions.
5. Does the Pharmaceutical Refrigerator ADPL-504 feature any safety systems?
Yes, Pharmaceutical Refrigerator ADPL-504 includes malfunction alarms for high/low temperature, power failure, and system errors. These alerts help prevent spoilage and ensure user awareness. The safety system enhances operational reliability and user confidence.
