Vertical Laminar Airflow Cabinet ADVL-512
Vertical Laminar Air Flow Cabinet ADVL-512(front view)

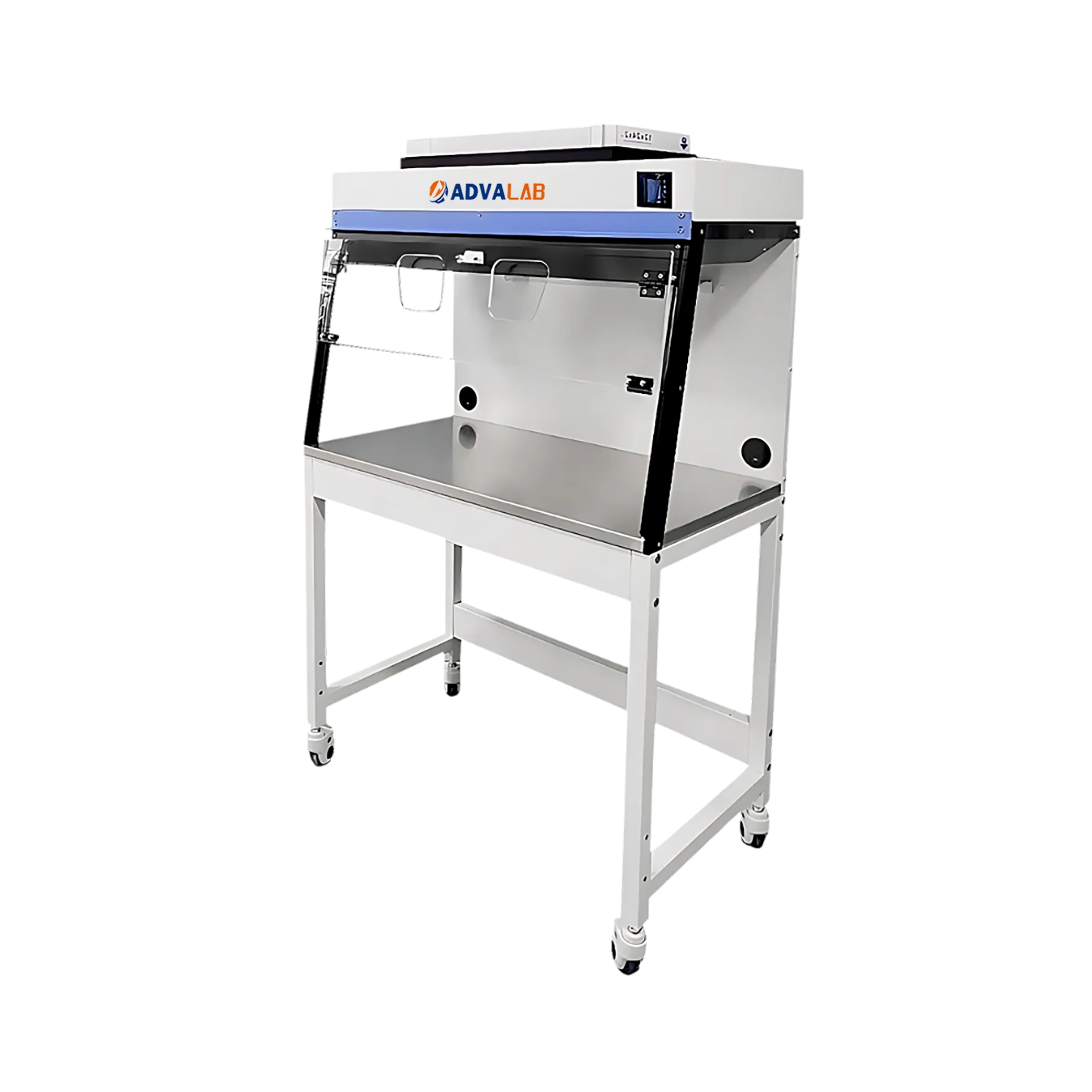

Vertical Laminar Air Flow Cabinet ADVL-512(Side view)

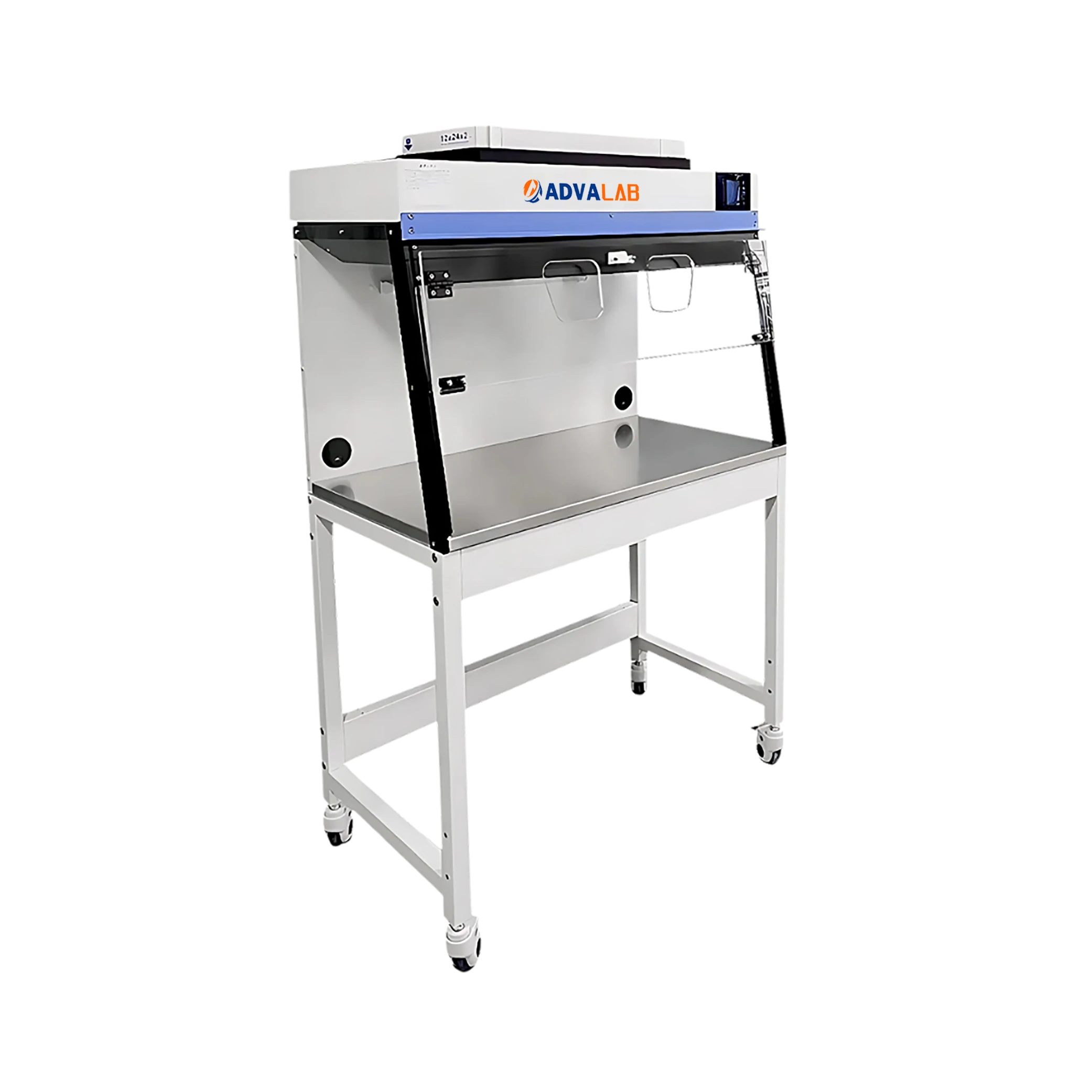

Vertical Laminar Air Flow Cabinet ADVL-512(Side view)

Vertical Laminar Airflow Cabinet ADVL-512

Advalab offers Vertical Laminar Airflow Cabinet ADVL-512 with surface wind speed of 0.5 m/s for ensuring a clean, particle-free environment. The inner body is usually made of stainless steel, offering corrosion resistance and easy cleaning. It delivers vertical HEPA-filtered airflow to maintain a sterile, particle-free workspace. This cabinet has a clear front sash and LED lighting for visibility. Our Vertical Laminar Airflow Cabinet is used in hospitals, food testing, and forensics to ensure a sterile workspace.


External Dimension (L×B×H) 1000×550×1600 mm
Internal Dimension (L×B×H) 950×500×460 mm
Surface Wind Speed 0.5 m/h
Frequency 50 to 60 Hz
Air Treatment 230 m³/h
Noise 50 db
Electric Current 10 A
Type of Filter H14
Fan Power 48 W to 110 W
Clean Cabinet MPPS test shows 99.995% filtration efficiency for particles ≥0.3 microns.
Work Top 1.25 mm stainless steel worktop; non-conductive and corrosion resistant.
High-Efficiency Particle Filter HEPA H14 filter ensures 99.995% efficiency for particles ≥0.3 µm.
Pre particle Filter 40% filtration efficiency for particles >0.3 µm.
Packaging Dimensions 115 x 75 x 78 cm
Gross Weight 120 kg
  • Durable steel housing
  • UV sterilization timer
  • Energy-efficient lighting
  • Stainless steel worktable
  • Compact design

Our Vertical Laminar Airflow Cabinet ADVL-512 is used in tissue culture work, IVF labs and academic institutions to protect samples from airborne contamination and maintain sterile conditions.

Vertical Laminar Airflow Cabinet ADVL-512|Frequency:50 to 60 Hz|Noise:50 db
Vertical Laminar Airflow Cabinet ADVL-512|Durable steel housing|UV sterilization timer

Frequently Asked Questions of Vertical Laminar Airflow Cabinet ADVL-512

1. What are the benefits of using Vertical Laminar Airflow Cabinet ADVL-512 compared to traditional clean benches?

Vertical Laminar Airflow Cabinet ADVL-512 offers better protection for tall equipment and provides more ergonomic workspace access compared to traditional horizontal flow systems. It reduces the risk of backflow and turbulence from large objects. Vertical Laminar Airflow is also safer when working with procedures that generate particulates, as contaminants are pushed directly down and away from the work area.

2. What types of materials are suitable for construction of Vertical Laminar Airflow Cabinet ADVL-512?

Vertical Laminar Airflow Cabinet ADVL-512 is typically constructed using stainless steel or powder-coated mild steel to ensure durability and easy cleaning. The work surface is usually made of stainless steel or perforated metal for smooth airflow. Transparent acrylic or tempered glass is used for front panels. These materials make Vertical Laminar Airflow cabinets corrosion-resistant and suitable for sterile environments.

3. How does Vertical Laminar Airflow Cabinet ADVL-512 differ from horizontal laminar airflow?

Vertical Laminar Airflow Cabinet ADVL-512 directs clean air from the top of the cabinet downward, while horizontal laminar airflow pushes air from the back wall toward the user. Vertical Laminar Airflow is better for applications involving taller equipment or where downward air pressure helps push contaminants away. It also reduces operator exposure to exhaust airflow, offering a cleaner zone for critical work.

4. Is Vertical Laminar Airflow Cabinet ADVL-512 suitable for use in tissue culture labs?

Yes, Vertical Laminar Airflow Cabinet ADVL-512 is ideal for tissue culture labs because it offers a sterile environment that protects cultures from airborne contaminants. The downward laminar flow maintains clean air over the entire workspace. Vertical Laminar Airflow units help prevent fungal or microbial contamination, which is critical when working with delicate biological samples.

5. Can UV lights be safely used inside a Vertical Laminar Airflow Cabinet ADVL-512?

Yes, UV lights can be safely used in Vertical Laminar Airflow Cabinet ADVL-512, but only when the unit is not in use and no one is present. UV sterilization is effective for decontaminating surfaces before or after work. However, during operation, UV lights should be turned off to avoid health hazards. Vertical Laminar Airflow with UV features should follow proper safety protocols.

6. What testing is done during Vertical Laminar Airflow Cabinet ADVL-512 validation or certification?

Validation of Vertical Laminar Airflow Cabinet ADVL-512 includes airflow velocity testing, HEPA filter integrity testing, particle count measurement, and smoke pattern testing. These ensure that the cabinet meets ISO Class 5 standards and provides consistent protection. Certification is usually done annually or semi-annually to verify that the Vertical Laminar Airflow is performing to standard operating requirements.
