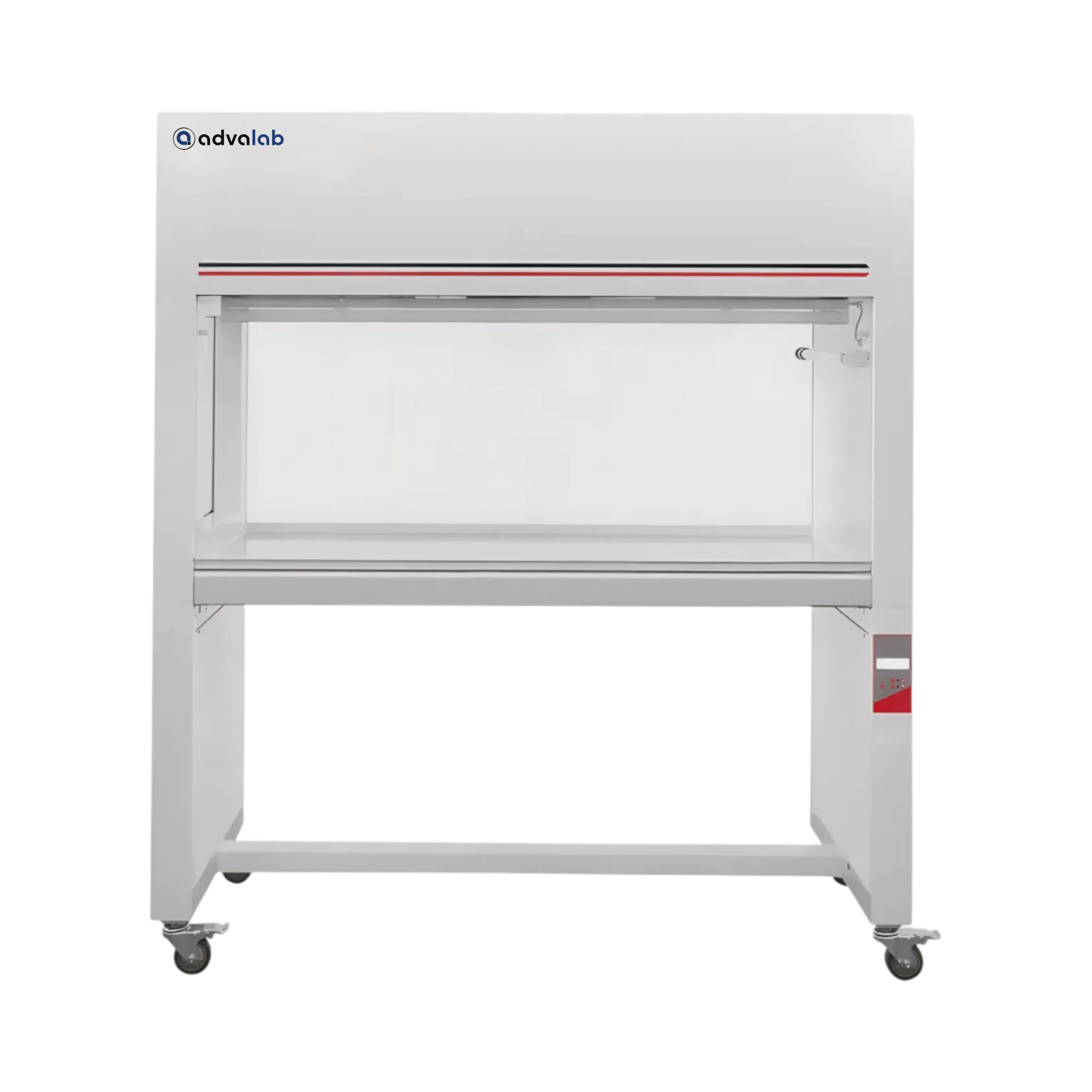

Vertical Laminar Airflow Cabinet ADVL-513 comes with Fan power of 48 W to 110 W to ensures a uniform flow of HEPA-filtered air over the work surface. The design includes a clear front sash and internal lighting for visibility. This unit is equipped with a UV lamp for pre- and post-use workspace sterilization. It provides a continuous stream of air moving in one direction to sweep away contaminants. Our Vertical Laminar Airflow Cabinet is used in labs, hospitals, and food processing to maintain sterile environments.
| External Dimension (L×B×H) | 1200×550×1600 mm |
| Internal Dimension (L×B×H) | 1150×500×460 mm |
| Surface Wind Speed | 0.5 m/h |
| Frequency | 50 to 60 Hz |
| Air Treatment | 230 m³/h |
| Noise | 50 db |
| Electric Current | 10 A |
| Type of Filter | H14 |
| Fan Power | 48 W to 110 W |
| Clean Cabinet | MPPS test shows 99.995% filtration efficiency for particles ≥0.3 microns. |
| Work Top | 1.25 mm stainless steel worktop; non-conductive and corrosion resistant. |
| High-Efficiency Particle Filter | HEPA H14 filter ensures 99.995% efficiency for particles ≥0.3 µm. |
| Pre particle Filter | 40% filtration efficiency for particles >0.3 µm. |
| Power Supply | 110 to 240 V |
Our Vertical Laminar Airflow Cabinet ADVL-513 is used in pharmaceuticals, microbiology and biotechnology to maintain a sterile, particle-free environment for contamination-sensitive processes.
1. How does a Vertical Laminar Airflow Cabinet ADVL-513contribute to aseptic processing?
A Vertical Laminar Airflow Cabinet ADVL-513 provides ISO Class 5 clean air that flows uniformly downward across the work surface. This unidirectional flow helps to remove contaminants from the air and prevents cross-contamination during aseptic processing, making the Vertical Laminar Airflow Cabinet ideal for sterile techniques.
2. Should the sash of a Vertical Laminar Airflow Cabinet ADVL-513 be closed during operation?
Unlike biosafety cabinets, most Vertical Laminar Airflow Cabinet ADVL-513 have an open front or a removable sash. The sash should remain in its designed position during use to maintain proper airflow and closing it during operation may interfere with the cabinet’s laminar flow efficiency.
3. Is vibration a concern when using a Vertical Laminar Airflow Cabinet ADVL-513?
Excessive vibration can interfere with delicate work inside a Vertical Laminar Airflow Cabinet ADVL-513, such as weighing or pipetting. It's best to use vibration-dampening materials or position sensitive equipment on stable surfaces within the Vertical Laminar Airflow Cabinet to avoid disturbance.
4. How long does a HEPA filter last in a Vertical Laminar Airflow Cabinet ADVL-513?
The HEPA filter in a Vertical Laminar Airflow Cabinet ADVL-513 typically lasts 1 to 3 years, depending on usage and environmental conditions. Regular monitoring and annual testing will determine if the filter in your Vertical Laminar Airflow Cabinet needs to be replaced sooner.
5. Can a Vertical Laminar Airflow Cabinet ADVL-513 be customized for specific applications?
Yes, a Vertical Laminar Airflow Cabinet ADVL-513 can be customized with features like UV lights, stainless steel side panels, or adjustable stands. Some manufacturers also offer optional accessories to suit tasks like PCR setup, electronics assembly, or plant micropropagation.
6. Are Vertical Laminar Airflow Cabinet ADVL-513 noisy during operation?
A Vertical Laminar Airflow Cabinet ADVL-513 produces low to moderate noise, generally around 55–65 dB, which is comparable to normal conversation. Newer models are designed to minimize fan and motor noise while maintaining strong, consistent airflow.
| External Dimension (L×B×H) | 1000×575×1360 mm |
| Internal Dimension (L×B×H) | 990×530×400 mm |
| Surface Wind Speed | 0.5 m/h |
| External Dimension (L×B×H) | 1000×550×1600 mm |
| Internal Dimension (L×B×H) | 950×500×460 mm |
| Surface Wind Speed | 0.5 m/h |
| Internal Dimensions (W×D×H) | 1300×650×520 mm |
| Exterior Dimensions (W×D×H) | 1460×700×1650 mm |
| Airflow Direction | Vertical |
| External Dimension (L×B×H) | 1200×575×1360 mm |
| Internal Dimension (L×B×H) | 1190×530×400mm |
| Surface Wind Speed | 0.5 m/h |
| Velocity: | 0.3 to 0.6 m/s |
| Half Peak Amplitude: | ≤ 3µm |
| Number of Colonies: | ≤ 0.5 dish/hr |
| Internal Dimensions (W×D×H): | 1570×480×570 mm |
| Exterior Dimensions (W×D×H): | 1570×790×1380 mm |
| Airflow Direction: | Horizontal |
| Velocity: | 0.3 to 0.6 m/s |
| Half Peak Amplitude: | ≤ 3µm |
| Number of Colonies: | ≤ 0.5 dish/hr |
| Velocity: | 0.3 to 0.6 m/s |
| Half Peak Amplitude: | ≤ 3µm |
| Number of Colonies: | ≤ 0.5 dish/hr |
| Velocity: | 0.3 to 0.6 m/s |
| Half Peak Amplitude: | ≤ 3µm |
| Number of Colonies: | ≤ 0.5 dish/hr |
| Internal Dimensions (W×D×H): | 910×480×570 mm |
| Exterior Dimensions (W×D×H): | 910×790×1380 mm |
| Airflow Direction: | Horizontal |
