Acrylic Glove Box ADAGB-511
Acrylic Glove Box ADAGB-511
Acrylic Glove Box ADAGB-511
Acrylic Glove Box ADAGB-511

Acrylic Glove Box ADAGB-511

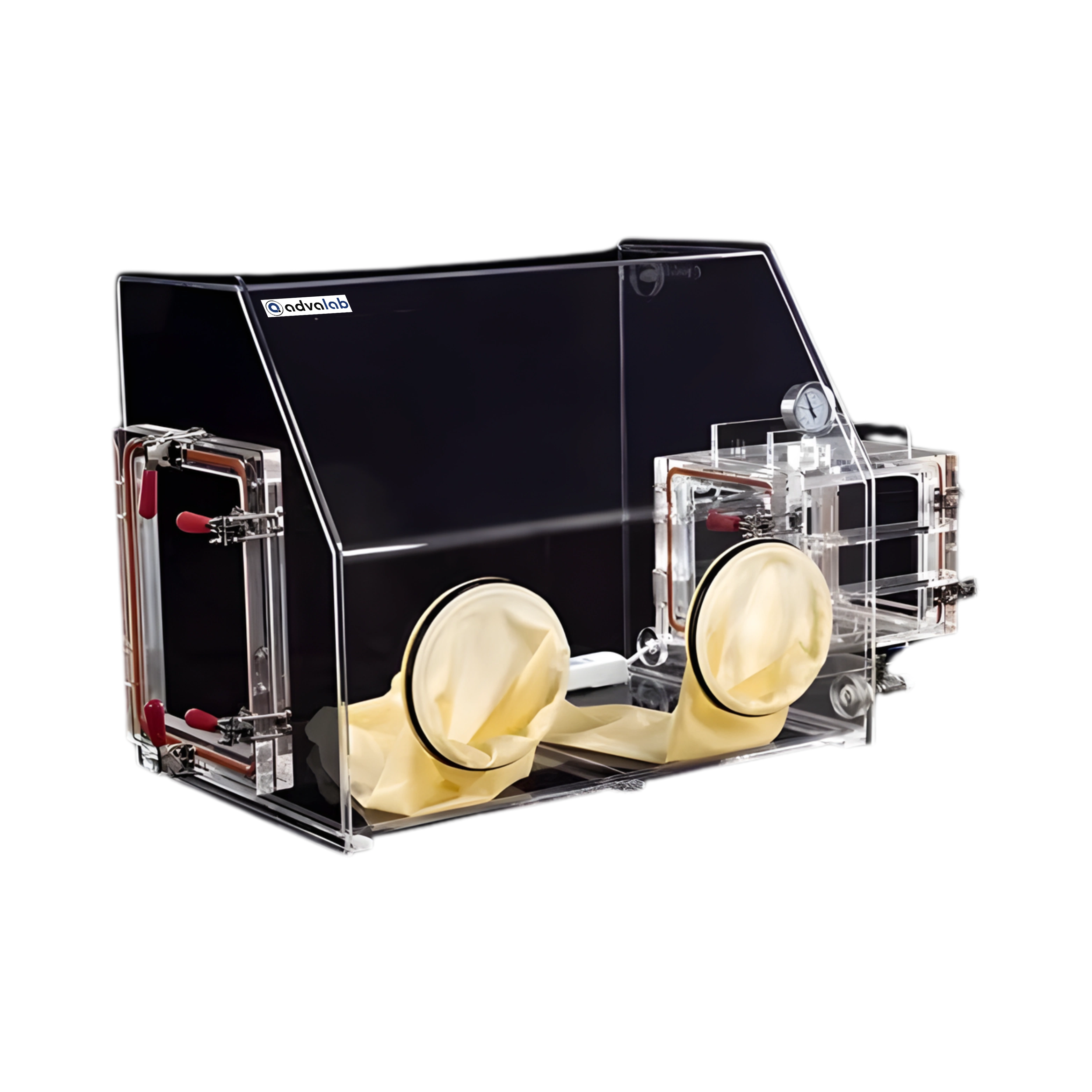

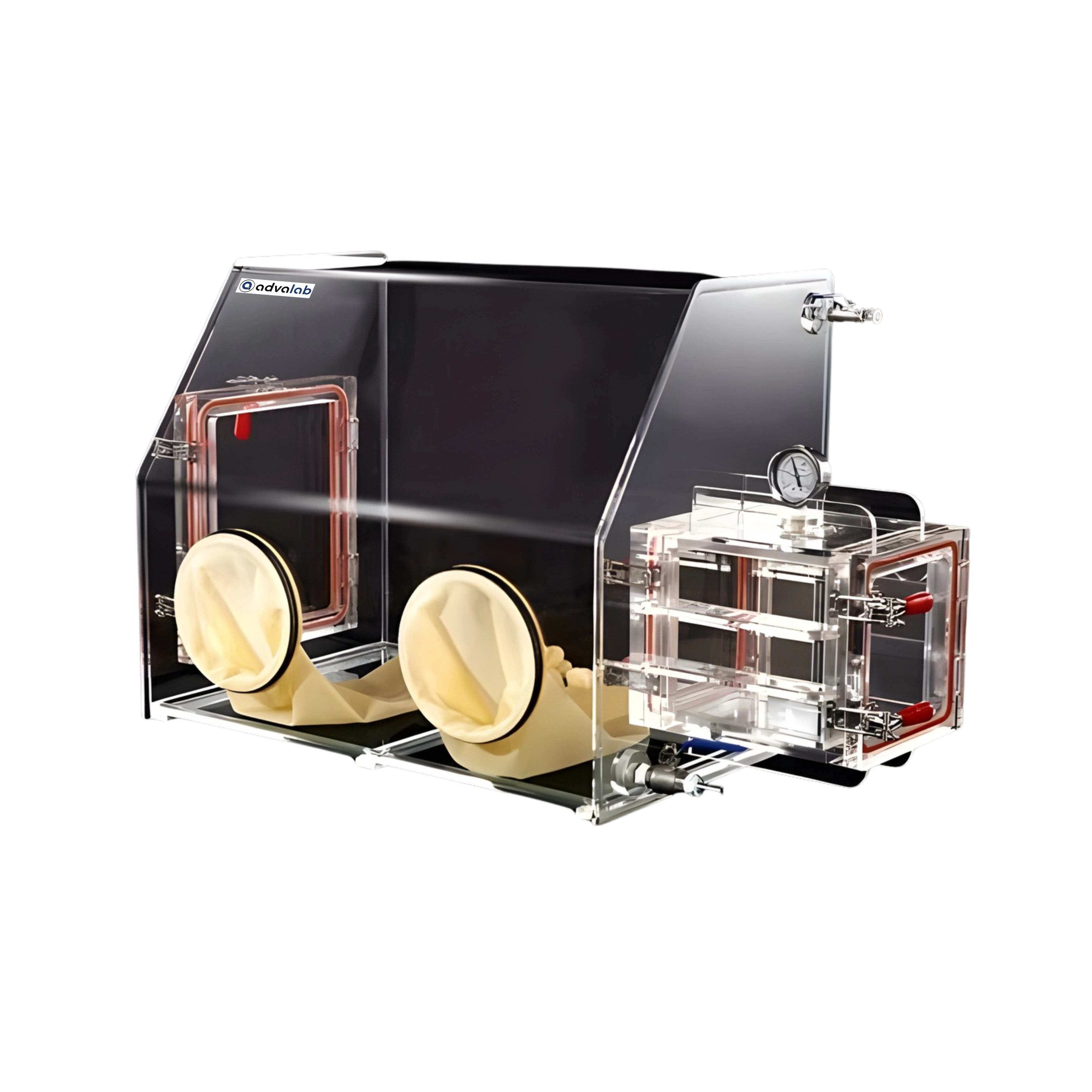

Our Acrylic Glove Box ADAGB-511 is designed with a 260 × 260 × 260 mm antechamber for smooth transfer of sensitive samples. The main chamber is constructed from clear acrylic, offering both strength and full visibility. Corrosion-resistant latex gloves with tight sealing rings ensure safe and reliable handling. A reserved KF interface allows future system expansion or external connections. It is widely used in chemical synthesis and materials research requiring a controlled atmosphere.


Main Chamber Dimension (L×B×H) 900 × 600 × 700 mm
Antechamber Dimension(L×B×H) 260 × 260 × 260mm
H₂O and O₂ Content 200 to 300 PPM
Side Door Dimension (L×B) 400 × 400mm
Ball Valve 304 Stainless Steel balloon valve with integrated water nozzles for air or water entry
Power Socket Multi hole power sockets
Reserved Interface KF reserved interface
Power Supply 220V, 50Hz / 60Hz
Packing Dimension (L×B×H) 1450 × 720 × 920mm
Net Weight 46kg
  • Transparent design
  • Sealed chamber
  • Precise gas control
  • Stainless steel valve
  • Internal electrical ports

Acrylic Glove Box ADAGB-511 ensures safe handling of air or moisture sensitive samples. It is used in research laboratories, educational institutions, and industrial environments.

Frequently Asked Questions of Acrylic Glove Box ADAGB-511

1. How is the antechamber in the Acrylic Glove Box ADAGB-511 sealed?

The antechamber in Acrylic Glove Box ADAGB-511 is equipped with airtight doors or valves that isolate it from the main chamber. When transferring items, the door is closed before purging or pressurizing, ensuring no contamination affects the main workspace.

2. Why are multiple sockets needed inside the Acrylic Glove Box ADAGB-511?

Multiple sockets enable simultaneous operation of several instruments, which is essential for complex experiments. By providing convenient internal power access, Acrylic Glove Box ADAGB-511 improves workflow efficiency, reduces clutter from external wiring.

3. Why choose a 304 stainless steel valve in the Acrylic Glove Box ADAGB-511?

In the Acrylic Glove Box ADAGB-511, the 304 stainless steel valve provides excellent corrosion resistance, durability, and chemical stability, making it ideal for laboratory use. It ensures that repeated exposure to water, air, or vacuum does not compromise performance, keeping the glove box safe and reliable over long-term use.

4. How does the sealing ring in Acrylic Glove Box ADAGB-511 enhance safety?

The sealing ring in the Acrylic Glove Box ADAGB-511 firmly secures the gloves to the port, preventing air or contaminant leaks. This maintains the internal atmosphere, protecting both the user and the sensitive contents of the glove box during experiments.

5. How does the KF interface in the Acrylic Glove Box ADAGB-511benefit users?

The KF interface in Acrylic Glove Box ADAGB-511 simplifies integration of additional equipment or vacuum lines. It allows users to modify or enhance the glove box setup quickly and safely, ensuring the system adapts to changing laboratory requirements.

6. Why choose acrylic material for a glove box?

Acrylic is an ideal choice because it is lightweight yet highly durable, offering long-lasting performance. Its excellent transparency ensures clear visibility during experiments, while the smooth, non-porous surface provides strong chemical resistance and makes cleaning simple and efficient.

7. Can an Acrylic Glove Box maintain a controlled atmosphere?

Yes, Acrylic Glove Boxes can be equipped with gas inlet/outlet ports and purging systems that allow operation under inert gas or low-humidity conditions. This ensures safe handling of moisture-sensitive, air-sensitive, or hazardous materials in research and industrial processes.

8. Is the Acrylic Glove Box easy to clean and maintain?

Yes, the non-porous acrylic surface makes the glove box simple to clean and maintain. Regular wiping with suitable cleaning agents keeps it clear and contamination-free, ensuring durability and hygiene for long-term laboratory or industrial use without compromising performance.
