Acrylic Glove Box ADAGB-509
Acrylic Glove Box ADAGB-509
Acrylic Glove Box ADAGB-509
Acrylic Glove Box ADAGB-509

Acrylic Glove Box ADAGB-509

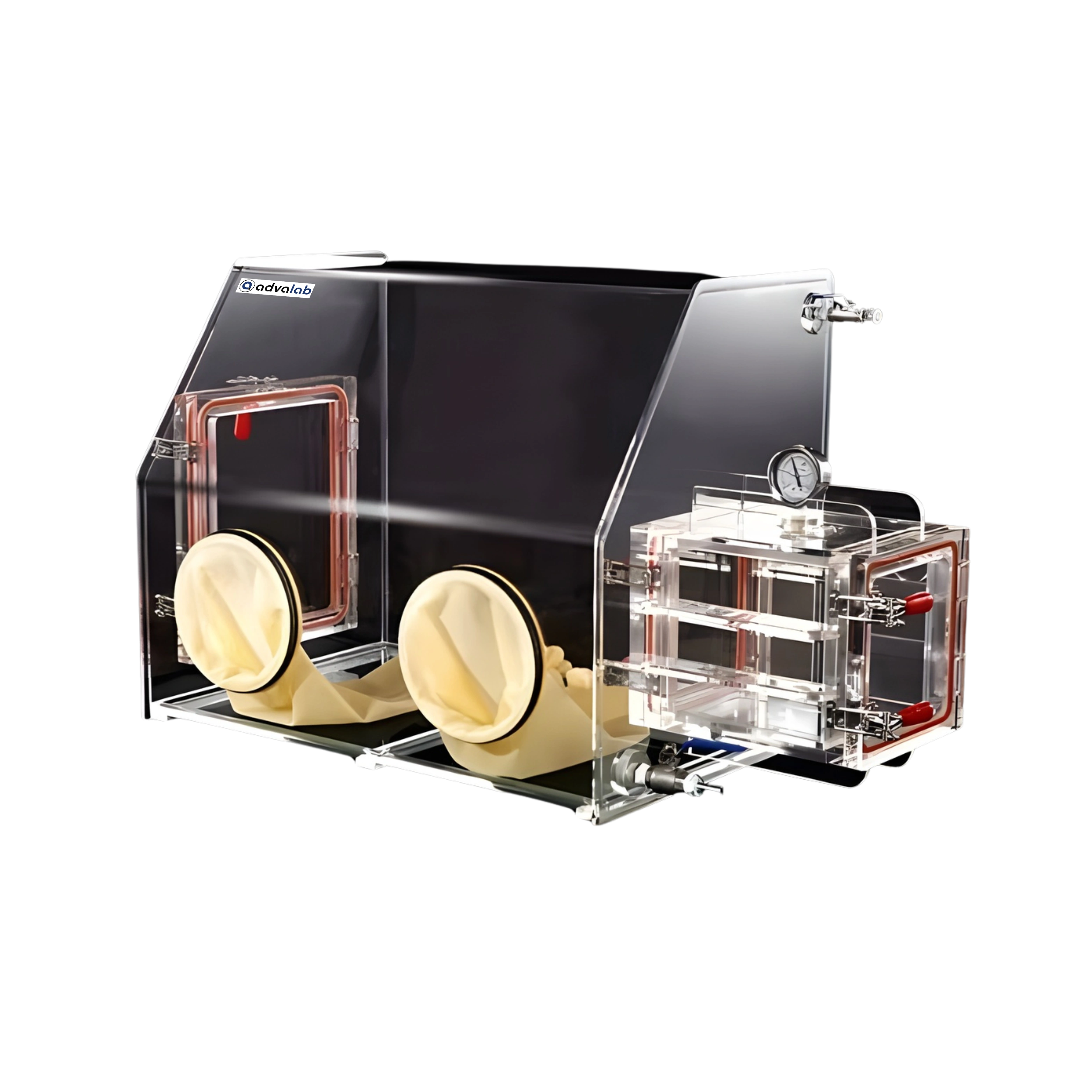

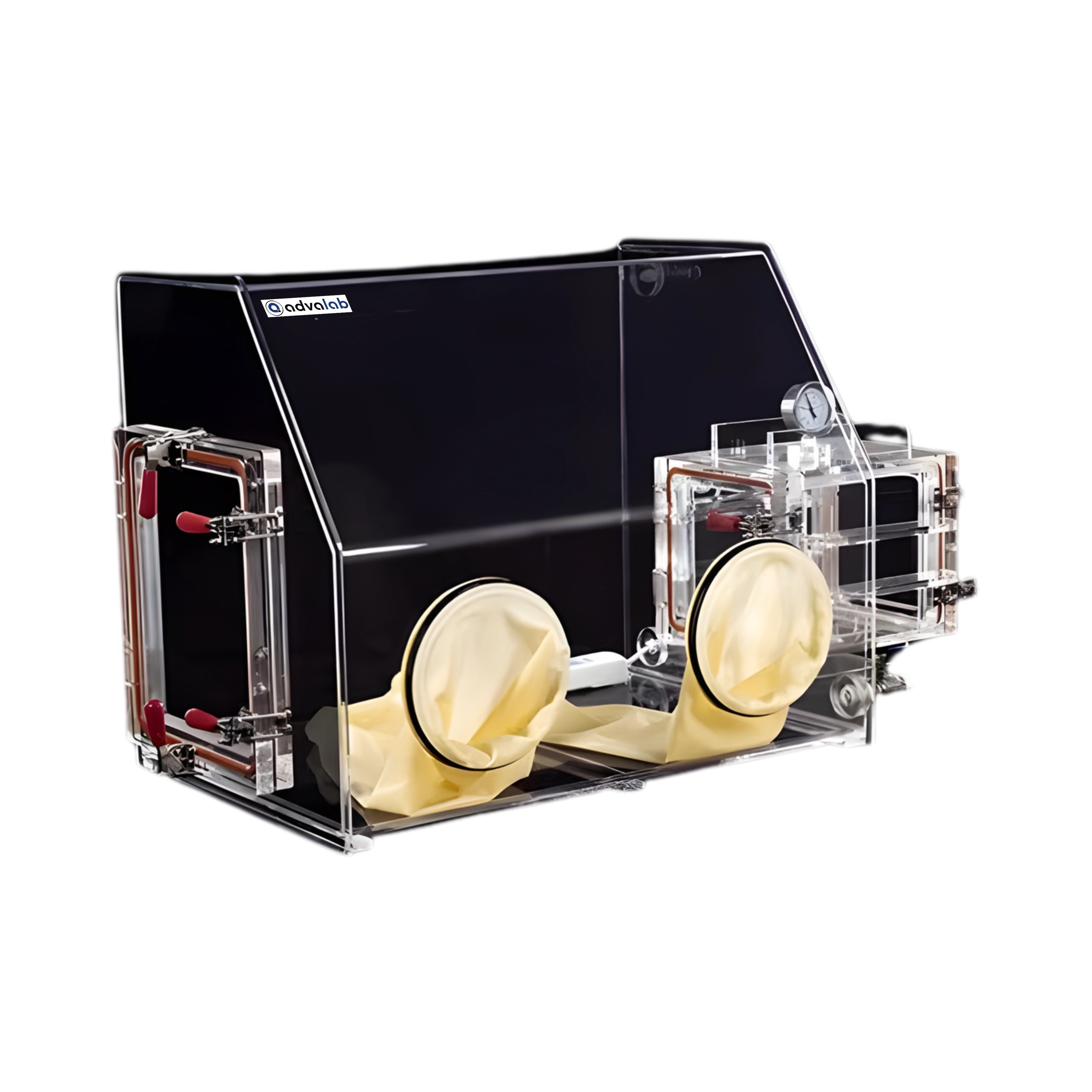

Acrylic Glove Box ADAGB-509 features a 260 × 260 × 260 mm antechamber for smooth and contamination-free sample transfer. It offers a durable acrylic main chamber that maintains low moisture and oxygen levels for sensitive experiments. Durable, corrosion-resistant latex gloves enable comfortable and controlled operations within the chamber. Built-in stainless steel ball valves allow efficient purging and reliable vacuum control. This glove box is widely applied in chemical synthesis, material studies, battery research, and electronics testing.


Main Chamber Dimension (L×B×H) 800 × 550 × 600 mm
Antechamber Dimension (L×B×H) 260 × 260 × 260mm
H₂O and O₂ Content 200 to 300 PPM
Side Door Dimension (L×B) 300 × 300mm
Ball Valve 304 Stainless Steel balloon valve with integrated water nozzles for air or water entry
Power Socket Multi hole power sockets
Reserved Interface KF reserved interface
Packing Dimension (L×B×H) 1350 × 670 × 820mm
Net Weight 30kg
Gross Weight 40 kg
  • Transparent antechamber
  • Side entry panel
  • Sturdy structural design
  • Integrated power outlets
  • Reserved KF interface

Acrylic Glove Box ADAGB-509 used for handling chemicals and sensitive samples in a safe environment. It is used in laboratories, research facilities, and industrial testing.

Frequently Asked Questions of Acrylic Glove Box ADAGB-509

1. Is the valve in Acrylic Glove Box ADAGB-509 suitable for liquid handling?

Yes, the water nozzles and valve design make it possible to introduce or drain liquids safely. This feature is useful for experiments requiring water or other compatible fluids, maintaining a controlled environment without opening the main chamber.

2. Are the gloves in Acrylic Glove Box ADAGB-509 comfortable for long use?

Yes, the industrial-grade latex in Acrylic Glove Box ADAGB-509 is flexible and ergonomically designed, allowing users to handle instruments and samples comfortably over extended periods while maintaining a secure seal.

3. Can the Acrylic Glove Box ADAGB-509 be upgraded later?

Yes, Acrylic Glove Box ADAGB-509 is designed for future upgrades. With the reserved KF interface, new instruments, sensors, or accessories can be added as experimental needs evolve, extending the system’s versatility and lifespan.

4. What is the purpose of the antechamber in Acrylic Glove Box ADAGB-509?

The antechamber in Acrylic Glove Box ADAGB-509 provides a secure space to transfer materials, samples, or instruments into and out of the main chamber without exposing it to outside air, helping maintain a controlled, contamination-free environment inside the glove box.

5. What voltage and frequency do the sockets in Acrylic Glove Box ADAGB-509 support?

The power sockets inside the Acrylic Glove Box ADAGB-509 operate at 220V and are compatible with both 50Hz and 60Hz frequencies. This dual-frequency support ensures stable operation of instruments from different regions, allowing seamless functionality for experiments requiring precise power conditions

6. Why choose acrylic material for a glove box?

Acrylic is an ideal choice because it is lightweight yet highly durable, offering long-lasting performance. Its excellent transparency ensures clear visibility during experiments, while the smooth, non-porous surface provides strong chemical resistance and makes cleaning simple and efficient.

7. Can an Acrylic Glove Box maintain a controlled atmosphere?

Yes, Acrylic Glove Boxes can be equipped with gas inlet/outlet ports and purging systems that allow operation under inert gas or low-humidity conditions. This ensures safe handling of moisture-sensitive, air-sensitive, or hazardous materials in research and industrial processes.

8. Is the Acrylic Glove Box easy to clean and maintain?

Yes, the non-porous acrylic surface makes the glove box simple to clean and maintain. Regular wiping with suitable cleaning agents keeps it clear and contamination-free, ensuring durability and hygiene for long-term laboratory or industrial use without compromising performance.
