Stainless Steel Glove Box ADSSG-501

Stainless Steel Glove Box ADSSG-501

Stainless Steel Glove Box ADSSG-501 features a main chamber measuring 600 × 450 × 450 mm, providing a fully enclosed, contamination-free environment. Built with stainless steel walls, it ensures durability, corrosion resistance, and easy maintenance. It is equipped with precision stainless steel ball valves for controlled introduction of air and water. Designed with tempered glass panels, it combines full visibility with safety. Our glove box is ideal for laboratory and industrial applications requiring low moisture and oxygen levels.


Main Chamber Dimension (L×B×H) 600 × 450 × 450mm
Thickness 3mm
Vacuum Degree -0.1mpa
H₂O and O₂ Index 200 to 300PPM
Side Door Dimension (L×B) 240 × 280mm
Window Material Thickness 12mm tempered glass
Ball Valve Stainless Steel balloon valve with integrated water nozzles for air, water entry
Light Source LED light
Power Socket Multi hole power sockets
Reserved Interface KF reserved interface
Packaging dimensions 770 x 650 x 670 mm
Gross Weight 70 kg
  • High-purity atmosphere
  • LED illumination
  • Multi-port sockets
  • KF interface
  • User friendly operation

Stainless Steel Glove Box ADSSG-501 provides a sealed environment for safely handling chemicals and samples. It is commonly used in laboratories, research facilities, and industrial quality control.

 Nitrile Gloves

Frequently Asked Questions of Stainless Steel Glove Box ADSSG-501

1. How is the chamber vacuum controlled in Stainless Steel Glove Box ADSSG-501?

The Stainless Steel Glove Box ADSSG-501 vacuum system, with stainless steel ball valves, efficiently evacuates air to maintain low pressure. This ensures minimal moisture and oxygen, creating a stable, contamination-free environment for handling sensitive chemicals safely.

2. How are the gloves and ports maintained in Stainless Steel Glove Box ADSSG-501?

Stainless Steel Glove Box ADSSG-501 uses industrial-grade latex gloves with sealed ports, which are durable and easy to clean. Regular inspection and maintenance prevent contamination and ensure airtight operation, extending glove life.

3. Can the Stainless Steel Glove Box ADSSG-501 handle water-sensitive reactions?

Yes, Stainless Steel Glove Box ADSSG-501maintains H?O levels at 200–300?PPM using ball valves and a vacuum system, allowing safe handling of water-sensitive chemicals and reactions without contamination.

4. How easy is Stainless Steel Glove Box ADSSG-501 to monitor experiments inside?

Stainless Steel Glove Box ADSSG-501 features tempered glass panels and LED lighting for full visibility, enabling safe, accurate observation and manipulation of samples without disturbing the controlled low-oxygen, low-moisture environment.

5. How is the side access door in Stainless Steel Glove Box ADSSG-501 used?

The side door in Stainless Steel Glove Box ADSSG-501 allows safe insertion and removal of samples and small instruments without compromising the controlled atmosphere, maintaining low moisture and oxygen levels inside the main chamber.

6. Why is stainless steel used in glove boxes?

Stainless steel is used in glove boxes because it provides excellent durability, corrosion resistance, and long-term reliability. Its strong structure withstands demanding laboratory and industrial conditions, ensuring safe, stable, and contamination-free operation for sensitive applications.

7. How do Stainless Steel Glove Boxes improve lab safety?

By providing a fully sealed and controlled environment, stainless steel glove boxes protect users from hazardous materials and prevent contamination of samples, ensuring safe handling and maintaining the integrity of experiments in laboratories and industrial settings.

8. How does stainless steel enhance the lifespan of glove boxes?

Stainless steel construction provides exceptional strength and resistance to corrosion, chemicals, and wear. This ensures that glove boxes maintain their structural integrity and controlled environment for many years, even under heavy laboratory or industrial use.

Similar Products of Stainless Steel Glove Box

Main Chamber Dimension (L×B×H) 800 × 650 × 680mm
Thickness 3mm
Vacuum Degree -0.1mpa
Main Chamber Dimension (L×B×H) 600 × 450 × 450mm
Thickness 3mm
Vacuum Degree -0.1mpa
Main Chamber Dimension (L×B×H) 1120 × 750 × 900mm
Thickness 3mm
Vacuum Degree -0.1mpa
Main Chamber Dimension (L×B×H) 800 × 650 × 680mm
Thickness 3mm
Vacuum Degree -0.1mpa

Acrylic Glove Box

Acrylic Glove Box ADAGB-506
Main Chamber Dimension (L×B×H):1000 × 750 × 700mm
Material Thickness:6 mm
H₂O and O₂ Content:200 to 300 PPM
Acrylic Glove Box ADAGB-509
Main Chamber Dimension (L×B×H):800 × 550 × 600 mm
Antechamber Dimension (L×B×H):260 × 260 × 260mm
H₂O and O₂ Content:200 to 300 PPM
Acrylic Glove Box ADAGB-510
Main Chamber Dimension (L×B×H):900 × 500 × 500 mm
Antechamber Dimension(L×B×H):260 × 260 × 260mm
H₂O and O₂ Content:200 to 300 PPM
Acrylic Glove Box ADAGB-502
Main Chamber Dimension (L×B×H):700 × 450 × 550 mm
Material Thickness:6 mm
H₂O and O₂ Content:200 to 300 PPM
Acrylic Glove Box ADAGB-512
Main Chamber Dimension (L×B×H):1000 × 750 × 700 mm
Antechamber Dimension(L×B×H):260 × 260 × 260mm
H₂O and O₂ Content:200 to 300 PPM
Acrylic Glove Box ADAGB-508
Main Chamber Dimension (L×B×H):700 × 450 × 550 mm
Antechamber Dimension(L×B×H):260 × 260 × 260mm
H₂O and O₂ Content:200 to 300 PPM
Acrylic Glove Box ADAGB-503
Main Chamber Dimension (L×B×H):800 × 550 × 600mm
Material Thickness:6mm
H₂O and O₂ Content:200 to 300 PPM
Acrylic Glove Box ADAGB-504
Main Chamber Dimension (L×B×H):900 × 500 × 500mm
Material Thickness:6mm
H₂O and O₂ Content:200 to 300 PPM
Acrylic Glove Box ADAGB-513
Main Chamber Dimension (L×B×H):1200 × 800 × 700 mm
Antechamber Dimension(L×B×H):260 × 260 × 260mm
H₂O and O₂ Content:200 to 300 PPM
Acrylic Glove Box ADAGB-501
Main Chamber Dimension (L×B×H):300 × 400 × 500mm
Material Thickness:6 mm
H₂O and O₂ Content:200 to 300 PPM
Acrylic Glove Box ADAGB-507
Main Chamber Dimension (L×B×H):1200 × 800 × 700mm
Material Thickness:6 mm
H₂O and O₂ Content:200 to 300 PPM
Acrylic Glove Box ADAGB-505
Main Chamber Dimension (L×B×H):900 × 600 × 700mm
Material Thickness:6 mm
H₂O and O₂ Content:200 to 300 PPM
Acrylic Glove Box ADAGB-511
Main Chamber Dimension (L×B×H):900 × 600 × 700 mm
Antechamber Dimension(L×B×H):260 × 260 × 260mm
H₂O and O₂ Content:200 to 300 PPM

Gas Purification Glove Box

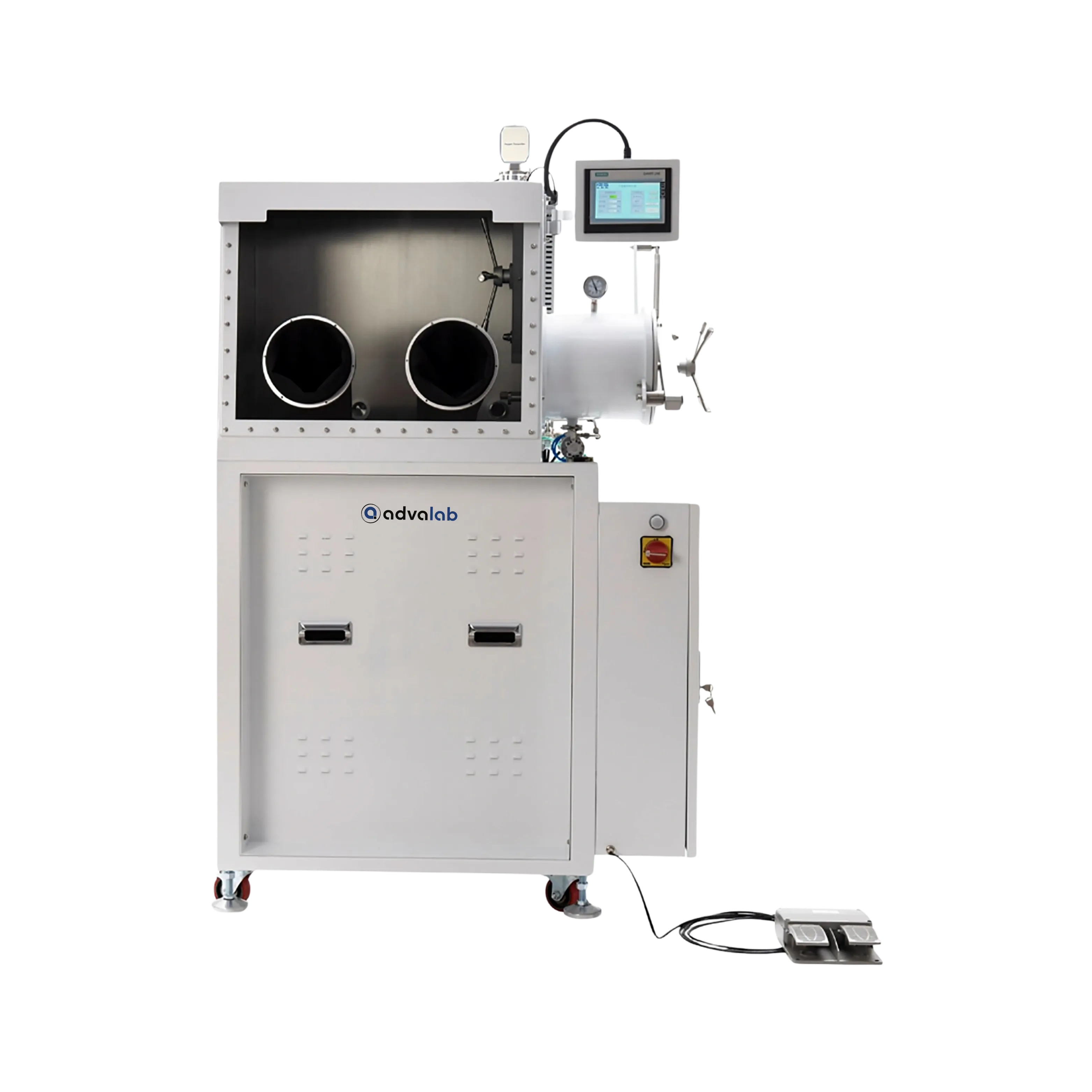

Gas Purification Glove Box ADPGB-502
Working Gas:Nitrogen, argon (gas purity 99.999%)
H₂O and O₂ Index:Less than 1PPM
Circulating Capacity:Integrated fan flow rate of 90m³/h

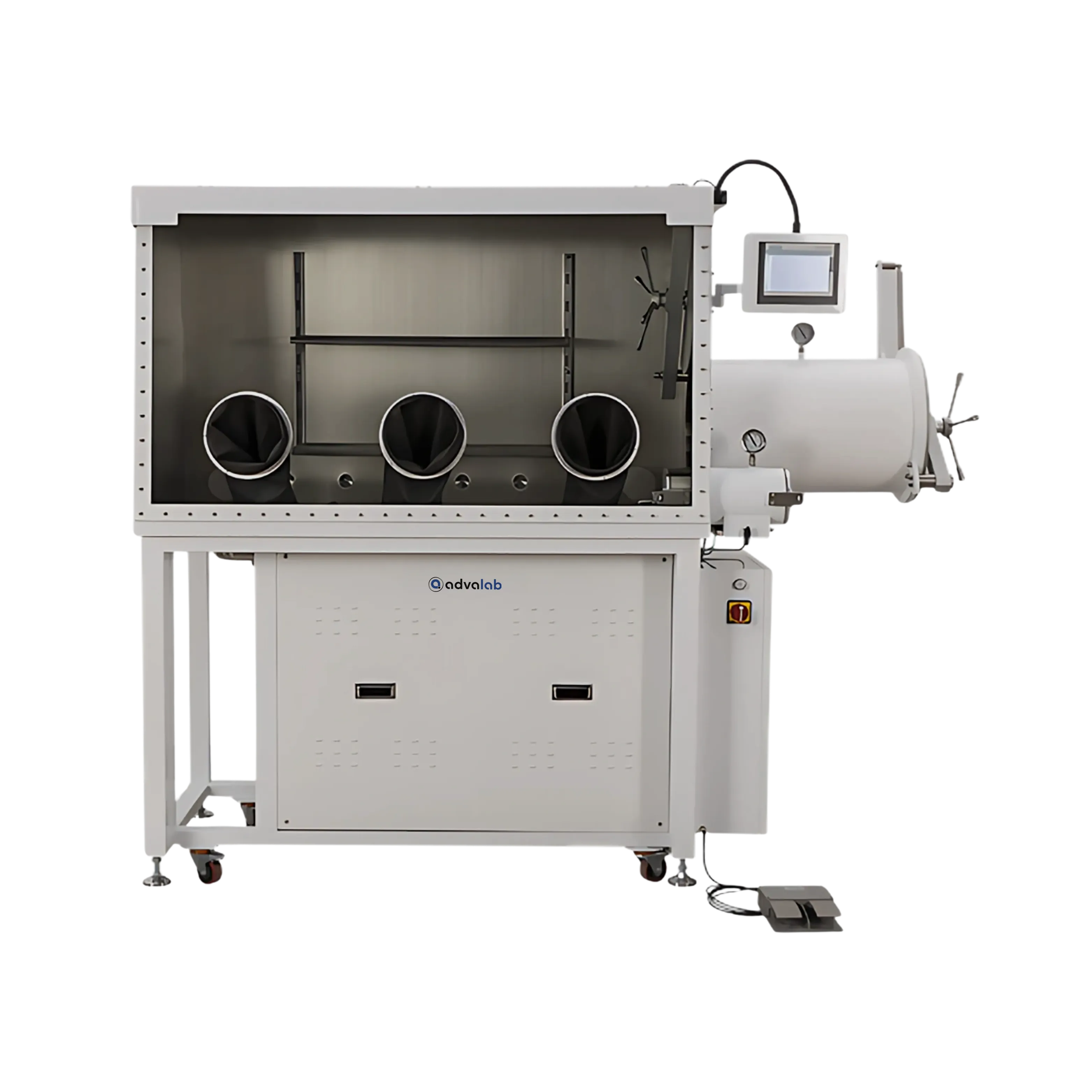

Gas Purification Glove Box ADPGB-504
Working Gas:Nitrogen, argon (gas purity 99.999%)
H₂O and O₂ Index:Less than 1PPM
Circulating Capacity:Integrated fan flow rate of 90m³/h
Gas Purification Glove Box ADPGB-506
Glove Box Type:Stainless Steel Glove Box with H₂O & O₂ Purification System
Water Concentration:<1 ppm at 20°C, 1 atm
Oxygen Concentration:<1 ppm at 20°C, 1 atm
Gas Purification Glove Box ADPGB-503
Working Gas:Nitrogen, argon (gas purity 99.999%)
H₂O and O₂ Index:Less than 1PPM
Material:Stainless steel, 3mm thickness

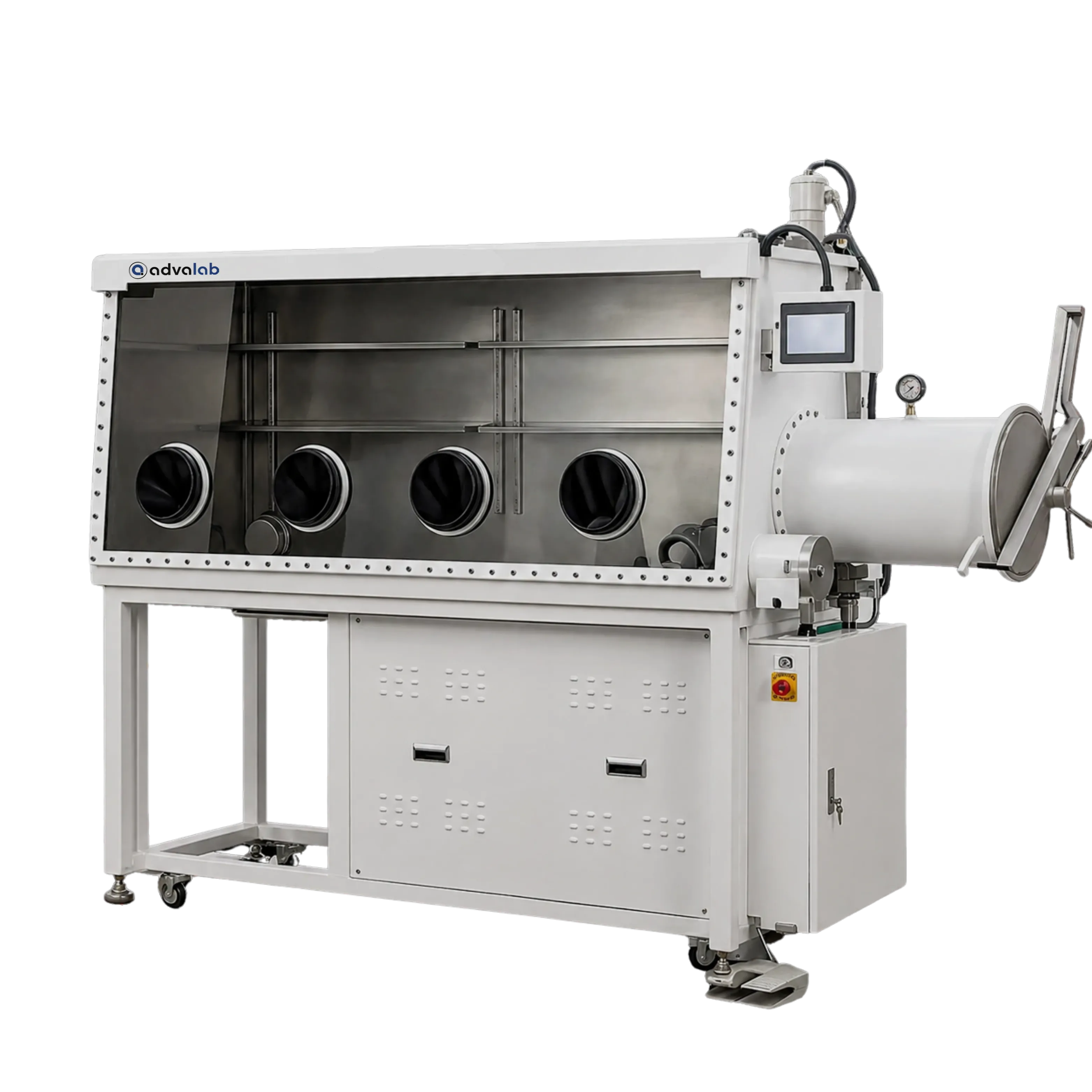

Gas Purification Glove Box ADPGB-505
Working Gas:Nitrogen, argon (gas purity 99.999%)
H₂O and O₂ Index:Less than 1PPM
Circulating Capacity:Integrated fan flow rate of 90m³/h

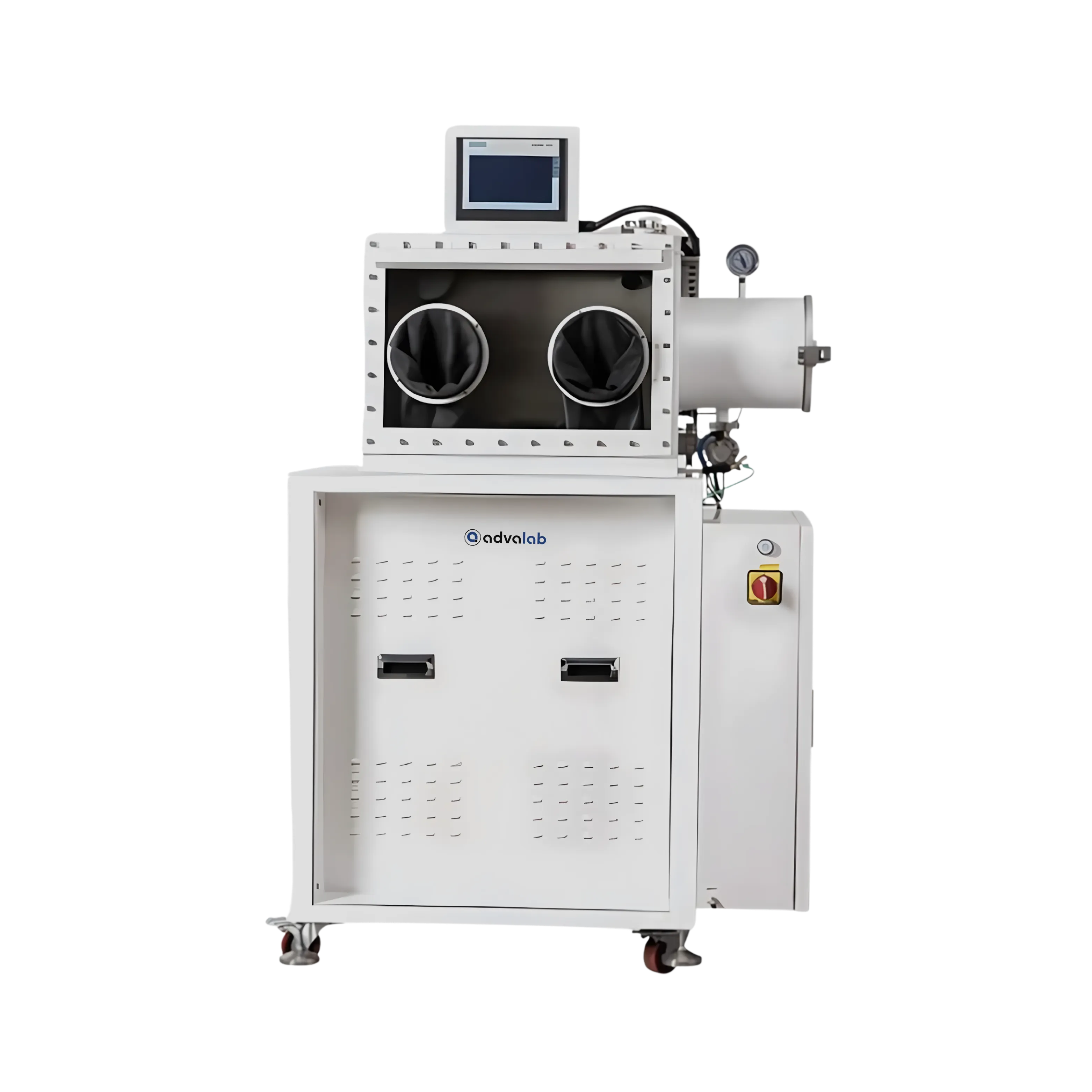

Gas Purification Glove Box ADPGB-501
