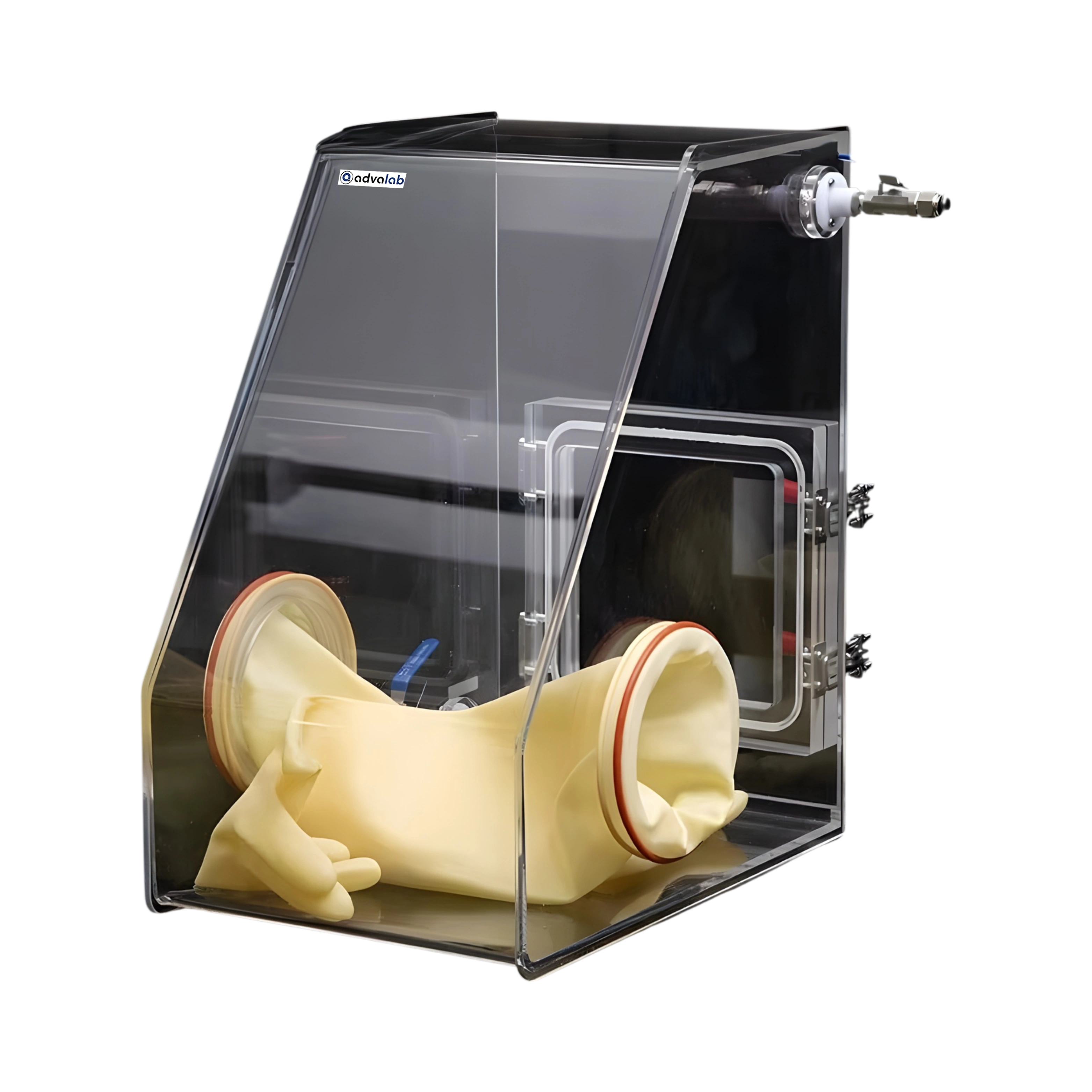

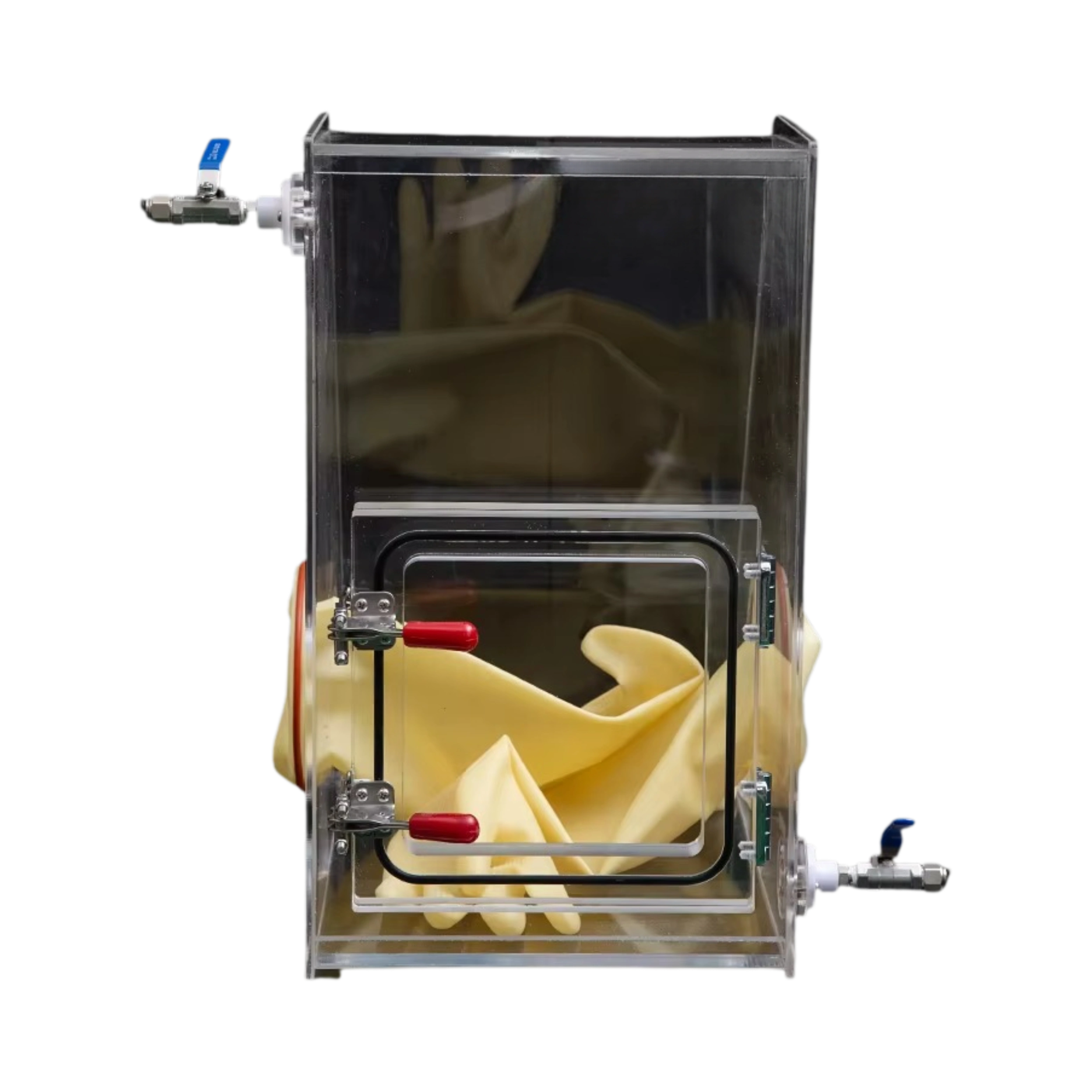

Acrylic Glove Box ADAGB-501 features a main chamber measuring 300 × 400 × 500 mm, providing sufficient space for experiments. It maintains low H₂O and O₂ levels, ensuring a high-purity, anhydrous oxygen environment. The side door allows easy placement and removal of equipment. A built-in multi-hole power socket inside the chamber provides convenient connection for an instrument. Our glove box is ideal for laboratories and research facilities requiring a controlled, contamination-free atmosphere.


Main Chamber Dimension (L×B×H) 300 × 400 × 500mm
Material Thickness 6 mm
H₂O and O₂ Content 200 to 300 PPM
Side Door Dimension (L×B) 260 × 260mm
Packing Dimension (L×B×H) 690 × 540 × 720mm
Net Weight 10kg
  • Acrylic main chamber
  • Corrosion-resistant gloves
  • Precision control valve
  • Sealed KF interface
  • Stable power output

Acrylic Glove Box ADAGB-501 used for handling sensitive chemicals and hazardous materials in a contamination-free environment. It is ideal for laboratories, research facilities, and industrial processes.

Frequently Asked Questions of Acrylic Glove Box ADAGB-501

1. How is a high-purity environment achieved in Acrylic Glove Box ADAGB-501?

A high-purity environment is achieved by repeatedly vacuuming the glove box and filling it with high-purity inert gas, which reduces water and oxygen levels to 200–300?PPM, ensuring a controlled, contamination-free atmosphere for sensitive materials and experiments.

2. Can Acrylic Glove Box ADAGB-501 be upgraded in the future?

Yes, Acrylic Glove Box ADAGB-501 can be upgraded in the future. It features a sealed KF interface that allows for easy addition of new instruments, modifications, or system enhancements, ensuring the glove box can adapt to changing laboratory or industrial requirements without replacing the main unit.

3. Can instruments be used inside Acrylic Glove Box ADAGB-501?

Yes, instruments can be used inside Acrylic Glove Box ADAGB-501. It is equipped with multi-hole power sockets that allow safe operation of internal devices such as rotary machines, sensors, or other laboratory equipment, ensuring uninterrupted function within the controlled, contamination-free environment.

4. What are the main chamber dimensions of Acrylic Glove Box ADAGB-501?

Acrylic Glove Box ADAGB-501 has a main chamber of 700 × 450 × 550?mm (L×B×H), providing ample space for experiments and instruments, while the side door measures 260 × 260?mm (L×B) for convenient and safe access to the controlled environment.

5. What type of gloves are included in Acrylic Glove Box ADAGB-501?

Acrylic Glove Box ADAGB-501 includes industrial-grade, corrosion-resistant latex gloves with sealing rings, ensuring safe and precise handling of materials. They provide durability, chemical resistance, and a secure fit, allowing accurate manipulation in a controlled, contamination-free environment.

6. Why choose acrylic material for a glove box?

Acrylic is an ideal choice because it is lightweight yet highly durable, offering long-lasting performance. Its excellent transparency ensures clear visibility during experiments, while the smooth, non-porous surface provides strong chemical resistance and makes cleaning simple and efficient.

7. Can an Acrylic Glove Box maintain a controlled atmosphere?

Yes, Acrylic Glove Boxes can be equipped with gas inlet/outlet ports and purging systems that allow operation under inert gas or low-humidity conditions. This ensures safe handling of moisture-sensitive, air-sensitive, or hazardous materials in research and industrial processes.

8. Is the Acrylic Glove Box easy to clean and maintain?

Yes, the non-porous acrylic surface makes the glove box simple to clean and maintain. Regular wiping with suitable cleaning agents keeps it clear and contamination-free, ensuring durability and hygiene for long-term laboratory or industrial use without compromising performance.
